59.8-Inch Wall-Mounted 1:1 Square LCD Panel Picture Signage WiFi Frame with Advertising Feature
59.8 Inch Metal Square LCD Panel Resolution:1908*1908 Display area:1073.43*1073.43mm G+FF capacitive touch
59.8-Inch Wall-Mounted 1:1 Square LCD Panel Picture Signage WiFi Frame with Advertising Feature
59.8-Inch Wall-Mounted Square LCD Signage with WiFi Advertising System
The 59.8-Inch Wall-Mounted 1:1 Square LCD Panel Picture Signage WiFi Frame with Advertising Feature is a premium digital display solution designed for high-impact commercial environments. This advanced square lcd signage system combines a large-format square screen with smart operating systems, enabling powerful content management and visually balanced advertising presentation.
Unlike traditional widescreen displays, this 1:1 square format delivers a unique visual symmetry that is ideal for luxury branding, art display, and high-end retail environments. It is widely deployed in the United States, Europe, and Middle Eastern markets where visual differentiation is essential for customer engagement.
As a direct manufacturer, we provide full OEM & ODM customization, making this solution suitable for both standard commercial projects and fully branded digital signage systems.
Smart Operating Systems for Flexible Digital Signage
This square lcd signage supports multiple operating systems, making it highly adaptable for different project requirements.
Square Android Signage System
The square android signage system allows users to:
- Install third-party applications
- Manage content remotely
- Play multimedia advertising
- Integrate with cloud CMS platforms
It is ideal for retail chains and franchise branding systems.
Square Windows Signage System
The square windows signage system is suitable for:
- Corporate communication
- Data visualization dashboards
- Interactive advertising systems
- Custom software integration
It provides maximum compatibility for enterprise environments.
59.8 Inch Square LCD Panel | ||
Display Specifications | ||
Screen Size | 59.8 inch | |
Resolution | 1908*1908 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+FF Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Large Format Square LCD for High-End Commercial Spaces
The 59.8-inch size makes this square lcd signage ideal for premium environments requiring large visual impact.
Application scenarios include:
- Luxury retail stores
- Shopping malls
- Art galleries and museums
- Hotel lobbies
- Corporate reception areas
- Exhibition centers
The large square format enhances both visibility and brand storytelling.
Factory Direct Square LCD Supplier for Global Markets
We are a professional manufacturer specializing in commercial display systems.
As a reliable square lcd supplier germany and square lcd supplier middle east, we support global distribution with factory-level control.
Manufacturing capabilities:
- LCD panel integration
- Aluminum frame design
- System board assembly
- Software configuration
- Aging and reliability testing
- Export packaging and logistics
We ensure consistent quality and stable supply for international projects.

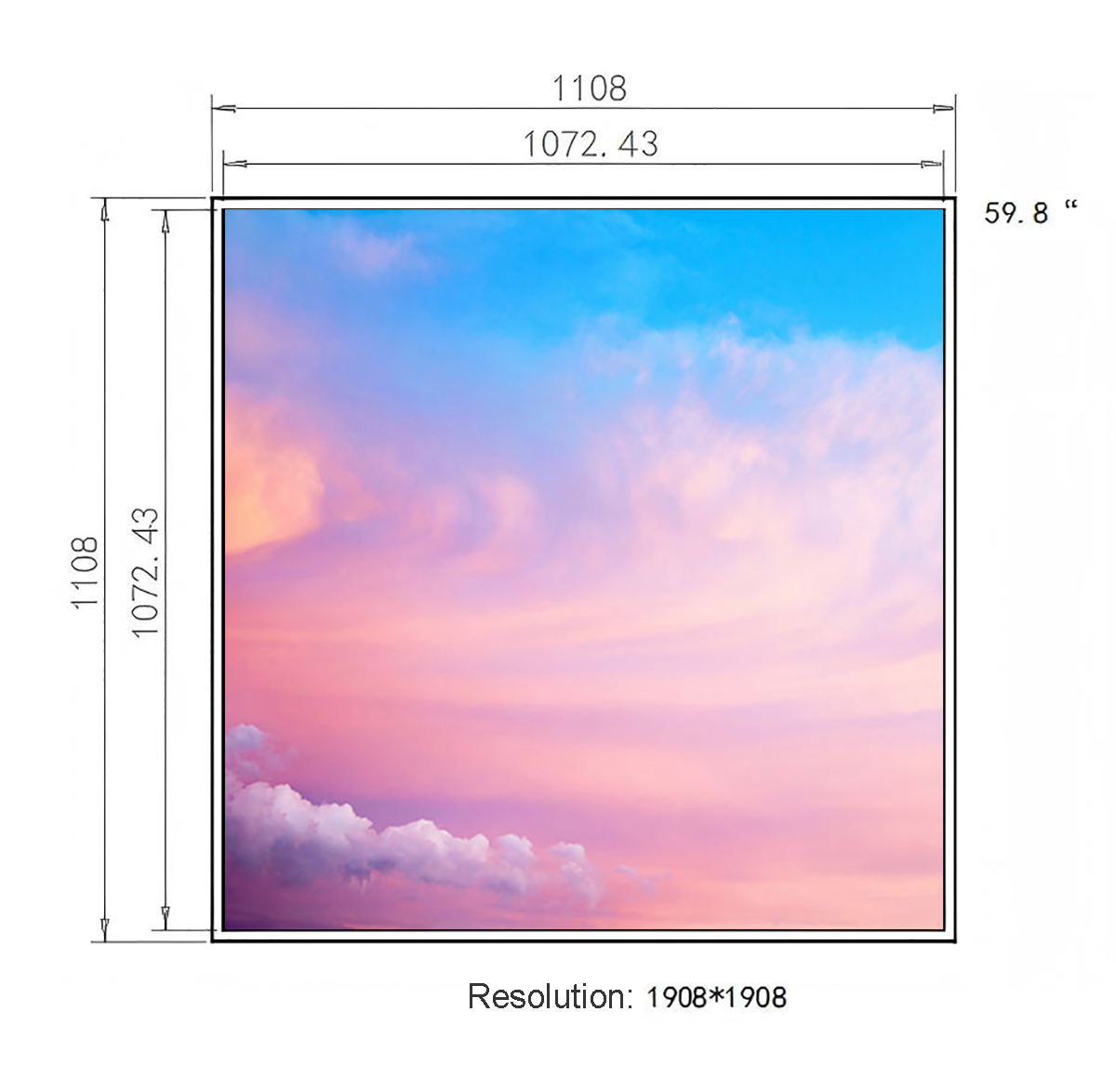

Product Dimension as follows:
OEM & ODM Customization Services
We provide full customization for all square lcd signage solutions.
Hardware customization:
- Screen brightness adjustment
- Touch screen integration
- Frame material customization
- Size and structure modification
Software customization:
- Android / Windows / Linux systems
- CMS platform integration
- Remote content management
- Custom UI design
Branding customization:
- Logo printing
- Packaging design
- Interface customization
- Private label manufacturing
Key Use Cases Across Industries
Retail Industry
- Luxury brand advertising
- Seasonal promotions
- Product storytelling
Hospitality Industry
- Hotel lobby branding
- Restaurant digital menus
- Guest information systems
Corporate Sector
- Brand communication walls
- Meeting room displays
- Reception area signage
Public & Cultural Spaces
- Museums
- Galleries
- Exhibition centers
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
