33.1 Inch Wall Mounted Square LCD Display Frame style with SDK for Exhibition Hall
33.1-inch picture frame square display
33.1 Inch Wall Mounted Square LCD Display Frame style with SDK for Exhibition Hall
33.1-Inch Wall Mounted Square Commercial Display with SDK for Exhibition Hall Applications
The 33.1 Inch Wall Mounted Square LCD Display Frame Style with SDK is a professional square commercial display designed for exhibition halls, museums, corporate showrooms, and interactive brand experience centers.
With a modern frame-style structure and SDK integration support, this display allows developers and system integrators to build customized interactive applications, making it ideal for advanced digital signage and smart exhibition environments across the USA, Europe, and Middle East.
Unlike standard signage screens, a square commercial display delivers a balanced visual format that enhances content symmetry and improves user engagement in interactive spaces.
Why Square Commercial Display Is Ideal for Exhibition Environments
The square commercial display format is widely used in exhibition halls because it provides a structured and visually stable presentation area for storytelling, branding, and interactive content.
Key advantages:
- Wall-mounted frame design for premium exhibition aesthetics
- SDK support for custom software development
- Full HD commercial-grade LCD panel
- Stable 24/7 operation capability
- Flexible integration with interactive systems
This makes it an ideal solution for modern digital exhibitions and smart museums.
Square Ethernet Display System for Network Control
The square ethernet display system enables centralized content management across multiple screens in different exhibition zones.
Key benefits:
- Remote content control via LAN network
- Real-time content synchronization
- Multi-screen management support
- Stable wired communication for large venues
- Secure enterprise-level operation
This system is widely used in museums, exhibition centers, and corporate experience halls.
33.1 Inch Frame style Square LCD Display | ||
Display Specifications | ||
Screen Size | 33.1 inch | |
Resolution | 943*943/1886*1886 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+G Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Square USB Display Screen for Offline Content Playback
The square usb display screen function enables simple offline content updates via USB drives.
Key features:
- Easy plug-and-play operation
- Supports video, image, and slideshow formats
- No network required
- Ideal for temporary exhibitions and events
This makes content management simple for non-technical users.
Square Interactive Display System for Smart Engagement
The square interactive display system transforms passive viewing into active user engagement.
Interactive applications:
- Touch-based exhibition navigation
- Product exploration systems
- Digital storytelling interfaces
- Educational museum content systems
It enhances visitor engagement and improves information retention in exhibition environments.
Square Touch Kiosk Screen for Public Interaction
The square touch kiosk screen is widely used in exhibition halls and public spaces for self-service interaction.
Use cases:
- Visitor information kiosks
- Ticketing and registration systems
- Exhibition navigation guides
- Feedback collection terminals
Its responsive touchscreen interface improves user experience and reduces manual staff workload.
SDK Development Support for Custom Applications
This square commercial display includes SDK support, enabling developers to build custom applications.
SDK capabilities:
- Android-based application development
- Custom UI interface design
- Hardware control integration
- Multi-touch gesture support
- API-based system connectivity
This makes it suitable for advanced enterprise and exhibition system integration.

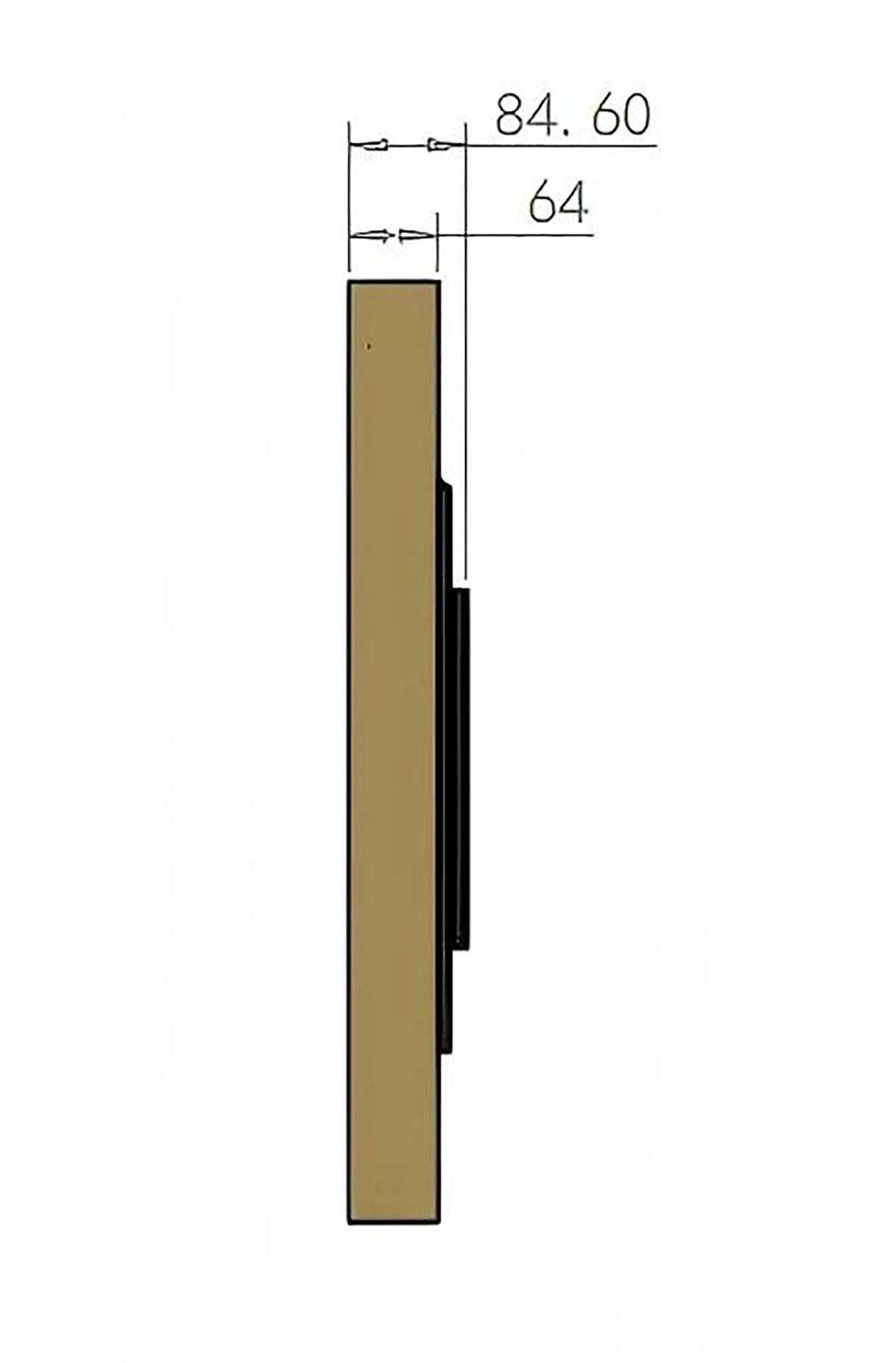

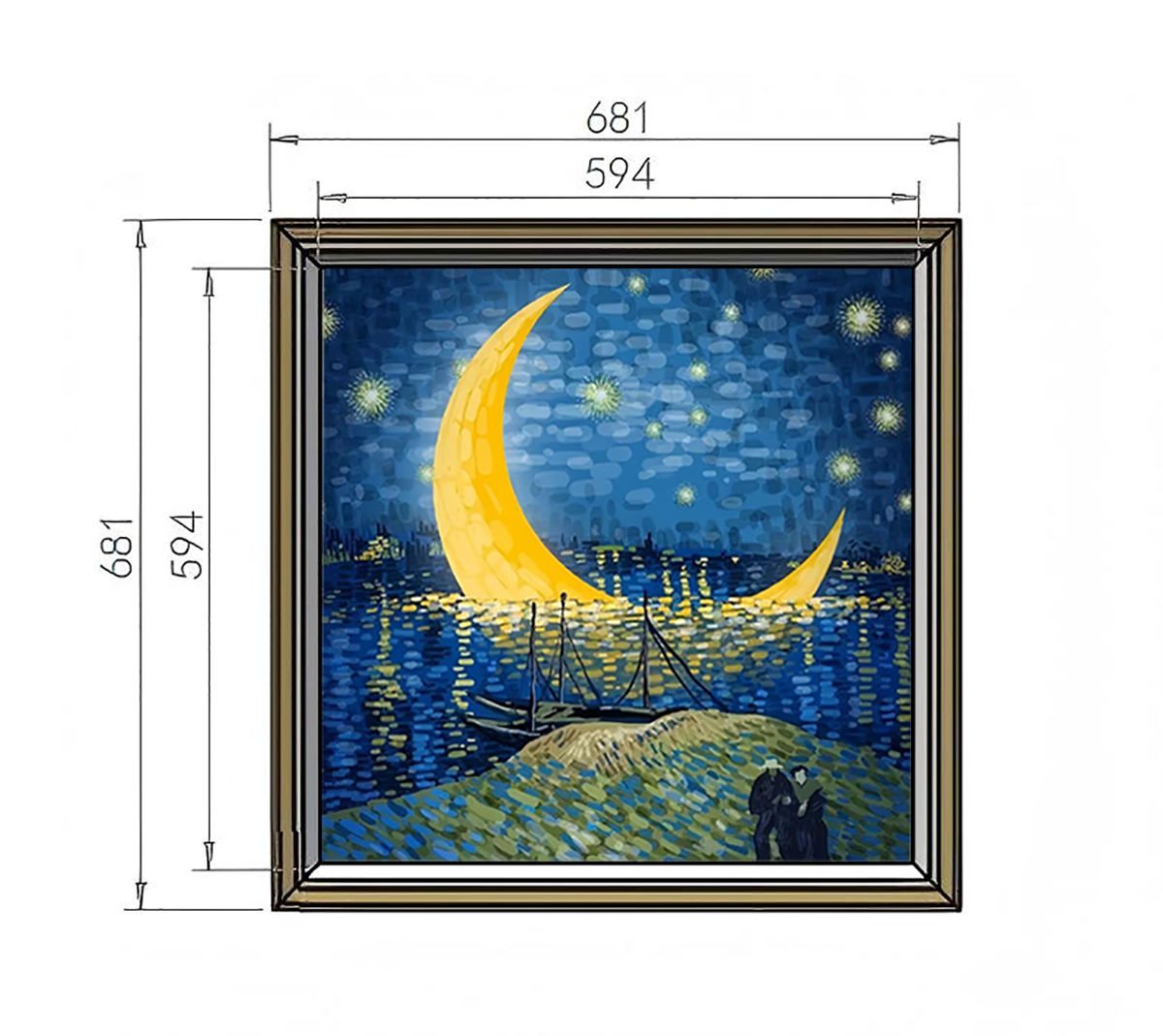

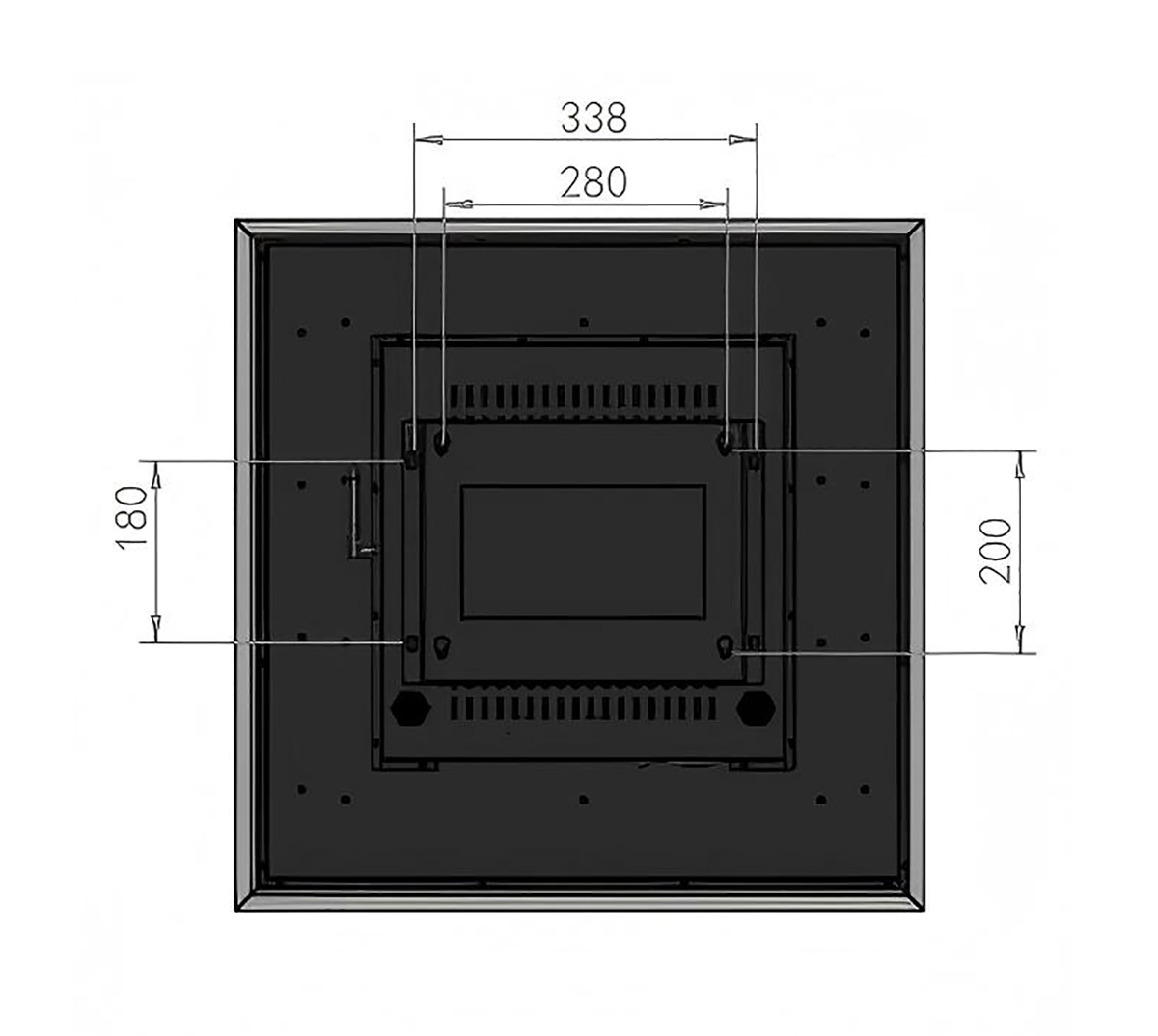

Product Dimension as follows:
Application Scenarios Overview
The 33.1-inch square commercial display is widely used in:
- Exhibition halls and museums
- Corporate brand experience centers
- Smart retail showrooms
- Educational institutions
- Government public display systems
- Trade shows and events
Its versatility makes it a strong choice for interactive digital environments.
Frequently Asked Questions (FAQ)
Q1: What is a square commercial display used for?
It is used for exhibitions, museums, kiosks, and interactive digital signage systems.
Q2: Does it support interactive applications?
Yes, it supports square interactive display system functionality with SDK integration.
Q3: Can it be connected via network?
Yes, it supports square ethernet display system for centralized control.
Q4: Does it support HDMI input?
Yes, it includes square hdmi display module compatibility.
Q5: Can I customize the software?
Yes, full SDK and OEM/ODM software customization are available.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
