33.1 Inch 943*943 Elevator Art Museum SDK ODM Square Advertising Display Digital Signage
33.1-inch square screen Resolution: 943*943/1886*1886
33.1 Inch 943*943 Elevator Art Museum SDK ODM Square Advertising Display Digital Signage
33.1-Inch Square Signage Screen for Elevator, Museum, and Industrial Digital Signage
The 33.1 Inch 943×943 Elevator Art Museum SDK ODM Square Advertising Display is a high-performance square signage screen designed for modern digital environments that require both visual impact and system integration flexibility.
Built with SDK support and ODM customization capability, this model is widely used in elevators, museums, factories, and logistics systems across the USA, Europe, India, and Middle East markets.
Unlike traditional rectangular displays, a square signage screen provides a more balanced visual field, making it ideal for information-rich content and structured data presentation.
Why Square Signage Screen Is Ideal for Smart Infrastructure
The square signage screen format is increasingly adopted in industrial and public infrastructure due to its efficient layout and strong visibility.
Key advantages:
- 943×943 high-resolution square panel design
- SDK support for advanced software integration
- Industrial-grade stable operation (24/7)
- Flexible mounting for elevators and walls
- Strong visual symmetry for structured content
This makes it suitable for both aesthetic applications like museums and functional systems like logistics monitoring.
Square LCD Supplier India for Growing Digital Markets
We support global distribution as a square lcd supplier india, providing scalable solutions for fast-growing infrastructure and retail digitalization projects.
India market advantages:
- Cost-effective bulk supply
- Support for government and smart city projects
- Multi-language content compatibility
- OEM branding for local distributors
- Stable logistics and export support
This helps integrators deploy large-scale signage systems efficiently.
33.1 Inch Square Advertising Display | ||
Display Specifications | ||
Screen Size | 33.1 inch | |
Resolution | 943*943/1886*1886 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+G Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Square Display for Factory Monitoring Systems
The square display for factory monitoring is widely used in industrial environments for real-time production visibility.
Industrial applications:
- Production line monitoring
- Equipment status dashboards
- Quality control visualization
- Factory performance analytics
It improves operational efficiency and decision-making in smart factories.
Square LCD Display for Industrial Systems
The square lcd display for industrial system is designed for harsh environments requiring stable and continuous operation.
Key features:
- 24/7 industrial-grade stability
- Anti-interference display system
- High brightness optional configuration
- Durable metal housing design
It is widely used in automation, energy, and manufacturing industries.
OEM & ODM Customization Services
We provide full OEM and ODM customization for all square signage screen products.
Hardware customization:
- Screen size and resolution adjustment
- Brightness levels (200–1000 nits optional)
- Touch/non-touch configuration
- Interface options (HDMI / USB / LAN / RS232)
Software customization:
- Android / Windows / Linux support
- SDK integration for custom applications
- CMS remote control platform
- UI interface customization
Branding customization:
- Logo printing
- Housing design customization
- Packaging branding
- Private label manufacturing
-

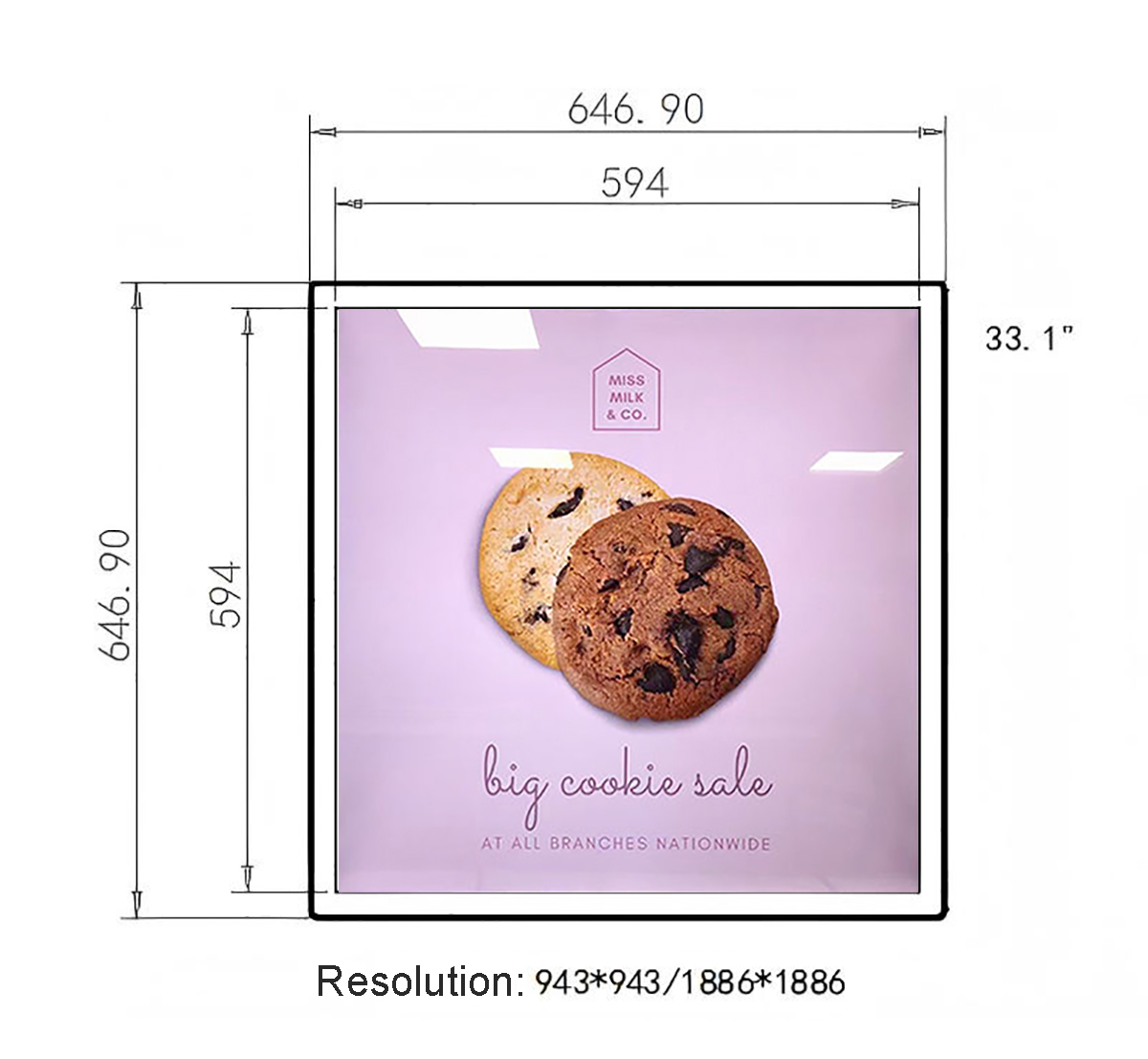

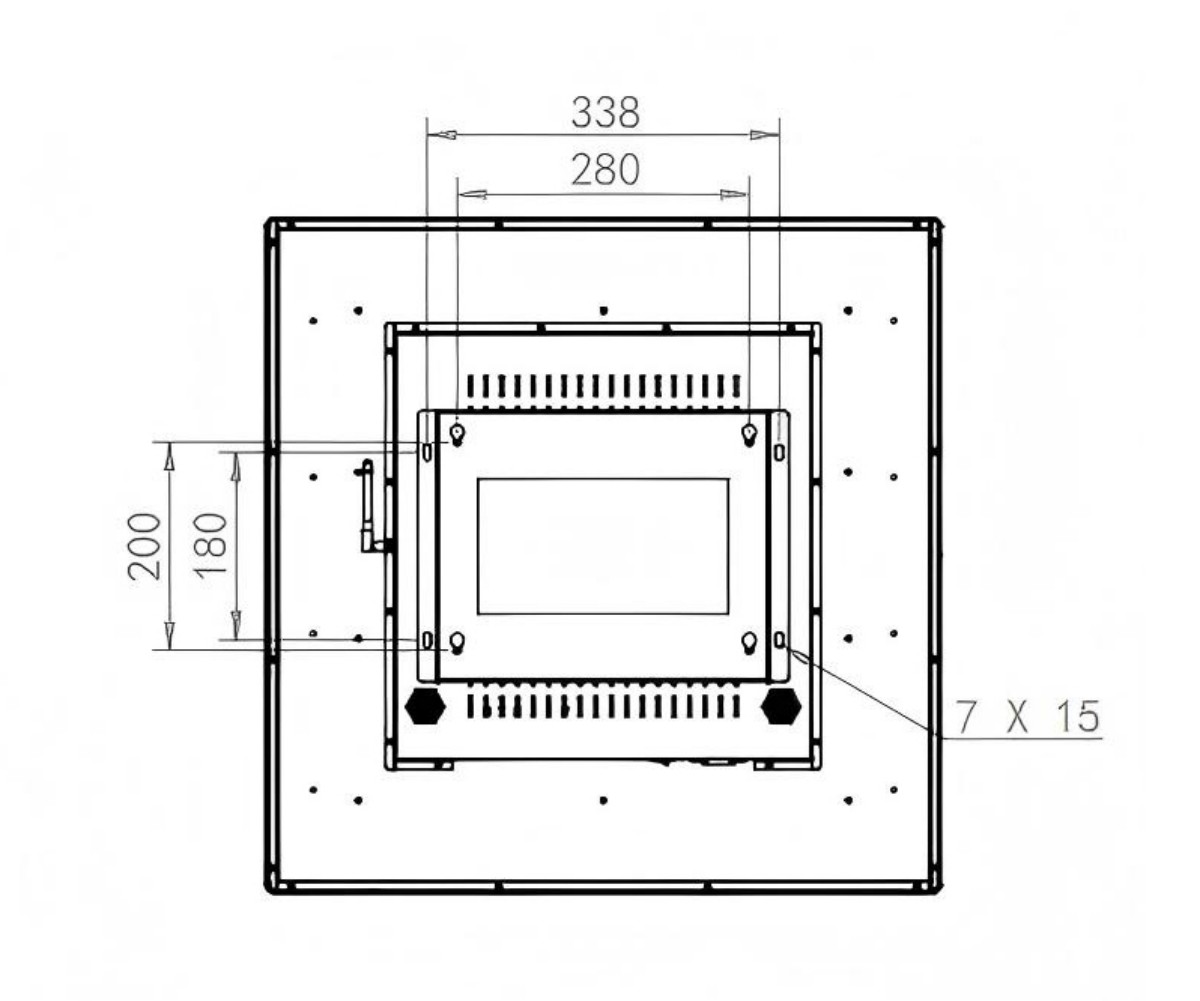

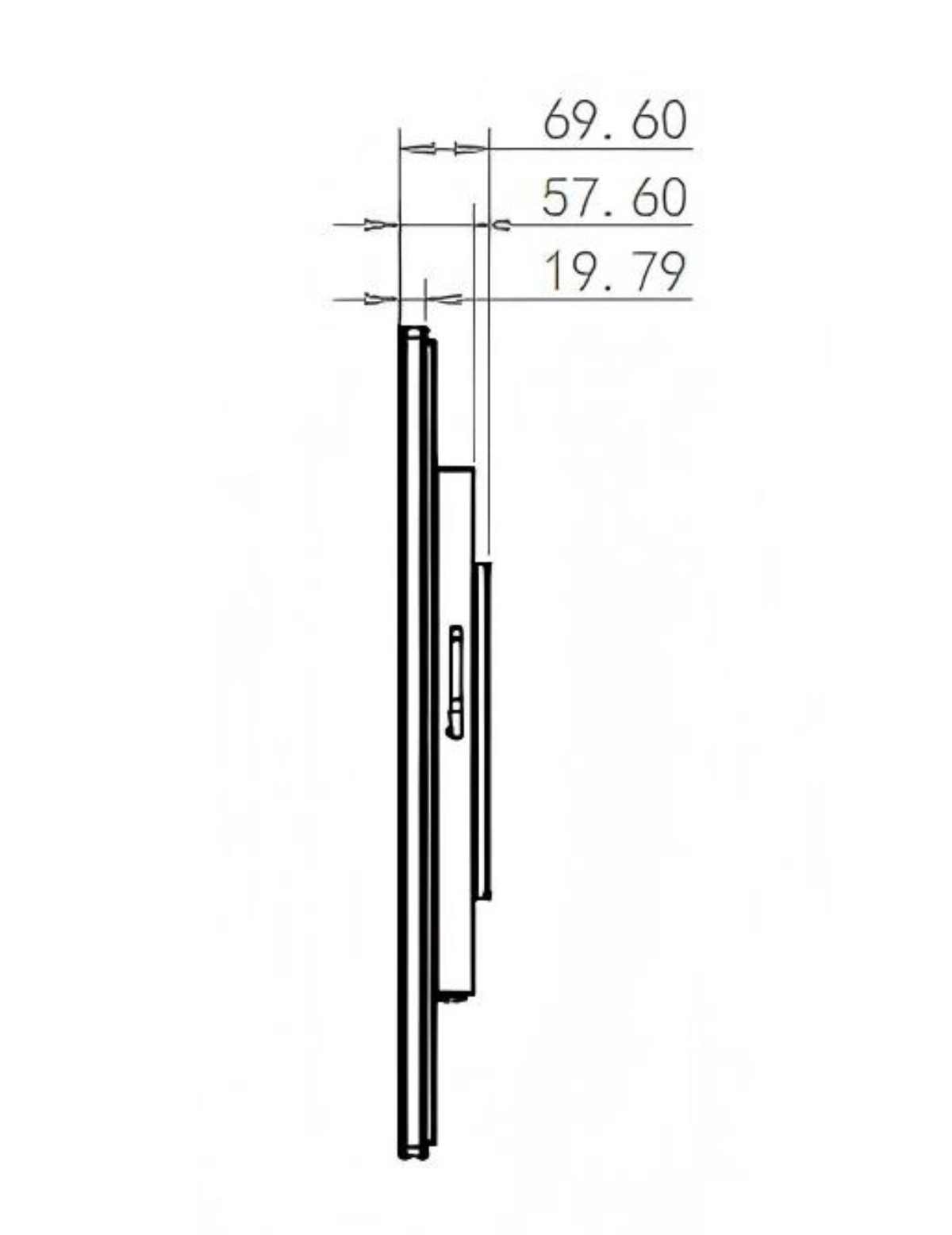

Product Dimension as follows:
Application Scenarios Overview
The 33.1-inch square signage screen is widely used in:
- Elevator advertising systems
- Museum digital exhibitions
- Factory monitoring dashboards
- Logistics warehouse systems
- Smart building information displays
- Industrial control environments
Its versatility makes it suitable for both aesthetic and functional applications.
Frequently Asked Questions (FAQ)
Q1: What is a square signage screen used for?
It is used for elevators, museums, factories, logistics systems, and industrial monitoring.
Q2: Do you support India supply?
Yes, we are a square lcd supplier india with export support.
Q3: Can it be used in the UK market?
Yes, we are a square lcd supplier uk for commercial and public projects.
Q4: Is factory pricing available?
Yes, we offer square lcd display factory price directly from manufacturing.
Q5: Does it support industrial environments?
Yes, it is designed for square lcd display for industrial system use.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
