26 Inch Square LCD Display Price touchscreen Player for Retail Store & Shopping Mall
Intelligent touchscreen Square LCD Display
Square LCD Board for Retail & Smart Control Systems | 26 Inch Touchscreen Player Solution
26 Inch Square LCD Board Touchscreen Player for Retail Stores & Shopping Malls
The 26 Inch square lcd board is a professional touchscreen digital signage solution designed for retail stores, shopping malls, and interactive information systems.
Built with a modern square-format LCD panel and responsive touch technology, this device delivers a clean visual layout that improves customer engagement and content visibility in commercial environments across the USA, Europe, and Middle East.
Unlike traditional rectangular screens, the square lcd board provides a balanced display area that is ideal for interactive content, navigation systems, and advertising applications.
Square USB Display Screen for Simple Content Playback
The square usb display screen provides an easy solution for offline advertising and media playback.
Features:
- USB plug-and-play function
- Supports video, image, and slideshow formats
- No network dependency required
- Ideal for quick content updates
It is widely used in small retail shops and temporary promotional campaigns.
Square Interactive Display System for Customer Engagement
The square interactive display system enables advanced user interaction for modern retail and information systems.
Applications:
- Interactive product catalogs
- Digital wayfinding systems
- Self-service information kiosks
- Retail engagement displays
It significantly improves customer experience and reduces manual service workload.
26 Inch Square LCD Display | ||
Display Specifications | ||
Screen Size | 26 inch | |
Resolution | 950*950/1900*1900 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+G Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Square USB Display Screen for Simple Content Playback
The square usb display screen provides an easy solution for offline advertising and media playback.
Features:
- USB plug-and-play function
- Supports video, image, and slideshow formats
- No network dependency required
- Ideal for quick content updates
It is widely used in small retail shops and temporary promotional campaigns.
Square Interactive Display System for Customer Engagement
The square interactive display system enables advanced user interaction for modern retail and information systems.
Applications:
- Interactive product catalogs
- Digital wayfinding systems
- Self-service information kiosks
- Retail engagement displays
It significantly improves customer experience and reduces manual service workload.

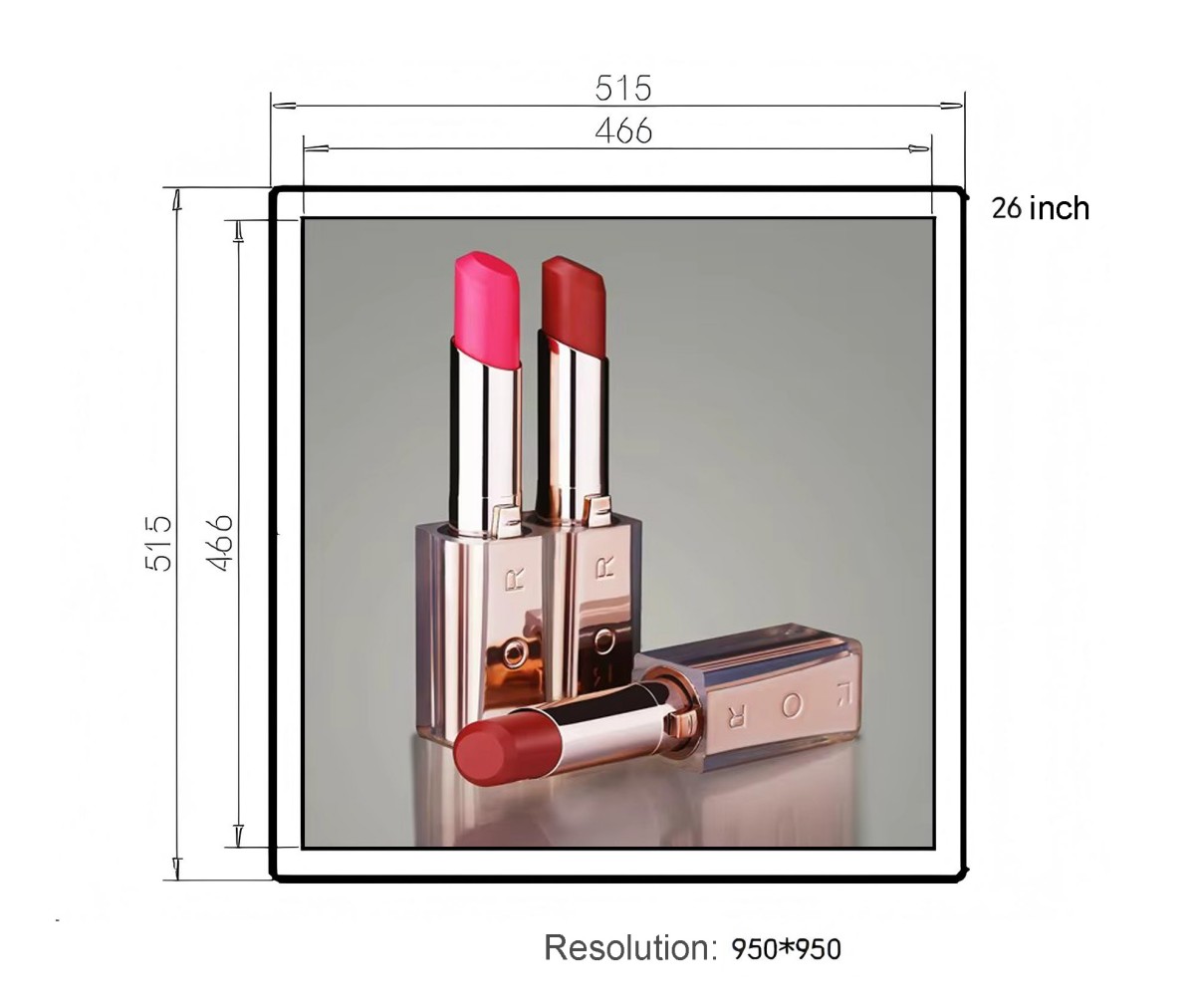

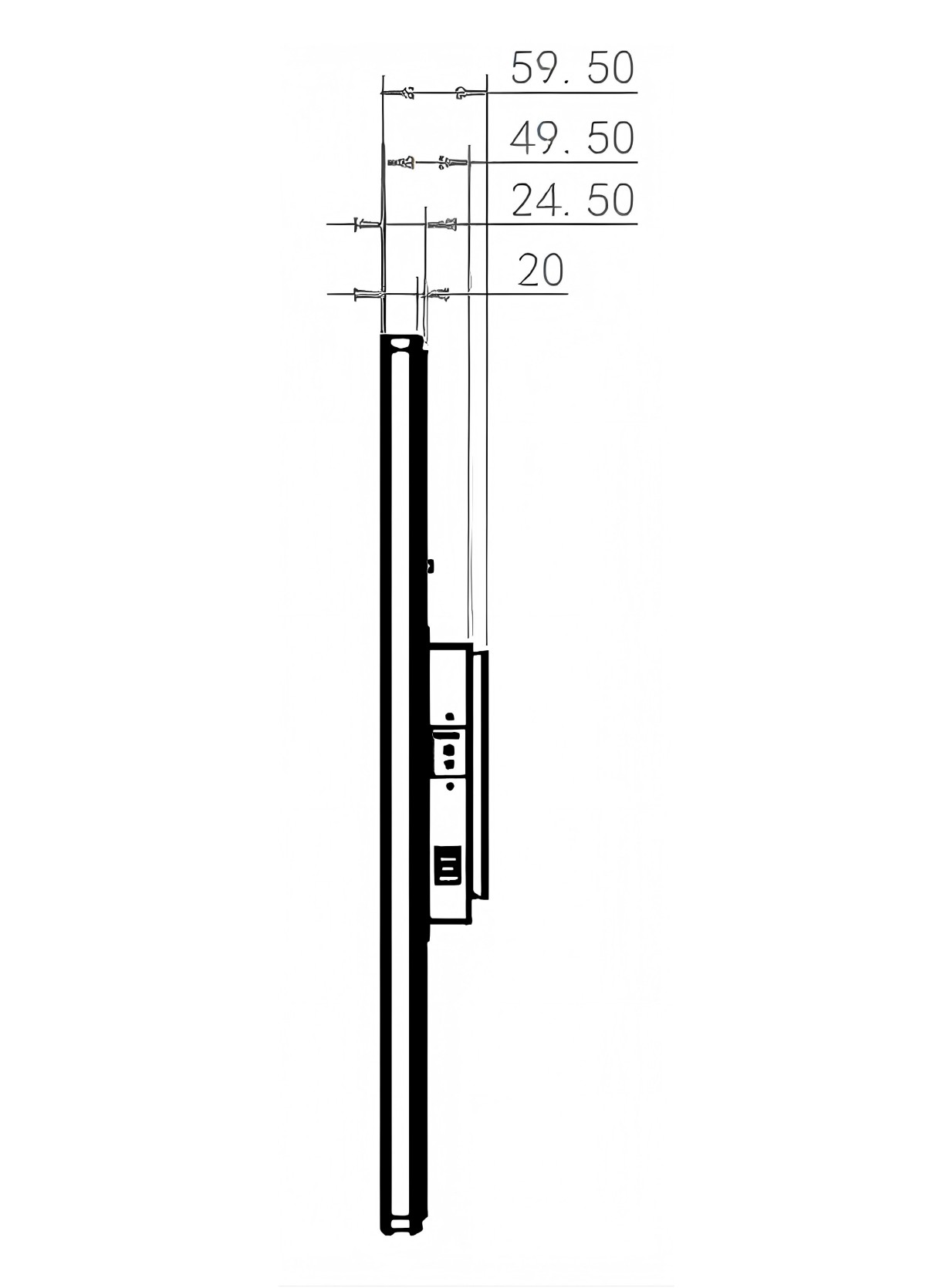

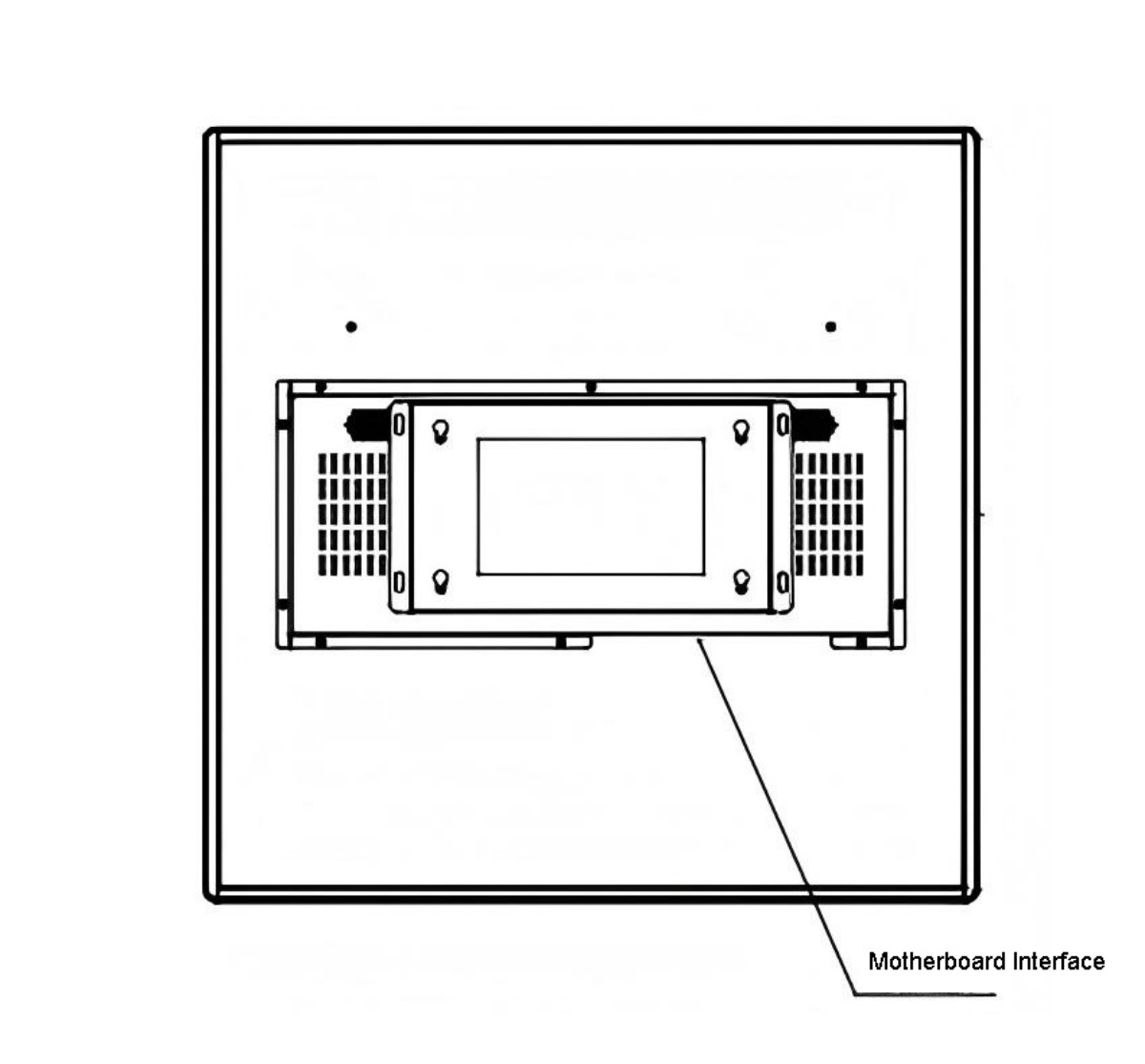

Product Dimension as follows:
Product Dimension as follows:
Application Scenarios Overview
The 26-inch square LCD board is widely used in:
- Shopping malls and retail stores
- Corporate conference rooms
- Control rooms and monitoring centers
- Public information kiosks
- Smart self-service systems
- Interactive advertising networks
Its flexibility makes it suitable for both commercial and industrial applications.
Frequently Asked Questions (FAQ)
Q1: What is a square LCD board used for?
It is used for retail signage, kiosks, conference systems, and control room monitoring.
Q2: Does it support USB playback?
Yes, it supports square usb display screen functionality for offline content playback.
Q3: Can it be used as an interactive system?
Yes, it works as a square interactive display system for customer engagement.
Q4: Is it suitable for control rooms?
Yes, it is widely used as a square LCD display for control room monitoring.
Q5: Do you offer OEM customization?
Yes, we provide full OEM/ODM customization services.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
