52.3 inch Full HD 178 Viewing Angle Capacitive Touchscreen Industrial-Grade Square LCD Display
52.3 inch Metal Square LCD Display Resolution：1905*1905 G+FF capacitive touch Display area：940*940mm
52.3 inch Full HD 178 Viewing Angle Capacitive Touchscreen Industrial-Grade Square LCD Display
52.3-Inch Full HD Industrial Square LCD Screen Panel with Capacitive Touch
The 52.3 inch Full HD 178 Viewing Angle Capacitive Touchscreen Industrial-Grade Square LCD Display is a high-performance square lcd screen panel designed for demanding commercial and industrial applications. Built with advanced TFT technology and capacitive touch functionality, this display delivers stable performance, wide viewing angles, and long-term reliability in 24/7 environments.
Unlike standard rectangular screens, this industrial square format is engineered for interactive kiosks, elevators, transportation hubs, and smart information systems where balanced visual presentation and user interaction are required.
As a direct manufacturer, we provide full OEM & ODM customization, allowing businesses to adapt this square lcd screen panel to specific project needs across the USA, Europe, and Middle East markets.
High Brightness Square LCD Supplier for Demanding Environments
As a professional high brightness square lcd supplier, we offer enhanced display solutions for environments with strong ambient light.
Benefits of high brightness configuration:
- Clear visibility in bright indoor spaces
- Optional semi-outdoor adaptability
- Improved contrast for advertising content
- Better readability for interactive systems
This makes it suitable for transportation hubs, malls, and semi-outdoor installations.
52.3 Inch Industrial-Grade Square LCD Display | ||
Display Specifications | ||
Screen Size | 52.3 inch | |
Resolution | 1905*1905 | |
Brightness | 350 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+FF Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Outdoor Square LCD Display Supplier Solutions
We also provide specialized configurations as an outdoor square lcd display supplier, designed for challenging environments.
Outdoor-ready features:
- Anti-glare protective glass
- Weather-resistant structure design
- High brightness LED backlight
- Dust and humidity protection options
- Strong aluminum enclosure
These features ensure stable operation in public-facing environments.
Square Information Kiosk Display for Smart Interaction
The square information kiosk display is one of the most common applications of this model.
Typical kiosk uses:
- Self-service information terminals
- Digital directory systems
- Ticketing and service stations
- Interactive customer support kiosks
Its capacitive touchscreen enables smooth and intuitive user interaction.
Square Elevator Display Screen for Smart Building Systems
This display is widely used as a square elevator display screen in smart building environments.
Elevator applications include:
- Floor and navigation information
- Safety instructions display
- Advertising inside elevators
- Real-time building announcements
The square format fits perfectly into modern elevator interior designs.

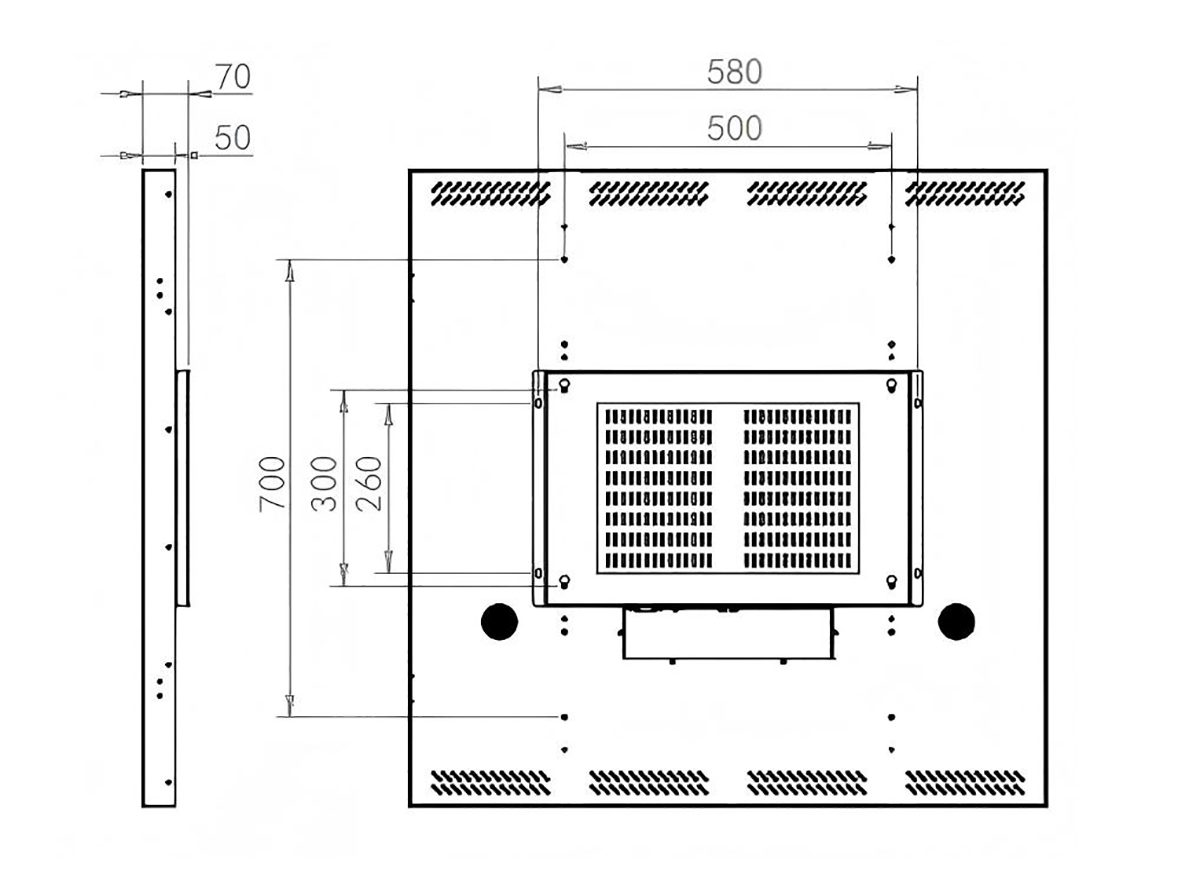

Product Dimension as follows:
Industrial Applications of Square LCD Screen Panel
The 52.3-inch square LCD screen panel is widely used in:
Smart Buildings
- Elevator systems
- Lobby information displays
- Security monitoring interfaces
Transportation Systems
- Station information boards
- Passenger guidance systems
- Ticketing kiosks
Commercial Spaces
- Shopping mall directories
- Interactive advertising displays
- Brand experience kiosks
Industrial Systems
- Control interface displays
- Monitoring dashboards
- Data visualization panels
Why Choose Our Factory?
We are a trusted global supplier of industrial LCD solutions.
Our advantages:
- Factory direct pricing
- Strong OEM & ODM capability
- Stable mass production capacity
- Strict quality control system
- Global logistics support
- Engineering customization support
- Long-term technical service
We help clients build reliable and scalable display systems worldwide.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
