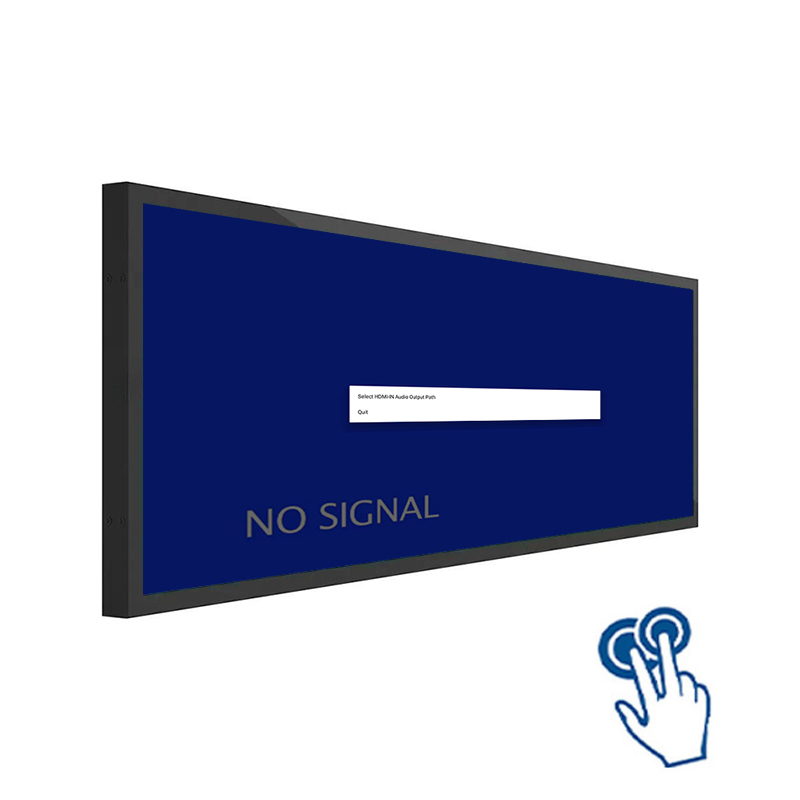

Capacitive Touch Bar Display – 92 Inch Ultra-Wide Interactive Screen
Source factory supply of 92 inch interactive touch stretched display with 3840*1585 resolution and 500 cd/㎡ luminous output. Engineered for continuous commercial duty in retail gondolas, vehicle headers, and control rooms. Fast 72-hour sample dispatch and modular SKD export kits.
Specifications
- Screen Size
- 92 Inch
- Resolution
- 3840*1585
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA / USB Touch
92 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 92 inch | |
Resolution | 3840*1585 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1300 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Space Challenges: Overcoming Vertical Clearances with Panoramic Displays
Store fixture designers and transit architects frequently encounter spaces where traditional 16:9 displays cannot be accommodated. The 92-inch ultra-wide bar monitor resolves this challenge by providing a low-profile panoramic viewing format. Displaying 3840*1585 native pixels across its 92-inch diagonal, it delivers continuous brand messaging, dynamic pricing, and route guidance along narrow architectural borders that would otherwise remain inactive.
Integrating panoramic hardware into commercial fixtures eliminates the visual clutter associated with standard monitors. The display becomes an organic part of the fixture, enhancing interior aesthetics while delivering essential information.
In busy transportation terminals, passengers require instant, intuitive visual cues. Overhead horizontal displays provide continuous sightline guidance that travelers can scan effortlessly while walking through crowded concourses.
Visual Precision: Eliminating Distortion Across Ultra-Wide Active Areas
Engineered for commercial visibility, the 92-inch stretched bar screen delivers 3840*1585 resolution and 500 cd/㎡ calibrated luminance. A 1300 :1 contrast ratio ensures rich image depth, supported by symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours commercial backlight service rating.
Solid-state LED illumination provides instantaneous full-brightness startup, ensuring that commercial displays resume vivid visual operation immediately following scheduled power cycles.
Instantaneous solid-state power-on response ensures that display networks resume vibrant visual broadcasting immediately following automated overnight power cycles or utility power restoration.
Material Selection: Thermal Conductivity, Weight Optimization, and Corrosion Defense
Equipped with a commercial-grade Infrared Touch (IR) interface, the 92-inch touch display delivers precise 10-point multi-touch tracking behind Morse 7 toughened glass. Its durable construction ensures long-term operational integrity in self-service kiosks.
A fanless passive cooling architecture ensures reliable thermal management without acoustic noise or dust intake. Heat is conducted smoothly to the external chassis, extending the operational life of internal electronics. The rear housing incorporates standard VESA hole configurations and lateral slide tracks for straightforward mounting.
For vehicle and marine console installations, the enclosure includes perimeter flange gaskets that seal against dust and water splash. Heavy-gauge corner brackets absorb structural flexing and road vibration during continuous fleet operation.
Hardware Connectivity: HDMI, VGA, and Audio Distribution Provisions
Equipped with comprehensive input connectivity, the display integrates HDMI, VGA video ports to ensure straightforward interfacing with commercial computing systems. Whether driven by an Android media player, a Windows industrial PC, or an embedded Linux box, the internal video processor scales incoming signals smoothly, maintaining correct aspect ratio geometry without edge cropping or horizontal stretching. An integrated 3.5mm Audio Socket delivers clear audio output, making it simple to add auxiliary sound reinforcement for interactive promotions, queue call-outs, and transit transfer alerts. Power efficiency is a hallmark of this design. Built to run on universal standard 110V to 240V AC power input mains power, the monitor draws no more than ≤ 45w during active operation. The hardware is built to operate under demanding environmental conditions, rated for continuous performance from below10℃ ~ +50℃ with non-condensing humidity up to ≤ 85%RH.
Low overall operational power consumption keeps thermal emissions minimal, reducing the air-conditioning load in enclosed retail kiosks, transit carriages, and server room equipment racks.
Low total power draw minimizes operational utility expenses across multi-screen commercial rollouts, helping enterprise clients achieve energy conservation targets and reduce overall operating expenditure.
Universal Video Ingestion Across Leading Operating Systems
This display adopts a clean, open hardware topology that welcomes external video input from Windows, Android, and Linux compute engines alike. A single HDMI connection delivers seamless pixel mapping and audio-video pass-through, giving digital signage operators and kiosk engineers the latitude to implement custom CMS platforms, automated queue software, or industrial SCADA consoles without artificial hardware constraints.
Realized Applications: Corporate Entrances, Transit Cabins, and Control Rooms
The 92-inch stretched bar LCD monitor meets the demands of high-traffic commercial environments. It is deployed along retail shelving for dynamic promotional pricing, within transit vehicles for passenger route alerts, in data centers for equipment telemetry, and in commercial lobbies for building directories.
Museums and interactive exhibition pavilions utilize this linear display on exhibit pedestals and showcase fascias. Curators deliver rich multimedia storytelling, historical timelines, and artifact context alongside delicate physical exhibits.
Sports arenas and entertainment venues deploy the display above concession stands to showcase live score feeds and food specials simultaneously, keeping fans engaged while driving food and beverage revenue.
In-House Engineering Support: 2D/3D CAD Models and Technical Collaboration
Direct sourcing from ZXT gives your enterprise a competitive advantage in display hardware quality, cost efficiency, and lead-time reliability. With over nine years of specialized R&D and hundreds of commercial implementations worldwide, we maintain a complete catalog of in-stock profile tooling. This allows system integrators to deploy customized stretched bar hardware without incurring custom mold fees, with evaluation samples dispatched in as little as three days. We offer adaptable fulfillment options to streamline international logistics. Clients can order fully certified finished monitors, open-frame assemblies ready for enclosure drop-in, or complete SKD/CKD component shipments that allow overseas partners to assemble locally and minimize import duties. Our in-house R&D staff collaborates directly with client engineers, providing full 2D and 3D CAD modeling data and custom firmware support.
Dedicated international sales engineers provide prompt technical support, returning detailed commercial proposals, dimensional drawings, and technical feasibility reviews within two business hours.
Commercial & Engineering FAQ
**Q1: Can this screen operate reliably in vibrating vehicles or near heavy machinery?**
Yes. Built with ruggedized metallic framing and vibration-damped structural fastenings, the display is engineered to endure continuous mechanical shocks encountered in rolling stock, public buses, and factory shopfloors.
**Q2: What power input does this commercial monitor require?**
The internal power supply accepts universal AC mains from 100V to 240V at 50/60Hz, with low operational power consumption designed to minimize facility electricity costs across multi-screen deployments.
**Q3: Can we request customized logo printing or corporate color matching?**
Certainly. We provide custom front bezel silkscreening, bespoke RAL/Pantone powder coating finishes, and tailored firmware boot logos to align with your corporate brand guidelines.
Inquire for Factory-Direct Terms and CAD Files
Connect with our commercial display specialists to discuss custom bracket finishing, sample availability, or volume pricing for the 92-inch stretched bar monitor. We provide comprehensive quotes within two hours.
