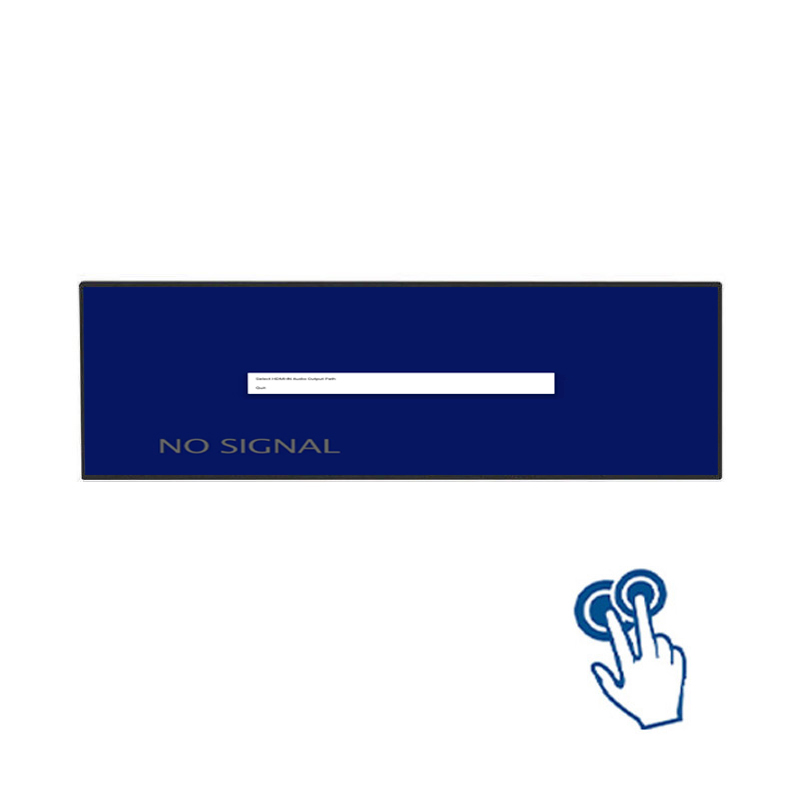

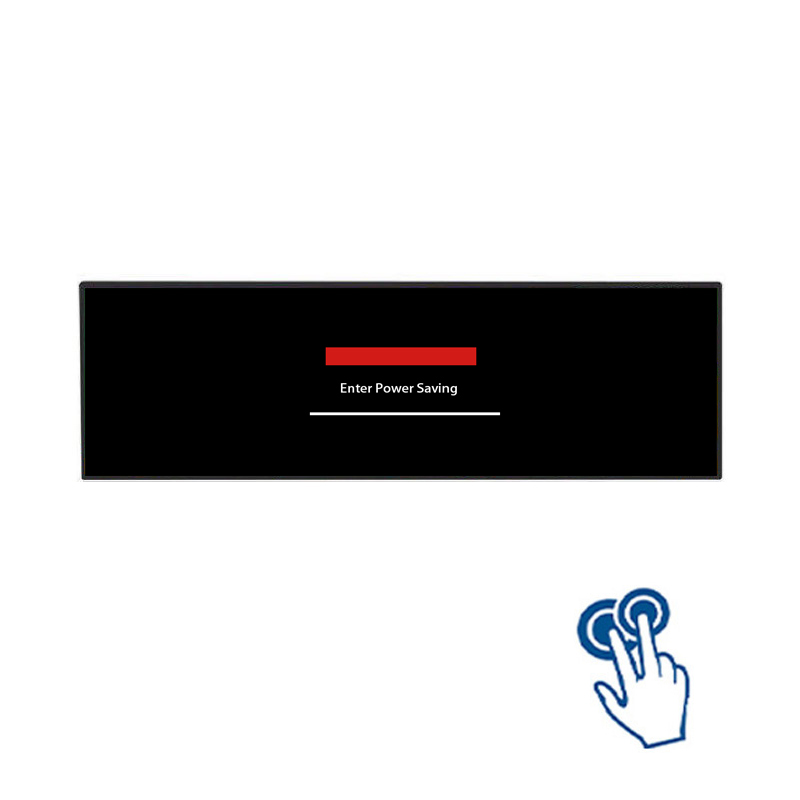

Interactive Digital Signage: 11.1 Inch Touchscreen Bar Monitor (10-Point PCAP Touch)
Commercial 11.1 inch interactive touch stretched display featuring 1280*516 ultra-wide display matrix and 400 cd/㎡ brightness. Built with in-stock tooling and ruggedized metallic housing for continuous public operation. Rapid 3-day sample dispatch worldwide.
Specifications
- Screen Size
- 11.1 Inch
- Resolution
- 1280*516
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA / USB Touch
11.1 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 11.1 inch | |
Resolution | 1280*516 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 700:1 | |
Viewing Angle(H/v) | 80°/80°/70°/70° (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+G Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 15w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Overcoming Installation Bottlenecks Along Linear Commercial Surface Headers
When installation height is restricted to narrow horizontal strips, standard monitors waste space and disrupt interior design. The 11.1-inch stretched bar LCD monitor provides a compact, purpose-built solution, presenting 1280*516 resolution across an active 11.1-inch diagonal. It allows retailers, transit authorities, and industrial plants to broadcast high-definition media without sacrificing clearance.
Passenger transport operators require displays that deliver clear information without obstructing carriage sightlines. These low-profile monitors fit neatly above doorways, ensuring passengers stay informed throughout their journeys.
Store fixture builders benefit from standardized mounting dimensions that speed up initial assembly. The display drops cleanly into pre-formed cabinet openings, reducing workshop labor and speeding up store opening schedules.
Optical Metrics: Resolution Density, Color Saturation, and Panel Uniformity
Visual excellence is anchored by an industrial-grade A-grade liquid crystal panel delivering a native resolution of 1280*516 across the 11.1-inch active diagonal. This fine pixel pitch ensures that fine pricing fonts, multi-lingual transit schedules, and high-definition video loops render with razor-sharp definition. Calibrated to a luminous intensity of 400 cd/㎡, the display delivers bright, legible visuals under harsh commercial lighting conditions. Paired with a static contrast ratio of 700:1, it actively disperses ambient reflections while preserving high color saturation and deep blacks. True IPS wide-angle technology provides symmetrical viewing angles of symmetrical 89°/89°/89°/89° IPS full viewing angles, ensuring uniform color temperature and sharpness across wide vantage points. The solid-state LED backlight system is rated for an operational service lifetime exceeding 60,000+ operational hours, ensuring consistent brightness throughout continuous 24/7 commercial operation.
Advanced optical coatings actively suppress external glare, ensuring that vibrant content remains readable even when mounted directly beneath intense commercial ceiling spotlights or adjacent to glass storefronts exposed to natural ambient daylight.
Sub-pixel rendering algorithms optimized within the display controller ensure that micro-fine typography, numerical price codes, and barcode symbols remain crisply defined without jagged pixelation or chromatic fringing.
Enclosure Versatility: Fast Snap-in Mounting and Articulated Bracket Anchoring
The 11.1-inch interactive stretched screen features a responsive PCAP Capacitive Touch sensor with chemically strengthened glass. The robust front surface repels scratches, moisture, and cleaning chemicals, providing dependable touch input across retail and transit terminals.
The monitor's fanless thermal design utilizes high-conductivity internal heat spreaders to transfer thermal energy directly to the exterior metal enclosure. This eliminates moving parts and dust accumulation, ensuring reliable 24/7 operation. Mounting flexibility is provided by standard VESA patterns and lateral mounting channels.
The mechanical chassis features a specialized snap-in bracket profile that clips securely into commercial supermarket gondola price channels. Front-accessible release tabs allow store personnel to service or reposition displays without dismantling shelf merchandise.
Interfacing Standards: Audio Output Jack and Industrial Video Scaling Logic
The display includes HDMI, VGA video interfaces for plug-and-play integration with media players and industrial systems. Audio output is supported via a Audio Socket (3.5mm). Built to accept universal AC 100V~240V (50/60Hz) power with an efficient draw of ≤ 15w, it is rated for environmental conditions of below10℃ ~ +50℃ and ≤ 85%RH.
Low standby power consumption complies with international commercial energy efficiency standards, helping enterprise clients meet corporate sustainability and green building certification goals.
Universal mains power compatibility simplifies worldwide distribution, allowing global retail brands to deploy the identical hardware model across North American, European, and Asian locations seamlessly.
Plug-and-Play Multi-OS Freedom via Standard HDMI Input
Rather than forcing users into a proprietary, non-upgradeable smart OS, this display serves as a pure, high-performance visual surface ready for any external compute platform. Connect a Windows PC, Android media box, or Linux controller via HDMI to immediately drive dynamic promotional banners, automated menu boards, or plant monitoring telemetry with complete operating system freedom.
Industry Solutions: Retail Gondola Headers, Metro Doorways, and 19-Inch Racks
Designed to maximize linear visual space, the 11.1-inch display delivers clear commercial benefits across several industries. Retailers install it on shelf fascias to boost brand engagement. Transit authorities mount it in rail carriages for dynamic passenger route guidance. Control rooms use it as an auxiliary telemetry monitor, and corporate facilities integrate it into reception headers.
In banking branches and public administrative centers, the display streamlines customer queue flow. Mounted above service windows or teller partitions, it displays clear ticket calling numbers, teller status indicators, and financial service advisories in a space-saving linear footprint.
Automated manufacturing plants utilize this monitor along assembly lines to broadcast real-time production quotas and machine alerts. The wide horizontal format allows line supervisors and operators to monitor factory floor status from across large plant bays.
Manufacturing Scale: In-House Stamping, Extrusion Tooling, and Rapid Sampling
Choosing ZXT connects your project team directly to our manufacturing facility. We maintain permanent tooling inventories, provide evaluation samples in three days, and support overseas partners with turnkey displays, open-frame kits, and custom engineering assistance.
From prototype validation through high-volume mass production, ZXT delivers consistent manufacturing quality that has earned the trust of over 1,000 commercial display clients in more than 50 countries.
Commercial & Engineering FAQ
**Q1: Can this screen operate reliably in vibrating vehicles or near heavy machinery?**
Yes. Built with ruggedized metallic framing and vibration-damped structural fastenings, the display is engineered to endure continuous mechanical shocks encountered in rolling stock, public buses, and factory shopfloors.
**Q2: What power input does this commercial monitor require?**
The internal power supply accepts universal AC mains from 100V to 240V at 50/60Hz, with low operational power consumption designed to minimize facility electricity costs across multi-screen deployments.
**Q3: Can we request customized logo printing or corporate color matching?**
Certainly. We provide custom front bezel silkscreening, bespoke RAL/Pantone powder coating finishes, and tailored firmware boot logos to align with your corporate brand guidelines.
Evaluate Sample Hardware and Request CAD Models
To discuss custom engineering requirements, request 2D/3D CAD drawings, or order an evaluation sample of the 11.1-inch stretched bar display, contact our international sales desk today. Our engineering team provides official commercial proposals within two business hours.
