OEM 16.5 Inch Multi-Touch Stretched LCD Screen for Smart Kiosks
Wholesale commercial 16.5 inch interactive touch stretched display (1920*422, 250 cd/㎡). Engineered for high-traffic public infrastructure and space-constrained architectural fixtures. Direct engineering collaboration and transparent factory pricing.
Specifications
- Screen Size
- 16.5 Inch
- Resolution
- 1920*422
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA / USB Touch
16.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 16.5 inch | |
Resolution | 1920*422 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 85/85/80/80 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+G Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Maximizing Visual Sightlines: Re-Engineering Display Ratios for Linear Margins
Modern public infrastructure demands streamlined visual integration. The 16.5-inch panoramic display is engineered to overcome vertical mounting constraints, delivering 1920*422 resolution across an elongated 16.5-inch viewing area. It offers system integrators a reliable way to deploy dynamic digital content in tight architectural slots without visual compromise.
In smart retail environments, dynamic price changes and seasonal campaigns can be scheduled automatically. This operational flexibility eliminates manual re-labeling labor and ensures pricing accuracy across multi-store chains.
In public service environments such as healthcare intake desks and civic service counters, compact horizontal displays keep waiting citizens informed while preserving clear verbal and visual communication with desk staff.
Display Performance: Calibrated Luminance and Anti-Reflective Surface Engineering
The optical engine of the 16.5-inch stretched display is built to rigorous industrial standards, delivering a native resolution of 1920*422 across its active matrix. This ultra-wide format allows complex multi-zone layouts—such as simultaneous video playback, static brand logos, and scrolling price or route tickers—to run side-by-side without graphical scaling artifacts. With a calibrated luminance of 250 cd/㎡, the display provides excellent readability in bright indoor commercial environments. The liquid crystal panel is paired with an anti-reflective polarising film that minimizes ambient light reflections, while the native contrast ratio of 1000:1 ensures deep blacks and sharp text separation. Equipped with advanced IPS alignment technology, the display maintains full optical fidelity across true IPS 178-degree wide visual cone viewing angles, while the LED backlight system boasts a service lifetime rating of an industrial service life exceeding 60,000 hours.
The liquid crystal cell incorporates precision color filter arrays that deliver authentic color reproduction, ensuring corporate logos, luxury apparel photography, and fresh produce imagery appear appetizing and true-to-life.
The optical polarising stack is specifically formulated to mitigate rainbow artifacts under polarized sunglasses, ensuring that vehicle passengers and outdoor shoppers read dynamic text without visual interference.
Material Selection: Thermal Conductivity, Weight Optimization, and Corrosion Defense
Equipped with a commercial-grade PCAP Capacitive Touch interface, the 16.5-inch touch display delivers precise 10-point multi-touch tracking behind Morse 7 toughened glass. Its durable construction ensures long-term operational integrity in self-service kiosks.

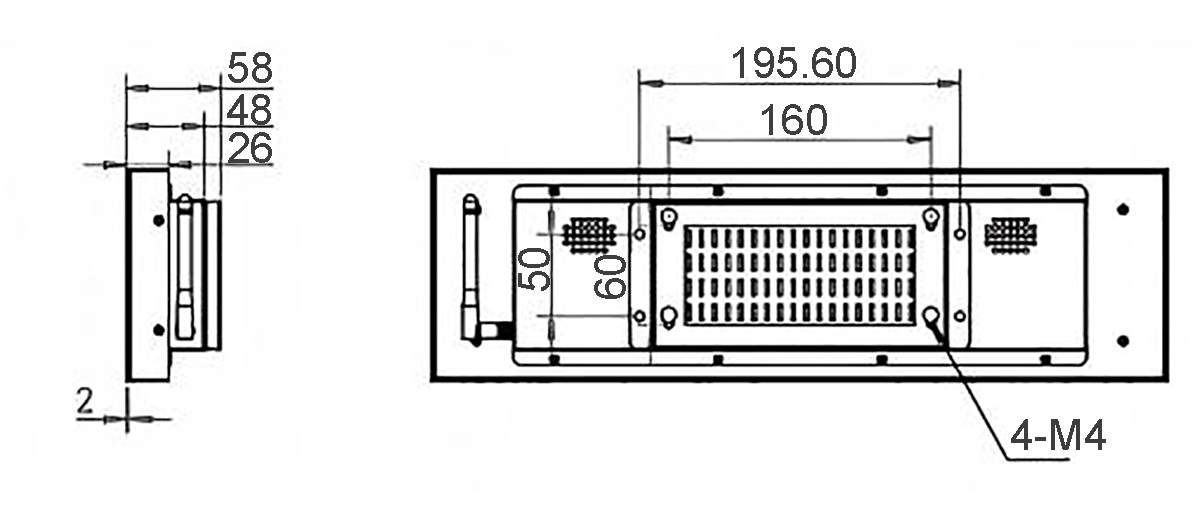

A fanless passive cooling architecture ensures reliable thermal management without acoustic noise or dust intake. Heat is conducted smoothly to the external chassis, extending the operational life of internal electronics. The rear housing incorporates standard VESA hole configurations and lateral slide tracks for straightforward mounting.
For vehicle and marine console installations, the enclosure includes perimeter flange gaskets that seal against dust and water splash. Heavy-gauge corner brackets absorb structural flexing and road vibration during continuous fleet operation.
Electronic Interfacing: Video Signal Paths and Automated Raster Scaling
Seamless electronic integration into existing computing infrastructures is achieved through versatile signal interface provisions. The monitor motherboard incorporates standard HDMI, VGA video inputs, allowing immediate plug-and-play communication with standard digital signage media players, x86 industrial PCs, Android embedded compute sticks, and programmable logic controller output boards. Video signal scaling circuitry automatically synchronizes with custom ultra-wide timings, ensuring proper native scaling without horizontal image squeezing or letterboxing artifacts. Audio playback is supported via an integrated Audio Socket (3.5mm), facilitating straightforward connection to external sound bars, shelf-mounted directional audio speakers, or centralized PA amplification equipment. Operating from a universal switch-mode power supply accepting AC 100V~240V (50/60Hz), the internal power converter delivers stable low-ripple direct current to sensitive driver ICs while providing resilient protection against electrical surges and line fluctuations commonly encountered in industrial complexes. Energy efficiency remains a central engineering priority: overall operational power consumption is constrained to ≤ 45w, minimizing thermal loading and dramatically reducing total operational utility costs across large-scale multi-screen installations. The hardware is qualified for continuous operation across an ambient operating temperature range of below10℃ ~ +50℃ alongside non-condensing relative humidity levels of ≤ 85%RH.
Internal power conversion circuitry incorporates multi-stage surge suppression and electromagnetic interference filtering, shielding sensitive driver chips from electrical spikes and voltage sag on noisy commercial circuits.
Industrial-grade signal conditioning chips filter incoming video inputs to eliminate pixel jitter and timing mismatch, guaranteeing rock-solid graphical synchronization when driven by commercial digital signage players.
Decoupled Open-Architecture Display for Multi-OS Environments

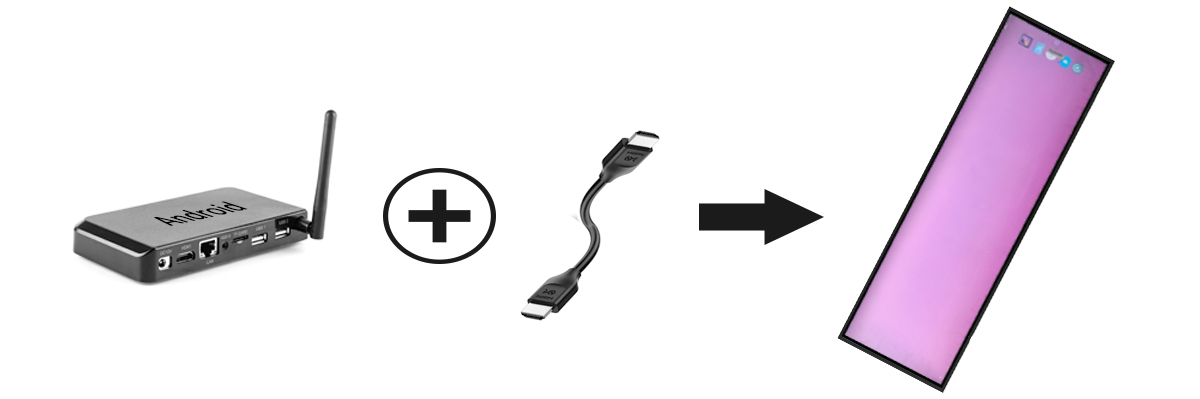

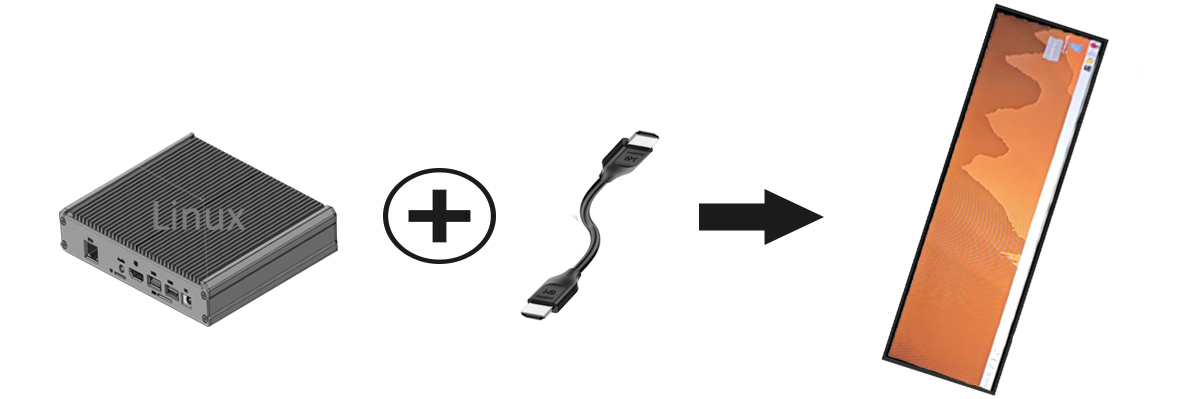

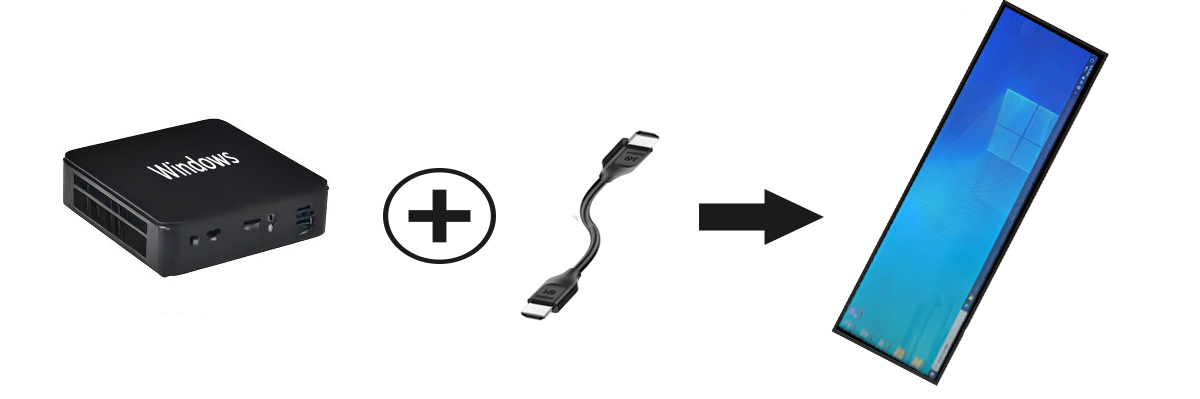

Experience complete operational freedom with a display engineered for universal HDMI video integration. Unencumbered by proprietary player restrictions, it interfaces smoothly with external Windows computers, Android network players, and Linux automation devices. This architecture allows venues to easily upgrade media player hardware or switch digital signage CMS software over time without replacing the display itself.
Operational Vectors: Dynamic Pricing, Route Mapping, and Surveillance Telemetry
The 16.5-inch panoramic screen is engineered to deliver dynamic content in narrow architectural spaces. Applications include digital shelf-edge advertising in retail supermarkets, passenger route mapping in metro trains, telemetry monitoring in data center server racks, and panoramic menu displays in fast-food restaurants.
Automated factory assembly lines incorporate this monitor as an overhead operational pace ticker. Floor managers and machine operators track hourly production quotas, safety advisories, and machine status alerts across broad industrial plant bays.
Airport terminal operators report reduced concourse congestion when deploying panoramic displays above baggage carousels and customs lanes. International travelers receive clear, multi-lingual flight reclaim notices in an intuitive format.
Turnkey and Modular Supply: Helping International Partners Scale Deployments
ZXT delivers factory-direct manufacturing for commercial stretched bar displays, offering competitive pricing, in-stock tooling, and 3-day sample turnaround. We provide complete technical support, including 2D/3D CAD models and modular SKD delivery to optimize international tariffs.
We partner with system integrators to build long-term commercial relationships, offering transparent volume-tiered pricing structures and dedicated account management for enterprise digital signage initiatives.
System Integrator Frequently Asked Questions
**Q1: Are special graphic cards required to drive this stretched resolution?**
No. Standard integrated and discrete graphic chipsets on modern Windows, Android, and Linux devices natively support custom panoramic resolutions through standard HDMI EDID recognition.
**Q2: How does the display perform under bright commercial lighting?**
With calibrated commercial luminance output and anti-glare polarized surface treatment, the screen diffuses harsh ambient ceiling reflections to ensure crisp readability across retail aisles and transit concourses.
**Q3: What warranty and after-sales support does ZXT provide?**
We provide comprehensive commercial factory warranties backed by responsive technical engineering assistance, schematic pinout documentation, and readily available modular replacement parts.
Commercial Quotation and Production Scheduling
Contact our technical sales team to request mechanical drawings, discuss volume pricing, or arrange a 3-day sample dispatch for the 16.5-inch panoramic stretched monitor. We deliver prompt factory-direct quotations and technical support.
