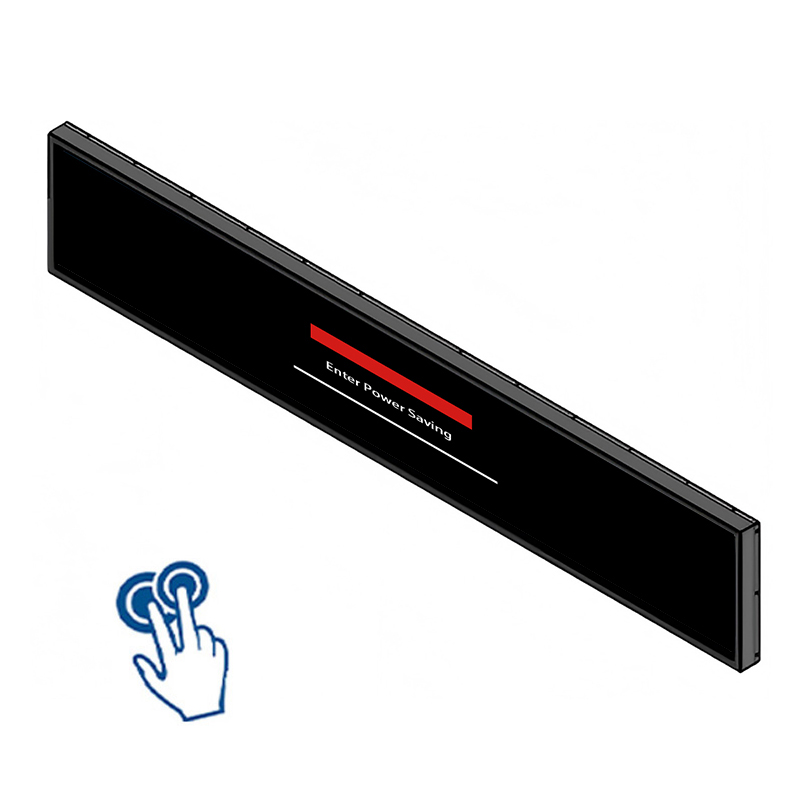

Interactive Digital Signage: 86 Inch Touchscreen Bar Monitor (Infrared Touch)
Factory-direct 86 inch interactive touch stretched display delivering 3840*600 panoramic display resolution and 350 brightness. Fanless solid-state cooling for silent, dust-free operation in demanding commercial environments.
Specifications
- Screen Size
- 86 Inch
- Resolution
- 3840*600
- Brightness
- 350 cd/㎡
- Interface
- HDMI / VGA / USB Touch
86 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 86 inch | |
Resolution | 3840*600 | |
Brightness | 350 | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Rethinking Linear Spaces: The Rise of Specialized Stretched Bar Displays
Spatial efficiency is a defining metric in contemporary commercial architecture. High-throughput railway stations, supermarket aisles, and manufacturing cleanrooms require real-time information delivery, but lack the physical height required for conventional computer screens. The 86-inch ultra-wide bar monitor represents a targeted hardware solution to this dilemma. Delivering 3840*600 native resolution across an active 86-inch area, this display integrates flush into narrow headers, shelf channels, and equipment fascias, providing vibrant high-definition media without altering interior structural boundaries.
Deploying digital signage along narrow architectural boundaries transforms passive building surfaces into interactive communication channels. From commercial banking counters to hospital triage halls, panoramic displays streamline public traffic flow and enhance customer service delivery.
In demanding transit and retail venues, space optimization is both an aesthetic and functional necessity. By converting narrow wall headers and shelf fronts into active information zones, facility managers maximize commercial utility per square meter.
Optical Performance Under Harsh Commercial and Ambient Lighting Conditions
With an active display area delivering 3840*600 resolution, the 86-inch stretched monitor provides crisp panoramic visuals. Calibrated to 350 with a 1200 :1 contrast ratio, it ensures strong visual impact in well-lit retail and transit spaces. Symmetrical symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours backlight rating provide reliable long-term performance.
High static contrast ensures that fine text fonts stand out distinctly against dark backgrounds, maximizing information legibility for dynamic route maps and transportation schedules.
Even luminance distribution across the elongated horizontal raster prevents localized hot spots, ensuring that scrolling promotional text and flight arrival lists maintain uniform visual intensity from end to end.
Structural Engineering: Low-Profile Framing and Standard VESA Compatibility
With an optically bonded Infrared Touch (IR) front surface, the 86-inch touch monitor combines smooth multi-touch tracking with Morse magnitude 7 physical protection. The sealed front bezel prevents liquid and dust penetration, ensuring reliable performance in public kiosks.

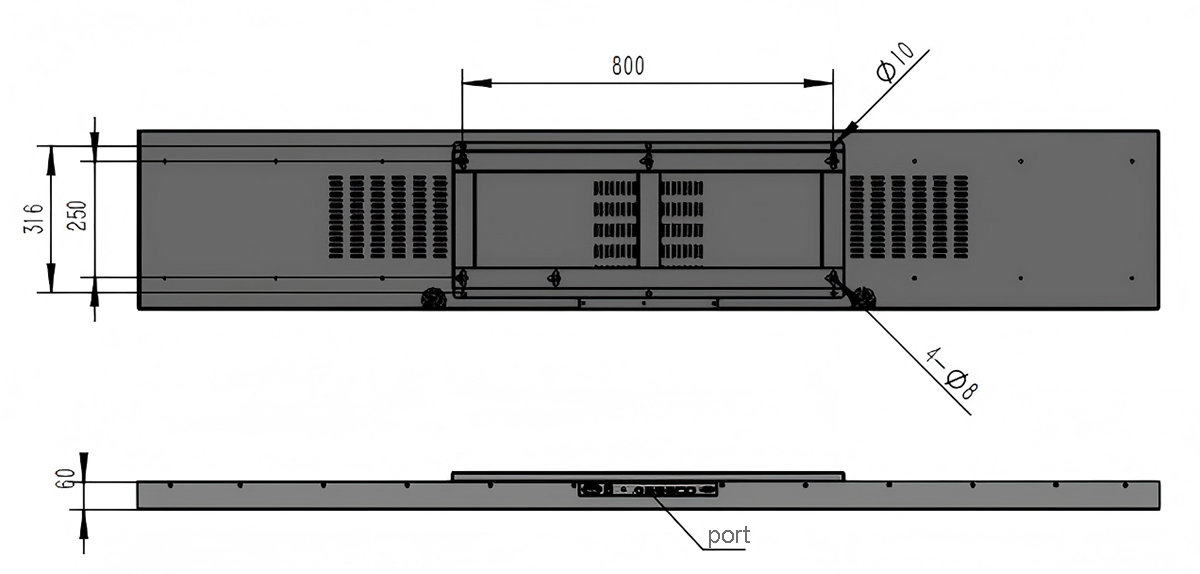

The unit features a fanless, solid-state cooling design that conducts thermal energy away from sensitive electronics directly to the outer casing. This passive cooling system ensures whisper-quiet operation and eliminates fan-related maintenance issues. Rear VESA mounting points and lateral slide channels provide straightforward installation across various mounting structures.
The chassis profile incorporates recessed rear connector pockets that protect HDMI and power plugs from accidental snags during maintenance. Right-angle cable routing channels allow the monitor to sit flush against flat architectural walls with zero gap.
Electronic Longevity: High-Grade Industrial Capacitors and Protective Circuits
Featuring HDMI, VGA video connections, the monitor ensures broad compatibility with commercial computing hardware. An integrated 3.5mm Audio Socket facilitates audio connectivity. The unit runs on universal global 100~240V line voltage at 50/60Hz power, drawing ≤ 45w, and operates stably across temperature ranges of below10℃ ~ +50℃ and humidity of ≤ 85%RH.
The mainboard firmware includes intelligent watchdog monitoring that automatically recovers video synchronization in the event of external signal interruptions, eliminating manual service calls.
The display's low thermal footprint reduces the cooling burden in enclosed kiosk cabinets, allowing system builders to design tighter, more compact self-service enclosures without auxiliary fans.
Vendor-Neutral Display Architecture with Plug-and-Play Video
Protect your technology investment against proprietary software dead-ends. Engineered with universal HDMI input standards, the screen communicates flawlessly with external computing hardware running Windows, Android, or Linux. System integrators maintain full autonomy to select, configure, and upgrade their media software, interactive touch applications, and remote device monitoring tools without restrictive third-party platform limitations.
Operational Vectors: Dynamic Pricing, Route Mapping, and Surveillance Telemetry
The 86-inch panoramic screen is engineered to deliver dynamic content in narrow architectural spaces. Applications include digital shelf-edge advertising in retail supermarkets, passenger route mapping in metro trains, telemetry monitoring in data center server racks, and panoramic menu displays in fast-food restaurants.
Automated factory assembly lines incorporate this monitor as an overhead operational pace ticker. Floor managers and machine operators track hourly production quotas, safety advisories, and machine status alerts across broad industrial plant bays.
Airport terminal operators report reduced concourse congestion when deploying panoramic displays above baggage carousels and customs lanes. International travelers receive clear, multi-lingual flight reclaim notices in an intuitive format.
Direct Manufacturer Partnership: Eliminating Intermediary Markups and Delays
Choosing ZXT as your hardware manufacturing partner provides direct access to high-precision display engineering at true source-factory pricing. Our Shenzhen manufacturing facility houses specialized production lines backed by nearly a decade of commercial display expertise. Because we maintain extensive inventories of standard extrusion profiles and tooling dies, our clients avoid costly tooling fees and long tooling lead times, enabling rapid prototype evaluation with standard sample turnaround in just three business days. We understand international logistics and tariff structures. To help overseas integrators and distributors minimize shipping volume and customs duties, we supply displays in multiple production states: fully assembled plug-and-play monitors, drop-in open-frame modules, or semi-knocked-down (SKD) kits for local assembly. Every sub-assembly undergoes rigorous factory testing before shipment to ensure high out-of-the-box yield rates. Our in-house technical department supports your project from initial design to site deployment.
Our in-house mechanical design team collaborates directly with client engineers to develop customized mounting brackets, specialized cable harnesses, and branded bezel silkscreening tailored to specific project needs.
Frequently Asked Questions (FAQ)
**Q1: Can this display be driven by our existing digital signage software?**
Yes. Engineered with an open hardware architecture, the display accepts standard HDMI and VGA signals from any external Windows, Android, or Linux player running your preferred CMS platform without proprietary software lock-in.
**Q2: Is this monitor certified for continuous 24/7 commercial operation?**
Absolutely. The display incorporates an industrial-grade A-grade liquid crystal cell and solid-state LED backlight rated for over 60,000 hours of continuous operation, supported by a fanless passive cooling design.
**Q3: Can ZXT provide customized mounting brackets or enclosure finishes?**
Yes. As a direct source manufacturer, we offer comprehensive OEM/ODM customization, including custom powder-coat colors, specialized shelf-edge mounting brackets, open-frame configurations, and modular SKD/CKD supply.
Engineering Sales Contact and Factory Direct Pricing
Request an evaluation sample or volume price schedule for the 86-inch panoramic stretched bar display by contacting our technical team. Provide your installation details for a tailored commercial quotation within two hours.
