Touchscreen
Commercial 79.8 Inch Touchscreen Bar LCD Monitor, Interactive Touchscreen
Wholesale 79.8 inch interactive touch stretched display featuring 3840*1468 resolution and 500 cd/㎡ calibrated luminance. True IPS full-viewing optics and low-power electrical design for large retail and transit deployments. Factory direct terms.
Specifications
- Screen Size
- 79.8 Inch
- Resolution
- 3840*1468
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA / USB Touch
79.8 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 79.8 inch | |
Resolution | 3840*1468 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Architectural Geometry: Resolving Horizontal Constraints in Commercial Architecture
In modern commercial retail and transportation hubs, standard 16:9 displays consistently create severe installation conflicts. Their excessive vertical height obstructs customer sightlines, intrudes into pedestrian aisles, and requires costly alterations to architectural shelving and vehicle bulkheads. The 79.8-inch stretched bar LCD monitor resolves these spatial bottlenecks by delivering native 3840*1468 resolution across an elongated panoramic diagonal. Occupying virtually zero vertical height, it converts dormant horizontal margins into dynamic visual corridors for continuous advertising, live pricing, and passenger information without disrupting surrounding fixtures.
By replacing static cardboard signs and bulky poster frames with dynamic panoramic video loops, retail and transportation operators unlock real-time promotional agility. Content management platforms can instantly update merchandise promotions or emergency transit notices across hundreds of distributed displays, reducing maintenance overhead and maximizing visual engagement.
From an engineering standpoint, preserving structural sightlines directly correlates with higher customer retention in commercial spaces. Rather than obstructing surrounding merchandising displays or passenger pathways, the low-profile chassis sits flush against linear surfaces, creating an uncluttered, modern visual environment.
Display Quality: Sharp Typography, Fine Graphic Detail, and Vibrant Colors
The 79.8-inch ultra-wide display offers 3840*1468 native resolution, paired with a 500 cd/㎡ brightness output and a 1200 :1 contrast ratio. The IPS optical layer provides ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles, ensuring consistent visual clarity for viewers positioned at various angles, while the commercial backlight is rated for over 60,000 hours of continuous 24/7 commercial duty of duty.
The display's wide viewing angle architecture ensures that passenger information tickers and pricing tables remain clearly legible to pedestrians walking past at rapid speeds from various approach vectors.
Carefully tuned gamma correction curves produce balanced shadow detail and smooth color gradations, allowing intricate advertising graphics and photographic assets to reproduce with true-to-life vibrancy.
Thermal Dissipation Engineering: Silent Conduction Without Moving Parts
Featuring a hardened Infrared Touch (IR) panel with Morse 7 impact-resistant glass, the 79.8-inch interactive monitor ensures durable public service. The optically bonded touch stack provides smooth multi-point response while repelling fingerprints, water droplets, and surface abrasions.

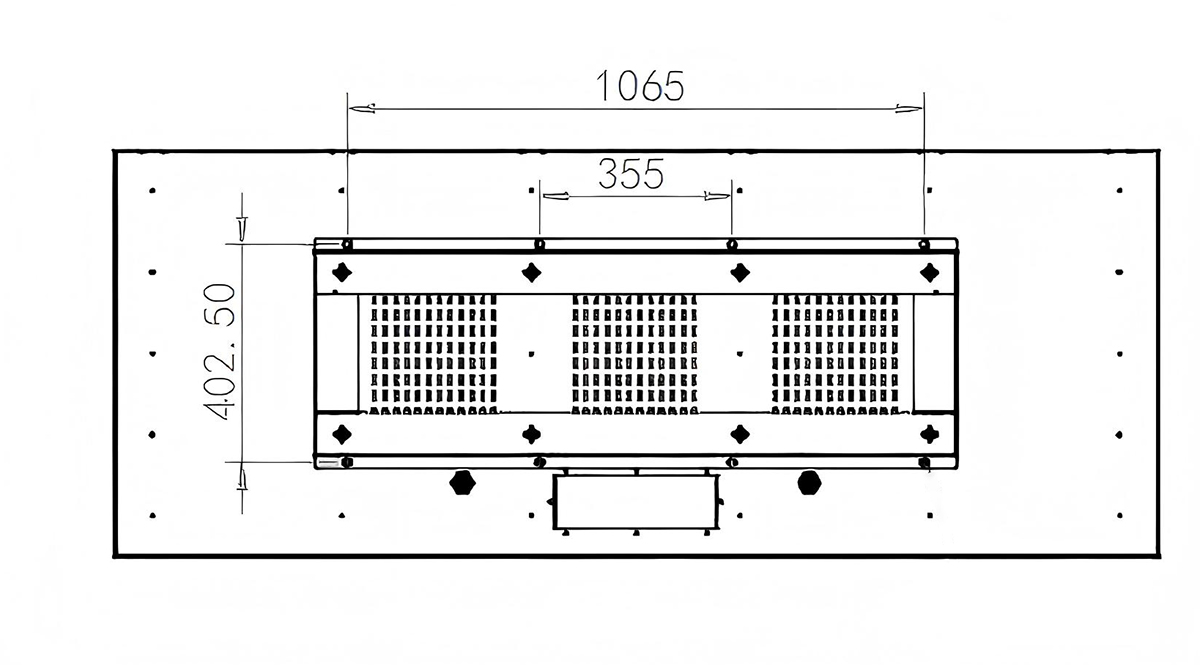

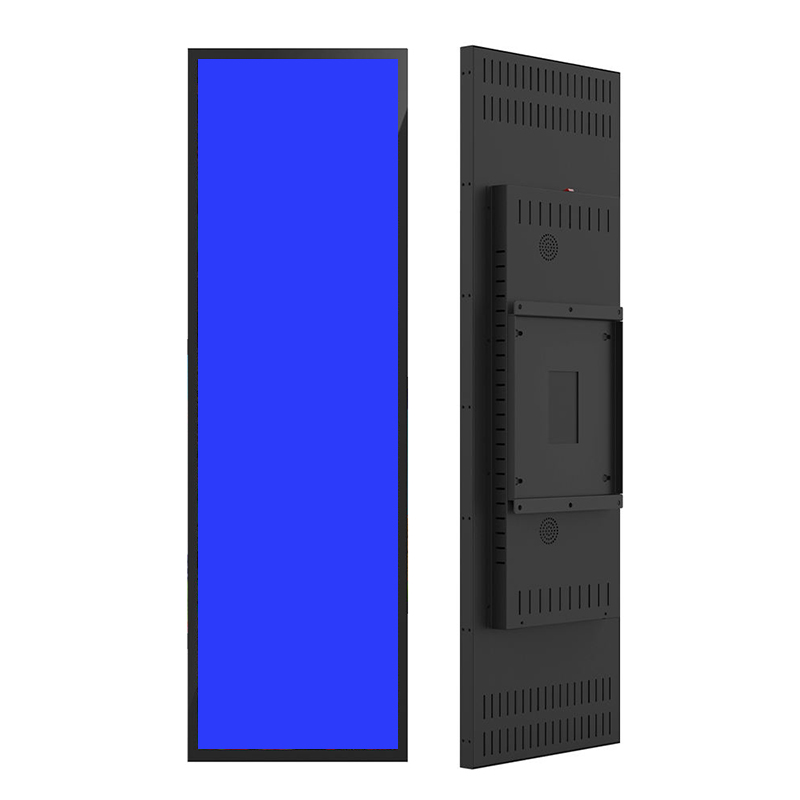

Engineered for continuous commercial operation, the display utilizes a fanless thermal architecture that dissipates heat naturally through its metal chassis. This design prevents mechanical failure and internal dust contamination, ensuring silent, reliable performance in retail and transportation settings. Mounting options include standard rear VESA patterns and versatile lateral mounting slots.
Integrated structural slide channels along the top and bottom edges permit tool-free adjustment when mounting multiple screens in a continuous horizontal line. This modular mechanical rail system cuts field installation labor by up to forty percent for large retail fit-outs.
Universal Power Conversion: Resilient Operation Across Commercial Mains Grids
With standard HDMI, VGA inputs, the display links easily to digital signage players and industrial computing equipment. An integrated 3.5mm Audio Socket provides audio output capability. The internal power converter accepts universal 100-240V commercial electrical mains mains with power consumption limited to ≤ 45w, rated for operating conditions of below10℃ ~ +50℃ and ≤ 85%RH.
The audio output circuitry supports synchronized stereo playback, enabling interactive kiosks to provide clear voice prompts and confirmation chimes during customer self-service transactions.
The low-voltage direct current output stage delivers ultra-clean power to the liquid crystal timing controller, eliminating horizontal line noise and visual ripple in sensitive commercial AV setups.
Open Signal Integration for Multi-Platform Computing

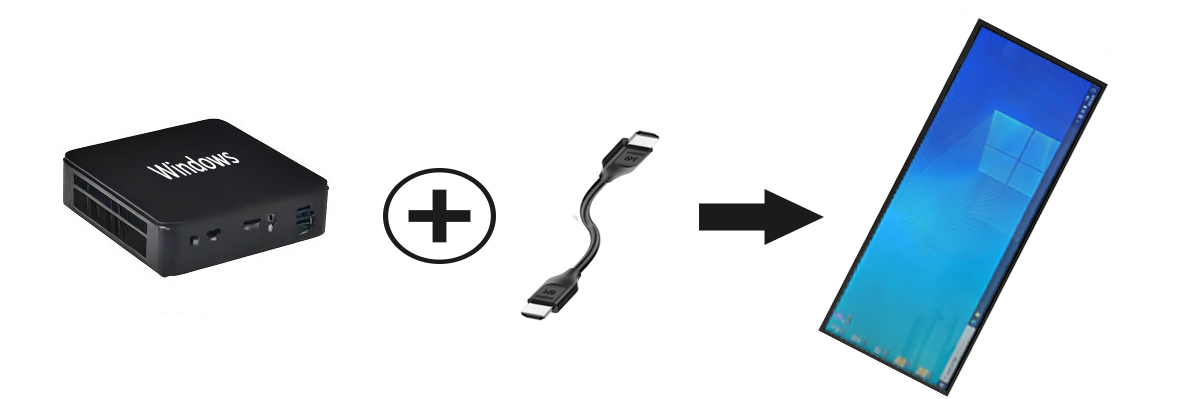

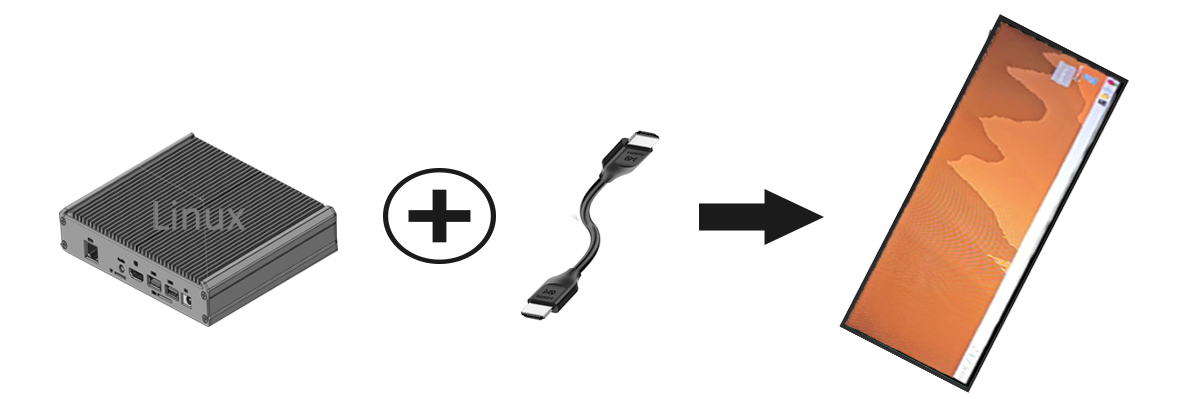

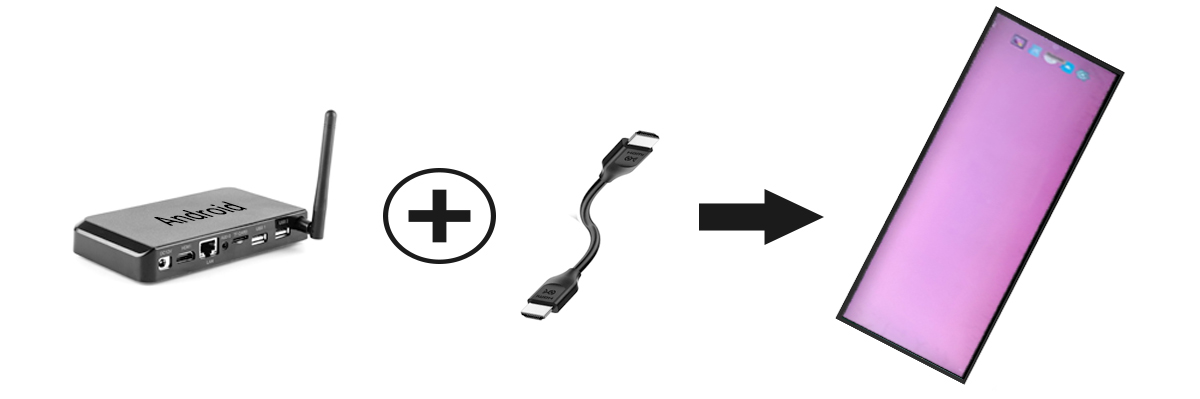

This commercial monitor operates on a strictly non-proprietary hardware baseline, ensuring seamless compatibility with global computing standards. Whether your project utilizes x86 Windows PCs for high-performance interactive 3D media, compact Android boxes for lightweight cloud signage, or Linux controllers for hardened industrial telemetry, a single HDMI link delivers pristine native-resolution rendering across your chosen operating environment.
Strategic Installation Points: Digital Merchandising and Industrial Telemetry
The 79.8-inch stretched bar monitor provides targeted visual communication across high-traffic venues. In retail environments, it elevates shelf-edge merchandising with dynamic promotional video loops. In transportation systems, it displays passenger navigation alerts above carriage doorways. In control rooms, it presents multi-channel CCTV status feeds, and in hospitality venues, it provides sleek panoramic event signage.
Hospitality venues and boutique hotels integrate this horizontal display into reception counters and elevator lobbies. Digital guest directories, conference room event schedules, and concierge recommendations are presented with clean, modern architectural elegance.
In banking halls and municipal administrative offices, linear displays installed above service counters streamline queue management. Clear ticket calling numbers and teller status updates reduce perceived wait times and improve customer service ratings.
Turnkey and Modular Supply: Helping International Partners Scale Deployments
ZXT delivers factory-direct manufacturing for commercial stretched bar displays, offering competitive pricing, in-stock tooling, and 3-day sample turnaround. We provide complete technical support, including 2D/3D CAD models and modular SKD delivery to optimize international tariffs.
We partner with system integrators to build long-term commercial relationships, offering transparent volume-tiered pricing structures and dedicated account management for enterprise digital signage initiatives.
Display Sourcing & Engineering FAQ
**Q1: Does the display produce electromagnetic interference with nearby equipment?**
No. Internal electronics are enclosed within a grounded metallic chassis with integrated EMI filtering circuitry, complying with commercial Class A and Class B electromagnetic compatibility standards.
**Q2: Can we test sample units before placing a volume project order?**
Yes. We strongly encourage evaluation testing and provide sample units complete with power supplies, video cables, and CAD mounting guides, ready for dispatch within three working days.
**Q3: What optical surface treatments are applied to the screen?**
The display panel features an industrial-grade anti-glare (AG) polarized surface treatment with hard-coat scratch resistance, minimizing reflections while repelling dust and environmental smudges.
Discuss Project Specifications and Volume Price Tiers
Reach out to ZXT's commercial display team to evaluate sample hardware, review mechanical tolerances, or discuss volume OEM/ODM pricing for the 79.8-inch stretched display. We provide fast technical responses and official quotes.
