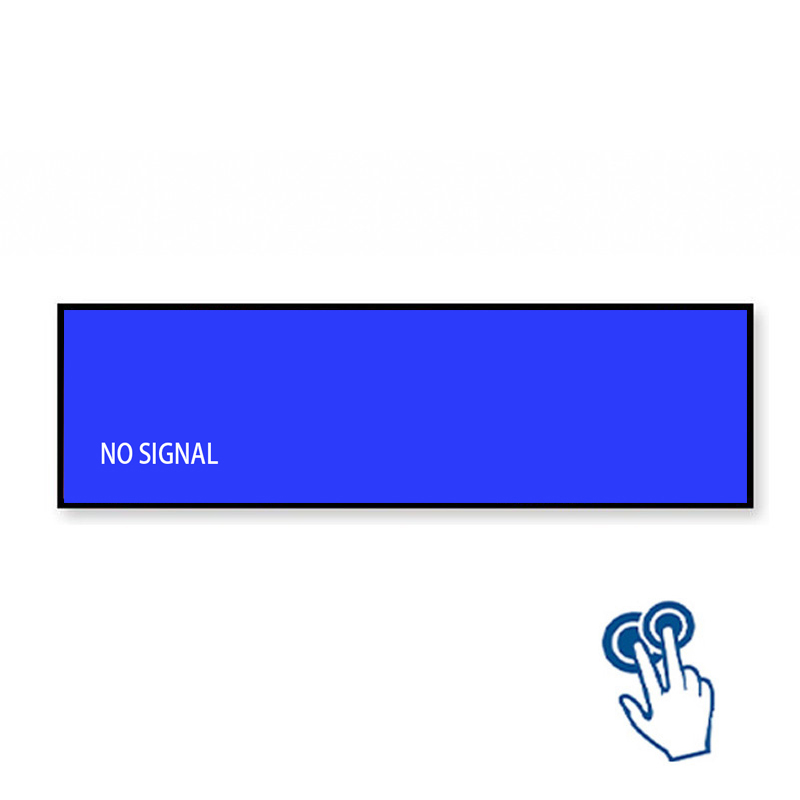

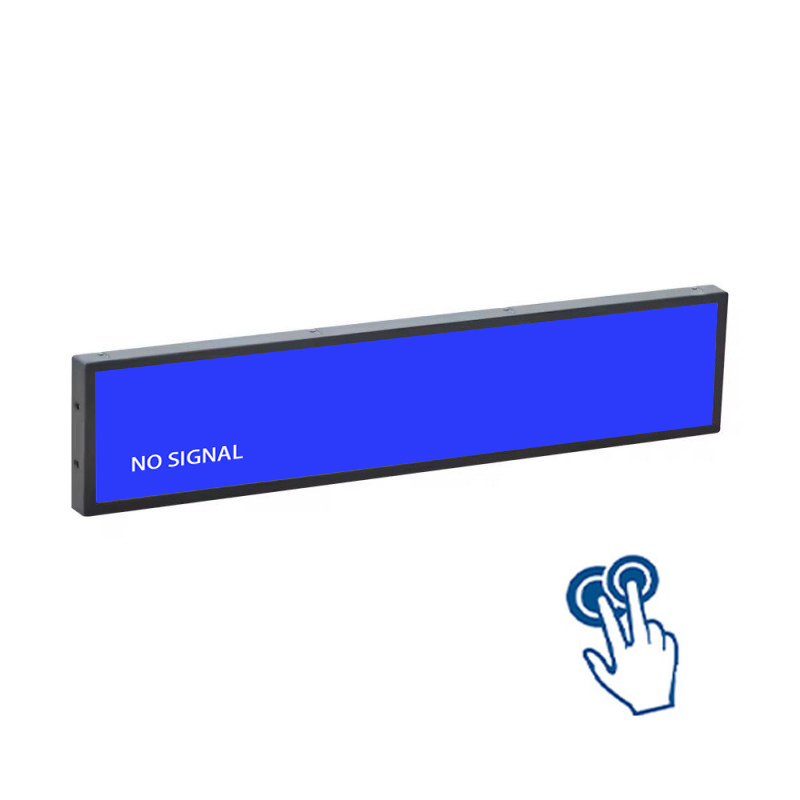

78.9 Inch Ultra-Wide Touchscreen Stretched Monitor with Rugged Sheet Metal
Industrial-grade 78.9 inch interactive touch stretched display delivering 3840*1328 native resolution and 800 cd/㎡ brightness. Fanless passive thermal design engineered for 24/7 commercial operation. Factory-direct pricing with complete 2D/3D CAD technical support.
Specifications
- Screen Size
- 78.9 Inch
- Resolution
- 3840*1328
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA / USB Touch

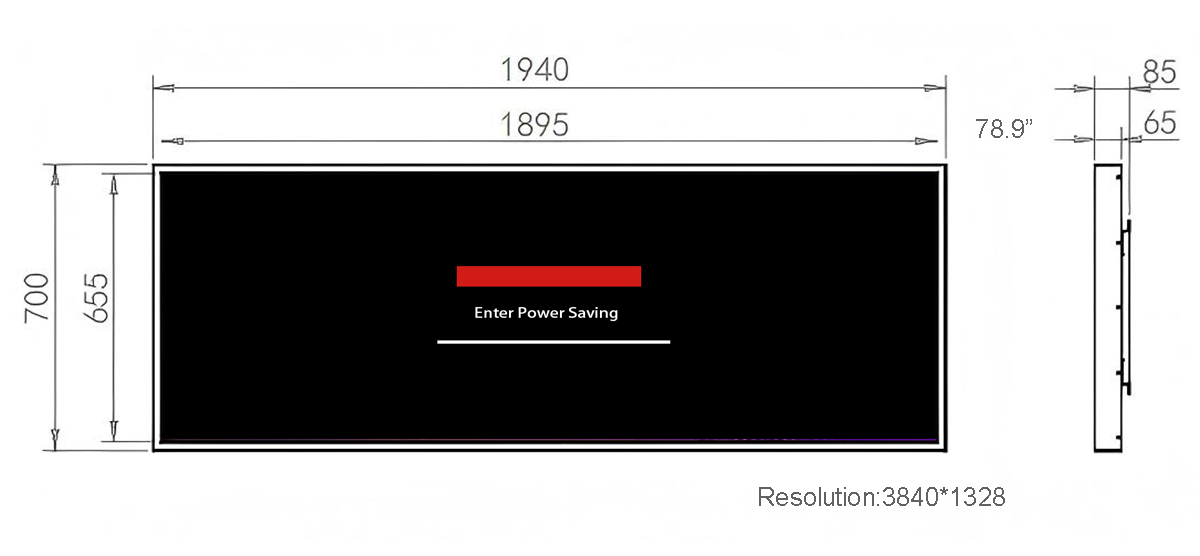

78.9 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 78.9 inch | |
Resolution | 3840*1328 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Panoramic Engineering: Delivering Wide Visual Feeds in Restricted Vertical Slots
Engineered for installations where standard 16:9 monitors are too tall, the 78.9-inch stretched display delivers 3840*1328 resolution across an active 78.9-inch diagonal. It allows commercial operators to deploy vibrant promotional content and operational alerts along narrow horizontal headers with zero space waste.
By turning dormant perimeter spaces into dynamic visual assets, venues maximize the commercial value of their existing architecture. Every square inch of wall or shelf space contributes actively to customer engagement.
Enterprise clients benefit from a consistent hardware aesthetic across diverse venue locations. The standardized linear enclosure provides a cohesive visual signature whether installed in boutique shops or transit hubs.
True IPS Technology: Wide Symmetrical Viewing Angles Without Chromatic Drift
Engineered for clarity and longevity, the 78.9-inch panoramic display features a native resolution of 3840*1328 and a brightness rating of 800 cd/㎡. The anti-glare surface minimizes ambient reflections, while the 1200 :1 contrast ratio and IPS symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angles ensure optimal image quality from all perspectives. The backlight is rated for over 60,000+ operational hours of 24/7 commercial performance.
The LED backlight system incorporates premium phosphor coatings that deliver a broad, balanced color spectrum, ensuring that dynamic video sequences render with lifelike warmth and accurate saturation.
The IPS alignment layer ensures that contrast and color saturation remain virtually identical across the entire 178-degree viewing cone, allowing passersby approaching from sharp angles to read information effortlessly.
Mechanical Integrity: Extrusion Tolerances and Fanless Thermal Management
The 78.9-inch interactive stretched monitor features an optically bonded Infrared Touch (IR) front panel shielded by Morse scale magnitude 7 explosion-proof toughened glass. Engineered for rigorous public touch interaction, it delivers responsive 10-point multi-touch tracking, complete scratch resistance, and moisture immunity, enabling intuitive customer self-service navigation while withstanding accidental physical impacts.
Thermal management relies on a purely passive, fanless conduction architecture. High-efficiency internal thermal heat-spreaders route heat away from the liquid crystal cell and driving chipsets directly into the external metallic chassis. By eliminating motorized fans, the monitor avoids internal dust accumulation, eliminates mechanical motor failure points, and operates in absolute acoustic silence—critical for quiet luxury retail and public service desks. Mounting versatility is integral to the enclosure design, featuring standard VESA mounting patterns alongside lateral slide-track channels.

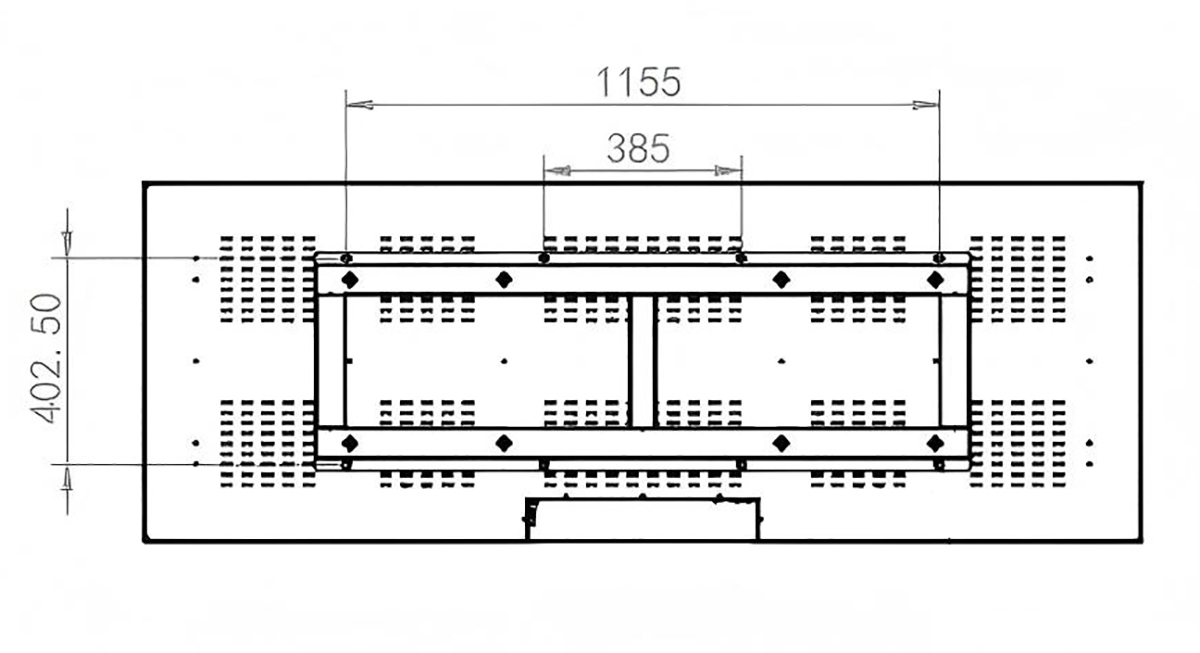

Mechanical installation flexibility is ensured through standardized VESA 75x75 and 100x100 mounting patterns integrated directly into the rear chassis plate. In addition, continuous lateral T-slot channels allow technicians to slide and lock mounting brackets into exact position, simplifying alignment across long multi-display shelf runs or vehicle interior bulkheads.
Input Versatility: Connecting to Industrial IPCs, Android Boxes, and Controllers
The display provides HDMI, VGA video connectivity for straightforward integration with digital signage systems and industrial computers. An integrated 3.5mm Audio Socket enables external sound connectivity. Power is supplied via universal universal 100-240V commercial electrical mains mains, with energy consumption rated at ≤ 45w. Reliable operation is maintained across temperatures of below10℃ ~ +50℃ and humidity of ≤ 85%RH.
Robust input connector soldering and reinforced chassis anchor points prevent loose cable connections caused by mechanical vibration in mobile transit vehicles and vibrating factory machinery.
High-reliability solid-state capacitors and premium inductors prevent power supply failure, ensuring dependable continuous operation across multi-year commercial deployment schedules.
Open Architecture HDMI Connectivity: Freedom to Choose Your OS
Safeguard your digital signage rollout from proprietary obsolescence with an open-architecture commercial display. Supporting direct HDMI video feeds from external Windows boxes, Android media sticks, and Linux industrial controllers, this monitor provides instant compatibility with your target content management software, interactive point-of-sale applications, and network telemetry utilities.
Application Spectrum: From Smart Supermarkets to Public Transportation
The panoramic geometry of the 78.9-inch stretched display delivers outstanding visual utility across high-traffic commercial environments: 1. Supermarket Shelf-Edge Merchandising: Installed along grocery gondola headers to present eye-level video ads, brand storytelling, and dynamic sales banners at the point of purchase. 2. Quick-Service Restaurant Menu Boards: Mounted above order counters in fast-food chains and coffee shops to display panoramic combo menus and pricing in narrow horizontal bands. 3. Public Bus & Tram Passenger Information: Installed on interior vehicle ceiling ribs to deliver real-time stop updates, route progress bars, and transfer alerts. 4. Elevator Transom & Lobby Signage: Positioned horizontally across elevator door headers for building tenant directories, commercial notices, and property updates.
For passenger railway and metro operators, installing this display format inside train carriages improves route comprehension and transit safety. Dynamic graphic route maps display real-time line progress, upcoming interchange connections, and bilingual station advisories, ensuring daily commuters and tourists navigate complex transit networks with ease.
In municipal transit deployments, overhead route mapping displays significantly reduce passenger boarding confusion. Commuters boarding crowded subway cars can immediately verify their direction of travel and upcoming transfer hubs, improving passenger boarding efficiency during rush hours.
Supply Chain Flexibility: Assembled Displays, Open-Frame Units, and SKD Packs
Partnering with ZXT gives hardware integrators access to verified manufacturing expertise and factory-direct pricing. With extensive in-stock casing tooling, we eliminate mold fees and dispatch samples in three days, offering turnkey displays or SKD kits to optimize international logistics.
Our extensive library of proven extrusion dies and stamping tooling allows clients to deploy customized stretched bar hardware without incurring the high costs and lengthy delays of new tooling development.
Commercial & Engineering FAQ
**Q1: Can this screen operate reliably in vibrating vehicles or near heavy machinery?**
Yes. Built with ruggedized metallic framing and vibration-damped structural fastenings, the display is engineered to endure continuous mechanical shocks encountered in rolling stock, public buses, and factory shopfloors.
**Q2: What power input does this commercial monitor require?**
The internal power supply accepts universal AC mains from 100V to 240V at 50/60Hz, with low operational power consumption designed to minimize facility electricity costs across multi-screen deployments.
**Q3: Can we request customized logo printing or corporate color matching?**
Certainly. We provide custom front bezel silkscreening, bespoke RAL/Pantone powder coating finishes, and tailored firmware boot logos to align with your corporate brand guidelines.
Engineering Collaboration and Volume Pricing Assessment
Contact ZXT's international sales engineering group to discuss volume pricing, custom bracket options, or evaluation sample units for the 78.9-inch ultra-wide stretched display. Share your target installation parameters, interface needs, and expected delivery dates, and our technical specialists will prepare a comprehensive engineering proposal and quotation within two business hours.
