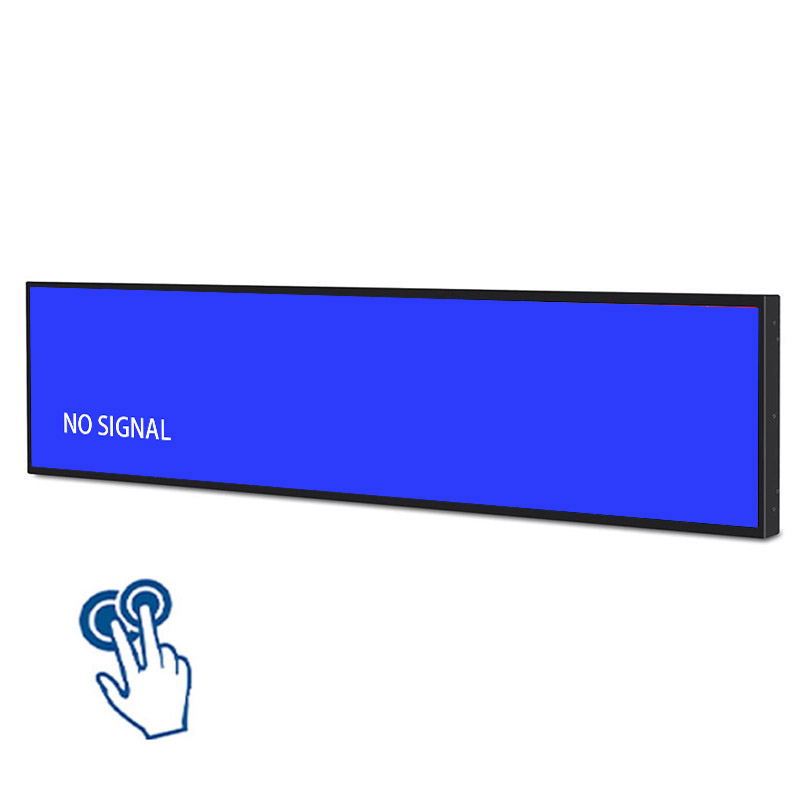

OEM 77.9 Inch Multi-Touch Stretched LCD Screen for Smart Kiosks
Direct manufacturer of 77.9 inch ultra-wide interactive touch stretched display (3840*1150, 800 cd/㎡). High-definition commercial display delivering 60,000-hour backlight longevity for public transit and retail signage. Zero tooling fees on standard sizes.
Specifications
- Screen Size
- 77.9 Inch
- Resolution
- 3840*1150
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA / USB Touch
77.9 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 77.9 inch | |
Resolution | 3840*1150 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Space-Constrained Visual Architecture: Engineering Displays for Narrow Margins
In modern commercial architecture, horizontal margins represent prime visual real estate that traditional monitors cannot utilize. The 77.9-inch stretched bar LCD monitor unlocks these spaces, delivering native 3840*1150 resolution across an elongated 77.9-inch active diagonal to provide continuous digital messaging without consuming vertical room.
Enterprise IT managers appreciate the straightforward integration into centralized digital signage networks. The display links seamlessly with existing media players, supporting automated scheduling and remote device monitoring.
Modern supermarket merchandising strategies rely on dynamic motion graphics to stimulate shopper curiosity. Eye-level digital shelf headers deliver brand storytelling right where purchasing decisions are finalized.
Visual Integrity: Deep Black Levels, High Contrast, and Chromatic Consistency
The optical configuration of the 77.9-inch stretched screen combines 3840*1150 resolution with 800 cd/㎡ calibrated brightness. Featuring a 1200 :1 contrast ratio, the panel delivers rich colors and deep blacks. IPS wide-viewing optics ensure consistent CR≥10 wide-angle IPS optical alignment visibility without color shifting, while the commercial-grade LED backlight delivers an operational lifespan exceeding more than 60,000 hours of maintenance-free illumination.
Factory color calibration ensures that multi-screen video ribbon installations display identical chromatic balance and brightness levels, creating a cohesive, professional appearance across extended display walls.
Optical clarity is maintained across years of continuous operation thanks to high-grade polarising films that resist ultraviolet degradation and discoloration caused by prolonged ambient exposure.
Installation Engineering: Lateral Slide-Tracks and Universal Mounting Provisions
The 77.9-inch interactive stretched monitor combines a high-precision Infrared Touch (IR) sensor with explosion-proof tempered glass. Designed for commercial self-service kiosks, it provides responsive multi-touch navigation and lasting physical resilience.

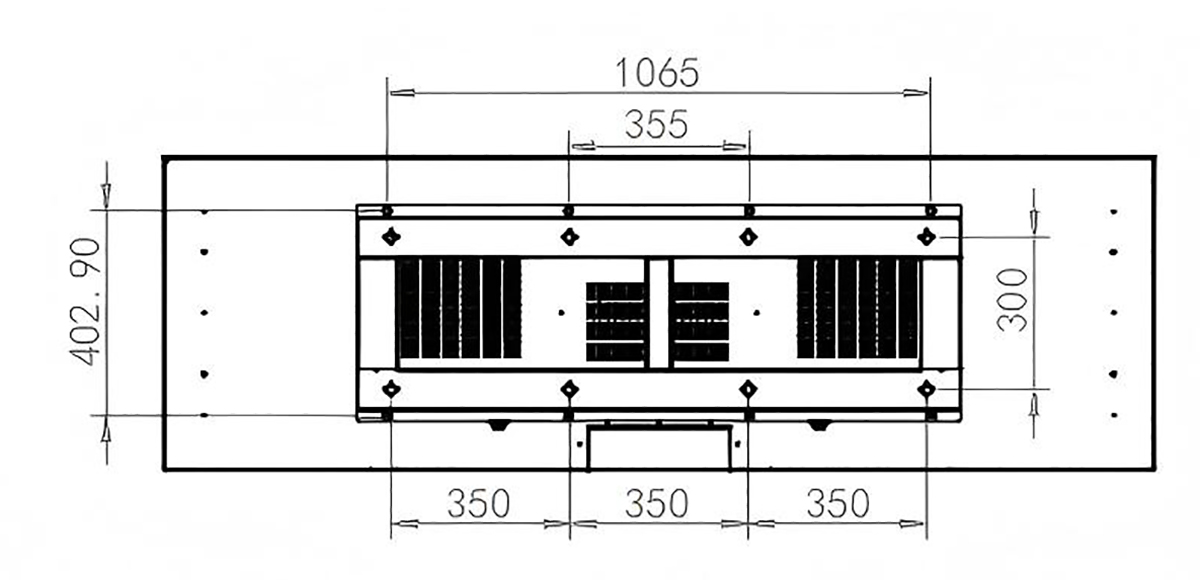

Passive thermal dissipation through the metallic housing ensures stable operating temperatures without the need for mechanical cooling fans. The enclosure includes standardized VESA mounting provisions and lateral slide channels for straightforward installation.
Flexible mounting hardware options include top-suspension hanging brackets, recessed cabinet clips, and articulated wall mounts. All structural fasteners are fabricated from stainless steel to resist atmospheric corrosion in semi-outdoor venues.
Electronics Hardening: Conformal Coating Protection Against Humidity and Dust
Built with standard HDMI, VGA ports, the monitor interfaces smoothly with commercial media players, PCs, and video controllers. Audio integration is enabled via a 3.5mm Audio Socket. The internal power supply operates from AC 100V~240V (50/60Hz), drawing ≤ 45w during active operation. The hardware is certified for continuous operation across below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Energy-efficient backlight drivers regulate power flow dynamically based on content brightness, trimming power consumption while maintaining peak visual punch for advertising assets.
Energy-conserving standby modes reduce power consumption to less than one watt during off-hours, allowing automated facility management systems to power down screens overnight effortlessly.
Universal Video Ingestion Across Leading Operating Systems
This display adopts a clean, open hardware topology that welcomes external video input from Windows, Android, and Linux compute engines alike. A single HDMI connection delivers seamless pixel mapping and audio-video pass-through, giving digital signage operators and kiosk engineers the latitude to implement custom CMS platforms, automated queue software, or industrial SCADA consoles without artificial hardware constraints.
Sector Deployment Profiles: High-Footfall Commercial and Public Venues
The unique compact proportions of the 77.9-inch stretched bar monitor make it exceptionally versatile across tight commercial footprints: 1. Smart Retail Shelf Strips: Mounted on cosmetic counters, liquor shelving, and pharmacy displays to showcase real-time digital pricing, product benefits, and QR promotions. 2. Workstation & PC Secondary Telemetry: Positioned beneath primary monitors on gaming and creator desks for real-time CPU/GPU telemetry, chat streams, and audio timelines. 3. 1U/2U Server Rack & Industrial Consoles: Integrated into standard equipment racks and CNC machine panels to provide continuous system status and telemetry feeds. 4. Service Counter & Queue Indicators: Installed at bank teller counters and hospital intake stations to present queue ticket numbers and service status updates.
In smart grocery retail chains, this display format streamlines shelf-edge marketing by replacing static paper shelf tags with dynamic video loops. Supermarket category managers can schedule price changes, promote brand stories, and push limited-time discounts right at the point of decision, driving noticeable increases in retail basket size and impulse item turnover.
Field performance data demonstrates that integrating dynamic panoramic video loops into supermarket shelf headers drives measurable sales lift across featured product categories. Shoppers browsing grocery aisles spend more time engaging with product selections when dynamic pricing and brand storytelling are presented at eye level.
Engineering Consultation: Firmware Tuning, Pinout Schemes, and CAD Blueprints
ZXT provides direct factory manufacturing of commercial stretched bar displays, eliminating middleman costs. We maintain in-stock tooling for standard sizes, deliver evaluation samples within three business days, and provide complete 2D/3D CAD models and modular SKD/CKD shipping options to support overseas assembly.
Direct factory communication eliminates the misunderstandings common with trading intermediaries, giving project managers clear visibility into production milestones and shipping schedules.
Technical Selection & System Integration FAQ
**Q1: How do we switch between different operating systems on this display?**
Switching operating systems is frictionless: simply connect your chosen host computer (Windows PC, Android box, or Linux controller) via HDMI. The display adapts instantly without requiring internal firmware reconfiguration.
**Q2: What is the expected backlight service lifespan?**
The industrial-grade solid-state LED backlight is rated for an operational lifespan exceeding 60,000 hours, ensuring consistent chromatic performance and high luminance across multi-year commercial deployments.
**Q3: Does ZXT provide 2D and 3D CAD models for pre-engineering?**
Yes. Our engineering department supplies comprehensive 2D dimensional PDF drawings and 3D STEP CAD files to assist your mechanical team with structural fixture and cabinet integration.
Request Technical Blueprints and Factory Direct Quotation
Ready to deploy the 77.9-inch panoramic stretched bar monitor in your next commercial project? Contact our engineering sales team today to request comprehensive 3D CAD drawings, verify connector pinouts, or arrange a 3-day evaluation sample. Send us your project specifications and delivery timelines, and our technical staff will return an official factory-direct proposal within two hours.
