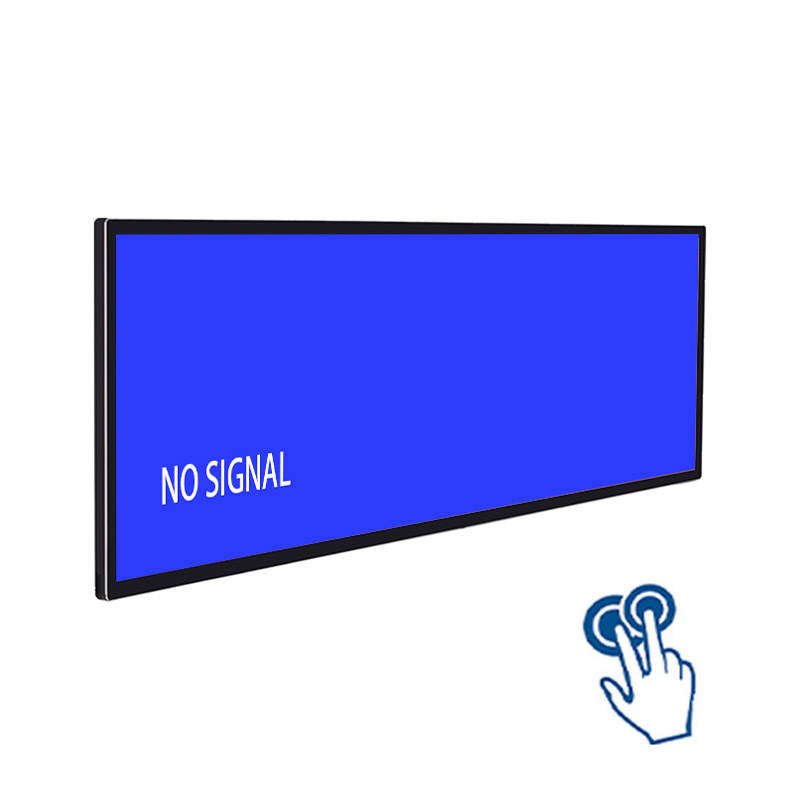

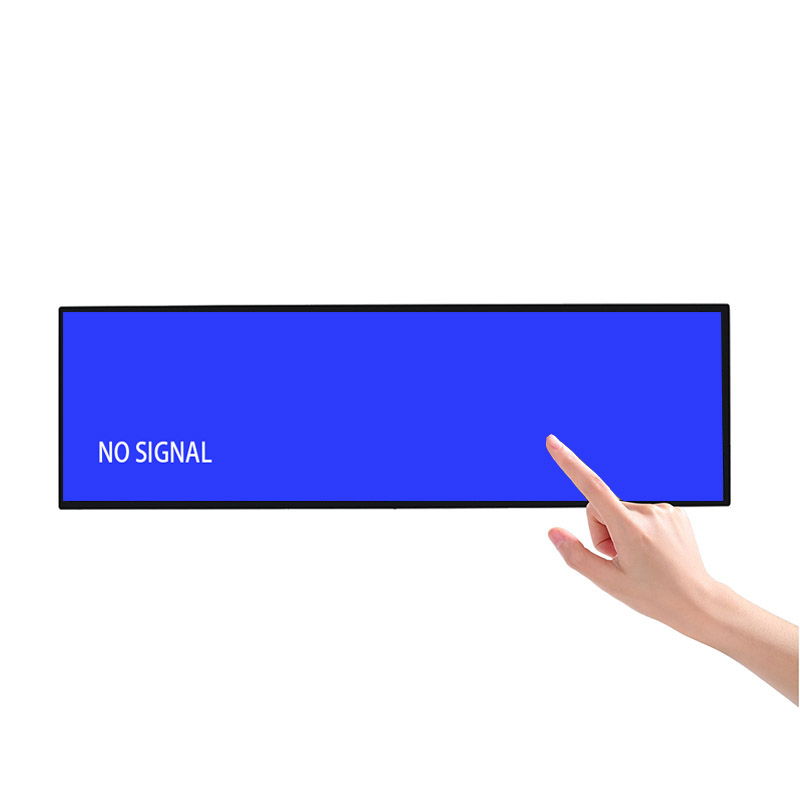

77.5 Inch Touchscreen Sheet Metal Stretched Bar LCD Monitor
Wholesale 77.5 inch interactive touch stretched display featuring native 3840*1080 resolution and 500 cd/㎡ brightness. Commercial-grade 24/7 reliability for retail shelves, public transit, and industrial equipment. Direct from source manufacturer with in-stock tooling, zero mold charges, and 3-day sample dispatch.
Specifications
- Screen Size
- 77.5 Inch
- Resolution
- 3840*1080
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA / USB Touch
77.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 77.5 inch | |
Resolution | 3840*1080 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Solving The Height Limitation: Engineering Custom Aspect Ratio Displays
The 77.5-inch ultra-wide bar monitor is designed specifically for environments where vertical space is tightly constrained. Delivering 3840*1080 native resolution across its active 77.5-inch diagonal, it enables operators to present continuous promotional video loops, pricing updates, and transit announcements along narrow architectural surfaces.
Transportation authorities can broadcast synchronized route announcements and public service alerts in real time. The clear horizontal layout allows commuters to track their journey progress at a glance.
Replacing printed vinyl banners with dynamic digital strips allows shopping mall operators to monetize linear architectural surfaces, creating new advertising revenue streams across corridors and escalator bulkheads.
Panel Specifications: Industrial-Grade Backlight Reliability and Luminous Stability
Delivering high visual fidelity across an ultra-wide active area, the 77.5-inch stretched display features an industrial LCD panel with native 3840*1080 resolution. This elongated aspect ratio provides ample screen real estate for split-screen layouts, dynamic tickers, and multi-media video banners without graphical distortion or letterboxing. With a factory-calibrated luminance output of 500 cd/㎡, the display ensures consistent optical clarity in bright interior commercial environments. Supported by a native contrast ratio of 1200 :1, it renders crisp text, rich graphics, and deep blacks. Equipped with IPS wide-viewing technology, the display delivers a symmetrical true IPS 178-degree wide visual cone viewing cone, while the LED backlight module is rated for more than an industrial service life exceeding 60,000 hours of continuous operation.
The active matrix substrate features uniform pixel pitch alignment that eliminates distracting moiré patterns and visual banding, ensuring smooth photographic gradients in commercial advertising loops.
Precision factory color profiling guarantees that multi-screen video ribbon installations display identical color temperatures and white points, presenting a seamless visual narrative across extended architectural runs.
Solid-State Mechanical Layout: Preventing Dust Intake in Public Venues
The 77.5-inch touch display incorporates an advanced Infrared Touch (IR) matrix behind scratch-resistant toughened glass. Low-parallax bonding and fast touch response enable intuitive customer interaction in compact self-service kiosks.

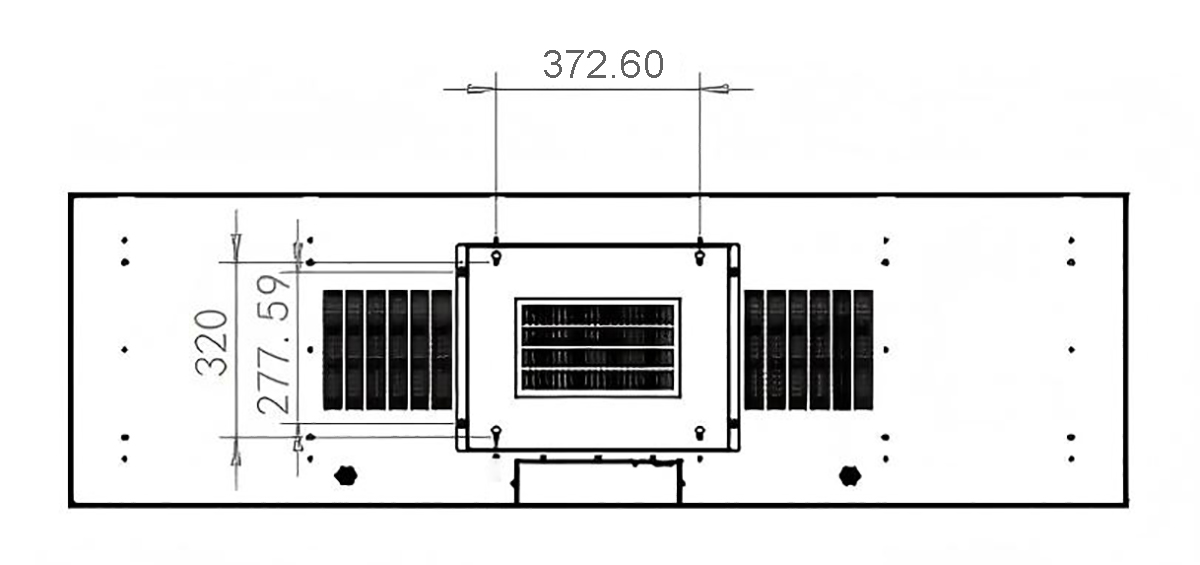

Engineered for durability, the unit features a passive cooling design that eliminates internal fans and associated maintenance requirements. The chassis provides standard VESA rear mounting points and lateral mounting channels for rapid integration into retail and transit fixtures.
For cleanroom and pharmaceutical applications, the enclosure features smooth, screw-less front surfaces and non-porous powder coatings that withstand daily wipe-down with sanitizing alcohol and chemical detergents.
Audio-Visual Processing: Audio Socket Provision and Pixel-to-Pixel Mapping
Featuring standard HDMI, VGA video interfaces, the display connects directly to commercial media players and industrial computing hardware. Automatic video timing synchronization ensures accurate pixel mapping. An integrated 3.5mm Audio Socket supports external audio connectivity, while the power module accepts standard 110V to 240V AC power input with power consumption rated at ≤ 45w. The monitor operates reliably across temperatures of below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Universal mains power input simplifies international deployment, allowing system builders to install the same hardware globally without requiring external voltage transformers or specialized power adapters.
Standardized video connector placement and reinforced cable strain-relief points ensure that HDMI and VGA cables remain securely anchored, even when deployed in vibrating buses or rail vehicles.
Unrestricted Cross-OS Compatibility for Enterprise Signage
Designed to serve as a versatile visual terminal, the display features native HDMI compatibility with all major operating systems, including Microsoft Windows, Google Android, and enterprise Linux distributions. IT departments can pair the screen with their preferred hardware platform to broadcast cloud-managed digital signage, execute custom interactive scripts, or display mission-critical telemetry without proprietary software licensing hurdles.
Strategic Venues: Airport Information Systems, Fast-Food Menus, and Factory Lines
With its specialized panoramic form factor, the 77.5-inch display serves diverse commercial sectors. It enhances retail product displays with dynamic video loops, informs public transit commuters with real-time route updates, monitors server rack metrics in data centers, and displays panoramic menus in restaurant chains.
Specialty pharmacy and health retail stores install this monitor along vitamin and personal care shelving. Nutritional information, product usage guides, and promotional discounts are presented at eye level to support informed customer purchasing decisions.
Commuter rail stations report smoother passenger boarding flows when deploying this display along platform boarding gates. Passengers waiting along platform edges can verify carriage layouts and arrival times at a single glance.
Manufacturer Agility: Permanent Tooling Inventories and Custom Bracket Finishing
ZXT delivers source-factory reliability for global display integrators. Our in-house manufacturing facilities maintain extensive tooling inventories, eliminating NRE mold charges and enabling 3-day sample shipping. We support overseas clients with fully assembled monitors or modular SKD kits designed to lower import duties and freight costs.
Strict quality management systems govern every stage of production, from incoming optical inspection of open-cell panels to computerized colorimeter calibration and vibration table testing.
Commercial Buyer FAQ & Technical Inquiries
**Q1: How does the display handle custom ultra-wide resolution timings?**
The onboard industrial A/D scalar automatically locks onto native ultra-wide timings via standard EDID handshakes, ensuring uncompressed pixel-for-pixel rendering without horizontal stretching or letterbox bars.
**Q2: What is the sample dispatch lead time for evaluation units?**
Because ZXT maintains in-stock inventories of standard aluminum extrusion profiles and stamping tooling, evaluation samples can be fully calibrated, burned-in, and dispatched within three working days.
**Q3: What video input interfaces are provided on this monitor?**
The standard configuration includes industrial HDMI and VGA video ports alongside a 3.5mm independent audio socket, allowing immediate plug-and-play connection to PCs, media sticks, and sound systems.
B2B Commercial Consultation and Engineering Support
Contact ZXT today to request 3D CAD blueprints, technical datasheets, or evaluation samples for the 77.5-inch stretched bar LCD monitor. Our technical sales team returns official factory proposals within two hours.
