69 Inch Ultra-Wide Touchscreen Stretched Monitor with Metal Frame
Direct from manufacturer: 69 inch interactive touch stretched display (3840*1488, 500 cd/㎡). High-density panoramic visual solution for space-constrained architectural perimeters. Zero NRE mold fees, fast 3-day sampling, and custom OEM/ODM support.
Specifications
- Screen Size
- 69 Inch
- Resolution
- 3840*1488
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA / USB Touch
69 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 69 inch | |
Resolution | 3840*1488 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Compact Geometry: Transforming Narrow Overhead Lintels into Information Corridors
Installing dynamic video signage in space-constrained commercial settings requires hardware engineered for narrow margins. The 69-inch stretched bar monitor delivers 3840*1488 resolution across an active 69-inch diagonal, allowing enterprise clients to deploy high-impact digital messaging in locations where standard displays cannot be mounted.
Modern architectural interiors prioritize minimalist, uncluttered design. Panoramic stretched monitors align perfectly with contemporary linear aesthetics, providing high-tech visual delivery in an understated package.
Industrial automation facilities require high-density status visualization that does not block machine operators' view of the production floor. This low-profile monitor delivers comprehensive line telemetry in an unobtrusive format.
High-Definition Visual Delivery: Color Purity, Contrast, and Viewing Geometry
The 69-inch display is powered by an industrial-grade LCD panel designed for high-resolution panoramic visualization. With a native resolution of 3840*1488, it presents sharp, detailed imagery that ensures promotional campaigns, digital price updates, and public transport schedules are legible and visually compelling at all times. Luminance is calibrated at 500 cd/㎡, delivering clear, crisp visuals in well-lit commercial spaces without generating uncomfortable glare for nearby customers. Backed by a 4000 :1 contrast ratio, the display produces rich color tones, clean white highlights, and deep shadows. True IPS wide-angle technology provides an expansive symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angle, while the solid-state LED backlight system is rated for an industrial-grade operational life of 60,000+ operational hours.
High panel transmission efficiency allows the display to achieve striking luminous output while maintaining low internal thermal dissipation, safeguarding delicate electronic components from excessive heat aging.
A resilient anti-glare surface treatment diffuses incoming light rays at microscopic angles, preventing harsh specular reflections from blinding nearby shoppers or transit operators under overhead LED lighting.
Housing Ergonomics: Thin Profiles, Concealed Cabling, and Minimalist Bezels
With a Morse 7 tempered glass overlay, the 69-inch PCAP Capacitive Touch monitor provides exceptional durability for interactive commercial installations. The sensitive touch layer supports fluid gestures, while the sealed bezel protects against dust and moisture.
The display utilizes a fanless thermal management system that conducts heat directly to the outer metallic enclosure, preventing internal hotspots and dust ingress. Standardized VESA mounting holes and lateral slide tracks enable secure mechanical installation across commercial fixtures.
Engineered for modular video wall and ribbon configurations, the chassis sides feature interlocking alignment pins that ensure perfect panel-to-panel leveling. This mechanical precision creates uninterrupted visual ribbons across extended storefront fascias.
Electrical Reliability: Transient Surge Defense and Clean Signal Routing
Connecting the display into enterprise IT and AV networks is completely frictionless thanks to onboard HDMI, VGA video ports. The display interfaces smoothly with commercial media players, industrial embedded controllers, and split-screen video processors, supporting native resolution mapping without image distortion. An integrated 3.5mm Audio Socket simplifies connection to external speakers, allowing venues to combine panoramic promotional visuals with directional sound reinforcement. Designed for global commercial deployment, the power converter accepts universal universal 100-240V commercial electrical mains electrical mains. Operating power is capped at an efficient ≤ 150w, delivering significant energy savings. The display delivers robust environmental resilience, operating reliably across ambient temperatures of below10℃ ~ +50℃ and humidity ranges up to ≤ 85%RH.
Conformal protective varnishing applied across printed circuit boards protects copper traces and solder joints against airborne moisture condensation, oil vapors, and conductive dust particles.
Conformal protective varnishing applied across the printed circuit boards forms a durable barrier against ambient humidity condensation, airborne grease vapors, and fine industrial dust particulates.
Multi-OS Ecosystem Support via Standard Video Interface

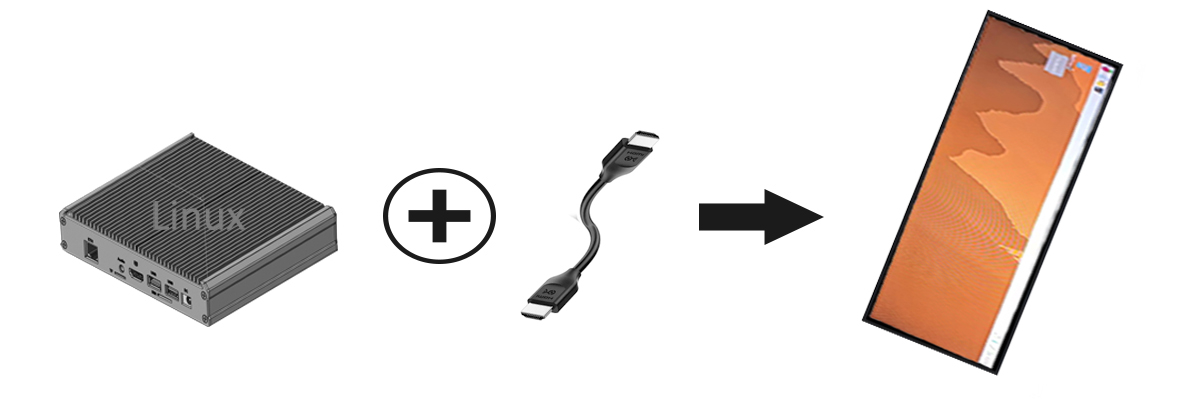

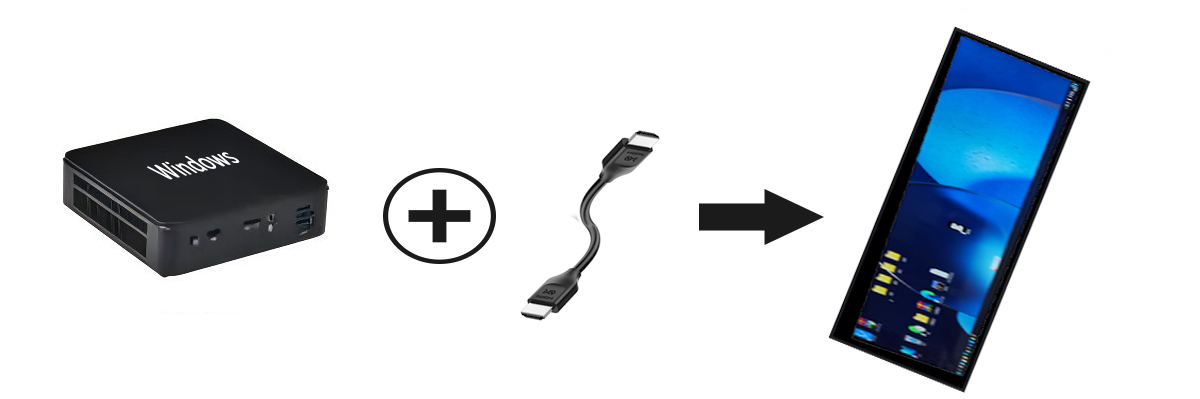

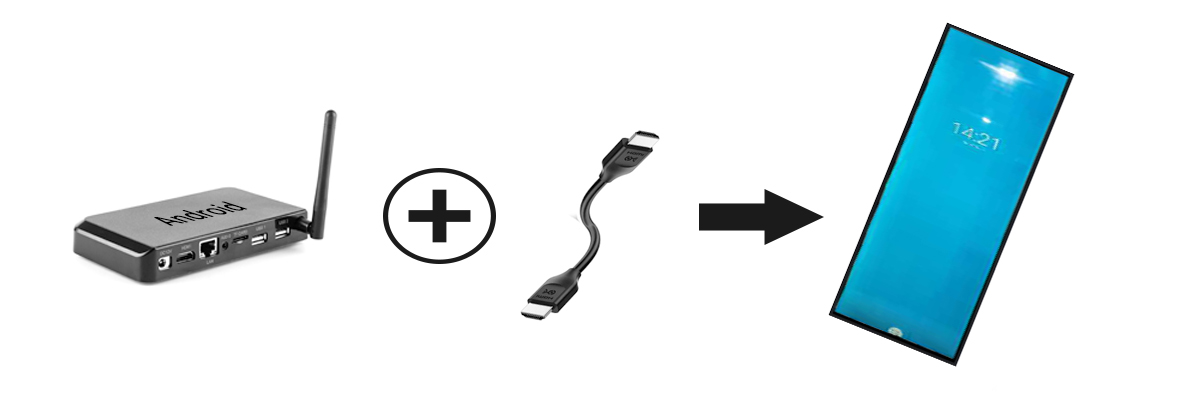

Eliminating the constraints of built-in proprietary player boards, this open-standard commercial monitor provides straightforward connectivity to external Windows, Android, and Linux controllers via HDMI. This decoupled design enables AV contractors to deploy specialized content management software, digital pricing applications, or real-time SCADA telemetry systems while maintaining the flexibility to swap media players at any future date.
Field Deployment Breakdown: Retail Aisles, Train Doorways, and Datacenter Racks
The 69-inch stretched screen delivers valuable visual communication in linear spaces. Common deployment scenarios include supermarket shelf merchandising, bus and train passenger guidance, industrial machine tool telemetry, and corporate entrance architectural signage.
Automotive manufacturing plants and cleanroom testing facilities mount this display along inspection stations. Quality control technicians verify real-time tolerance data, assembly checklists, and defect alerts on a clean, wipe-down screen.
Pharmacy retail chains utilize the screen along personal care aisles to deliver educational health tips and seasonal promotions, assisting shoppers in making informed healthcare purchasing decisions right at the shelf.
Procuring From The Source: Verified Commercial Quality and Transparent Pricing
Sourcing directly from ZXT provides commercial display buyers with verified factory pricing, established extrusion tooling, and rapid turnaround. Backed by nine-plus years of manufacturing experience, we offer standard sample dispatch within three days, zero tooling fees on standard sizes, and comprehensive 2D/3D CAD engineering support for international project developers.
Our modular SKD and CKD export programs empower international partners to assemble displays locally, qualifying for favorable regional tariff classifications and reducing international freight costs.
Frequently Asked Questions (FAQ)
**Q1: Can this display be driven by our existing digital signage software?**
Yes. Engineered with an open hardware architecture, the display accepts standard HDMI and VGA signals from any external Windows, Android, or Linux player running your preferred CMS platform without proprietary software lock-in.
**Q2: Is this monitor certified for continuous 24/7 commercial operation?**
Absolutely. The display incorporates an industrial-grade A-grade liquid crystal cell and solid-state LED backlight rated for over 60,000 hours of continuous operation, supported by a fanless passive cooling design.
**Q3: Can ZXT provide customized mounting brackets or enclosure finishes?**
Yes. As a direct source manufacturer, we offer comprehensive OEM/ODM customization, including custom powder-coat colors, specialized shelf-edge mounting brackets, open-frame configurations, and modular SKD/CKD supply.
