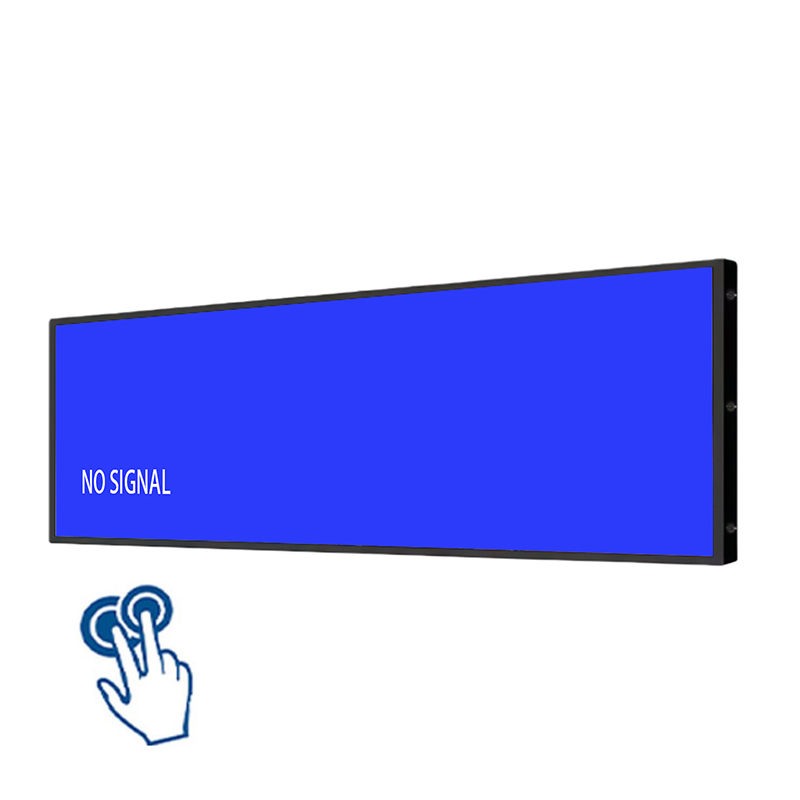

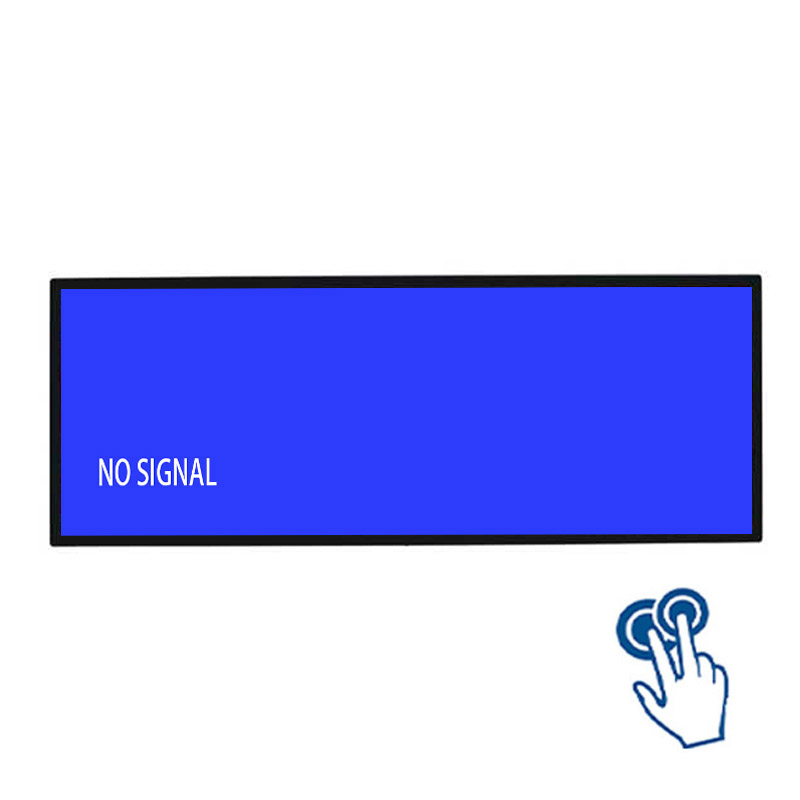

Commercial 69 Inch Touchscreen Bar LCD Monitor, Interactive Touchscreen
Commercial 69 inch interactive touch stretched display with 3840*1488 native resolution and 800 cd/㎡ brightness. Built for continuous operation across transport networks, retail aisles, and industrial facilities. Rapid global fulfillment from Shenzhen.
Specifications
- Screen Size
- 69 Inch
- Resolution
- 3840*1488
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA / USB Touch

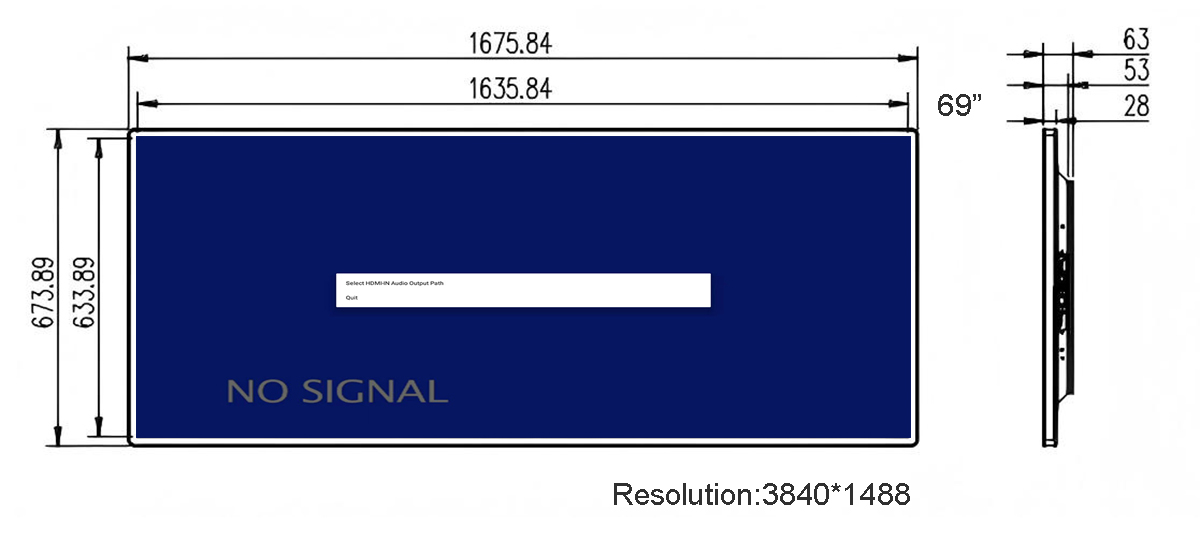

69 Inch Stretched LCD (Aluminum) | ||
Display Specifications | ||
Screen Size | 69 inch | |
Resolution | 3840*1488 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+FF Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Engineering: Unlocking Underutilized Architectural Perimeters
Retail merchandising and passenger transit environments demand specialized displays designed for narrow linear perimeters. The 69-inch stretched LCD monitor satisfies this requirement by providing 3840*1488 native resolution across an active 69-inch diagonal, maximizing horizontal display area while preserving valuable vertical clearance.
The specialized cut-bar aspect ratio allows software developers to design multi-zone split-screen layouts. Static brand banners can run alongside animated promotional videos, maximizing screen utility within a single fixture.
The horizontal display geometry aligns naturally with human horizontal glance paths, ensuring that dynamic price callouts and route stops catch attention without requiring shoppers or commuters to look away from their primary path.
Visual Physics: Maintaining Sharp Image Definition Under Ambient Lighting
At the heart of this display is an industrial-grade A-grade liquid crystal cell engineered for continuous commercial duty. Featuring a native 3840*1488 resolution, the 69-inch screen provides high-definition clarity that ensures intricate graphic assets, dynamic video commercials, and multi-line transit schedules remain razor-sharp from standard viewing distances. Boasting an engineered luminous output of 800 cd/㎡, the panel overcomes the visual washout typical of consumer screens in bright commercial lighting. Paired with a 4000 :1 native contrast ratio, the optical stack produces deep black levels and vibrant chromatic saturation. The display's IPS panel structure ensures wide optical visibility with CR≥10 wide-angle IPS optical alignment viewing angles, while the solid-state LED backlight is rated for a continuous operational life of more than 60,000 hours of maintenance-free illumination.
An optimized polarising matrix prevents color inversion and contrast degradation when the screen is viewed from steep vertical or lateral perspectives, preserving image fidelity in tight corridor passages.
High static contrast performance ensures that deep blacks remain rich and text characters stand out sharply, maximizing legibility in low-light transit tunnels as well as brightly illuminated department stores.
Vibration Resistance: Heavy-Gauge Enclosure Engineering for Transit and Industry
The 69-inch interactive stretched screen is built with an industrial Infrared Touch (IR) sensor protected by tempered safety glass. It delivers responsive multi-point tracking for self-service inquiry terminals, resisting heavy public use and accidental spills.

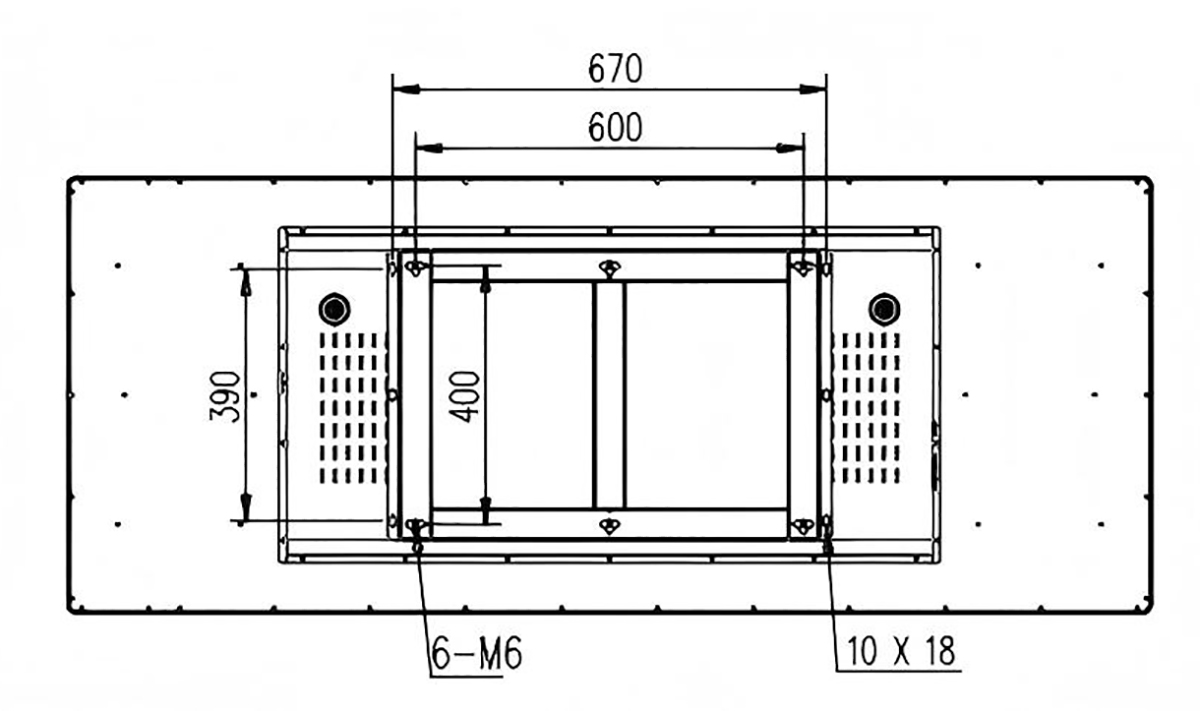

Thermal performance is optimized through passive conduction, using the external metal body to dissipate heat away from internal electronics. This fanless system ensures silent operation and protects internal circuits from dust. Rear VESA patterns and lateral slide channels support flexible mounting configurations.
The housing design includes dedicated cable strain-relief tie points that prevent video and power cords from vibrating loose over years of service. Accessible side-mounting screw holes facilitate quick integration into self-service kiosk fascias.
Interface Flexibility: Integrating with Modern Commercial Media Appliances
Engineered for versatile electrical compatibility, the monitor's mainboard includes standard HDMI, VGA video inputs, making it compatible with a wide variety of industrial computers, media sticks, and commercial playback engines. Video processing logic accurately formats incoming video streams, ensuring clean, uncompressed image reproduction across the ultra-wide active area. A dedicated 3.5mm Audio Socket provides clean audio signal output to external speakers or intercom channels, enabling dynamic multimedia messaging. The internal power subsystem accommodates universal AC power from AC 100V~240V (50/60Hz). Engineered with energy-saving circuitry, maximum operational power consumption remains under ≤ 150w, minimizing heat buildup. Built to perform across rigorous environmental profiles, the monitor is rated for ambient temperatures spanning below10℃ ~ +50℃ and operating humidity levels up to ≤ 85%RH.
The integrated audio socket features low-noise analog signal amplification, delivering clean audio output to external directional speakers or public address distribution equipment for synchronized messaging.
Integrated 3.5mm audio connectivity provides a clean, hum-free audio signal feed to auxiliary directional speakers, enabling synchronized sound effects that amplify the impact of promotional advertising loops.
Vendor-Neutral Display Architecture with Plug-and-Play Video

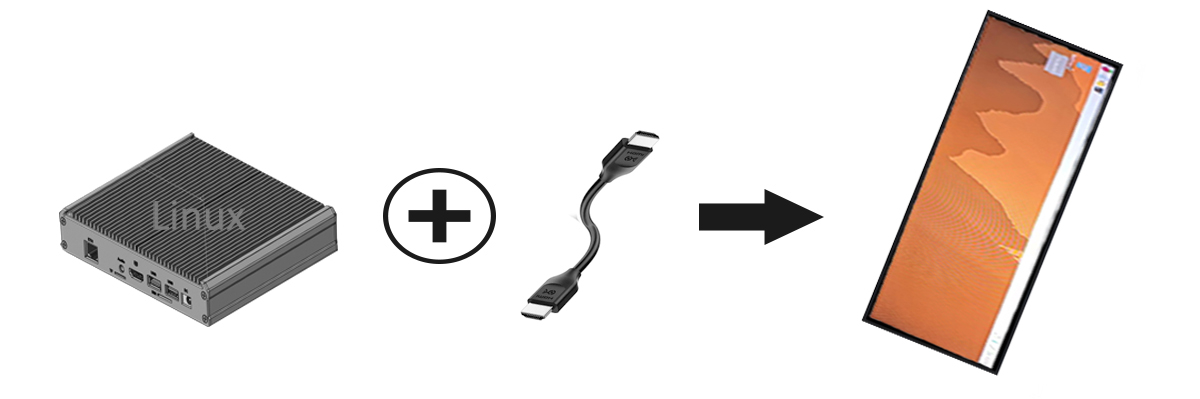

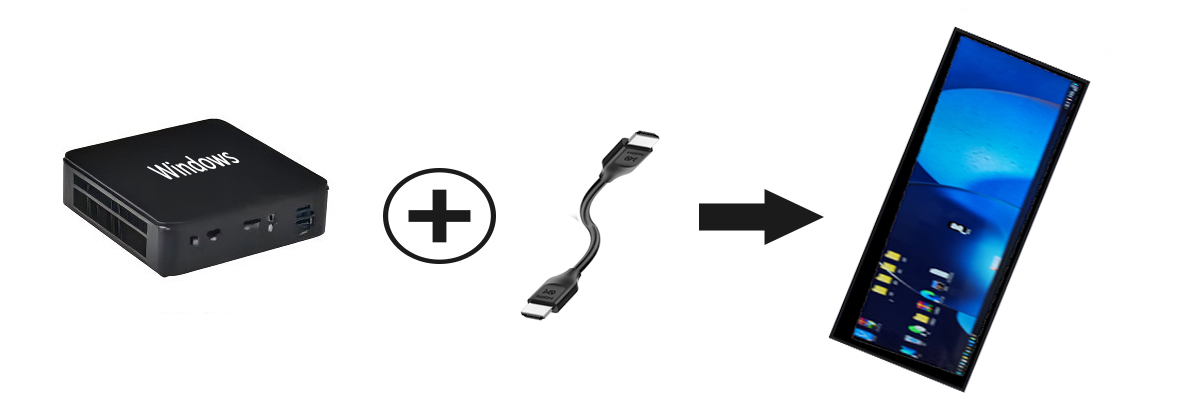

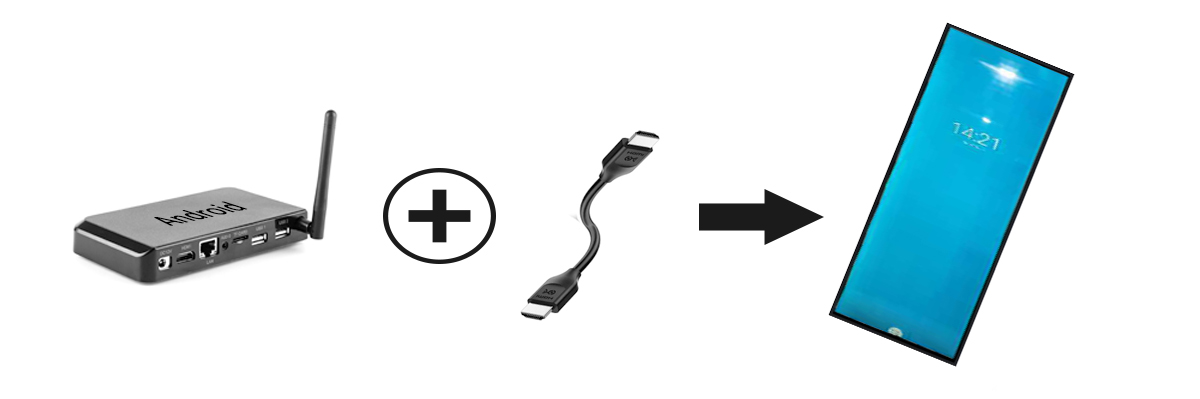

Protect your technology investment against proprietary software dead-ends. Engineered with universal HDMI input standards, the screen communicates flawlessly with external computing hardware running Windows, Android, or Linux. System integrators maintain full autonomy to select, configure, and upgrade their media software, interactive touch applications, and remote device monitoring tools without restrictive third-party platform limitations.
Venue Integration: Enhancing Customer Navigation and Merchandise Turnover
Engineered for versatile commercial use, the 69-inch stretched display provides panoramic visual delivery in space-constrained settings. Retailers utilize it for shelf-edge advertising, transit operators install it for passenger wayfinding, and industrial engineers use it for equipment monitoring.
In sports arenas and stadium concourse passages, the display functions as a continuous digital ribbon above concession stands. Live match scores, sponsor logos, and beverage menu specials keep spectators engaged throughout tournament games.
Cleanroom pharmaceutical facilities rely on the display's sealed, wipe-clean housing to monitor batch processing parameters. Quality control operators verify real-time environmental data without compromising sterile room protocols.
In-House Engineering Support: 2D/3D CAD Models and Technical Collaboration
Direct sourcing from ZXT gives your enterprise a competitive advantage in display hardware quality, cost efficiency, and lead-time reliability. With over nine years of specialized R&D and hundreds of commercial implementations worldwide, we maintain a complete catalog of in-stock profile tooling. This allows system integrators to deploy customized stretched bar hardware without incurring custom mold fees, with evaluation samples dispatched in as little as three days. We offer adaptable fulfillment options to streamline international logistics. Clients can order fully certified finished monitors, open-frame assemblies ready for enclosure drop-in, or complete SKD/CKD component shipments that allow overseas partners to assemble locally and minimize import duties. Our in-house R&D staff collaborates directly with client engineers, providing full 2D and 3D CAD modeling data and custom firmware support.
Dedicated international sales engineers provide prompt technical support, returning detailed commercial proposals, dimensional drawings, and technical feasibility reviews within two business hours.
Procurement & Technical Verification FAQ
**Q1: Can this display be integrated into third-party kiosk cabinetry?**
Yes. The compact enclosure profile, standardized VESA mounting holes, and optional open-frame mounting ears make it exceptionally straightforward to integrate into self-service kiosks, vending machines, and ATMs.
**Q2: How does ZXT support overseas localized assembly?**
Through our established SKD/CKD programs, we provide tested sub-assemblies, detailed assembly process documentation, and technical support to assist overseas partners in establishing localized production.
**Q3: How do we initiate an engineering consultation for custom specifications?**
Simply contact our technical sales department with your target installation parameters, dimensional constraints, and order volumes, and our engineering team will provide a comprehensive proposal within two hours.
Schedule Sample Dispatch and Review Technical Specs
To evaluate the 69-inch stretched bar display for your next deployment, contact our Shenzhen engineering team today. We offer full CAD support, 3-day sample dispatch, and volume-tiered commercial pricing.
