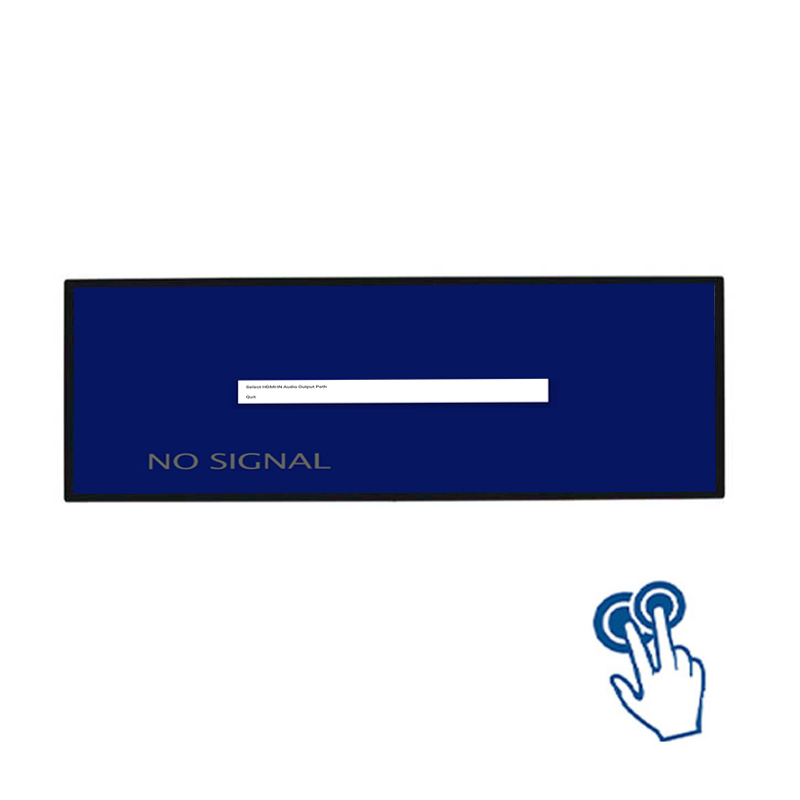

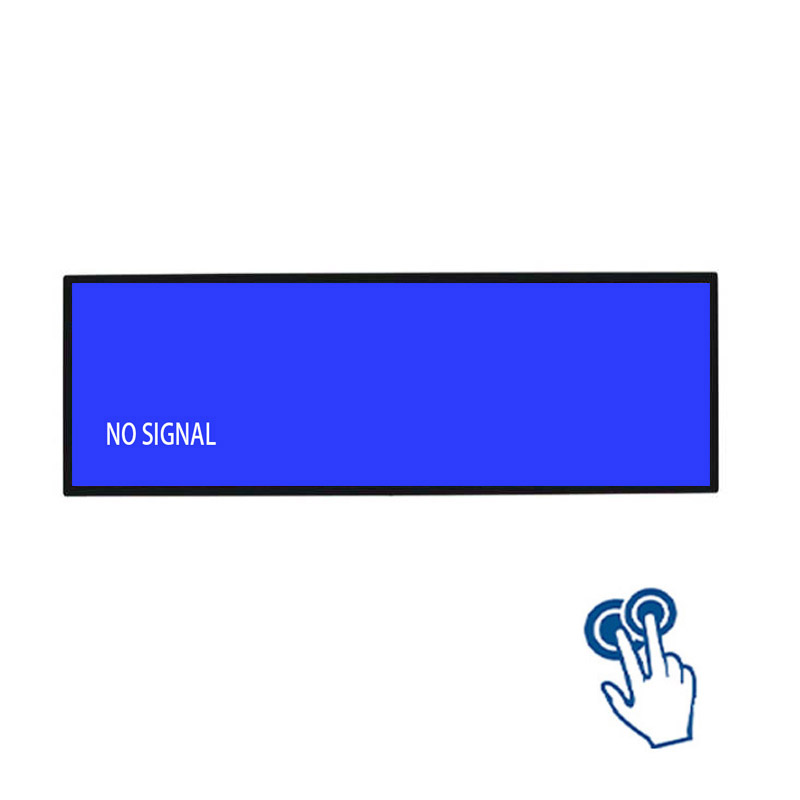

OEM 69.3 Inch Multi-Touch Stretched LCD Screen for Smart Kiosks
Factory-direct 69.3 inch interactive touch stretched display delivering 3840*1436 panoramic display resolution and 800 cd/㎡ brightness. Fanless solid-state cooling for silent, dust-free operation in demanding commercial environments.
Specifications
- Screen Size
- 69.3 Inch
- Resolution
- 3840*1436
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA / USB Touch
69.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 69.3 inch | |
Resolution | 3840*1436 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Maximizing Visual Sightlines: Re-Engineering Display Ratios for Linear Margins
Modern public infrastructure demands streamlined visual integration. The 69.3-inch panoramic display is engineered to overcome vertical mounting constraints, delivering 3840*1436 resolution across an elongated 69.3-inch viewing area. It offers system integrators a reliable way to deploy dynamic digital content in tight architectural slots without visual compromise.
In smart retail environments, dynamic price changes and seasonal campaigns can be scheduled automatically. This operational flexibility eliminates manual re-labeling labor and ensures pricing accuracy across multi-store chains.
In public service environments such as healthcare intake desks and civic service counters, compact horizontal displays keep waiting citizens informed while preserving clear verbal and visual communication with desk staff.
Liquid Crystal Clarity: True IPS Alignment and Wide-Angle Color Fidelity
Engineered for high-impact visual performance, the 69.3-inch panoramic display utilizes a commercial-grade LCD cell with a native 3840*1436 resolution. The high pixel density provides exceptional visual precision, allowing fine pricing fonts, international transit icons, and high-definition video loops to display with pristine clarity without downscaling or blur. A calibrated brightness level of 800 cd/㎡ ensures that content remains vivid and easily readable in spaces with high ambient lighting. Supported by a 4000 :1 contrast ratio, the panel renders rich color gradations, crisp dark boundaries, and punchy visual contrast that captures shopper attention instantly. The display incorporates true IPS wide-angle technology, providing an expansive ultra-wide 89/89/89/89 horizontal and vertical sightlines field of view, while the LED backlight module is rated for an operational lifespan of over over 60,000 hours of continuous 24/7 commercial duty.
Constant-current backlight driver circuitry guarantees flicker-free optical output across the entire dimming range, eliminating optical fatigue for cashiers, station personnel, and nearby shoppers who view the screen continuously.
Uniform edge-lit LED backlighting eliminates dim corners and visual vignetting, ensuring that panoramic video banners maintain consistent brightness and chromatic balance across the entire screen span.
Mechanical Design: Protecting Internal Electronics in Demanding Environments
Featuring a reinforced Infrared Touch (IR) front panel, the 69.3-inch interactive display combines smooth multi-touch performance with robust physical impact defense. The optically bonded glass stack eliminates glare and parallax for clear, accurate touch input.
Solid-state thermal engineering allows the display to operate continuously without internal cooling fans, preventing dust accumulation and eliminating acoustic noise. The mechanical chassis features standardized VESA rear mounting patterns alongside adjustable lateral slide grooves for easy integration.
Architectural integration is streamlined by an ultra-low-profile mounting depth that complies with international building code corridor protrusion limits. Flush-mount wall brackets allow the display to integrate smoothly into elevator lobbies and narrow hallways.
Power Supply Architecture: Wide-Voltage Regulation and Energy Conservation
System integrators will appreciate the plug-and-play connectivity engineered into this commercial display. Featuring standard HDMI, VGA video connections, the display links directly to external digital media players, embedded box PCs, and workstation graphic cards. The internal scaling processor automatically configures custom wide-aspect raster timings, ensuring hassle-free software configuration during site commissioning. Audio integration is facilitated via a 3.5mm Audio Socket, giving installers the flexibility to connect local directional audio speakers, auxiliary sound bars, or central PA routing systems for synchronized broadcasts. Operating across a wide input voltage range of global 100~240V line voltage at 50/60Hz, the internal power supply provides stable electrical isolation against power surges, voltage drops, and harmonic line noise. Active operational power consumption is constrained to ≤ 150w, while environmental durability is certified across ambient temperatures of below10℃ ~ +50℃ and humidity levels reaching ≤ 85%RH.
Industrial-grade capacitors and solid-state power components ensure dependable electrical performance across wide ambient temperature swings, preventing unexpected restarts or power-cycling issues.
Wide-range AC input tolerance ensures stable display operation in regions with unstable electrical grids, absorbing line surges, voltage drops, and brownouts without interrupting continuous public broadcasts.

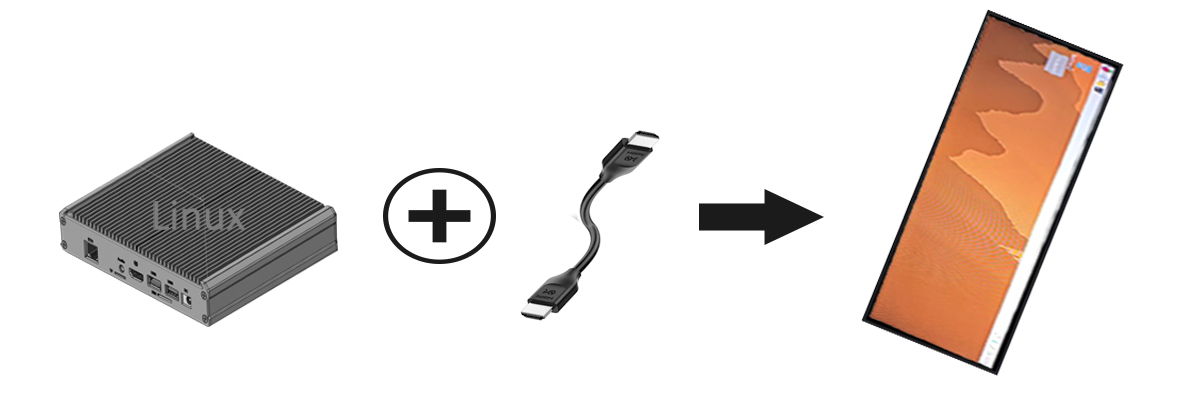

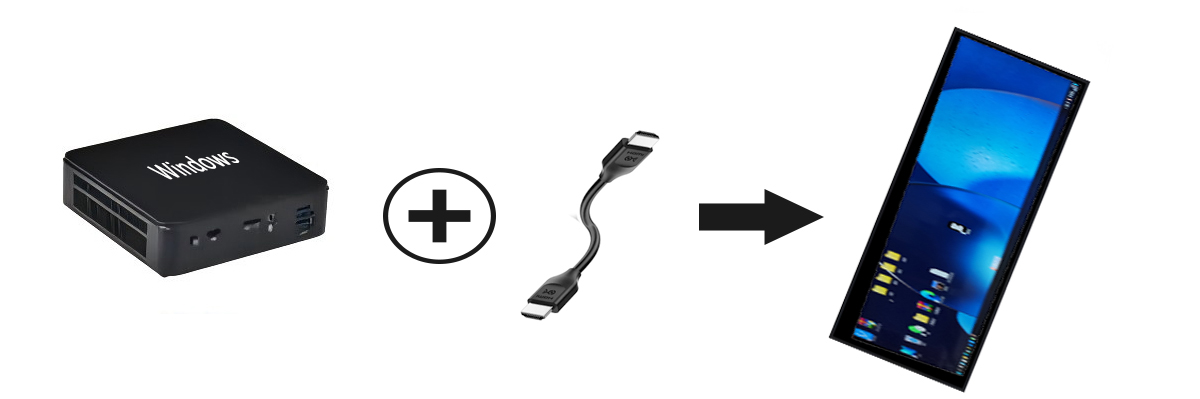

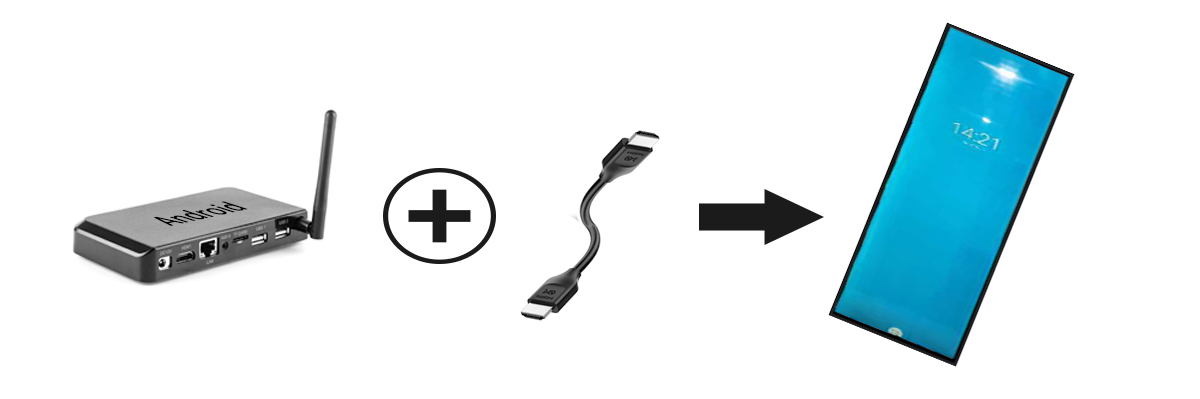

Effortless OS Migration Across Windows, Android, and Linux
Modern enterprise signage networks demand agile software transitions. Built without closed proprietary system locks, this display accepts direct video feeds from any Windows micro-PC, Android network signage player, or Linux industrial box via standard HDMI cabling. This universal connectivity guarantees that your hardware remains fully compatible whenever you upgrade digital signage CMS platforms or change underlying operating systems.
Realized Applications: Corporate Entrances, Transit Cabins, and Control Rooms
The 69.3-inch stretched bar LCD monitor meets the demands of high-traffic commercial environments. It is deployed along retail shelving for dynamic promotional pricing, within transit vehicles for passenger route alerts, in data centers for equipment telemetry, and in commercial lobbies for building directories.
Museums and interactive exhibition pavilions utilize this linear display on exhibit pedestals and showcase fascias. Curators deliver rich multimedia storytelling, historical timelines, and artifact context alongside delicate physical exhibits.
Sports arenas and entertainment venues deploy the display above concession stands to showcase live score feeds and food specials simultaneously, keeping fans engaged while driving food and beverage revenue.
Global Logistics Optimization: SKD/CKD Deliveries and Import Tariff Savings
By establishing a direct factory relationship with ZXT, your company secures factory-direct commercial terms backed by genuine industrial engineering capability. With over nine years of dedicated experience and hundreds of deployed projects worldwide, we keep standard extrusion dies and tooling components permanently in stock. This eliminates upfront tooling charges on standard sizes while enabling rapid sample shipping within 72 hours of project sign-off. We cater to international contractors and volume resellers by offering flexible packaging formats. Order fully assembled turnkey commercial monitors, frameless open-cell modules, or CKD/SKD modular kits designed to optimize sea and air container utilization and lower local import tariffs. Our dedicated engineering team assists with every phase of mechanical and electronic integration, providing full CAD support and factory testing.
Flexible packaging options—from individual retail-ready cartons to high-density bulk export pallets—are engineered to maximize container space utilization and protect hardware during long ocean transit.
Display Sourcing & Engineering FAQ
**Q1: Does the display produce electromagnetic interference with nearby equipment?**
No. Internal electronics are enclosed within a grounded metallic chassis with integrated EMI filtering circuitry, complying with commercial Class A and Class B electromagnetic compatibility standards.
**Q2: Can we test sample units before placing a volume project order?**
Yes. We strongly encourage evaluation testing and provide sample units complete with power supplies, video cables, and CAD mounting guides, ready for dispatch within three working days.
**Q3: What optical surface treatments are applied to the screen?**
The display panel features an industrial-grade anti-glare (AG) polarized surface treatment with hard-coat scratch resistance, minimizing reflections while repelling dust and environmental smudges.
Connect with ZXT Technical Sales Specialists
Contact our technical sales group to receive 2D dimensional drawings, 3D CAD files, and competitive factory-direct pricing for the 69.3-inch stretched bar LCD monitor. We provide rapid responses within two business hours.
