Interactive Digital Signage: 66.2 Inch Touchscreen Bar Monitor (Interactive Touchscreen)
Source manufacturer supply of 66.2 inch interactive touch stretched display with 3840*954 resolution and 500 cd/㎡ brightness. High-durability commercial display engineered for 24/7 public service. Complete 2D/3D CAD mounting blueprints upon request.
Specifications
- Screen Size
- 66.2 Inch
- Resolution
- 3840*954
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA / USB Touch
66.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 66.2 inch | |
Resolution | 3840*954 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Overcoming Installation Bottlenecks Along Linear Commercial Surface Headers
When installation height is restricted to narrow horizontal strips, standard monitors waste space and disrupt interior design. The 66.2-inch stretched bar LCD monitor provides a compact, purpose-built solution, presenting 3840*954 resolution across an active 66.2-inch diagonal. It allows retailers, transit authorities, and industrial plants to broadcast high-definition media without sacrificing clearance.
Passenger transport operators require displays that deliver clear information without obstructing carriage sightlines. These low-profile monitors fit neatly above doorways, ensuring passengers stay informed throughout their journeys.

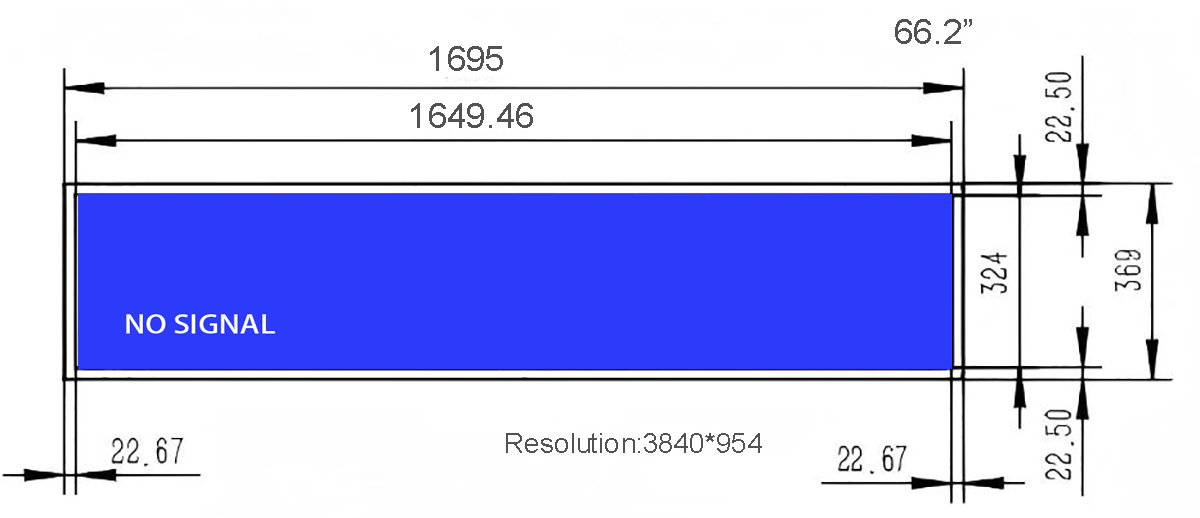

Store fixture builders benefit from standardized mounting dimensions that speed up initial assembly. The display drops cleanly into pre-formed cabinet openings, reducing workshop labor and speeding up store opening schedules.
Display Performance: Calibrated Luminance and Anti-Reflective Surface Engineering
The optical engine of the 66.2-inch stretched display is built to rigorous industrial standards, delivering a native resolution of 3840*954 across its active matrix. This ultra-wide format allows complex multi-zone layouts—such as simultaneous video playback, static brand logos, and scrolling price or route tickers—to run side-by-side without graphical scaling artifacts. With a calibrated luminance of 500 cd/㎡, the display provides excellent readability in bright indoor commercial environments. The liquid crystal panel is paired with an anti-reflective polarising film that minimizes ambient light reflections, while the native contrast ratio of 1200:1 ensures deep blacks and sharp text separation. Equipped with advanced IPS alignment technology, the display maintains full optical fidelity across true IPS 178-degree wide visual cone viewing angles, while the LED backlight system boasts a service lifetime rating of an industrial service life exceeding 60,000 hours.
The liquid crystal cell incorporates precision color filter arrays that deliver authentic color reproduction, ensuring corporate logos, luxury apparel photography, and fresh produce imagery appear appetizing and true-to-life.
The optical polarising stack is specifically formulated to mitigate rainbow artifacts under polarized sunglasses, ensuring that vehicle passengers and outdoor shoppers read dynamic text without visual interference.
Structural Framing: Rigid Metallic Construction with Flush Architectural Fit

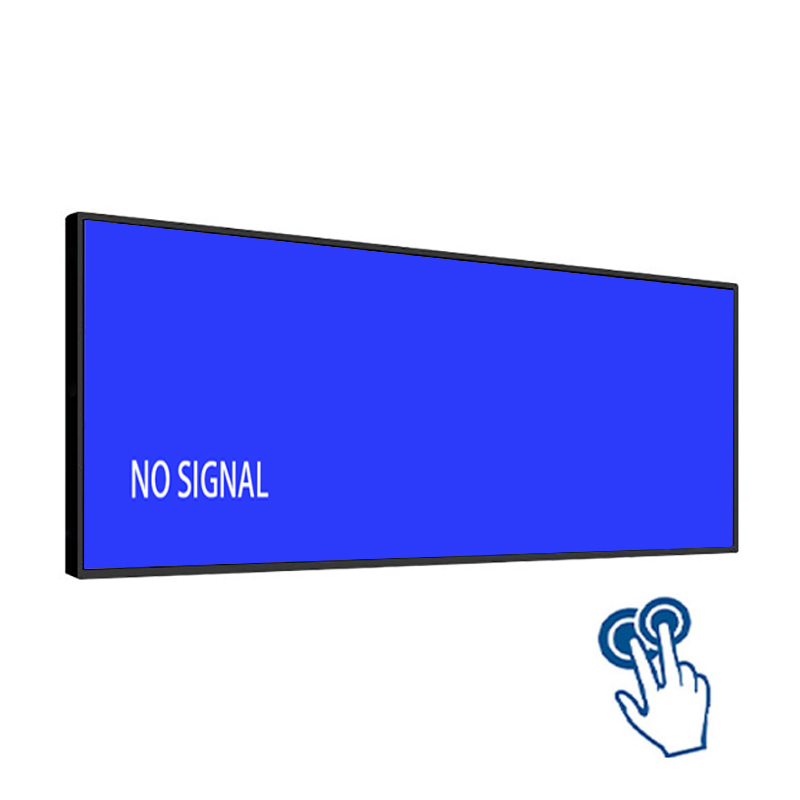

The 66.2-inch touch monitor features an optically bonded Infrared Touch (IR) panel engineered for public self-service. The 7H hardness front glass provides superior scratch resistance, while the responsive touch controller ensures quick, intuitive user navigation.
The display enclosure is engineered for efficient passive heat dissipation, utilizing internal thermal spreaders and the outer metallic frame to cool internal components. This fanless design ensures silent, maintenance-free performance. Standard VESA mounting provisions and lateral channels provide versatile installation options.

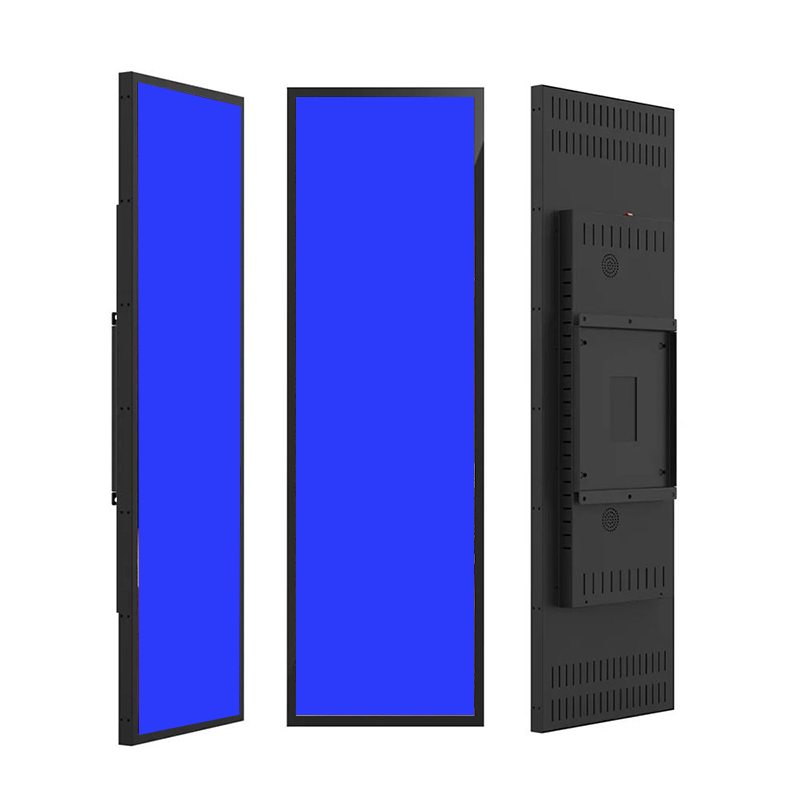

The rear panel incorporates standardized VESA hole arrays with reinforced internal backing plates to support heavy articulated commercial wall arms. Lateral slide-nut channels provide additional anchoring points for custom security locks.
Hardware Connectivity: HDMI, VGA, and Audio Distribution Provisions
Equipped with comprehensive input connectivity, the display integrates HDMI, VGA video ports to ensure straightforward interfacing with commercial computing systems. Whether driven by an Android media player, a Windows industrial PC, or an embedded Linux box, the internal video processor scales incoming signals smoothly, maintaining correct aspect ratio geometry without edge cropping or horizontal stretching. An integrated 3.5mm Audio Socket delivers clear audio output, making it simple to add auxiliary sound reinforcement for interactive promotions, queue call-outs, and transit transfer alerts. Power efficiency is a hallmark of this design. Built to run on universal standard 110V to 240V AC power input mains power, the monitor draws no more than ≤ 120w during active operation. The hardware is built to operate under demanding environmental conditions, rated for continuous performance from below10℃ ~ +50℃ with non-condensing humidity up to ≤ 85%RH.
Low overall operational power consumption keeps thermal emissions minimal, reducing the air-conditioning load in enclosed retail kiosks, transit carriages, and server room equipment racks.
Low total power draw minimizes operational utility expenses across multi-screen commercial rollouts, helping enterprise clients achieve energy conservation targets and reduce overall operating expenditure.
Open Signal Integration for Multi-Platform Computing

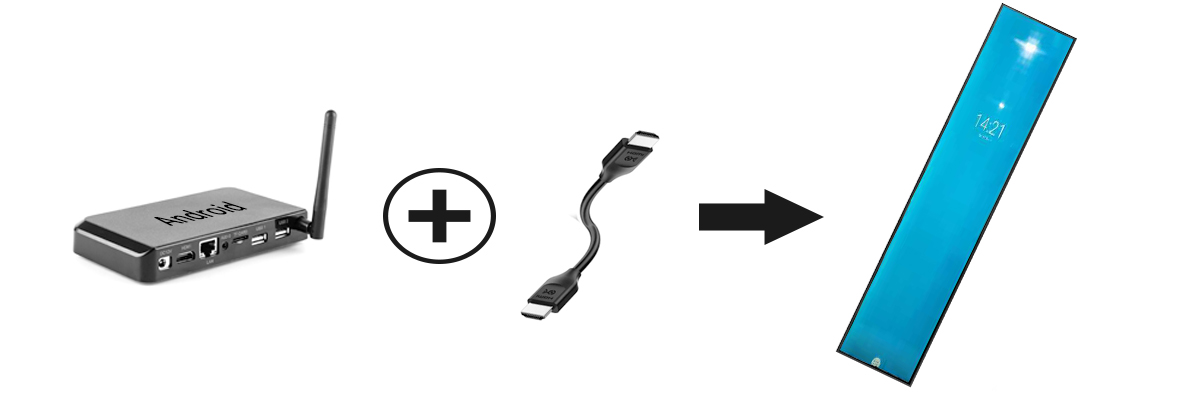

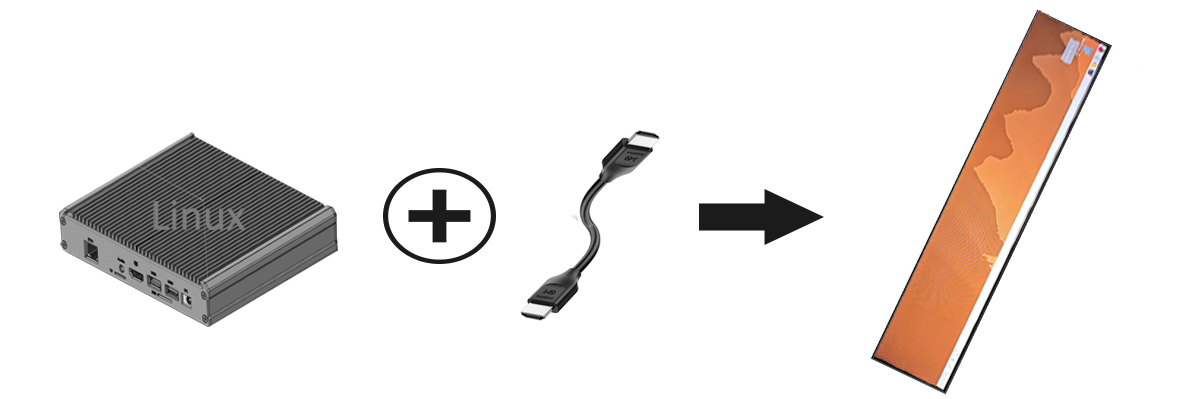

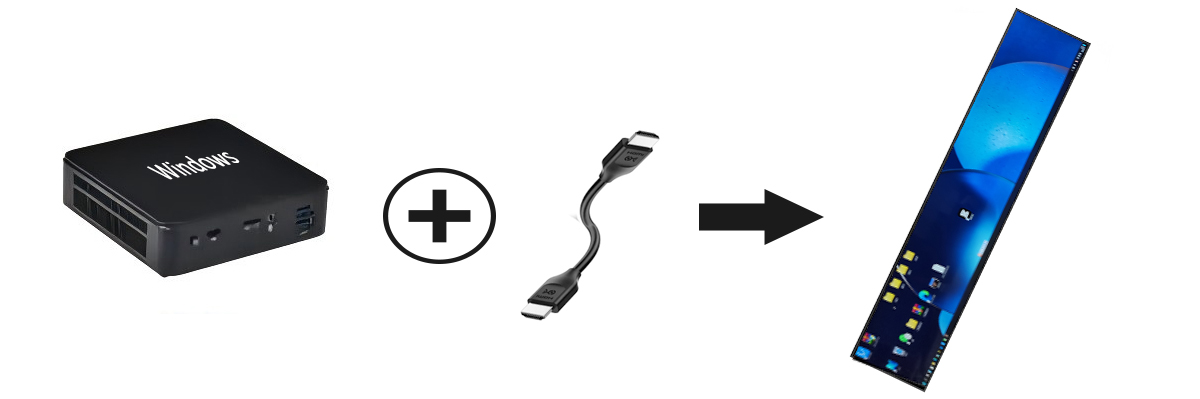

This commercial monitor operates on a strictly non-proprietary hardware baseline, ensuring seamless compatibility with global computing standards. Whether your project utilizes x86 Windows PCs for high-performance interactive 3D media, compact Android boxes for lightweight cloud signage, or Linux controllers for hardened industrial telemetry, a single HDMI link delivers pristine native-resolution rendering across your chosen operating environment.
Deployment Analysis: Where Panoramic Display Form Factors Deliver Peak Value
Deploying the 66.2-inch panoramic display enables venues to present dynamic video messaging in previously inaccessible spaces. Key applications include retail grocery shelf signage, commuter train door route maps, corporate elevator transom directories, and manufacturing facility production status banners.
Corporate office towers mount this screen across elevator door lintels and common hallway corridors. Building managers broadcast tenant announcements, weather alerts, and corporate communications in an unobtrusive, contemporary format.
Museum curators praise the display's ability to deliver rich historical context alongside delicate artifacts. The low-profile screen fits neatly into exhibit vitrines and pedestals without distracting visitors from the physical collection.
Manufacturing Agility: 3-Day Sample Turnaround and Custom Enclosure Tooling
Working with ZXT ensures direct access to manufacturing authority and extensive production capacity. With nearly a decade of display manufacturing experience and more than 300 international commercial deployments, we maintain comprehensive inventories of standard extrusion casings and chassis stampings. This established infrastructure allows our clients to initiate volume rollouts without tooling delays or custom mold expenses, supported by fast 3-day sample dispatch. We offer flexible supply models tailored to your supply chain requirements. Whether you require complete retail-ready monitors in custom packaging, open-frame chassis for integration into self-service kiosks, or CKD/SKD component kits for domestic final assembly, ZXT delivers fully tested, quality-certified hardware. Our engineering team provides comprehensive technical documentation, including 2D dimensional drawings, 3D STEP models, connector wiring schematics, and firmware customization.
We offer complete technical documentation, including 3D STEP mechanical models, connector pinout diagrams, and power dissipation tables, enabling mechanical and electrical engineers to integrate our hardware seamlessly.
Commercial Rollout FAQ
**Q1: What cable lengths are supported for HDMI video feeds?**
Standard passive high-speed HDMI cables support connections up to 10 meters, while active optical HDMI cables or standard HDMI-over-CAT6 extenders can be utilized for long-distance media player placement.
**Q2: How does the display handle unexpected power outages?**
The monitor features automatic power-recovery logic. Once electrical power is restored, the display powers on instantly and resumes active video broadcasting without requiring manual button intervention.
**Q3: Can we schedule a factory technical video consultation with ZXT engineers?**
Yes. Our international technical sales team can coordinate direct video conferences with our hardware design engineers to review CAD drawings, project requirements, and customized production timelines.
