Touchscreen
Commercial 64 Inch Touchscreen Bar LCD Monitor, Infrared Touch
Wholesale 64 inch interactive touch stretched display featuring 3840*1488 resolution and 500 cd/㎡ calibrated luminance. True IPS full-viewing optics and low-power electrical design for large retail and transit deployments. Factory direct terms.
Specifications
- Screen Size
- 64 Inch
- Resolution
- 3840*1488
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA / USB Touch
64 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 64 inch | |
Resolution | 3840*1488 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Addressing Narrow Mounting Footprints in High-Density Retail and Public Transit
The physical layout of modern retail gondolas and public transit carriages leaves little room for bulky consumer-style displays. The 64-inch stretched bar screen provides an elegant alternative, delivering native 3840*1488 resolution within an ultra-thin vertical envelope. It enables dynamic multimedia advertising and passenger wayfinding to operate in spaces where standard screens simply cannot fit.
From corporate reception desks to boutique retail showcases, linear digital screens elevate brand perception. High-resolution panoramic graphics create a modern, tech-forward atmosphere that distinguishes premium venues from competitors.
By delivering panoramic visual authority in spaces measuring just a few inches in height, this hardware unlocks dynamic promotional channels along architectural boundaries that traditional AV hardware simply cannot reach.
Optical Metrics: Resolution Density, Color Saturation, and Panel Uniformity
Visual excellence is anchored by an industrial-grade A-grade liquid crystal panel delivering a native resolution of 3840*1488 across the 64-inch active diagonal. This fine pixel pitch ensures that fine pricing fonts, multi-lingual transit schedules, and high-definition video loops render with razor-sharp definition. Calibrated to a luminous intensity of 500 cd/㎡, the display delivers bright, legible visuals under harsh commercial lighting conditions. Paired with a static contrast ratio of 1200:1, it actively disperses ambient reflections while preserving high color saturation and deep blacks. True IPS wide-angle technology provides symmetrical viewing angles of symmetrical 89°/89°/89°/89° IPS full viewing angles, ensuring uniform color temperature and sharpness across wide vantage points. The solid-state LED backlight system is rated for an operational service lifetime exceeding 60,000+ operational hours, ensuring consistent brightness throughout continuous 24/7 commercial operation.
Advanced optical coatings actively suppress external glare, ensuring that vibrant content remains readable even when mounted directly beneath intense commercial ceiling spotlights or adjacent to glass storefronts exposed to natural ambient daylight.
Sub-pixel rendering algorithms optimized within the display controller ensure that micro-fine typography, numerical price codes, and barcode symbols remain crisply defined without jagged pixelation or chromatic fringing.
Material Selection: Thermal Conductivity, Weight Optimization, and Corrosion Defense
Equipped with a commercial-grade PCAP Capacitive Touch interface, the 64-inch touch display delivers precise 10-point multi-touch tracking behind Morse 7 toughened glass. Its durable construction ensures long-term operational integrity in self-service kiosks.
A fanless passive cooling architecture ensures reliable thermal management without acoustic noise or dust intake. Heat is conducted smoothly to the external chassis, extending the operational life of internal electronics. The rear housing incorporates standard VESA hole configurations and lateral slide tracks for straightforward mounting.
For vehicle and marine console installations, the enclosure includes perimeter flange gaskets that seal against dust and water splash. Heavy-gauge corner brackets absorb structural flexing and road vibration during continuous fleet operation.
Signal Compatibility: Plug-and-Play Synchronicity with Industrial Controllers
The electronic architecture of this display emphasizes compatibility, signal fidelity, and energy efficiency. Engineered with standard HDMI, VGA interfaces, the A/D controller board accepts standard graphic inputs from industrial computers, media player appliances, and network broadcast controllers. Integrated auto-sensing firmware accurately locks onto custom panoramic timings, rendering incoming video streams pixel-for-pixel without graphical distortion. Sound synchronization is enabled through a dedicated 3.5mm Audio Socket, allowing system builders to connect shelf-edge directional sound transponders or external speaker bars. The display incorporates a robust power conditioning module designed for universal 100-240V commercial electrical mains inputs. With an energy-conserving power rating of ≤ 150w, large supermarket chains and metro networks deploying hundreds of screens benefit from substantially lower electricity bills and reduced thermal footprints. Engineered to withstand challenging commercial and transportation environments, the unit functions reliably across operating temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 85%RH.
Automatic video timing detection instantly synchronizes incoming graphic signals from media players or industrial PCs, eliminating the need for manual resolution adjustments or complex display driver installation.
The internal switch-mode power converter features robust electromagnetic interference (EMC) shielding that prevents high-frequency noise from radiating into sensitive nearby industrial or telecommunications equipment.
Universal OS Adaptability: Freedom from Proprietary Lock-In

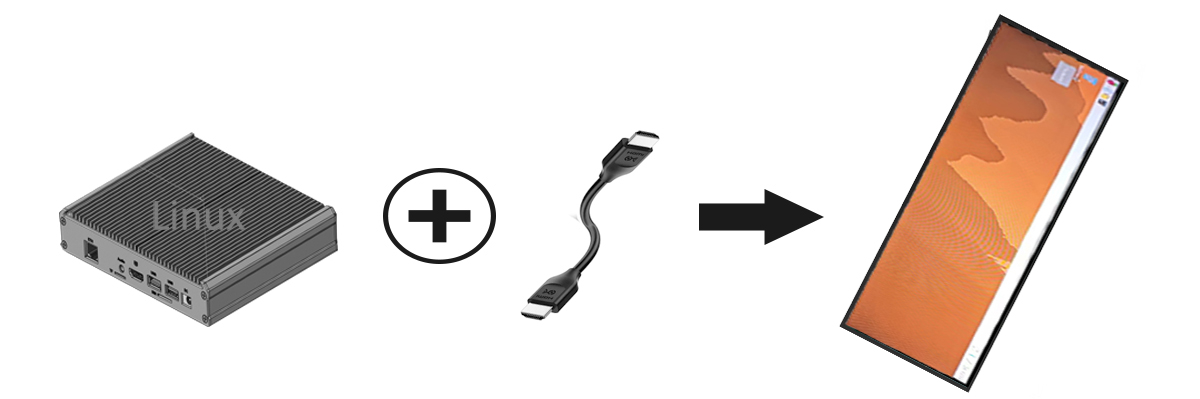

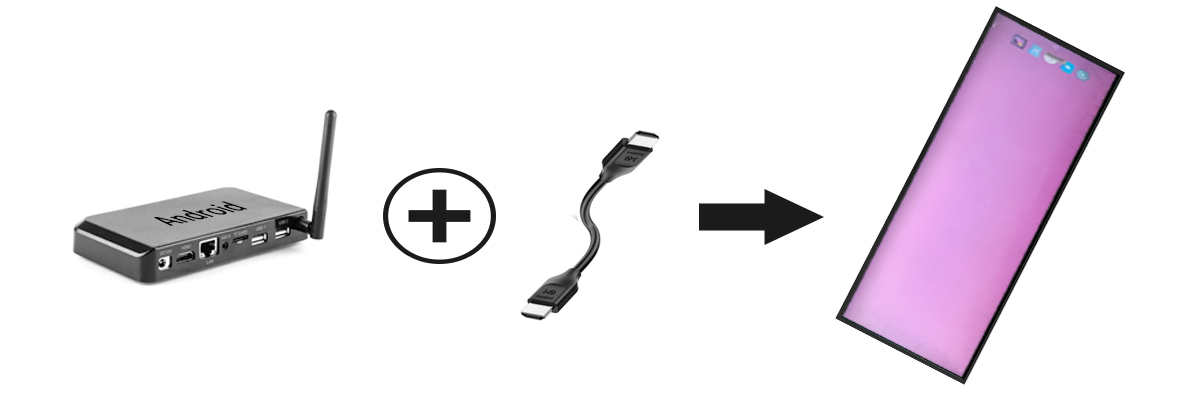

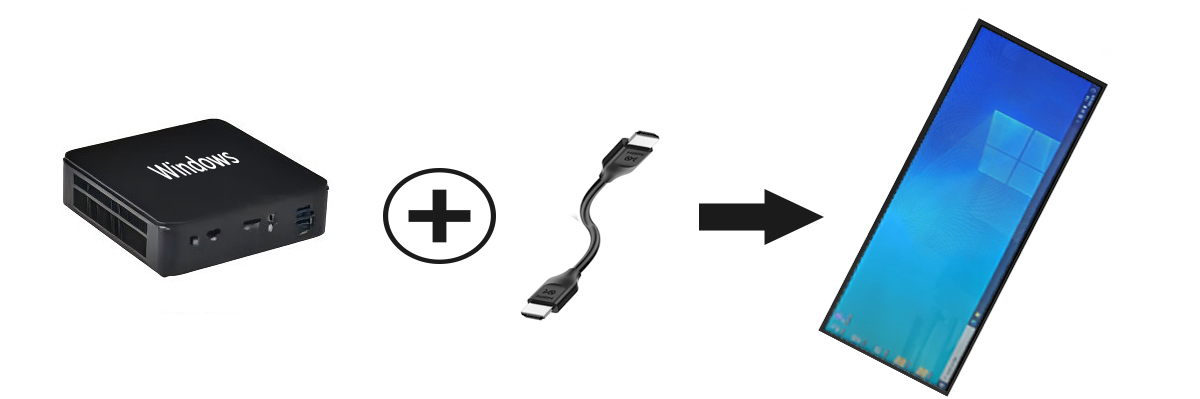

Enterprise display infrastructure requires absolute software freedom. By separating the optical display panel from host processing logic, this monitor prevents premature hardware retirement caused by outdated onboard chipsets. Connecting an external media player running Windows, Android, or Linux via HDMI provides instant video synchronization, allowing enterprise IT managers to run their chosen digital signage CMS or telemetry dashboard unimpeded.
Sector Implementation: Passenger Route Displays and Shelf-Edge Video Banners
The 64-inch stretched monitor delivers high visual authority in narrow mounting footprints. It is widely utilized for supermarket shelf-edge branding, rail transit passenger information systems, server room equipment monitoring, and QSR restaurant menu displays, providing reliable performance across demanding commercial settings.
Interactive self-service kiosks and automated parcel lockers embed this horizontal display in top fascias. Intuitive visual prompts and animated status bars guide users through transaction steps, speeding up user checkout and package pickup cycles.
Commercial office towers utilizing panoramic displays above elevator transoms report positive tenant feedback. Dynamic building notices, public transit alerts, and local weather updates are broadcast in an unobtrusive, contemporary format.
Factory Direct Capabilities: Rapid Prototyping and Modular Assembly Formats
ZXT operates as an authentic source manufacturer of industrial commercial displays, eliminating third-party trading intermediaries to provide direct engineering collaboration and transparent factory pricing. Over nine years of research, development, and production have yielded an extensive library of proven tooling designs. For our clients, this means zero tooling costs on standard sizes and expedited sample delivery within three business days. To accommodate diverse global import regulations and assembly preferences, we deliver hardware in turnkey finished packages or modular SKD/CKD formats. Supplying matched panel cells, pre-configured driver motherboards, wiring harnesses, and chassis components allows international partners to assemble locally, dramatically cutting air freight expenses and tariff burdens. Our design engineers work directly with your technical personnel, providing 3D CAD modeling files, structural tolerance consultations, and customized interface configurations.
Maintaining extensive raw glass cell inventories and pre-machined aluminum extrusions enables our factory to fulfill volume orders with rapid turnaround, minimizing project schedule risks for international contractors.
Technical Consultation FAQ
**Q1: Does this display support Linux industrial distributions?**
Yes. The display works seamlessly with Ubuntu, Debian, RedHat, and embedded Linux kernels via standard HDMI video interfacing, with zero need for specialized proprietary display driver packages.
**Q2: What measures prevent image sticking during static content display?**
The industrial-grade liquid crystal cell features advanced pixel anti-burn-in properties, allowing continuous display of static price tags and route maps without visual retention or ghosting artifacts.
**Q3: Can ZXT customize the front bezel thickness or shape?**
Yes. Our in-house engineering and tooling department can modify bezel dimensions, add custom mounting flanges, or integrate flush-mount bezels to match specialized architectural and fixture requirements.
Engineering Sales Contact and Factory Direct Pricing
Request an evaluation sample or volume price schedule for the 64-inch panoramic stretched bar display by contacting our technical team. Provide your installation details for a tailored commercial quotation within two hours.
