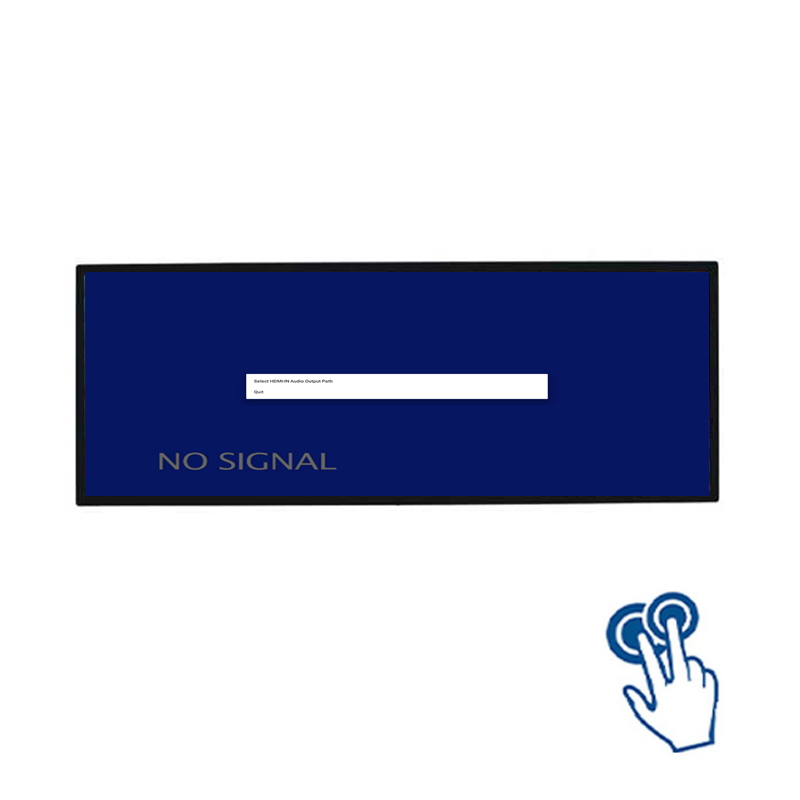

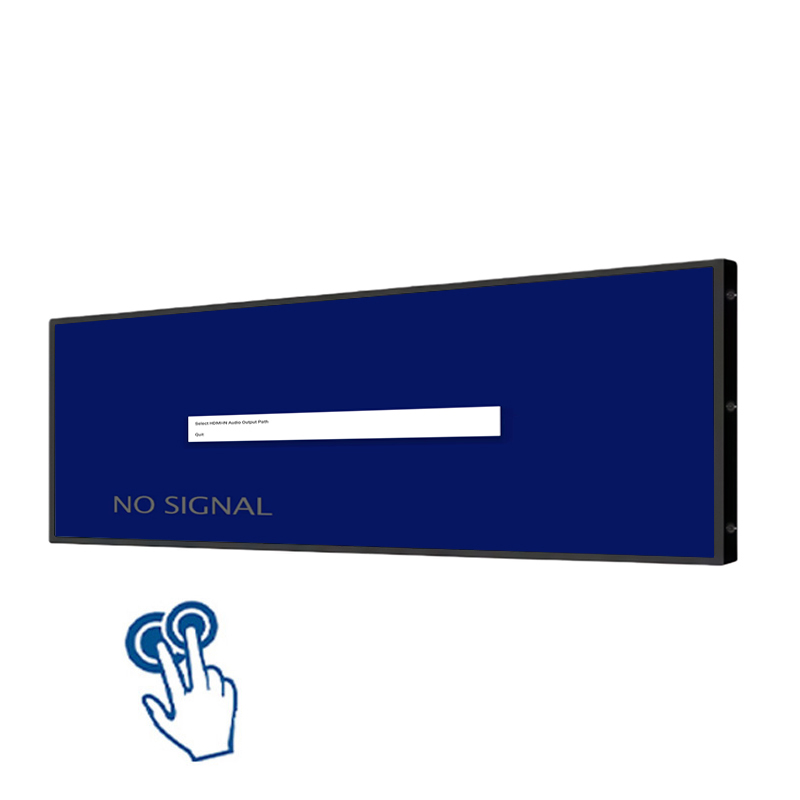

Capacitive Touch Bar Display – 64 Inch Ultra-Wide Interactive Screen
Specialized 64 inch interactive touch stretched display (3840*1488, 800 cd/㎡) direct from Shenzhen manufacturing facility. Engineered for space-limited commercial installations with robust metal housing. Fast 3-day evaluation samples available.
Specifications
- Screen Size
- 64 Inch
- Resolution
- 3840*1488
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA / USB Touch
64 Inch Stretched LCD (Aluminum) | ||
Display Specifications | ||
Screen Size | 64 inch | |
Resolution | 3840*1488 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+FF Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
The Architectural Case for Stretched Displays: Minimizing Dead Visual Zones
Eliminating physical clutter while delivering high-impact visual data is the central purpose of the 64-inch stretched display. Rather than forcing oversized standard screens into narrow architectural margins, operators can install this sleek 64-inch unit delivering native 3840*1488 resolution. It converts dormant shelf headers and transit door transoms into valuable digital real estate without requiring structural renovations.
Facilities running round-the-clock public operations require signage hardware that operates reliably with minimal human intervention. These stretched screens provide consistent, continuous operation, ensuring uninterrupted visual communication.
Operating within restricted physical envelopes without generating localized heat pockets is critical for equipment longevity. The streamlined geometry facilitates natural airflow across rear thermal conduction planes.
Visual Precision: Eliminating Distortion Across Ultra-Wide Active Areas
Engineered for commercial visibility, the 64-inch stretched bar screen delivers 3840*1488 resolution and 800 cd/㎡ calibrated luminance. A 1200:1 contrast ratio ensures rich image depth, supported by symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours commercial backlight service rating.
Solid-state LED illumination provides instantaneous full-brightness startup, ensuring that commercial displays resume vivid visual operation immediately following scheduled power cycles.
Instantaneous solid-state power-on response ensures that display networks resume vibrant visual broadcasting immediately following automated overnight power cycles or utility power restoration.
Enclosure Versatility: Fast Snap-in Mounting and Articulated Bracket Anchoring
The 64-inch interactive stretched screen features a responsive Infrared Touch (IR) sensor with chemically strengthened glass. The robust front surface repels scratches, moisture, and cleaning chemicals, providing dependable touch input across retail and transit terminals.
The monitor's fanless thermal design utilizes high-conductivity internal heat spreaders to transfer thermal energy directly to the exterior metal enclosure. This eliminates moving parts and dust accumulation, ensuring reliable 24/7 operation. Mounting flexibility is provided by standard VESA patterns and lateral mounting channels.
The mechanical chassis features a specialized snap-in bracket profile that clips securely into commercial supermarket gondola price channels. Front-accessible release tabs allow store personnel to service or reposition displays without dismantling shelf merchandise.
Electronic Interfacing: Video Signal Paths and Automated Raster Scaling
Seamless electronic integration into existing computing infrastructures is achieved through versatile signal interface provisions. The monitor motherboard incorporates standard HDMI, VGA video inputs, allowing immediate plug-and-play communication with standard digital signage media players, x86 industrial PCs, Android embedded compute sticks, and programmable logic controller output boards. Video signal scaling circuitry automatically synchronizes with custom ultra-wide timings, ensuring proper native scaling without horizontal image squeezing or letterboxing artifacts. Audio playback is supported via an integrated 3.5mm Audio Socket, facilitating straightforward connection to external sound bars, shelf-mounted directional audio speakers, or centralized PA amplification equipment. Operating from a universal switch-mode power supply accepting AC 100V~240V (50/60Hz), the internal power converter delivers stable low-ripple direct current to sensitive driver ICs while providing resilient protection against electrical surges and line fluctuations commonly encountered in industrial complexes. Energy efficiency remains a central engineering priority: overall operational power consumption is constrained to ≤ 120w, minimizing thermal loading and dramatically reducing total operational utility costs across large-scale multi-screen installations. The hardware is qualified for continuous operation across an ambient operating temperature range of below10℃ ~ +50℃ alongside non-condensing relative humidity levels of ≤ 85%RH.
Internal power conversion circuitry incorporates multi-stage surge suppression and electromagnetic interference filtering, shielding sensitive driver chips from electrical spikes and voltage sag on noisy commercial circuits.
Industrial-grade signal conditioning chips filter incoming video inputs to eliminate pixel jitter and timing mismatch, guaranteeing rock-solid graphical synchronization when driven by commercial digital signage players.
Hardware-Agnostic Display Architecture via High-Definition Video
Designed with an uncompromised open-platform philosophy, this commercial screen avoids embedded operating system obsolescence. Through universal HDMI signal linking, installers can interface any external computing unit—whether powered by Windows, Android OS, or embedded Linux kernels. This freedom empowers network administrators to run custom touch kiosk interfaces, web-based digital menu boards, or PLC automation software with zero compatibility friction.
Commercial Viability: Case Studies in High-Throughput Public Infrastructure
Across commercial and industrial environments, the 64-inch stretched display provides versatile visual communication. In retail stores, it drives sales through dynamic point-of-purchase messaging. In transit fleets, it displays real-time route progress. In industrial control rooms, it delivers live equipment telemetry, and in corporate buildings, it functions as a modern architectural directory.
Airport concourses and baggage reclaim zones use this panoramic screen above luggage carousels and customs inspection lanes. Clear, multi-lingual passenger guidance and arrival notifications reduce traveler congestion during international peak arrival banks.
Automated parcel locker networks and interactive retail kiosks benefit from the intuitive guidance provided by horizontal header screens. Step-by-step transaction prompts guide users smoothly through drop-off and pickup procedures.
Direct Manufacturer Partnership: Eliminating Intermediary Markups and Delays
Choosing ZXT as your hardware manufacturing partner provides direct access to high-precision display engineering at true source-factory pricing. Our Shenzhen manufacturing facility houses specialized production lines backed by nearly a decade of commercial display expertise. Because we maintain extensive inventories of standard extrusion profiles and tooling dies, our clients avoid costly tooling fees and long tooling lead times, enabling rapid prototype evaluation with standard sample turnaround in just three business days. We understand international logistics and tariff structures. To help overseas integrators and distributors minimize shipping volume and customs duties, we supply displays in multiple production states: fully assembled plug-and-play monitors, drop-in open-frame modules, or semi-knocked-down (SKD) kits for local assembly. Every sub-assembly undergoes rigorous factory testing before shipment to ensure high out-of-the-box yield rates. Our in-house technical department supports your project from initial design to site deployment.
Our in-house mechanical design team collaborates directly with client engineers to develop customized mounting brackets, specialized cable harnesses, and branded bezel silkscreening tailored to specific project needs.
Buyer & Integrator FAQ
**Q1: Does the display support multi-zone content splitting?**
Yes. The native panoramic resolution provides ample horizontal canvas for digital signage software to partition the display into multiple discrete zones, such as simultaneous video playback, static prices, and tickers.
**Q2: How quickly can replacement parts or expansion units be provided?**
Because ZXT maintains active tooling and standardized component inventories, spare parts, replacement driver boards, and expansion units can be prepared and dispatched with industry-leading lead times.
**Q3: Can we obtain customized packaging for retail distribution?**
Yes. We offer custom-branded master export cartons, individualized retail packaging, and reinforced high-density palletization engineered to survive long-distance international ocean and air freight.

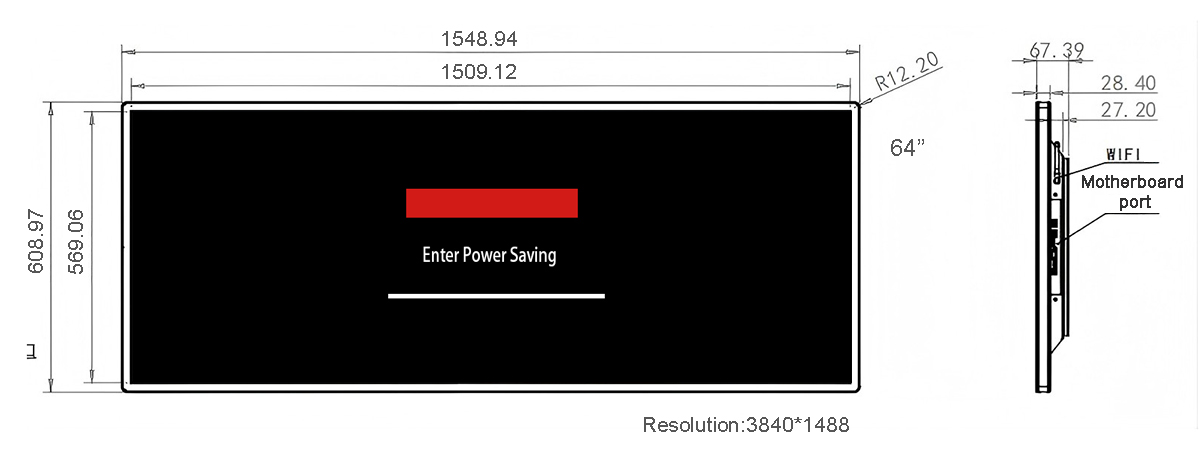

Request 2D/3D CAD Blueprints and Sample Testing
Contact ZXT today to request CAD mounting blueprints, verify electrical interfaces, or order a 3-day evaluation sample of the 64-inch stretched bar monitor. Our sales engineers deliver detailed proposals within two hours.
