Touchscreen
60.1 Inch Ultra-Wide Touchscreen Stretched Monitor with Aluminum Profile
Commercial-grade 60.1 inch interactive touch stretched display delivering 1920*720/3840*1440 resolution and 500 cd/㎡ brightness. Symmetrical IPS wide viewing angles and 60,000-hour backlight life for continuous commercial use. In-stock tooling with zero mold cost.
Specifications
- Screen Size
- 60.1 Inch
- Resolution
- 1920*720/3840*1440
- Brightness
- 500 cd/㎡
- Interface
- HDMI / VGA / USB Touch
60.1 Inch Stretched LCD (Aluminum) | ||
Display Specifications | ||
Screen Size | 60.1 inch | |
Resolution | 1920*720/3840*1440 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+FF Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Space Challenges: Overcoming Vertical Clearances with Panoramic Displays
Store fixture designers and transit architects frequently encounter spaces where traditional 16:9 displays cannot be accommodated. The 60.1-inch ultra-wide bar monitor resolves this challenge by providing a low-profile panoramic viewing format. Displaying 1920*720/3840*1440 native pixels across its 60.1-inch diagonal, it delivers continuous brand messaging, dynamic pricing, and route guidance along narrow architectural borders that would otherwise remain inactive.
Integrating panoramic hardware into commercial fixtures eliminates the visual clutter associated with standard monitors. The display becomes an organic part of the fixture, enhancing interior aesthetics while delivering essential information.
In busy transportation terminals, passengers require instant, intuitive visual cues. Overhead horizontal displays provide continuous sightline guidance that travelers can scan effortlessly while walking through crowded concourses.
Optical Clarity at Scale: Active Matrix Performance in Panoramic Ratios
The 60.1-inch display features an industrial LCD panel offering 1920*720/3840*1440 resolution, 500 cd/㎡ brightness, and a 1200:1 contrast ratio. IPS wide-angle technology ensures CR≥10 wide-angle IPS optical alignment visibility, while the energy-efficient LED backlight provides an operational lifespan exceeding more than 60,000 hours of maintenance-free illumination.
The anti-reflective surface treatment diffuses harsh ambient light sources, enabling viewers to comfortably read detailed pricing and route information without squinting or shifting positions.
Constant-current driving topology guarantees zero perceptible high-frequency flicker, providing a comfortable viewing experience for retail cashiers, office workers, and transit passengers alike.
Fanless Heat Spreading: Extending Electronic Lifespan Through Solid-State Cooling
Engineered for high-traffic interactive environments, the 60.1-inch touch monitor incorporates a ruggedized PCAP Capacitive Touch surface behind 7H tempered safety glass. The responsive multi-touch sensor withstands continuous public tapping and accidental bumps.
Built without mechanical cooling fans, the display relies on efficient conductive thermal paths through its metallic housing to maintain optimal operating temperatures. This silent, dust-free design maximizes operational longevity, while standardized rear VESA patterns and lateral slide channels support versatile installation.

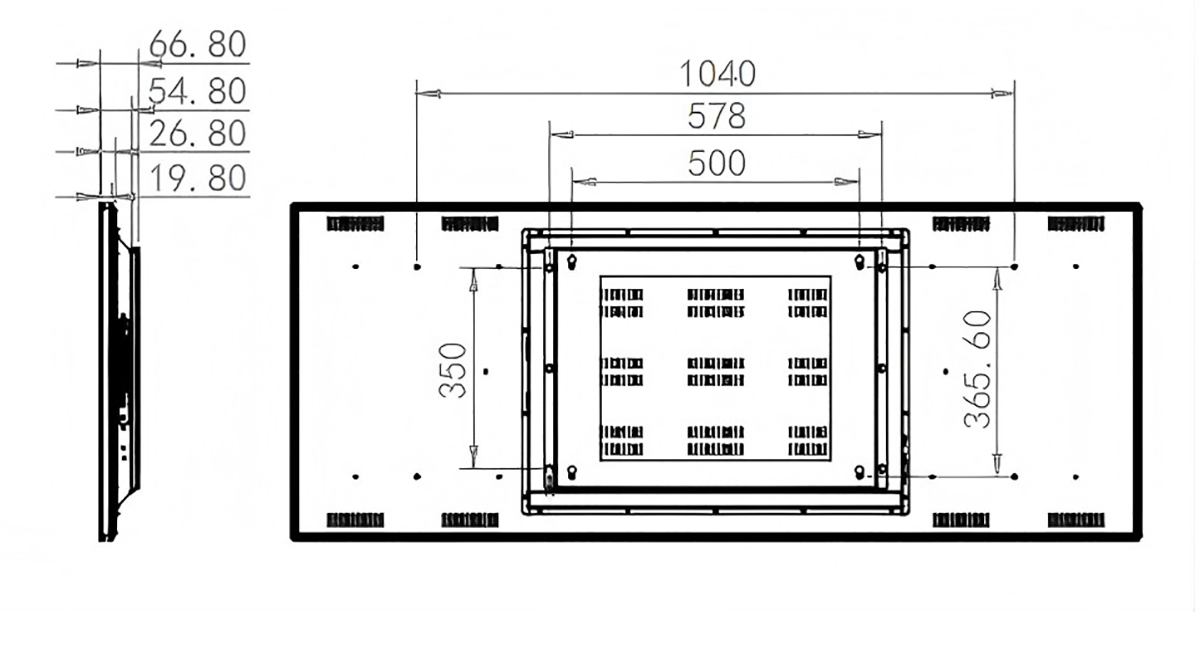

Designed with multi-axis mounting versatility, the rear housing accommodates custom ceiling drop-poles, articulated wall brackets, and desktop tilt-stands. Heavy-duty internal mounting studs prevent thread stripping during repeated installation cycles.
Interfacing Standards: Audio Output Jack and Industrial Video Scaling Logic
The display includes HDMI, VGA video interfaces for plug-and-play integration with media players and industrial systems. Audio output is supported via a 3.5mm Audio Socket. Built to accept universal AC 100V~240V (50/60Hz) power with an efficient draw of ≤ 150w, it is rated for environmental conditions of below10℃ ~ +50℃ and ≤ 85%RH.
Low standby power consumption complies with international commercial energy efficiency standards, helping enterprise clients meet corporate sustainability and green building certification goals.
Universal mains power compatibility simplifies worldwide distribution, allowing global retail brands to deploy the identical hardware model across North American, European, and Asian locations seamlessly.

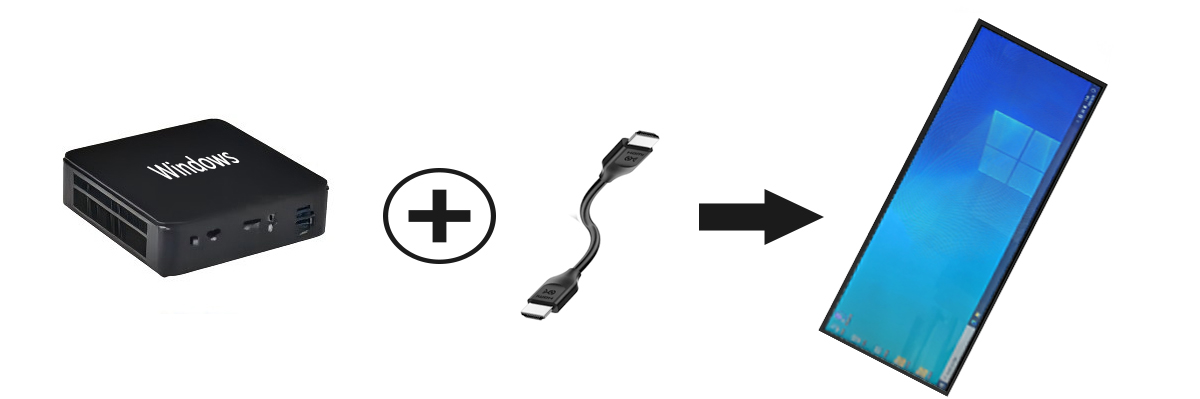

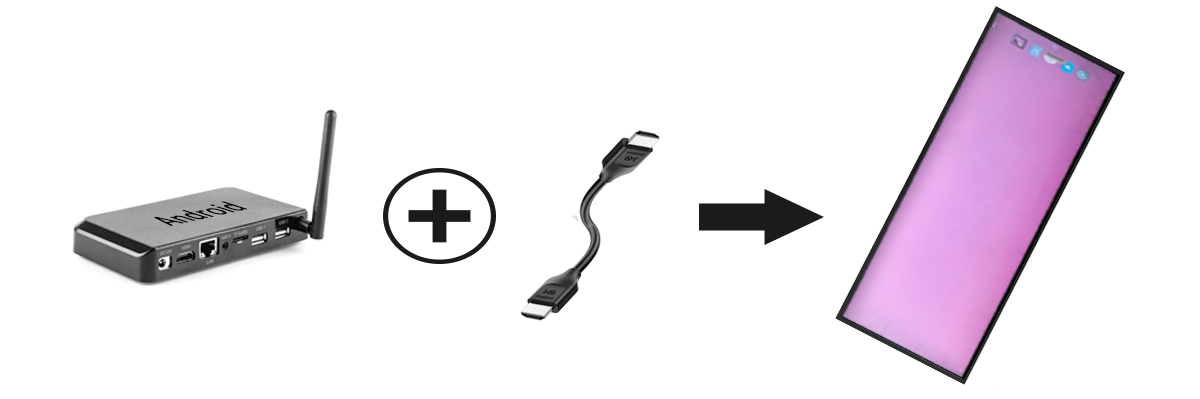

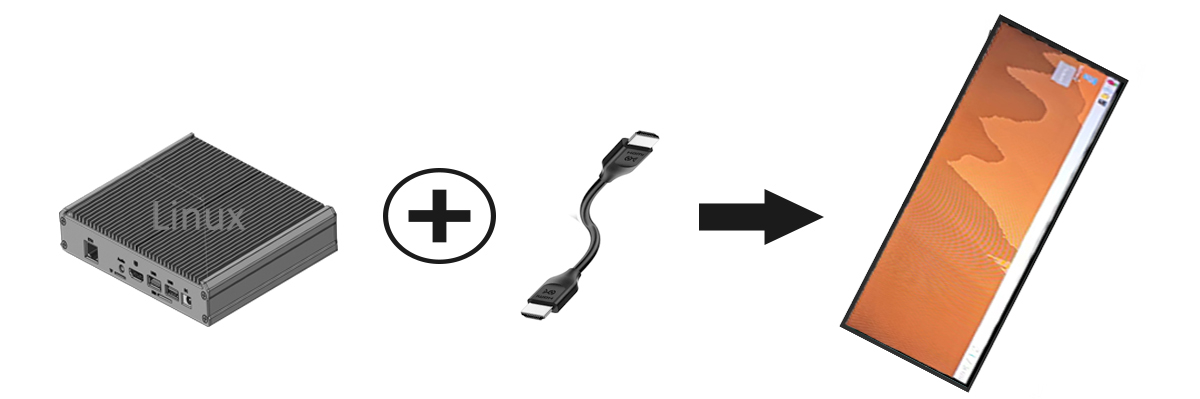

Frictionless Cross-Platform Operation (Windows, Android, Linux)
Avoid the hidden costs and vendor lock-in associated with closed smart screen ecosystems. Featuring standard high-definition HDMI video interfacing, the display supports immediate cross-platform compatibility across Windows workstations, Android compute sticks, and industrial Linux appliances. Operators can switch host operating systems in seconds to match evolving CMS software, passenger information engines, or automated factory monitoring frameworks.
Operational Vectors: Dynamic Pricing, Route Mapping, and Surveillance Telemetry
The 60.1-inch panoramic screen is engineered to deliver dynamic content in narrow architectural spaces. Applications include digital shelf-edge advertising in retail supermarkets, passenger route mapping in metro trains, telemetry monitoring in data center server racks, and panoramic menu displays in fast-food restaurants.
Automated factory assembly lines incorporate this monitor as an overhead operational pace ticker. Floor managers and machine operators track hourly production quotas, safety advisories, and machine status alerts across broad industrial plant bays.
Airport terminal operators report reduced concourse congestion when deploying panoramic displays above baggage carousels and customs lanes. International travelers receive clear, multi-lingual flight reclaim notices in an intuitive format.
Source Factory Authority: In-Stock Tooling, SKD Export, and Zero NRE Costs
Partnering directly with ZXT connects your project team straight to our manufacturing floor, bypassing intermediary markups and communication delays. With over nine years of dedicated display engineering and 300+ commercial projects worldwide, we maintain permanent in-stock inventories of standard aluminum extrusion profiles and stamping molds. This in-stock tooling advantage allows our clients to deploy custom stretched hardware without expensive initial NRE tooling charges, backed by fast 3-day sample dispatch for standard configurations. To support overseas display brands, repair facilities, and volume contractors seeking to optimize import tariffs and international shipping costs, we offer complete flexibility in delivery formats. Choose from fully assembled turnkey displays, open-frame kits for cabinet integration, or modular SKD/CKD component bundles including factory-tested LCD glass, matched A/D driver boards, and precision-stamped chassis hardware. Our engineering team provides comprehensive design support, delivering 2D engineering blueprints, 3D STEP CAD files, and connector pinout schematics.
Every production unit undergoes comprehensive factory burn-in testing under elevated temperature and humidity conditions, ensuring exceptional out-of-the-box reliability for overseas project deployments.
Commercial Hardware Selection FAQ
**Q1: Is this display compatible with Android digital signage player sticks?**
Yes. Any Android media stick or compute box with an HDMI output connects directly, allowing operators to run standard Android digital signage APKs with full native resolution support.
**Q2: What enclosure materials are available?**
Depending on model and application, we supply precision architectural extruded aluminum profiles (ideal for retail shelves) and heavy-duty cold-rolled electro-galvanized sheet metal housings (for industrial racks and transit).
**Q3: Can we request customized power supply options such as DC 12V or 24V?**
Yes. In addition to universal 100-240V AC inputs, we can engineer custom DC 12V, 24V, or wide-range vehicle power conversion modules for automotive and railway rolling stock deployments.
Discuss Project Specifications and Volume Price Tiers
Reach out to ZXT's commercial display team to evaluate sample hardware, review mechanical tolerances, or discuss volume OEM/ODM pricing for the 60.1-inch stretched display. We provide fast technical responses and official quotes.
