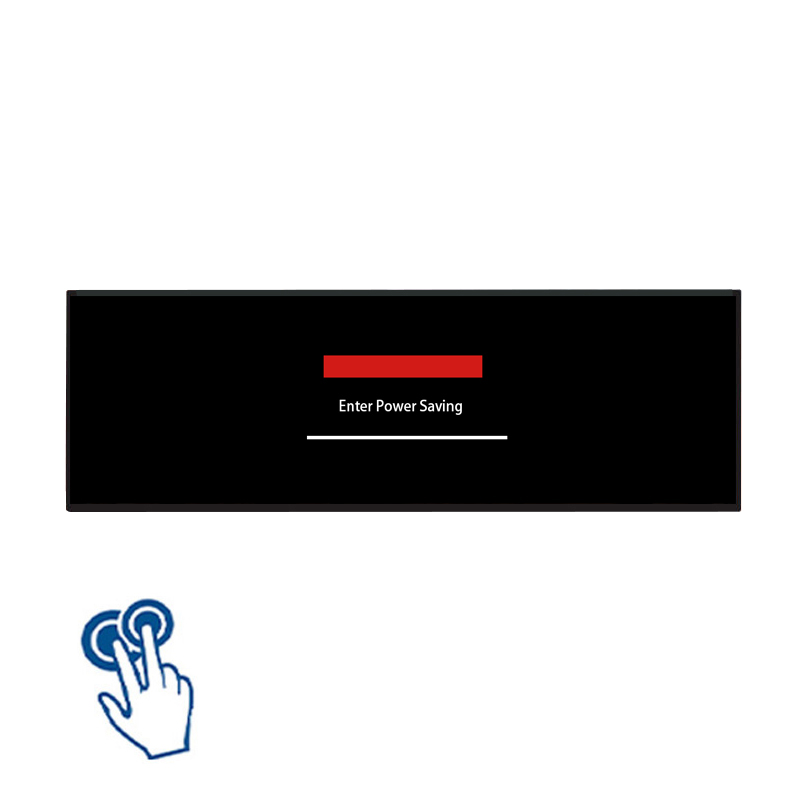

OEM 58.4 Inch Multi-Touch Stretched LCD Screen for Smart Kiosks
Source-factory 58.4 inch interactive touch stretched display delivering native 1920*540/3840*1080 resolution and 800 cd/㎡ commercial brightness. Complete with HDMI/VGA inputs and fanless thermal architecture. Fast sampling and volume OEM/ODM fulfillment.
Specifications
- Screen Size
- 58.4 Inch
- Resolution
- 1920*540/3840*1080
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA / USB Touch

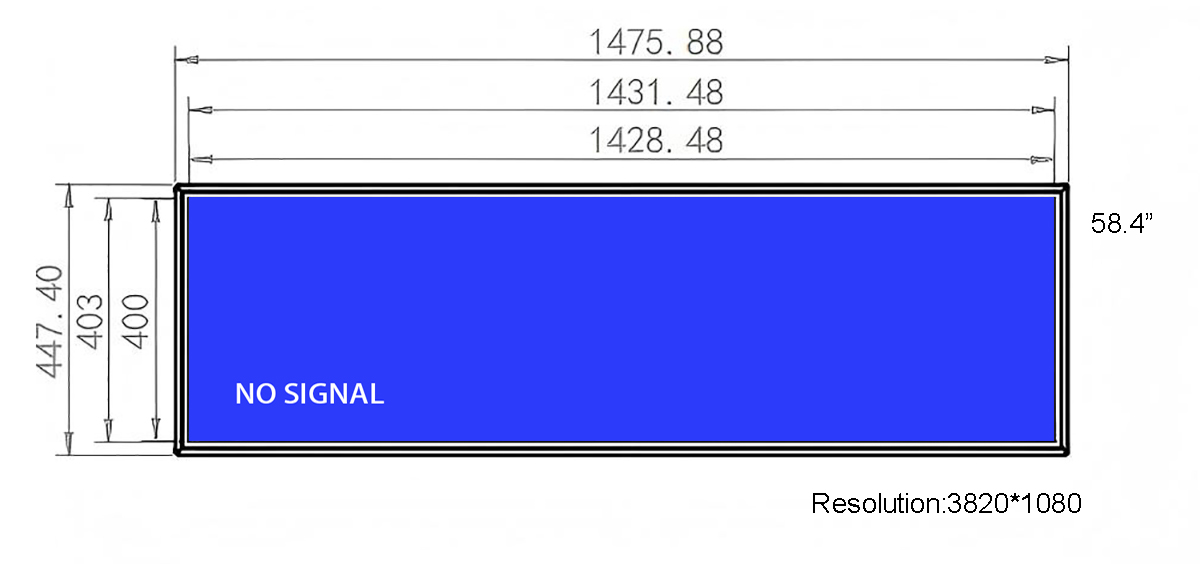

58.4 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 58.4 inch | |
Resolution | 1920*540/3840*1080 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Perimeter Optimization: Converting Dormant Edge Margins into Dynamic Visuals
A common challenge in digital signage deployment is the inability to install dynamic video displays in narrow horizontal margins. Conventional 16:9 monitors demand substantial vertical clearance, making them unusable along supermarket gondola edges, bus door headers, and industrial machine consoles. The 58.4-inch cut-bar LCD screen bypasses these physical limits by adopting a specialized panoramic form factor delivering native 1920*540/3840*1080 resolution across an elongated 58.4-inch active diagonal. Venues can now present synchronized multi-zone promotional animations, dynamic price feeds, and essential directional signage right at the point of decision.
Commercial operators benefit from significant cost reductions in fixture fabrication. Because these stretched units install directly into standard shelving channels and door bulkheads, enterprise clients avoid expensive structural custom cabinet work.
The ultra-wide panoramic aspect ratio allows graphic designers to separate high-priority navigational alerts from continuous background advertising loops, ensuring that viewers immediately register essential updates without information overload.
Optical Performance Under Harsh Commercial and Ambient Lighting Conditions
With an active display area delivering 1920*540/3840*1080 resolution, the 58.4-inch stretched monitor provides crisp panoramic visuals. Calibrated to 800 cd/㎡ with a 1200:1 contrast ratio, it ensures strong visual impact in well-lit retail and transit spaces. Symmetrical symmetrical 89°/89°/89°/89° IPS full viewing angles IPS viewing angles and a 60,000+ operational hours backlight rating provide reliable long-term performance.
High static contrast ensures that fine text fonts stand out distinctly against dark backgrounds, maximizing information legibility for dynamic route maps and transportation schedules.
Even luminance distribution across the elongated horizontal raster prevents localized hot spots, ensuring that scrolling promotional text and flight arrival lists maintain uniform visual intensity from end to end.
Industrial Housing Design: Resisting Ambient Dust, Moisture, and Vibration
The 58.4-inch interactive stretched screen utilizes a high-precision PCAP Capacitive Touch sensor integrated behind protective 7H tempered glass. Engineered for demanding public self-checkout and information points, it delivers fluid 10-point touch tracking and high impact resistance.

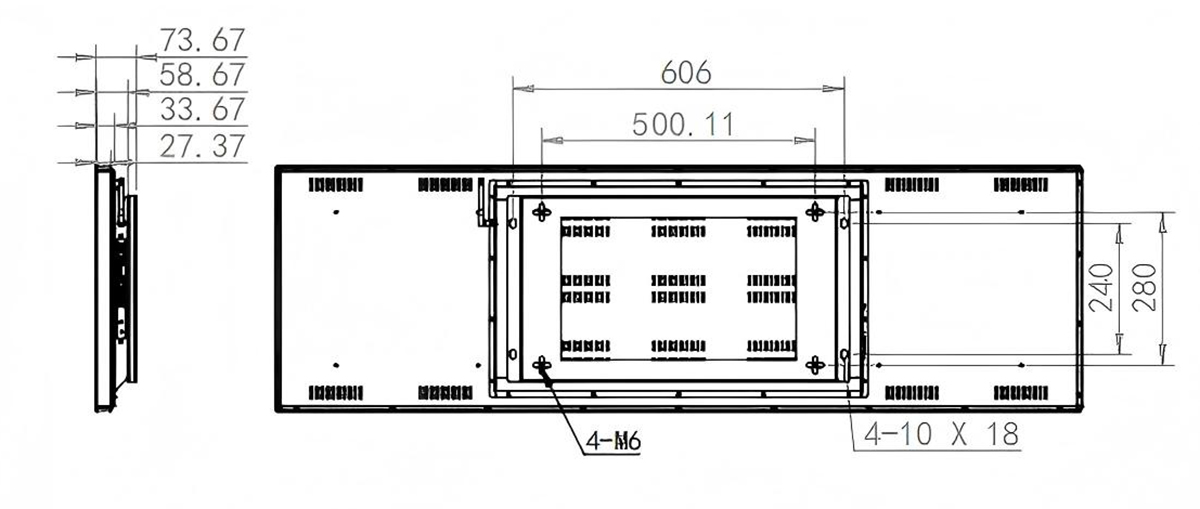

Thermal efficiency is maintained through an advanced fanless heat dissipation layout that uses the external metal body as a heat sink. This eliminates fan noise and prevents dust and grease accumulation within the housing, supporting long-term commercial reliability. The chassis provides standard VESA mounting provisions and side-channel grooves for secure installation.
For overhead corridor and transit concourse deployments, the housing features reinforced steel eyelet anchor points rated for heavy-duty aircraft suspension wires. Safety cables lock directly into internal structural gussets, ensuring complete public safety in seismic or high-vibration zones.
Universal Power Conversion: Resilient Operation Across Commercial Mains Grids
With standard HDMI, VGA inputs, the display links easily to digital signage players and industrial computing equipment. An integrated Audio Socket (3.5mm) provides audio output capability. The internal power converter accepts universal 100-240V commercial electrical mains mains with power consumption limited to ≤ 120w, rated for operating conditions of below10℃ ~ +50℃ and ≤ 85%RH.
The audio output circuitry supports synchronized stereo playback, enabling interactive kiosks to provide clear voice prompts and confirmation chimes during customer self-service transactions.
The low-voltage direct current output stage delivers ultra-clean power to the liquid crystal timing controller, eliminating horizontal line noise and visual ripple in sensitive commercial AV setups.
Open Hardware Standards: Seamless Windows, Android, and Linux Support
By adhering strictly to open commercial hardware standards, this monitor ensures effortless multi-OS synchronization via standard HDMI connections. System architects can freely pair the screen with external Windows computing hardware, cost-effective Android digital signage units, or robust Linux industrial microcontrollers, ensuring seamless compatibility with any enterprise software platform.
Target Environments: Commercial Display Strategies for Space-Limited Fixtures
Engineered for space-limited commercial installations, the 58.4-inch stretched bar screen delivers dynamic visual impact across diverse sectors. Supermarket chains deploy it along gondola shelf rails for real-time digital merchandising. Public transit operators utilize it for interior passenger route mapping. Financial institutions install it at teller counters for queue calling, and manufacturing plants use it for continuous assembly line status monitoring.
Municipal bus fleets deploy this low-profile screen along ceiling bulkheads to broadcast next-stop alerts, GPS route progress, and municipal announcements. The wide viewing angles ensure passengers seated throughout the vehicle can read journey details clearly without neck strain.
Hospitality venues report enhanced guest satisfaction when using panoramic displays for lobby wayfinding and conference schedules. The elegant linear form factor complements modern hotel interior architecture while delivering clear guest directions.
Direct Factory Sourcing: Reducing Procurement Costs and Engineering Lead Times
ZXT provides source-factory manufacturing for commercial stretched displays, eliminating third-party markups. Our in-stock tooling ensures zero mold charges on standard sizes, supported by fast 3-day sample dispatch and modular SKD shipping options for international clients.
Factory-direct warranty coverage is backed by responsive technical assistance and available spare parts kits, ensuring that deployed displays maintain continuous commercial service year after year.
Field Application & Installation FAQ
**Q1: How does this monitor connect to external audio systems?**
The display extracts audio from the incoming HDMI stream and routes it through an onboard 3.5mm audio socket, allowing installers to link external sound systems for synchronized promotional announcements.
**Q2: What mounting standards are supported on the rear chassis?**
The rear casing incorporates industry-standard VESA mounting patterns alongside adjustable lateral slide-nut tracks, supporting wall brackets, ceiling drop-poles, articulated arms, and custom cabinet cutouts.
**Q3: Can ZXT adjust panel brightness for semi-outdoor or sunlit storefronts?**
Yes. In addition to standard commercial luminance ratings, we offer custom high-brightness LED backlight configurations reaching up to 1000+ nits, equipped with automatic ambient light dimming sensors.
Evaluate Sample Hardware and Request CAD Models
To discuss custom engineering requirements, request 2D/3D CAD drawings, or order an evaluation sample of the 58.4-inch stretched bar display, contact our international sales desk today. Our engineering team provides official commercial proposals within two business hours.
