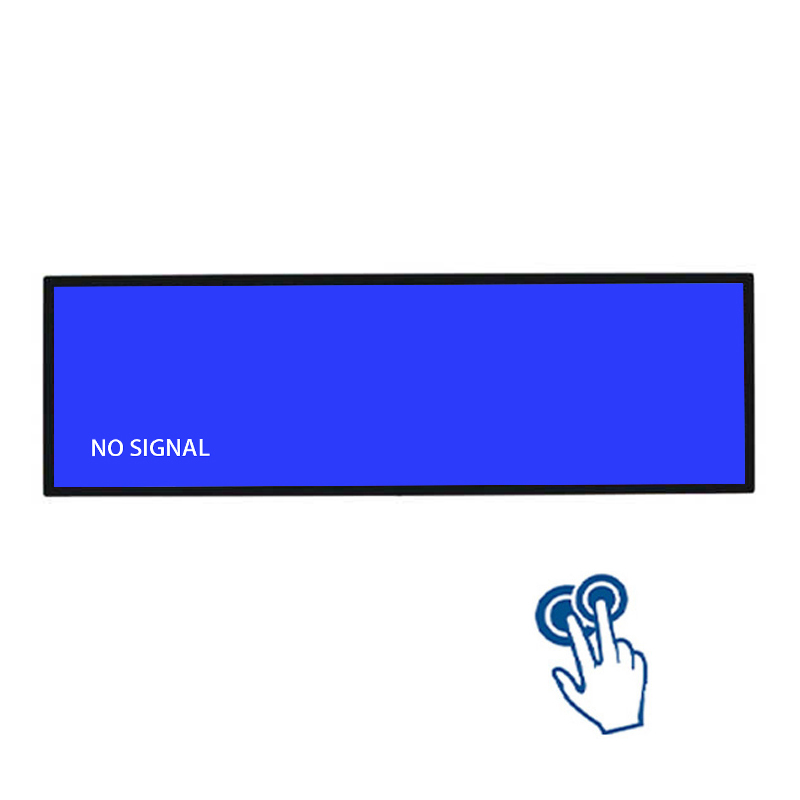

Interactive Digital Signage: 58.4 Inch Touchscreen Bar Monitor (Interactive Touchscreen)
High-resolution 58.4 inch interactive touch stretched display with 3840*1080 active matrix and 800 cd/㎡ brightness. Designed for smart retail, rolling stock transit, and industrial server racks. Backed by 9+ years of specialized display manufacturing.
Specifications
- Screen Size
- 58.4 Inch
- Resolution
- 3840*1080
- Brightness
- 800 cd/㎡
- Interface
- HDMI / VGA / USB Touch
58.4 Inch Stretched LCD (Aluminum) | ||
Display Specifications | ||
Screen Size | 58.4 inch | |
Resolution | 3840*1080 | |
Brightness | 800 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+FF Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 120w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Horizontal Form Factors: Purpose-Built Solutions for Narrow Physical Footprints
Maximizing spatial productivity is essential in high-density retail aisles, airport passenger corridors, and vehicle passenger cabins. Standard desktop-format screens obstruct customer views and complicate mechanical mounting due to their bulky vertical proportions. The 58.4-inch stretched commercial display addresses this spatial conflict through an ultra-wide form factor delivering native 3840*1080 resolution across an active 58.4-inch diagonal. This specialized geometry fits flush into horizontal headers, narrow shelving channels, and compact control desks, delivering vibrant graphics without demanding vertical headroom.
In high-traffic transit corridors, clear visual hierarchy is essential for passenger comfort. Panoramic displays mounted overhead deliver critical wayfinding data in an intuitive linear format that commuters can digest in seconds.
Commercial interiors increasingly emphasize clean, unobtrusive architectural lines. The slender profile of this display integrates organically into modern store designs, avoiding the bulky industrial look of conventional commercial monitors.
Image Reproduction: Wide Aspect Pixel Mapping and Accurate Color Rendering
The optical system of the 58.4-inch panoramic display features 3840*1080 resolution, 800 cd/㎡ brightness, and a 1200:1 contrast ratio. True IPS technology guarantees true IPS 178-degree wide visual cone viewing angles without color distortion, while the industrial LED backlight ensures an industrial service life exceeding 60,000 hours of continuous commercial operation.
The liquid crystal panel is engineered for rapid pixel response times, eliminating ghosting and motion blur during fast-scrolling advertising text and high-frame-rate video playback.
The protective front glass surface combines high optical transparency with oil-resistant surface properties, repelling accidental fingerprint smudges and preserving pristine screen clarity in public environments.
Structural Engineering: Low-Profile Framing and Standard VESA Compatibility
With an optically bonded PCAP Capacitive Touch front surface, the 58.4-inch touch monitor combines smooth multi-touch tracking with Morse magnitude 7 physical protection. The sealed front bezel prevents liquid and dust penetration, ensuring reliable performance in public kiosks.

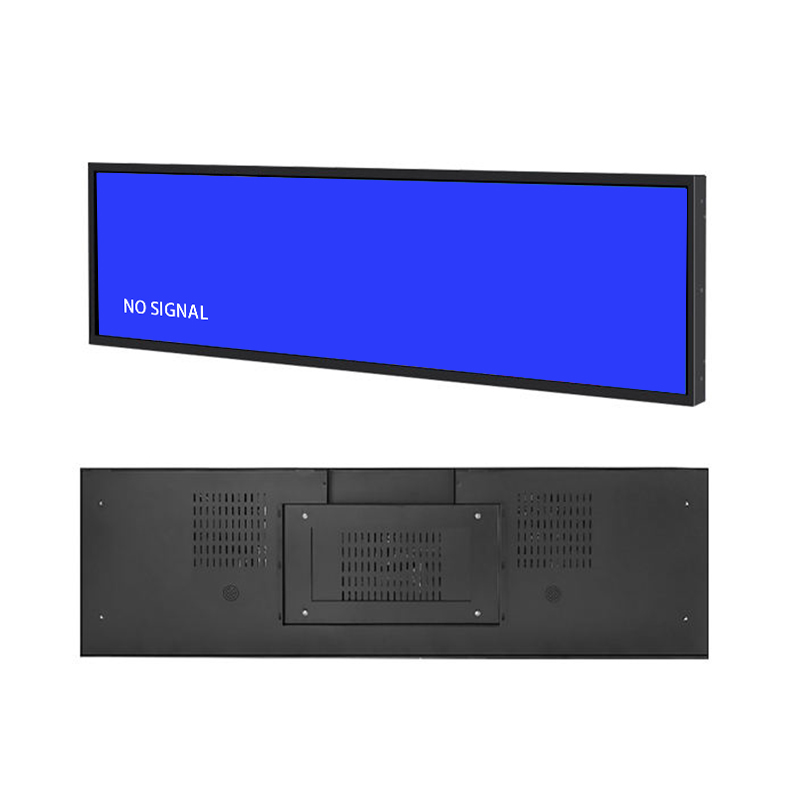

The unit features a fanless, solid-state cooling design that conducts thermal energy away from sensitive electronics directly to the outer casing. This passive cooling system ensures whisper-quiet operation and eliminates fan-related maintenance issues. Rear VESA mounting points and lateral slide channels provide straightforward installation across various mounting structures.
The chassis profile incorporates recessed rear connector pockets that protect HDMI and power plugs from accidental snags during maintenance. Right-angle cable routing channels allow the monitor to sit flush against flat architectural walls with zero gap.
Hardware Integration: Direct Video Linking Without Specialized External Adapters
The display is equipped with HDMI, VGA video ports for direct connection to media players and embedded PCs. An audio connection is provided via a 3.5mm Audio Socket. The power supply accommodates standard 110V to 240V AC power input with an efficient power rating of ≤ 120w, operating reliably across temperatures of below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
Comprehensive electrical isolation safeguards video input ports against ground loop interference, ensuring hum-free audio and noise-free video signals in complex industrial AV setups.
Built-in over-voltage, over-current, and short-circuit protection circuits safeguard the monitor against unexpected electrical faults, preventing costly equipment damage during power grid surges.
Seamless Multi-OS Switching via HDMI (Windows / Android / Linux)
Engineered as an open-architecture commercial display without proprietary hardware lock-in. By simply connecting an external Windows PC box, Android media player, or Linux industrial controller via a standard HDMI cable, you can achieve effortless operating system switching tailored to your digital signage CMS, interactive software, or industrial monitoring platform.
Strategic Installation Points: Digital Merchandising and Industrial Telemetry
The 58.4-inch stretched bar monitor provides targeted visual communication across high-traffic venues. In retail environments, it elevates shelf-edge merchandising with dynamic promotional video loops. In transportation systems, it displays passenger navigation alerts above carriage doorways. In control rooms, it presents multi-channel CCTV status feeds, and in hospitality venues, it provides sleek panoramic event signage.
Hospitality venues and boutique hotels integrate this horizontal display into reception counters and elevator lobbies. Digital guest directories, conference room event schedules, and concierge recommendations are presented with clean, modern architectural elegance.
In banking halls and municipal administrative offices, linear displays installed above service counters streamline queue management. Clear ticket calling numbers and teller status updates reduce perceived wait times and improve customer service ratings.
Manufacturing Scale: In-House Stamping, Extrusion Tooling, and Rapid Sampling
Choosing ZXT connects your project team directly to our manufacturing facility. We maintain permanent tooling inventories, provide evaluation samples in three days, and support overseas partners with turnkey displays, open-frame kits, and custom engineering assistance.
From prototype validation through high-volume mass production, ZXT delivers consistent manufacturing quality that has earned the trust of over 1,000 commercial display clients in more than 50 countries.
Product Engineering & Architecture FAQ
**Q1: Can this screen be used as an ultrawide PC secondary monitor or telemetry panel?**
Yes. Many professional workstation users, gamers, and control room operators connect this display beneath main monitors via HDMI as a dedicated sensor panel for hardware metrics, timelines, or communication feeds.
**Q2: How does the passive thermal design protect against dust?**
By utilizing a fanless solid-state cooling layout that transfers heat conductively through the metallic housing, the display eliminates air intake vents and motorized fans, preventing internal dust and grease buildup.
**Q3: Are protective glass options available for public installations?**
Yes. We offer chemically toughened Morse scale magnitude 7 impact-resistant front glass with anti-glare etching, providing robust protection against public scratches and accidental physical impacts.
Commercial Quotation and Production Scheduling

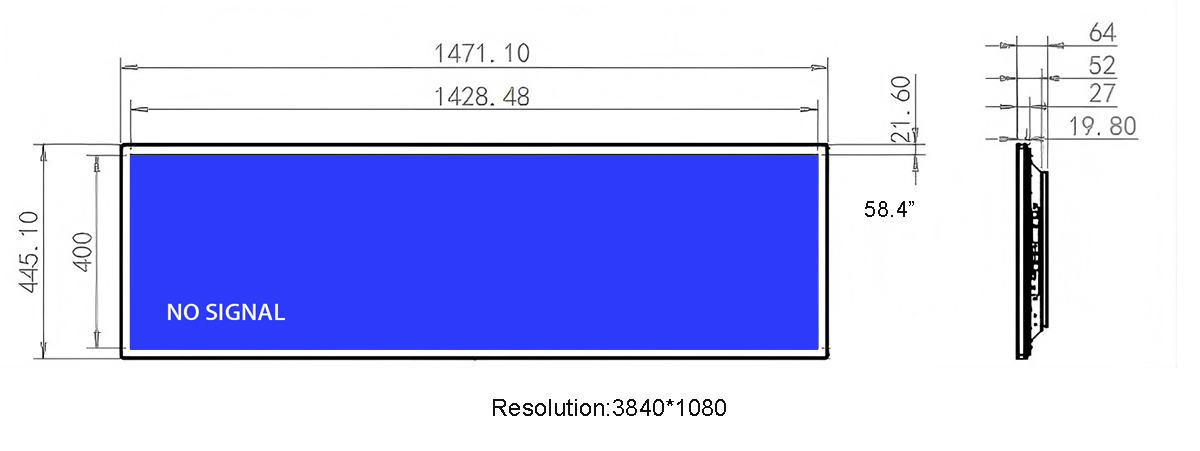

Contact our technical sales team to request mechanical drawings, discuss volume pricing, or arrange a 3-day sample dispatch for the 58.4-inch panoramic stretched monitor. We deliver prompt factory-direct quotations and technical support.
