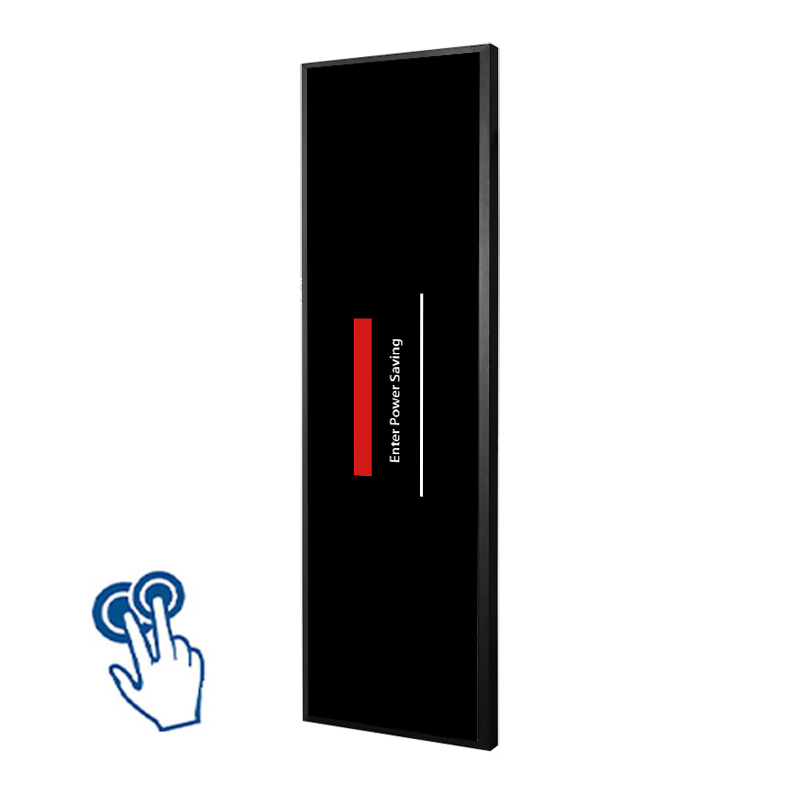

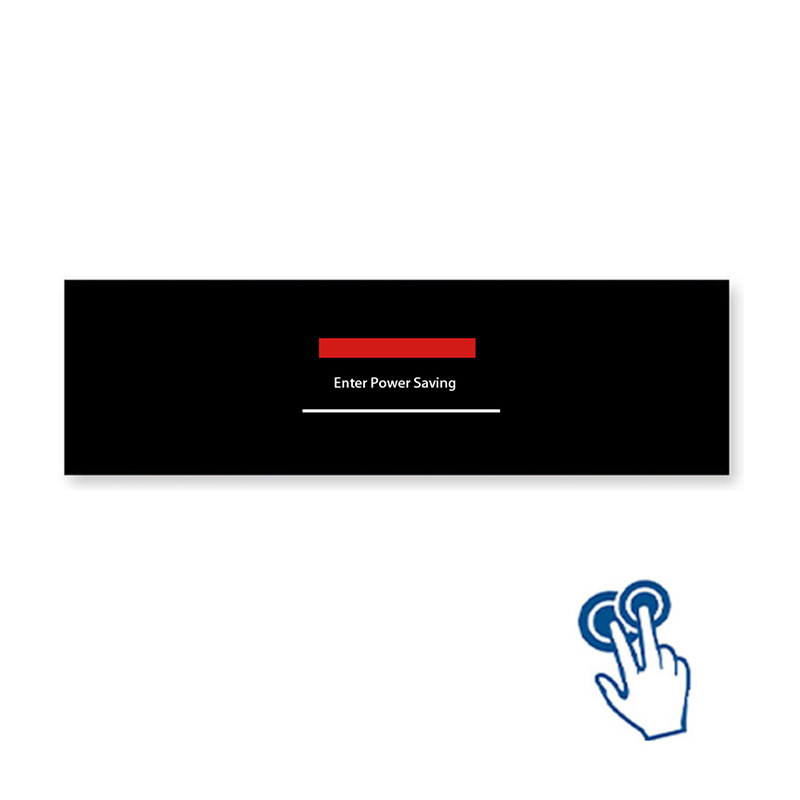

Commercial 49.5 Inch Touchscreen Bar LCD Monitor, Infrared Touch
Commercial-grade 49.5 inch interactive touch stretched display delivering 1920*540/3840*1080 resolution and 400 cd/㎡ brightness. Symmetrical IPS wide viewing angles and 60,000-hour backlight life for continuous commercial use. In-stock tooling with zero mold cost.
Specifications
- Screen Size
- 49.5 Inch
- Resolution
- 1920*540/3840*1080
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA / USB Touch
49.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 49.5 inch | |
Resolution | 1920*540/3840*1080 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Solving The Height Limitation: Engineering Custom Aspect Ratio Displays
The 49.5-inch ultra-wide bar monitor is designed specifically for environments where vertical space is tightly constrained. Delivering 1920*540/3840*1080 native resolution across its active 49.5-inch diagonal, it enables operators to present continuous promotional video loops, pricing updates, and transit announcements along narrow architectural surfaces.
Transportation authorities can broadcast synchronized route announcements and public service alerts in real time. The clear horizontal layout allows commuters to track their journey progress at a glance.
Replacing printed vinyl banners with dynamic digital strips allows shopping mall operators to monetize linear architectural surfaces, creating new advertising revenue streams across corridors and escalator bulkheads.
Liquid Crystal Clarity: True IPS Alignment and Wide-Angle Color Fidelity
Engineered for high-impact visual performance, the 49.5-inch panoramic display utilizes a commercial-grade LCD cell with a native 1920*540/3840*1080 resolution. The high pixel density provides exceptional visual precision, allowing fine pricing fonts, international transit icons, and high-definition video loops to display with pristine clarity without downscaling or blur. A calibrated brightness level of 400 cd/㎡ ensures that content remains vivid and easily readable in spaces with high ambient lighting. Supported by a 1200:1 contrast ratio, the panel renders rich color gradations, crisp dark boundaries, and punchy visual contrast that captures shopper attention instantly. The display incorporates true IPS wide-angle technology, providing an expansive ultra-wide 89/89/89/89 horizontal and vertical sightlines field of view, while the LED backlight module is rated for an operational lifespan of over over 60,000 hours of continuous 24/7 commercial duty.
Constant-current backlight driver circuitry guarantees flicker-free optical output across the entire dimming range, eliminating optical fatigue for cashiers, station personnel, and nearby shoppers who view the screen continuously.
Uniform edge-lit LED backlighting eliminates dim corners and visual vignetting, ensuring that panoramic video banners maintain consistent brightness and chromatic balance across the entire screen span.
Enclosure Versatility: Fast Snap-in Mounting and Articulated Bracket Anchoring
The 49.5-inch interactive stretched screen features a responsive PCAP Capacitive Touch sensor with chemically strengthened glass. The robust front surface repels scratches, moisture, and cleaning chemicals, providing dependable touch input across retail and transit terminals.
The monitor's fanless thermal design utilizes high-conductivity internal heat spreaders to transfer thermal energy directly to the exterior metal enclosure. This eliminates moving parts and dust accumulation, ensuring reliable 24/7 operation. Mounting flexibility is provided by standard VESA patterns and lateral mounting channels.
The mechanical chassis features a specialized snap-in bracket profile that clips securely into commercial supermarket gondola price channels. Front-accessible release tabs allow store personnel to service or reposition displays without dismantling shelf merchandise.
Hardware Integration: Direct Video Linking Without Specialized External Adapters
The display is equipped with HDMI, VGA video ports for direct connection to media players and embedded PCs. An audio connection is provided via a 3.5mm Audio Socket. The power supply accommodates standard 110V to 240V AC power input with an efficient power rating of ≤ 90w, operating reliably across temperatures of below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
Comprehensive electrical isolation safeguards video input ports against ground loop interference, ensuring hum-free audio and noise-free video signals in complex industrial AV setups.
Built-in over-voltage, over-current, and short-circuit protection circuits safeguard the monitor against unexpected electrical faults, preventing costly equipment damage during power grid surges.
Open Hardware Standards: Seamless Windows, Android, and Linux Support
By adhering strictly to open commercial hardware standards, this monitor ensures effortless multi-OS synchronization via standard HDMI connections. System architects can freely pair the screen with external Windows computing hardware, cost-effective Android digital signage units, or robust Linux industrial microcontrollers, ensuring seamless compatibility with any enterprise software platform.
Real-World Scenarios: Maximizing Audience Engagement Across Key Sectors
The expansive architectural scale of the 49.5-inch stretched display delivers monumental visual impact across large-scale commercial facilities: 1. Command & Control Centers (CCTV / SOC / NOC): Serving as central panoramic video ribbons in security, emergency dispatch, and traffic control rooms without distracting bezel seams. 2. Airport Flight Information Display Systems (FIDS): Mounted across departure halls and check-in counters to present panoramic multi-gate flight schedules visible across long distances. 3. Corporate Executive Briefing Centers: Integrated into boardroom feature walls and museum exhibition pavilions to deliver continuous ultra-wide multimedia presentations. 4. Arena Concourse Digital Ribbons: Positioned along stadium entryways and VIP hospitality lounges for continuous live match scoring, sponsor branding, and venue directions.
Quick-service restaurants and urban cafes utilize this ultra-wide display above ordering counters to present dynamic panoramic menu selections. Vivid food photography, combo pricing, and real-time out-of-stock indicators help guide customer ordering choices, reducing counter queue wait times during peak hours.
Quick-service restaurants deploying panoramic digital menu strips experience faster order processing and reduced counter wait times. Clear combo photography and real-time out-of-stock indicators guide customer choices before they reach the ordering terminal.
Engineering Consultation: Firmware Tuning, Pinout Schemes, and CAD Blueprints
ZXT provides direct factory manufacturing of commercial stretched bar displays, eliminating middleman costs. We maintain in-stock tooling for standard sizes, deliver evaluation samples within three business days, and provide complete 2D/3D CAD models and modular SKD/CKD shipping options to support overseas assembly.
Direct factory communication eliminates the misunderstandings common with trading intermediaries, giving project managers clear visibility into production milestones and shipping schedules.
System Integrator Frequently Asked Questions
**Q1: Are special graphic cards required to drive this stretched resolution?**
No. Standard integrated and discrete graphic chipsets on modern Windows, Android, and Linux devices natively support custom panoramic resolutions through standard HDMI EDID recognition.
**Q2: How does the display perform under bright commercial lighting?**
With calibrated commercial luminance output and anti-glare polarized surface treatment, the screen diffuses harsh ambient ceiling reflections to ensure crisp readability across retail aisles and transit concourses.
**Q3: What warranty and after-sales support does ZXT provide?**
We provide comprehensive commercial factory warranties backed by responsive technical engineering assistance, schematic pinout documentation, and readily available modular replacement parts.
Inquire for Factory-Direct Terms and CAD Files
Connect with our commercial display specialists to discuss custom bracket finishing, sample availability, or volume pricing for the 49.5-inch stretched bar monitor. We provide comprehensive quotes within two hours.
