Non-touchscreen
45.7 inch 1:1 Screen Digital Signage Square LCD Display Development with Kits
The 45.7-inch Square LCD Display large-screen smart system boasts a resolution four times higher than traditional Full HD. The image quality is incredibly detailed, with excellent viewing both up close and a distance. With 94% NTSC wide color gamut coverage, it delivers true-to-life and vibrant colors, providing a stunning visual impact for commercial displays.
Specifications
- Screen Size
- 45.7 inch
- Resolution
- 950*950/1900*1900
- Display area
- 710*710mm
45.7 inch 1:1 Screen Digital Signage Square LCD Display Development with Kits
Professional 45.7 Inch Square LCD Display Development Kit for Custom Digital Signage Solutions
The 45.7 Inch 1:1 Screen Digital Signage Square LCD Display Development Kit is a professional-grade solution designed for system integrators, OEM manufacturers, software developers, and digital signage solution providers who need a flexible square display platform for customized applications.
Unlike standard commercial displays, this Square LCD Development Kit provides a modular hardware structure that allows full customization of software, system integration, enclosure design, and application development.
As a factory-direct LCD display manufacturer, ZXTLCD offers complete OEM and ODM support for global clients building advanced square digital signage systems.
Flexible Square LCD Platform for System Integration
This Square LCD Display Kit is built around a high-performance 1:1 aspect ratio LCD panel, making it ideal for developers who need a stable and adaptable display foundation.
Key advantages include:
- True square 1:1 display format
- Flexible hardware integration platform
- Compatible with Android / Windows systems
- Supports custom software development
- Ideal for embedded signage solutions
- Suitable for AI, IoT, and smart display applications
Square LCD development kits are widely used in digital signage projects where custom UI, interactive systems, and branded display solutions are required.
45.7 Inch Square LCD Display | ||
Display Specifications | ||
Screen Size | 45.7 inch | |
Resolution | 950*950/1900*1900 | |
Brightness | 300~700 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Ideal for Custom Digital Signage Development
This Square LCD Development Kit is not a finished retail product—it is designed for engineering teams and solution providers who need to build customized display systems.
Typical applications include:
- Smart retail signage systems
- Digital art display platforms
- Interactive exhibition systems
- Museum digital installations
- AI-powered smart display devices
- IoT-connected signage solutions
- Custom brand display terminals
- Industrial control display panels
Because of its modular structure, developers can integrate their own hardware, software, CMS platforms, and user interfaces.
OEM & ODM Customization Capabilities
ZXTLCD provides full OEM and ODM services to support global digital signage development projects.
Customization options include:
- Custom square screen sizes
- Embedded Android system integration
- Windows industrial PC configuration
- Touch screen integration
- Custom housing and enclosure design
- Software UI/UX customization
- CMS system integration
- Interface customization (HDMI / USB / LAN / WiFi)
- Firmware customization
- Branding and private label services
This makes it suitable for companies building their own digital signage products or smart display systems.

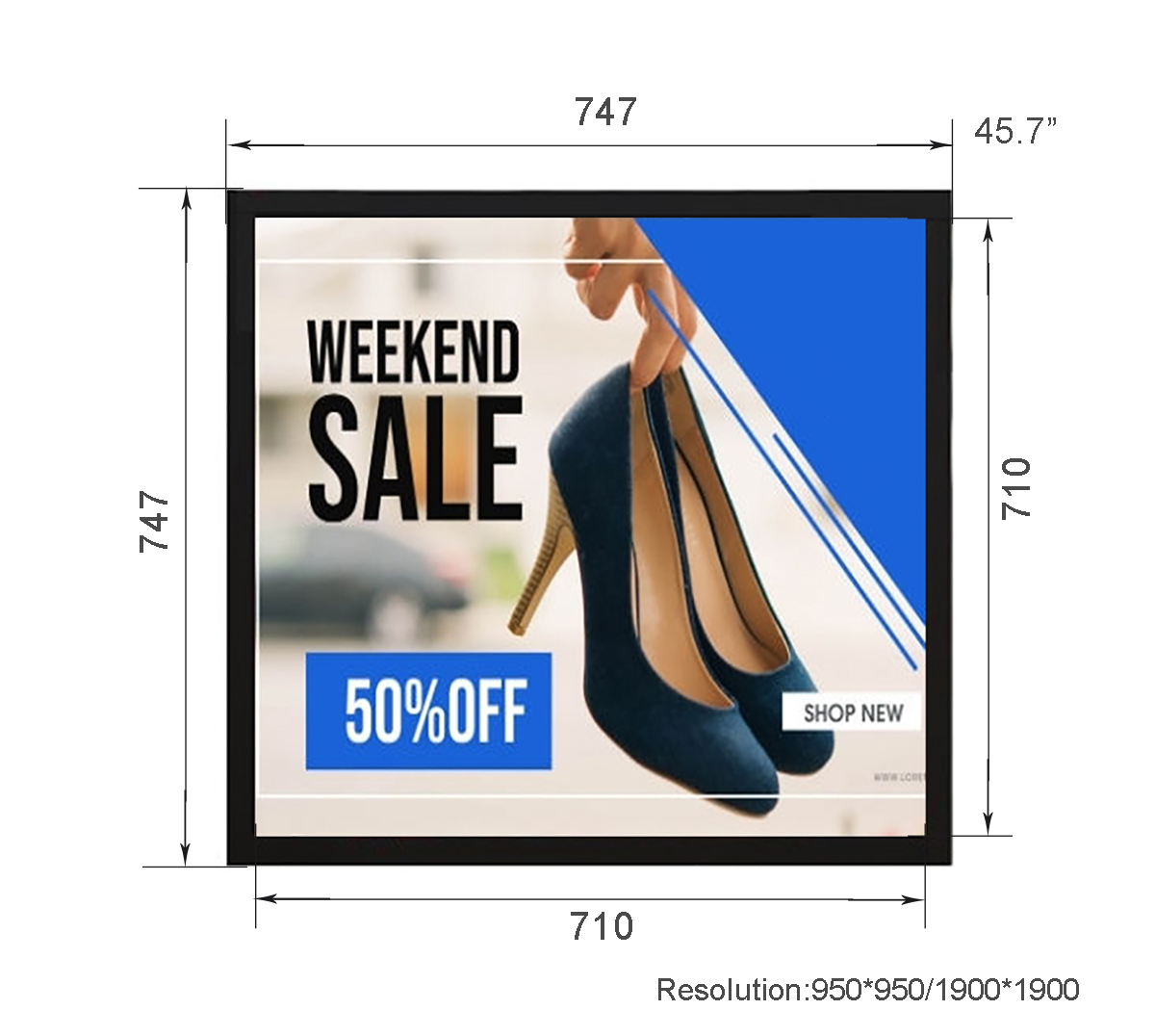

Product Dimension as follows:
Commercial-Grade Reliability for Industrial Applications
The Square LCD Development Platform is designed for stability, scalability, and long-term deployment in commercial environments.
Key features include:
- Industrial-grade LCD panel
- Stable power system for continuous operation
- Multi-system compatibility
- Modular architecture for easy integration
- Support for custom hardware expansion
- Long lifecycle design for commercial projects
Square displays are increasingly used in professional environments such as exhibition spaces, retail chains, and smart infrastructure systems due to their unique visual balance and adaptability.
Frequently Asked Questions
What is a square LCD development kit?
It is a modular LCD display system designed for developers and manufacturers to build custom digital signage or smart display products.
Can I integrate my own software?
Yes. The system supports Android, Windows, and custom software development environments.
Is this a finished product?
No. It is a development platform intended for OEM/ODM integration projects.
What industries use this kit?
It is used in retail, exhibitions, smart city systems, industrial displays, and digital art installations.
Do you support customization?
Yes. We provide full OEM and ODM services including hardware, software, and structural customization.
