Non-touchscreen

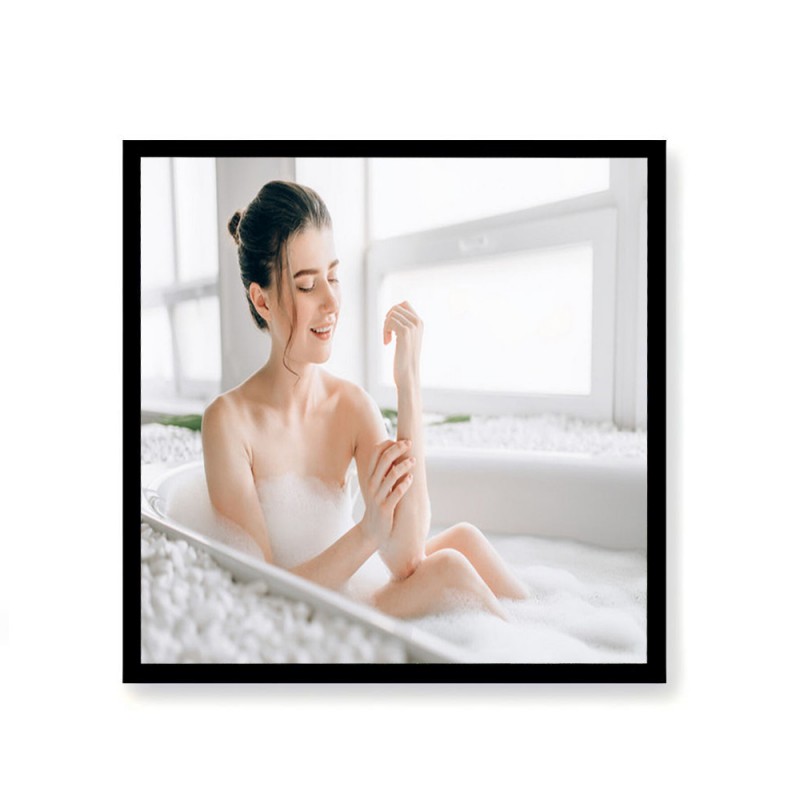

22 Inch Android Advertising LCD Display Player Wall Mounted Square LCD Display Source factory
square lcd display factory
Square Open Frame Display for Smart Retail & Self-Service Systems | 22 Inch Android Advertising LCD Solution
22 Inch Android Wall-Mounted Square Open Frame Display for Commercial Advertising & Kiosk Applications
The 22 Inch Android Advertising LCD Display Player Wall Mounted Commercial Use is a versatile square open frame display designed for modern retail, self-service, and smart city applications.
Built with an open-frame structure and Android system integration, this display allows easy embedding into kiosks, walls, and interactive terminals. It is widely used in the USA, Europe, and Middle East markets for digital signage, ordering systems, and public information displays.
As commercial spaces become more interactive and digitalized, the square open frame display has become a preferred solution for integrators and OEM project developers.
Why Square Open Frame Display Is Ideal for Embedded Digital Systems
The square open frame display is designed for flexible installation and long-term commercial use.
Key advantages:
- 22-inch high-resolution LCD panel
- Open-frame structure for easy integration
- Android OS for smart application deployment
- 24/7 continuous operation capability
- Flexible mounting for kiosks and walls
This makes it ideal for embedded systems in retail and public environments.
Square Touchscreen Kiosk for Interactive Applications
The square touchscreen kiosk enables users to interact directly with digital content in real time.
Common applications:
- Retail product browsing
- Ticket booking systems
- Information inquiry terminals
- Digital service desks
Its responsive touch performance improves customer experience and operational efficiency.
22 Inch Square Screen | ||
Display Specifications | ||
Screen Size | 22 inch | |
Resolution | 1920*1920 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 3000 : 1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | 0℃~50℃ | |
Operation Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Factory Direct Manufacturing Advantages
We are a professional manufacturer providing:
- Factory direct pricing for global buyers
- Stable OEM/ODM production capability
- Strict quality control system
- Fast global shipping support
- Long-term supply for distributors and integrators
This ensures reliable cooperation for large-scale projects.
Application Scenarios Overview
The 22-inch square open frame display is widely used in:
- Retail self-service kiosks
- Restaurant ordering systems
- Smart city information terminals
- Exhibition booths and trade shows
- Interactive service desks
- Digital advertising networks
Its flexibility makes it suitable for both commercial and public applications.

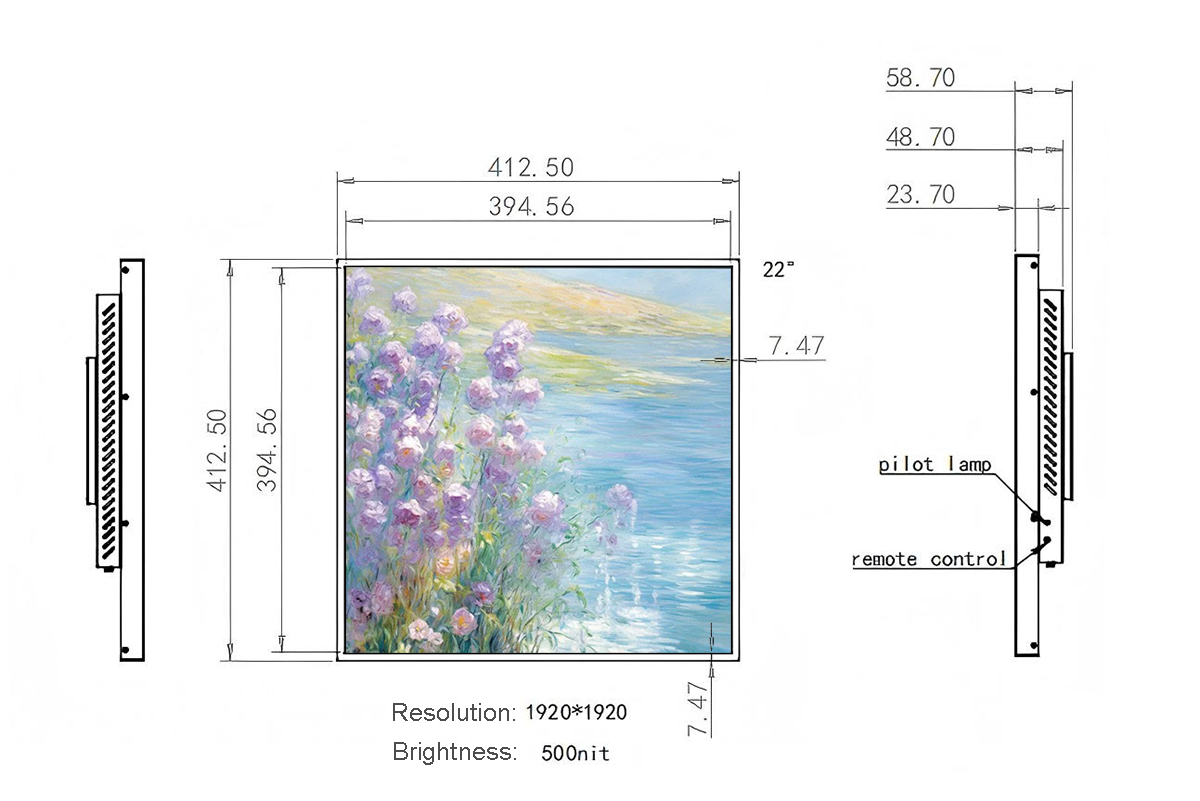

Product Dimension as follows:
Frequently Asked Questions (FAQ)
Q1: What is a square open frame display used for?
It is used for kiosks, self-service systems, retail signage, and smart city applications.
Q2: Can it be used as a touchscreen kiosk?
Yes, it works as a square touchscreen kiosk for interactive systems.
Q3: Is it suitable for restaurants?
Yes, it is widely used as a square ordering kiosk display in food service environments.
Q4: Does it support self-service applications?
Yes, it functions as a square self service display for automation systems.
Q5: Do you provide OEM customization?
Yes, we offer full OEM/ODM customization for hardware and software.
Start Your Square Open Frame Display Project Today
If you are looking for a reliable square open frame display manufacturer with factory direct pricing and full OEM/ODM customization support, we are ready to assist your project.
We help global clients build advanced kiosk, retail, and smart city display systems with stable performance and flexible customization.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
