18.9 Inch Original square lcd display 1:1 version hd lcd square wall-mounted advertising kiosk
18.9 Inch Original square lcd display
Square Public Display for Modern Digital Signage Networks | 18.9 Inch 1:1 Wall-Mounted Advertising Kiosk
18.9 Inch Original 1:1 Square LCD Display Wall-Mounted Advertising Kiosk for Public & Retail Use
The 18.9 Inch Original square LCD display 1:1 version HD wall-mounted advertising kiosk is a compact and highly efficient square public display designed for modern digital signage networks.
With its true 1:1 aspect ratio, this model delivers a balanced visual layout that improves content clarity and engagement in retail stores, public environments, and commercial spaces. It is widely used across the USA, Europe, and Middle East for advertising, information broadcasting, and smart signage systems.
Compared with traditional widescreen formats, the square public display provides a more centralized and eye-catching viewing experience, making it ideal for high-traffic environments.
Square Shelf Edge Display for Retail Environments
The square shelf edge display is widely used in retail stores for product promotion and pricing updates.
Retail applications:
- Shelf-level product advertising
- Dynamic pricing display
- Promotional campaign highlights
- Brand storytelling at point-of-sale
It helps retailers improve customer attention directly at the decision-making point.
Square Digital Signage System for Centralized Management
The square digital signage system allows businesses to manage multiple displays from a central platform.
System benefits:
- Remote content management
- Multi-screen synchronization
- Cloud-based CMS control
- Real-time advertising updates
It is ideal for franchise chains, supermarkets, and global retail brands.
18.9 Inch Square Screen | ||
Display Specifications | ||
Screen Size | 18.9 inch | |
Resolution | 935*935 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 30w | |
Environment Specifications | ||
Operation Temperature | 0℃~50℃ | |
Operation Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Square Media Display System for Multi-Industry Use
The square media display system supports video, image, and interactive media formats.
Key features:
- Multi-format media playback
- High-resolution content support
- CMS integration capability
- Continuous 24/7 operation
It is widely used in retail, transportation, hospitality, and corporate environments.
OEM & ODM Customization Services
We provide full OEM and ODM customization for square public display systems.
Hardware customization:
- Screen size options (10”–32”+)
- Brightness adjustment levels
- Touch or non-touch configurations
- Wall-mounted or embedded structure
Software customization:
- Android / Windows / Linux OS
- CMS remote management system
- SDK integration support
- Custom UI development
Branding customization:
- Logo printing
- Frame design customization
- Packaging customization
- Private label solutions

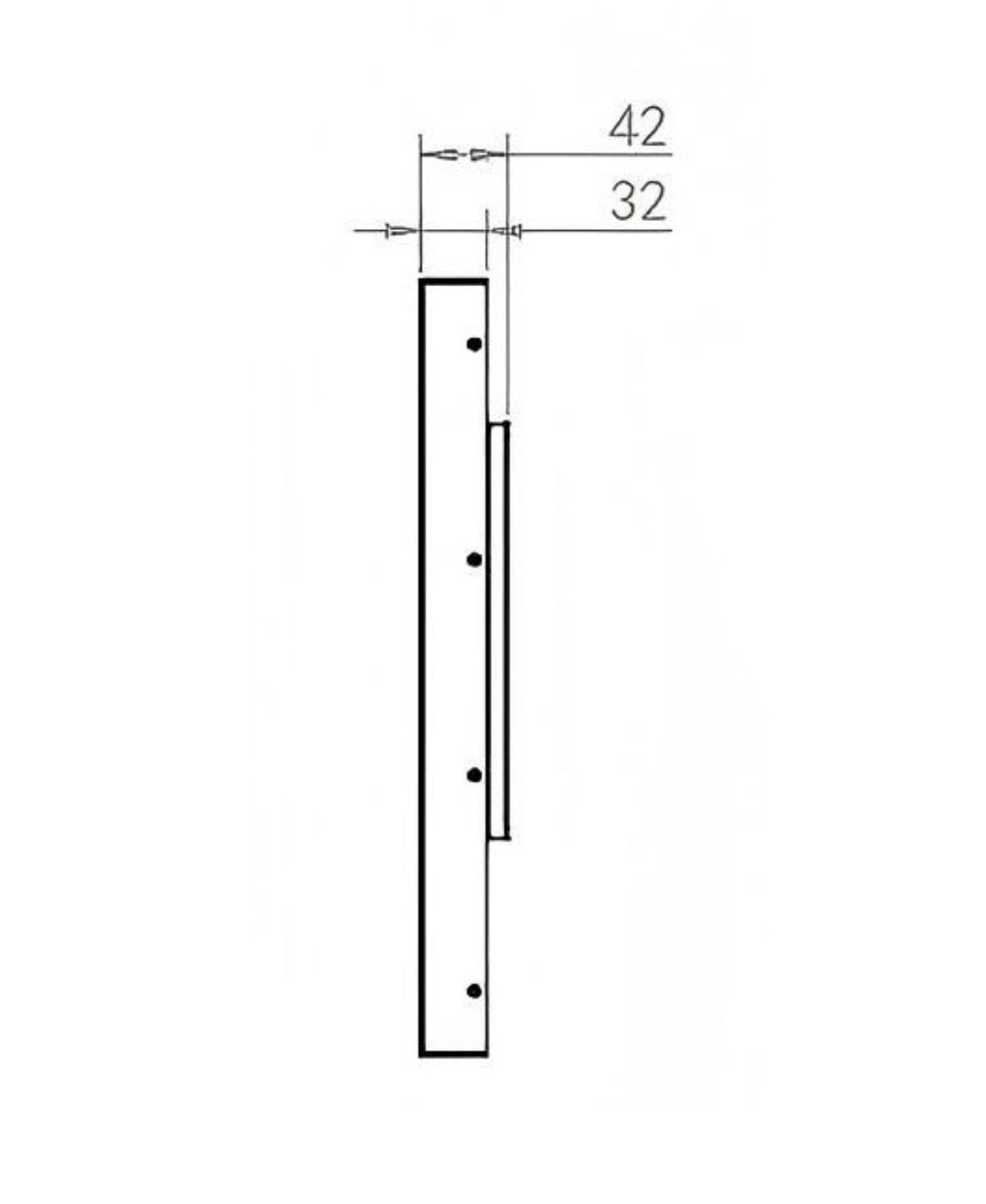

Product Dimension as follows:
Application Scenarios Overview
The 18.9-inch square public display is widely used in:
- Retail stores and supermarkets
- Shopping malls and brand outlets
- Public information systems
- Transportation hubs
- Exhibition halls
- Smart city signage networks
Its compact design makes it suitable for both space-limited and high-traffic environments.
Frequently Asked Questions (FAQ)
Q1: What is a square public display used for?
It is used for retail advertising, public information systems, and digital signage networks.
Q2: Can it be used as a shelf display?
Yes, it can function as a square shelf edge display in retail environments.
Q3: Does it support centralized management?
Yes, it supports a square digital signage system with CMS control.
Q4: Is OEM customization available?
Yes, we provide full OEM/ODM customization services.
Q5: Where can it be installed?
It is suitable for retail stores, malls, transportation hubs, and public spaces.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
