Non-touchscreen
39.4 Inch Square LCD Display with Full HD Resolution & Vivid Color for Clear Stable Visuals

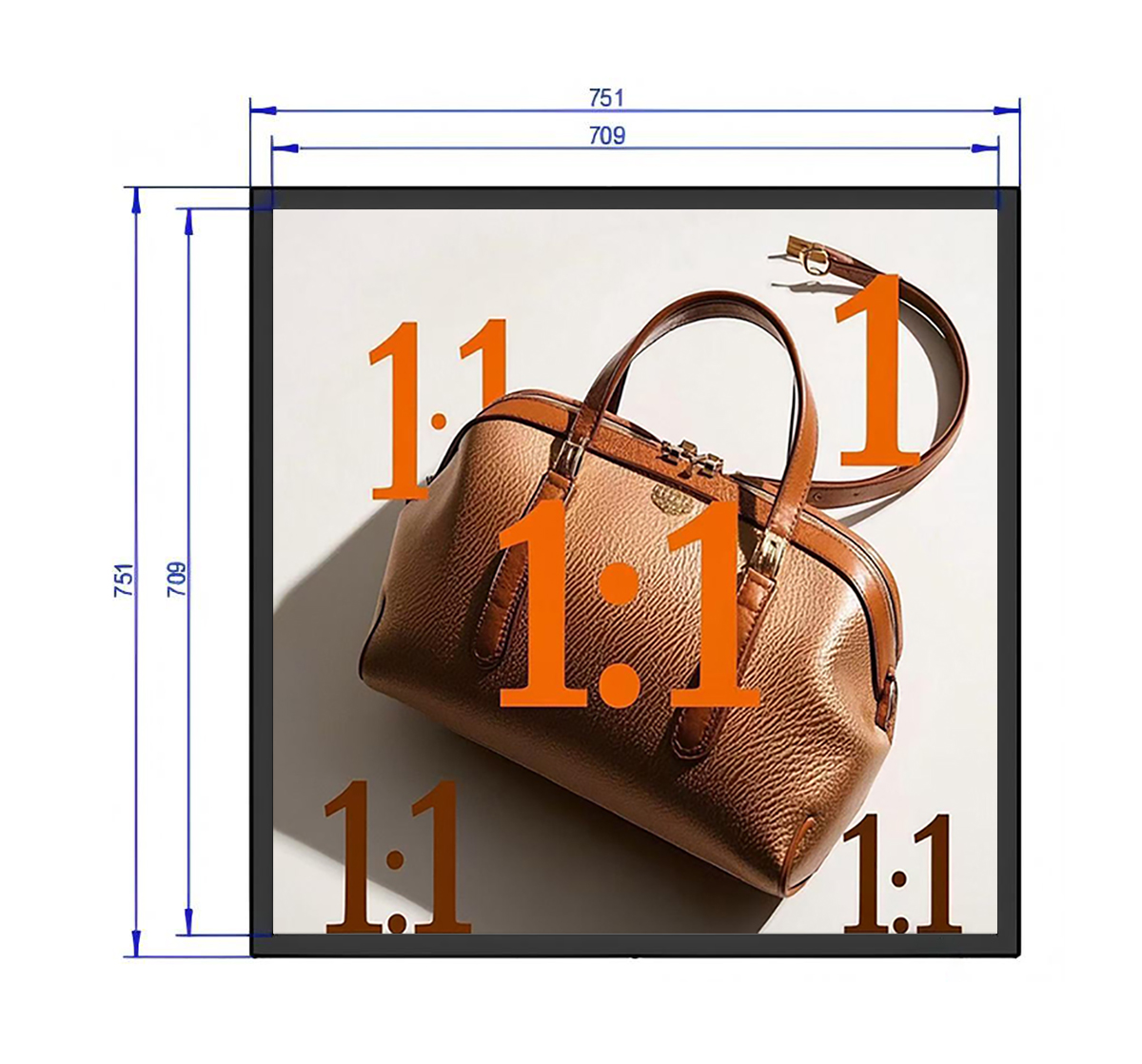

39.4 inch Aluminum square screen Resolution:1905*1905 Display area:709*709mm
39.4 Inch Square LCD Display with Full HD Resolution & Vivid Color for Clear Stable Visuals
39.4-Inch Square Bar Display with Full HD Resolution and Vivid Color Performance
The 39.4 Inch Square LCD Display with Full HD Resolution & Vivid Color is a next-generation square bar display designed for commercial environments that require stable visuals, strong color performance, and flexible installation options.
Unlike traditional rectangular signage, a square bar display provides a more balanced visual structure, making content easier to view in compact spaces such as kiosks, counters, hotel lobbies, and restaurant service areas.
Built for 24/7 commercial use, this model supports OEM/ODM customization and is widely deployed across retail, hospitality, healthcare, and public service industries in the USA, Europe, and Middle East markets.
Why Square Bar Display Is Becoming a New Digital Standard
The demand for square bar display systems is growing because businesses are shifting toward more compact, interactive, and visually balanced signage solutions.
Key advantages:
- Full HD resolution for sharp and clear visuals
- Vivid color calibration for advertising accuracy
- Stable long-term 24/7 operation
- Flexible installation (wall-mounted / desktop / kiosk integrated)
- Optimized square aspect ratio for modern UI design
This makes it ideal for digital transformation in customer-facing environments.
Desktop Square LCD Display for Compact Business Spaces
The desktop square lcd display configuration is widely used in small commercial environments where space efficiency matters.
Typical use cases:
- Reception desks
- Retail checkout counters
- Information desks
- Self-service stations
It provides a clean and modern display solution without requiring large installation space, while maintaining high visibility and engagement.
39.4 Inch Square LCD Display | ||
Display Specifications | ||
Screen Size | 39.4 inch | |
Resolution | 1920*1920 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Square Digital Kiosk Display for Smart Customer Interaction
The square digital kiosk display is widely used in modern smart retail and service environments.
Application scenarios:
- Self-ordering kiosks in restaurants
- Ticketing systems in transportation hubs
- Hotel self-check-in stations
- Retail product browsing kiosks
The square layout improves user interaction by providing a symmetrical and intuitive interface layout.
Square Hospital Display System for Medical Environments
The square hospital display system is designed for healthcare environments where clarity and reliability are essential.
Medical applications:
- Patient information display
- Queue management systems
- Hospital navigation screens
- Digital signage for departments
The stable Full HD output ensures accurate information delivery in critical environments.
OEM & ODM Customization Capabilities
We provide full OEM and ODM services for all square bar display products.
Hardware customization:
- Screen size adjustment
- Brightness levels (200–1000 nits optional)
- Touch / non-touch configuration
- Interface customization (HDMI / USB / LAN / LVDS)
Software customization:
- Android system optimization
- Remote CMS control platform
- Custom UI interface design
- Application pre-installation
Branding customization:
- Logo printing
- Housing design
- Packaging customization
- Private label production
Frequently Asked Questions (FAQ)
Q1: What is a square bar display used for?
It is used for digital signage, kiosks, menu boards, hospital systems, and interactive displays.
Q2: Can it be used as a kiosk display?
Yes, we also operate as a square lcd kiosk manufacturer providing integrated kiosk solutions.
Q3: Is it suitable for restaurants?
Yes, it is ideal as a square restaurant menu display for digital menus and promotions.
Q4: Does it support hotel applications?
Yes, it works as a square hotel digital display for lobby and guest services.
Q5: Can it be customized?
Yes, we offer full OEM/ODM customization including hardware and software.
Start Your Square Bar Display Project Today
If you are looking for a reliable square bar display manufacturer with factory direct pricing and full OEM/ODM support, we can provide a complete solution tailored to your business needs.
We help global clients build scalable digital signage systems for retail, hospitality, healthcare, and kiosk applications.
