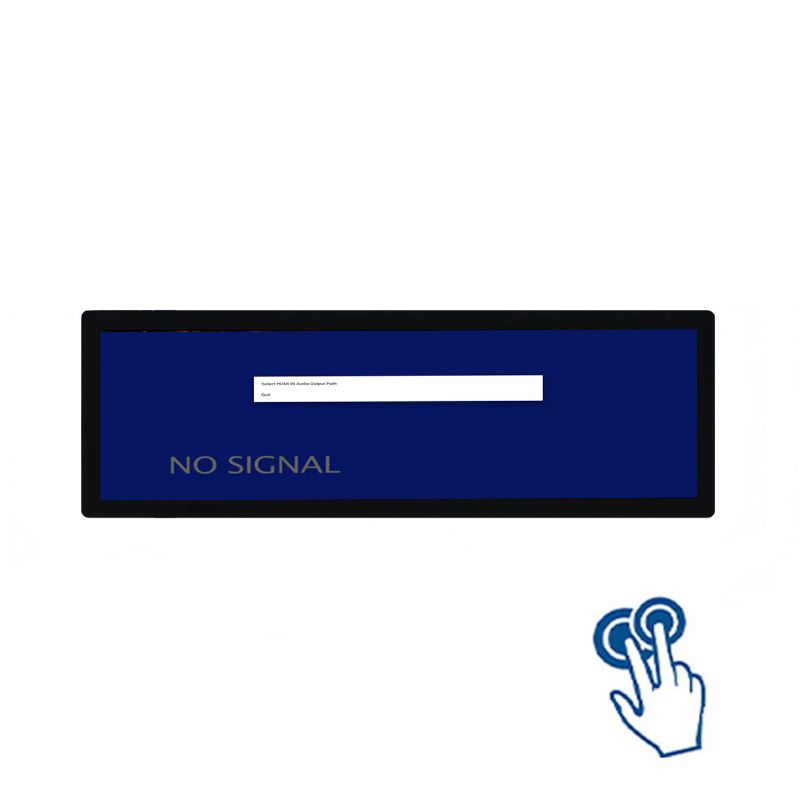

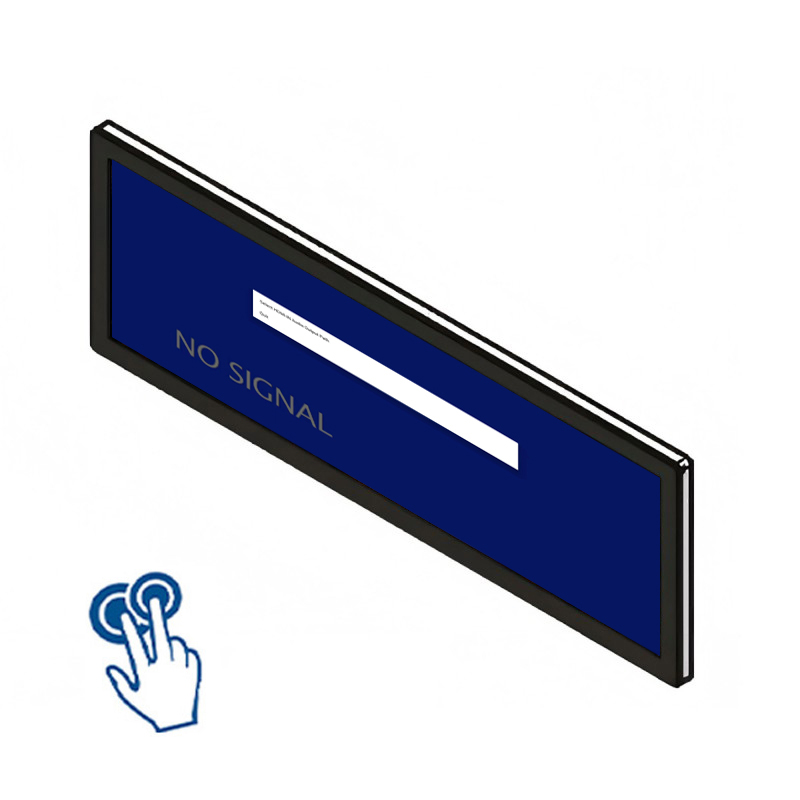

OEM 37.6 Inch Multi-Touch Stretched LCD Screen for Smart Kiosks
Factory-direct 37.6 inch interactive touch stretched display with 1920*540 panoramic resolution and 200~400 cd/㎡ luminance. Ideal for supermarket shelf-edges, passenger wayfinding, and industrial consoles. Turnkey monitors and CKD/SKD assembly packs available.
Specifications
- Screen Size
- 37.6 Inch
- Resolution
- 1920*540
- Brightness
- 200~400 cd/㎡
- Interface
- HDMI / VGA / USB Touch
37.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 37.6 inch | |
Resolution | 1920*540 | |
Brightness | 200~400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Architectural Geometry: Resolving Horizontal Constraints in Commercial Architecture
In modern commercial retail and transportation hubs, standard 16:9 displays consistently create severe installation conflicts. Their excessive vertical height obstructs customer sightlines, intrudes into pedestrian aisles, and requires costly alterations to architectural shelving and vehicle bulkheads. The 37.6-inch stretched bar LCD monitor resolves these spatial bottlenecks by delivering native 1920*540 resolution across an elongated panoramic diagonal. Occupying virtually zero vertical height, it converts dormant horizontal margins into dynamic visual corridors for continuous advertising, live pricing, and passenger information without disrupting surrounding fixtures.
By replacing static cardboard signs and bulky poster frames with dynamic panoramic video loops, retail and transportation operators unlock real-time promotional agility. Content management platforms can instantly update merchandise promotions or emergency transit notices across hundreds of distributed displays, reducing maintenance overhead and maximizing visual engagement.
From an engineering standpoint, preserving structural sightlines directly correlates with higher customer retention in commercial spaces. Rather than obstructing surrounding merchandising displays or passenger pathways, the low-profile chassis sits flush against linear surfaces, creating an uncluttered, modern visual environment.
Long-Term Optical Durability: Solid-State LED Backlight Lifespan Engineering
Featuring an industrial A-grade LCD panel, the 37.6-inch stretched monitor delivers 1920*540 resolution and 200~400 cd/㎡ brightness. The optical stack achieves a 1200:1 contrast ratio for sharp text and vibrant color saturation. Wide-angle IPS technology ensures true IPS 178-degree wide visual cone visibility, supported by an energy-efficient LED backlight system rated for an industrial service life exceeding 60,000 hours of continuous service.
A durable surface polariser repels static dust accumulation and resists surface scratches, preserving pristine optical transparency in busy public environments with heavy foot traffic.
Solid-state LED backlights utilize efficient thermal conductive substrates, keeping diode junction temperatures low to prevent premature luminous decay and chromatic drift over extended commercial service.
Enclosure Craftsmanship: Aerospace Aluminum and Galvanized Sheet Steel Options
Equipped with an advanced PCAP Capacitive Touch interface, the 37.6-inch interactive display incorporates 7H hardness chemically strengthened cover glass. Low-parallax optical bonding eliminates internal air gaps, delivering accurate touch tracking, superior sunlight readability, and full resistance to surface scratches and liquid spills.

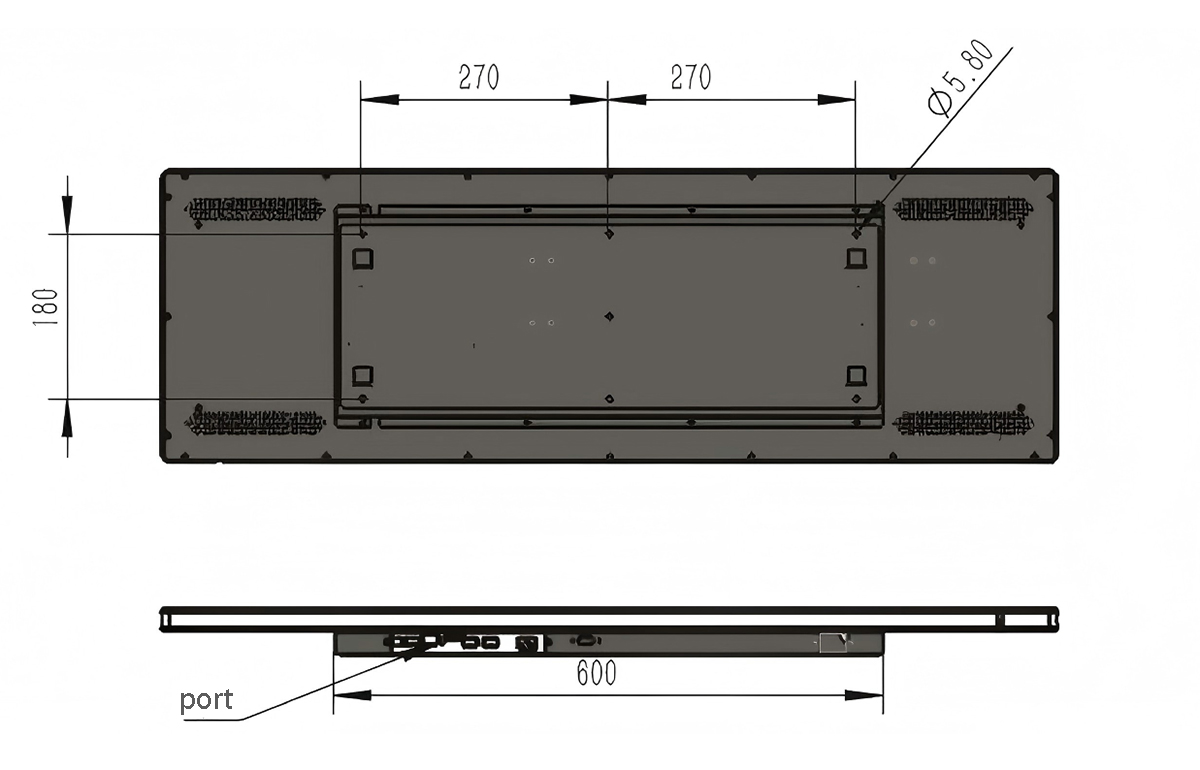

To achieve maximum operational lifespan, the monitor utilizes a convection-optimized fanless thermal layout. Heat generated by the LED backlight and power conversion circuitry is dissipated evenly across the external metal body, preventing internal localized hotspots. This solid-state passive design completely prevents airborne grease, moisture, and dust particles from being sucked into the display casing, ensuring uninterrupted reliability in busy commercial settings. Versatile installation is facilitated through standardized rear VESA hole patterns as well as lateral slide-nut mounting channels.
The rear enclosure features dual-plane mounting points that support both direct wall-bracket hanging and articulated arm anchoring. Recessed cable entry ports allow wiring harnesses to exit flush against mounting surfaces, preventing pinched wires and maintaining a clean architectural appearance.
Electrical Efficiency: Low-Ripple DC Regulation and Thermal Load Reduction
Engineered with HDMI, VGA inputs, the monitor connects effortlessly to commercial media players and industrial computing devices. Audio output is routed through a Audio Socket (3.5mm). The power module supports universal standard 110V to 240V AC power input inputs with an efficient power draw of ≤ 90w, while environmental resilience is rated for below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
The internal power regulation subsystem maintains steady direct current output even during sudden commercial utility voltage fluctuations, ensuring uninterrupted screen operation during peak hours.
The motherboard includes native EDID emulation that automatically communicates the display's custom panoramic resolution to connected PCs, simplifying operating system display setup and driver configuration.
Plug-and-Play Multi-OS Freedom via Standard HDMI Input

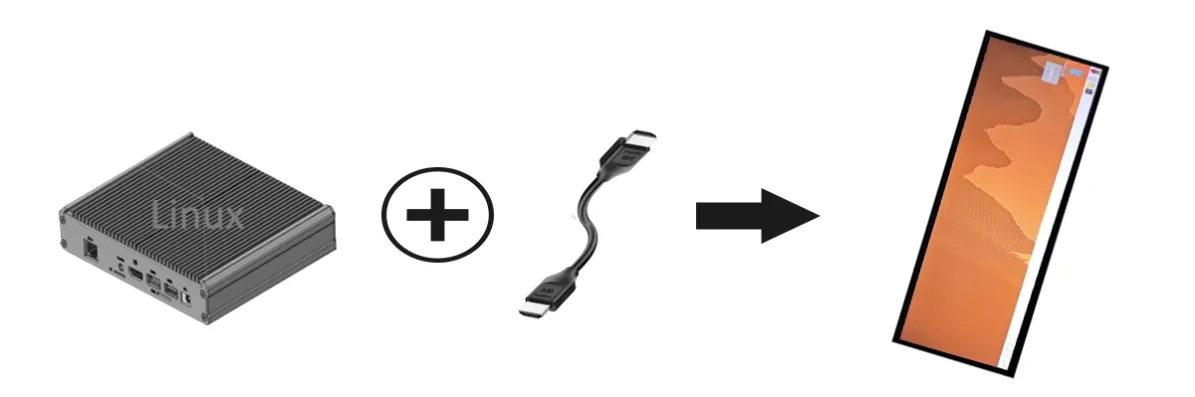

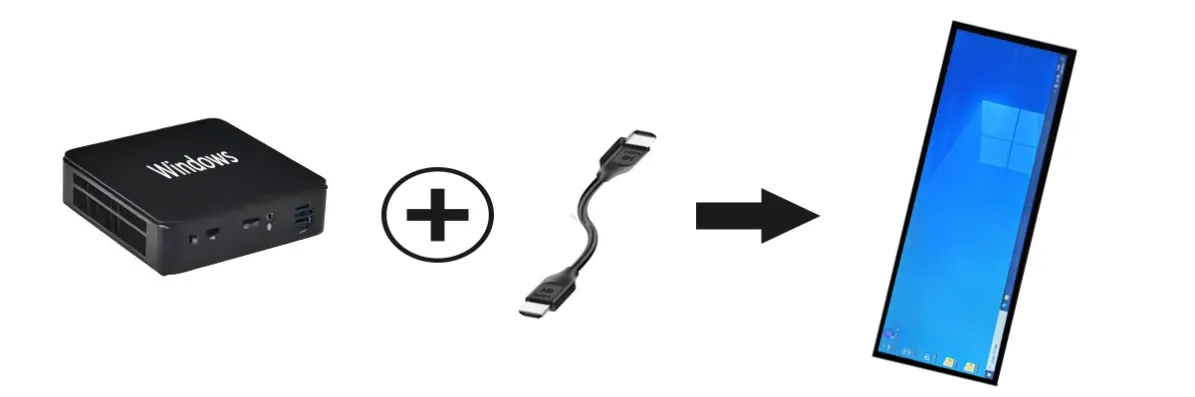

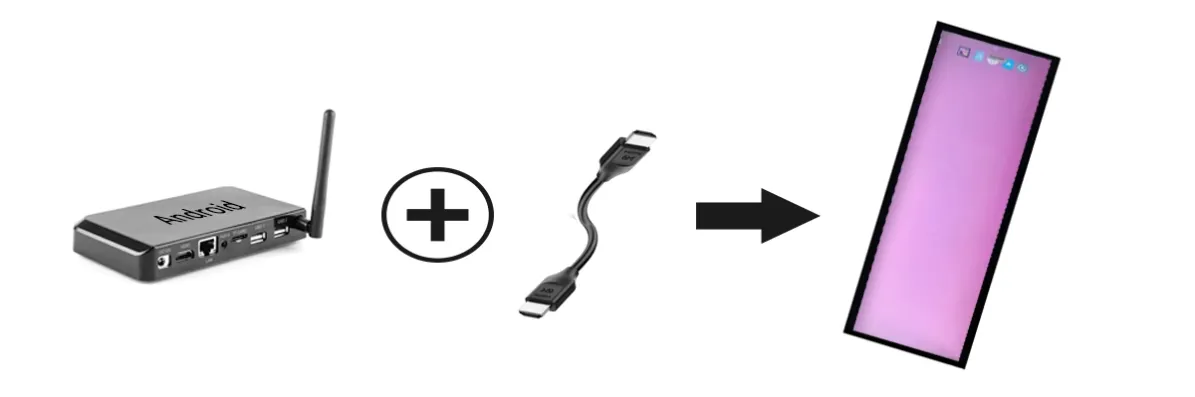

Rather than forcing users into a proprietary, non-upgradeable smart OS, this display serves as a pure, high-performance visual surface ready for any external compute platform. Connect a Windows PC, Android media box, or Linux controller via HDMI to immediately drive dynamic promotional banners, automated menu boards, or plant monitoring telemetry with complete operating system freedom.
Implementation Case Studies: Transforming In-Store and In-Vehicle Wayfinding
With commanding panoramic visibility, the 37.6-inch stretched display is engineered for high-throughput public transportation and retail infrastructure: 1. Rail Transit Metro Carriage Headers: Suspended above train doors and central aisles to display dynamic panoramic transit routes, bilingual station alerts, and safety notices. 2. Airport Concourse Wayfinding: Positioned above baggage carousels, customs lanes, and security checkpoints to provide continuous multi-lingual passenger guidance. 3. Flagship Retail Shopfront Ribbons: Built into luxury retail fascias and boutique feature walls for continuous panoramic fashion runway and brand video displays. 4. Industrial Production Line Tickers: Mounted in manufacturing plants to broadcast real-time production targets, safety metrics, and operational KPIs across broad factory spans.
In corporate data centers and industrial control rooms, the horizontal screen provides a continuous telemetry window without obstructing primary workstation monitors. Network engineers and equipment operators monitor real-time server loads, network traffic spikes, and manufacturing line metrics across a dedicated panoramic display strip.
Control room operators utilizing this display as a dedicated auxiliary telemetry ribbon report improved situational awareness. By dedicating the horizontal screen to continuous server load metrics and multi-camera status feeds, operators keep their primary workstation monitors clutter-free.
The ZXT Manufacturing Advantage: 9+ Years of Industrial Display Leadership
ZXT offers direct factory sourcing for commercial stretched bar displays, supported by nearly a decade of manufacturing experience. We provide zero-tooling-fee deployments on standard sizes, 3-day sample turnaround, and complete OEM/ODM engineering support including CAD files and custom bracket design.
We provide comprehensive sample evaluation packages complete with power supplies, video cables, and mounting hardware, allowing technical teams to conduct thorough bench testing prior to volume commitment.
System Integrator Frequently Asked Questions
**Q1: Are special graphic cards required to drive this stretched resolution?**
No. Standard integrated and discrete graphic chipsets on modern Windows, Android, and Linux devices natively support custom panoramic resolutions through standard HDMI EDID recognition.
**Q2: How does the display perform under bright commercial lighting?**
With calibrated commercial luminance output and anti-glare polarized surface treatment, the screen diffuses harsh ambient ceiling reflections to ensure crisp readability across retail aisles and transit concourses.
**Q3: What warranty and after-sales support does ZXT provide?**
We provide comprehensive commercial factory warranties backed by responsive technical engineering assistance, schematic pinout documentation, and readily available modular replacement parts.
Initiate Custom Hardware Scoping and Sample Dispatch

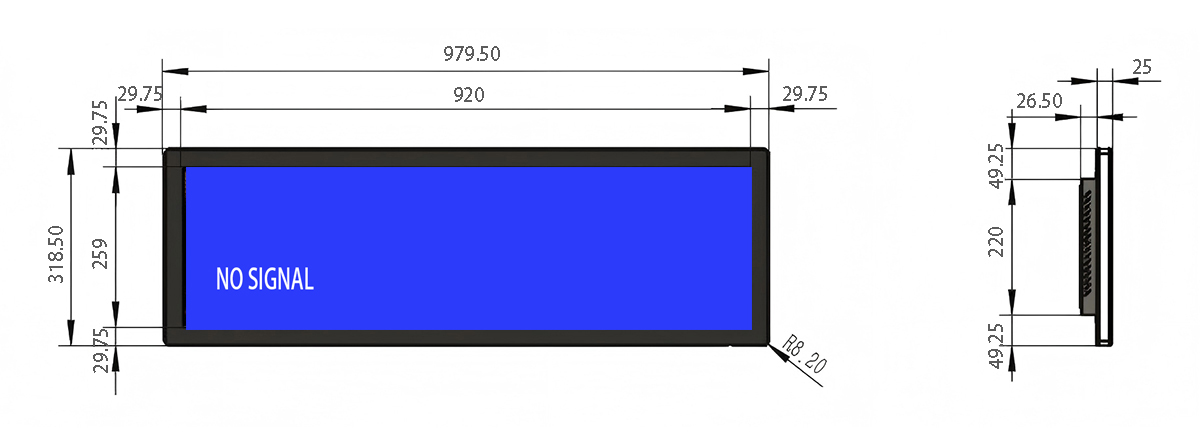

Request a quote or order an evaluation sample for the 37.6-inch commercial stretched bar LCD monitor by contacting our Shenzhen manufacturing team today. We provide full 2D dimensional sheets, 3D STEP CAD files, and volume-discounted price schedules. Contact our technical sales desk with your project details to receive a detailed engineering proposal within two hours.
