Touchscreen
Interactive Digital Signage: 29 Inch Touchscreen Bar Monitor (Interactive Touchscreen)
Wholesale 29 inch interactive touch stretched display featuring 2560*1080 resolution and 400 cd/㎡ calibrated luminance. True IPS full-viewing optics and low-power electrical design for large retail and transit deployments. Factory direct terms.
Specifications
- Screen Size
- 29 Inch
- Resolution
- 2560*1080
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA / USB Touch
29 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 29 inch | |
Resolution | 2560*1080 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+G Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Panoramic Engineering: Delivering Wide Visual Feeds in Restricted Vertical Slots
Engineered for installations where standard 16:9 monitors are too tall, the 29-inch stretched display delivers 2560*1080 resolution across an active 29-inch diagonal. It allows commercial operators to deploy vibrant promotional content and operational alerts along narrow horizontal headers with zero space waste.
By turning dormant perimeter spaces into dynamic visual assets, venues maximize the commercial value of their existing architecture. Every square inch of wall or shelf space contributes actively to customer engagement.
Enterprise clients benefit from a consistent hardware aesthetic across diverse venue locations. The standardized linear enclosure provides a cohesive visual signature whether installed in boutique shops or transit hubs.
Visual Integrity: Deep Black Levels, High Contrast, and Chromatic Consistency
The optical configuration of the 29-inch stretched screen combines 2560*1080 resolution with 400 cd/㎡ calibrated brightness. Featuring a 1000:1 contrast ratio, the panel delivers rich colors and deep blacks. IPS wide-viewing optics ensure consistent CR≥10 wide-angle IPS optical alignment visibility without color shifting, while the commercial-grade LED backlight delivers an operational lifespan exceeding more than 60,000 hours of maintenance-free illumination.
Factory color calibration ensures that multi-screen video ribbon installations display identical chromatic balance and brightness levels, creating a cohesive, professional appearance across extended display walls.
Optical clarity is maintained across years of continuous operation thanks to high-grade polarising films that resist ultraviolet degradation and discoloration caused by prolonged ambient exposure.
Enclosure Dynamics: Balancing Sleek Commercial Styling with Factory Hardening
Engineered for public interactive terminals, the 29-inch display features a 7H hardness PCAP Capacitive Touch panel that resists scratches and impacts. The multi-touch sensor delivers accurate tracking for ticketing, queue calling, and retail catalogs.
The fanless mechanical design ensures silent operation and prevents dust and airborne particles from accumulating inside the casing. Heat is transferred naturally through the metal enclosure, while standard VESA patterns and lateral channels support flexible mounting.

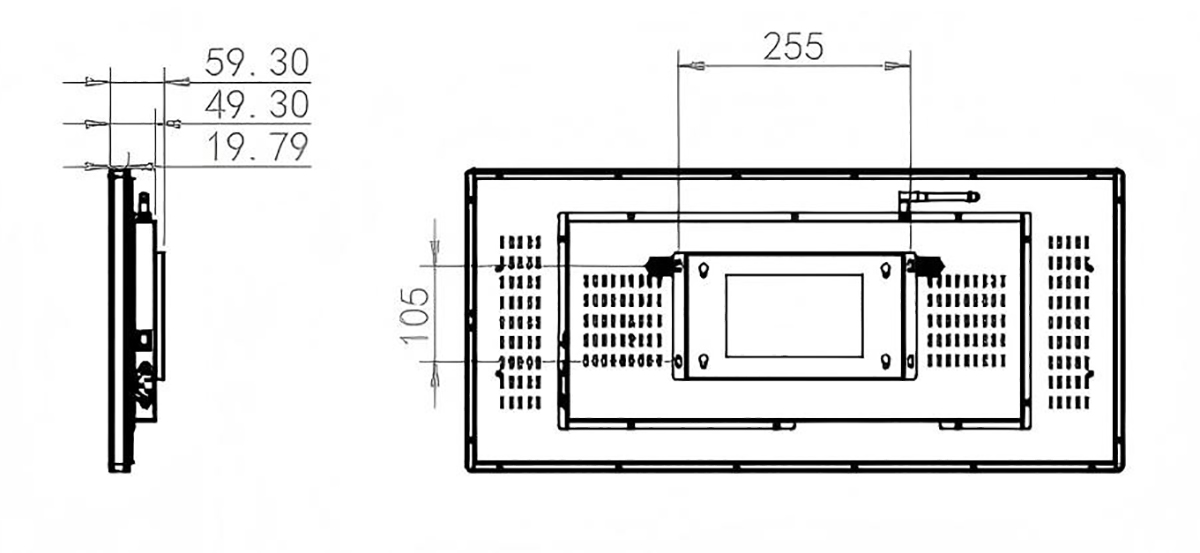

The mechanical frame incorporates internal structural stiffeners that prevent panel warping across wide temperature fluctuations. Standardized rear VESA mounting patterns provide instant compatibility with commercial display brackets.
Audio-Visual Processing: Audio Socket Provision and Pixel-to-Pixel Mapping
Featuring standard HDMI, VGA video interfaces, the display connects directly to commercial media players and industrial computing hardware. Automatic video timing synchronization ensures accurate pixel mapping. An integrated Audio Socket (3.5mm) supports external audio connectivity, while the power module accepts standard 110V to 240V AC power input with power consumption rated at ≤ 45w. The monitor operates reliably across temperatures of below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Universal mains power input simplifies international deployment, allowing system builders to install the same hardware globally without requiring external voltage transformers or specialized power adapters.
Standardized video connector placement and reinforced cable strain-relief points ensure that HDMI and VGA cables remain securely anchored, even when deployed in vibrating buses or rail vehicles.

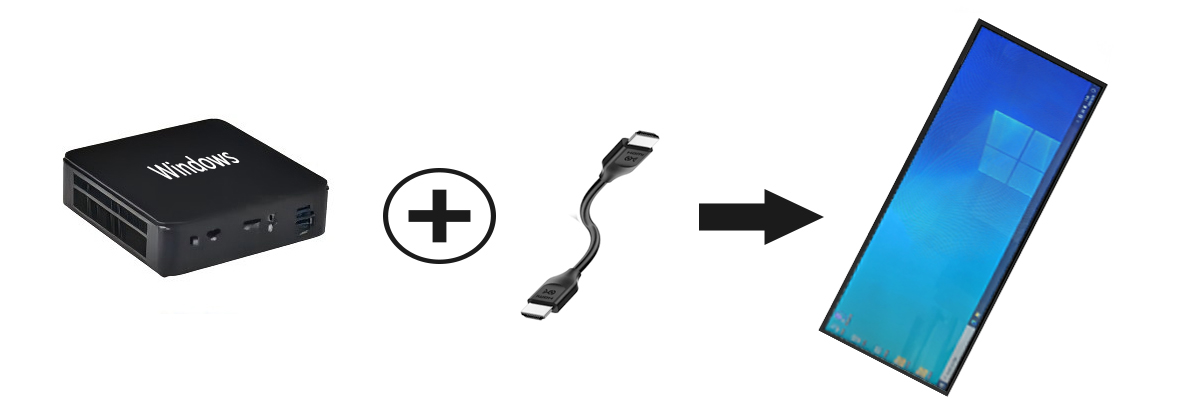

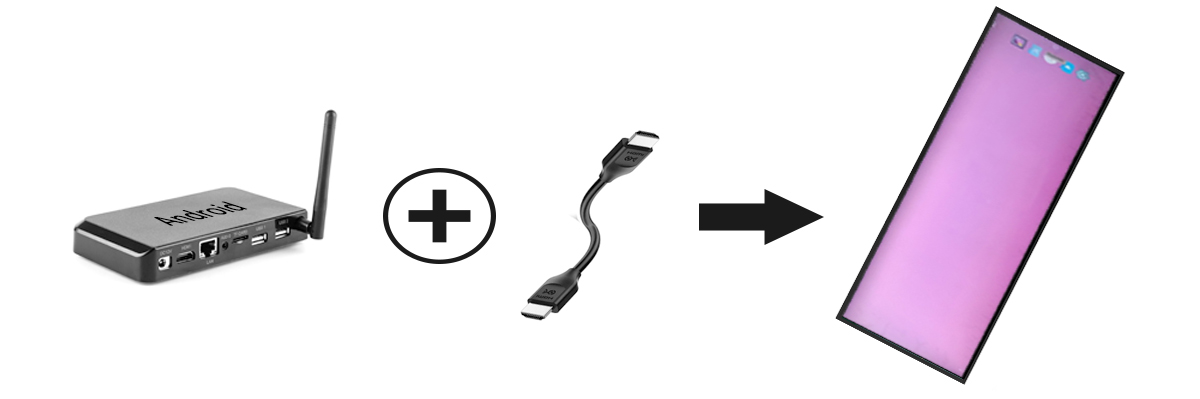

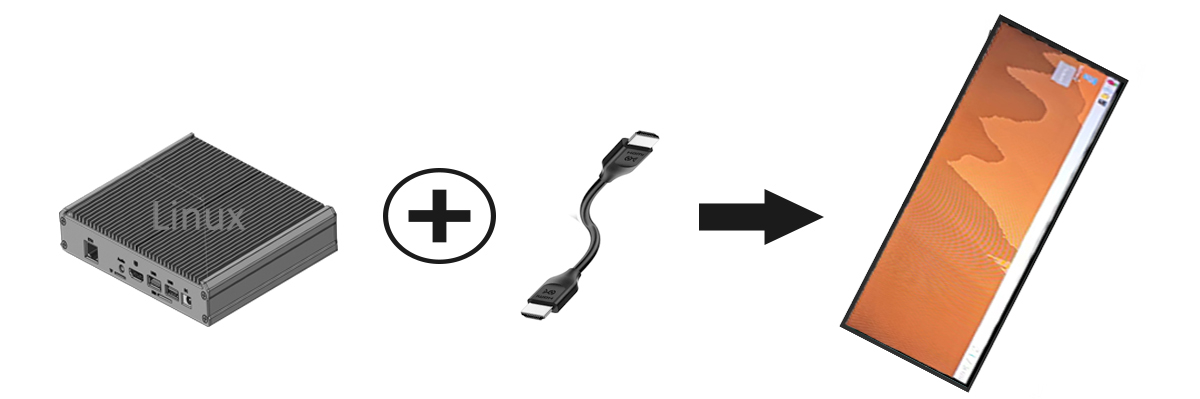

Hardware-Agnostic Display Architecture via High-Definition Video
Designed with an uncompromised open-platform philosophy, this commercial screen avoids embedded operating system obsolescence. Through universal HDMI signal linking, installers can interface any external computing unit—whether powered by Windows, Android OS, or embedded Linux kernels. This freedom empowers network administrators to run custom touch kiosk interfaces, web-based digital menu boards, or PLC automation software with zero compatibility friction.
Field Deployment Breakdown: Retail Aisles, Train Doorways, and Datacenter Racks
The 29-inch stretched screen delivers valuable visual communication in linear spaces. Common deployment scenarios include supermarket shelf merchandising, bus and train passenger guidance, industrial machine tool telemetry, and corporate entrance architectural signage.
Automotive manufacturing plants and cleanroom testing facilities mount this display along inspection stations. Quality control technicians verify real-time tolerance data, assembly checklists, and defect alerts on a clean, wipe-down screen.
Pharmacy retail chains utilize the screen along personal care aisles to deliver educational health tips and seasonal promotions, assisting shoppers in making informed healthcare purchasing decisions right at the shelf.
In-House Engineering Support: 2D/3D CAD Models and Technical Collaboration
Direct sourcing from ZXT gives your enterprise a competitive advantage in display hardware quality, cost efficiency, and lead-time reliability. With over nine years of specialized R&D and hundreds of commercial implementations worldwide, we maintain a complete catalog of in-stock profile tooling. This allows system integrators to deploy customized stretched bar hardware without incurring custom mold fees, with evaluation samples dispatched in as little as three days. We offer adaptable fulfillment options to streamline international logistics. Clients can order fully certified finished monitors, open-frame assemblies ready for enclosure drop-in, or complete SKD/CKD component shipments that allow overseas partners to assemble locally and minimize import duties. Our in-house R&D staff collaborates directly with client engineers, providing full 2D and 3D CAD modeling data and custom firmware support.
Dedicated international sales engineers provide prompt technical support, returning detailed commercial proposals, dimensional drawings, and technical feasibility reviews within two business hours.
Commercial Hardware Selection FAQ
**Q1: Is this display compatible with Android digital signage player sticks?**
Yes. Any Android media stick or compute box with an HDMI output connects directly, allowing operators to run standard Android digital signage APKs with full native resolution support.
**Q2: What enclosure materials are available?**
Depending on model and application, we supply precision architectural extruded aluminum profiles (ideal for retail shelves) and heavy-duty cold-rolled electro-galvanized sheet metal housings (for industrial racks and transit).
**Q3: Can we request customized power supply options such as DC 12V or 24V?**
Yes. In addition to universal 100-240V AC inputs, we can engineer custom DC 12V, 24V, or wide-range vehicle power conversion modules for automotive and railway rolling stock deployments.
Connect with ZXT Technical Sales Specialists
Contact our technical sales group to receive 2D dimensional drawings, 3D CAD files, and competitive factory-direct pricing for the 29-inch stretched bar LCD monitor. We provide rapid responses within two business hours.
