Capacitive Touch Bar Display – 28.6 Inch Ultra-Wide Interactive Screen
Commercial-grade 28.6 inch interactive touch stretched display delivering 1920*540 resolution and 400 cd/㎡ brightness. Symmetrical IPS wide viewing angles and 60,000-hour backlight life for continuous commercial use. In-stock tooling with zero mold cost.
Specifications
- Screen Size
- 28.6 Inch
- Resolution
- 1920*540
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA / USB Touch
28.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 28.6 inch | |
Resolution | 1920*540 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+G Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Linear Digital Communication: Overcoming Traditional Screen Placement Barriers
Standard monitors often prove impractical when mounting displays along narrow retail shelves or vehicle door bulkheads. The 28.6-inch stretched display overcomes these geometric limitations, presenting 1920*540 resolution across an active 28.6-inch diagonal to deliver clear, uncompressed digital visuals in tight horizontal spaces.
Retailers can highlight high-margin products and limited-time offers directly where purchasing decisions occur. Eye-level digital animation captures customer attention far more effectively than static shelf tags.
In transit vehicle design, maintaining passenger headroom and complying with safety clearance standards is mandatory. The ultra-slim vertical depth of this display ensures compliance while maximizing information display area.
Panel Specifications: Industrial-Grade Backlight Reliability and Luminous Stability
Delivering high visual fidelity across an ultra-wide active area, the 28.6-inch stretched display features an industrial LCD panel with native 1920*540 resolution. This elongated aspect ratio provides ample screen real estate for split-screen layouts, dynamic tickers, and multi-media video banners without graphical distortion or letterboxing. With a factory-calibrated luminance output of 400 cd/㎡, the display ensures consistent optical clarity in bright interior commercial environments. Supported by a native contrast ratio of 1000:1, it renders crisp text, rich graphics, and deep blacks. Equipped with IPS wide-viewing technology, the display delivers a symmetrical true IPS 178-degree wide visual cone viewing cone, while the LED backlight module is rated for more than an industrial service life exceeding 60,000 hours of continuous operation.
The active matrix substrate features uniform pixel pitch alignment that eliminates distracting moiré patterns and visual banding, ensuring smooth photographic gradients in commercial advertising loops.
Precision factory color profiling guarantees that multi-screen video ribbon installations display identical color temperatures and white points, presenting a seamless visual narrative across extended architectural runs.

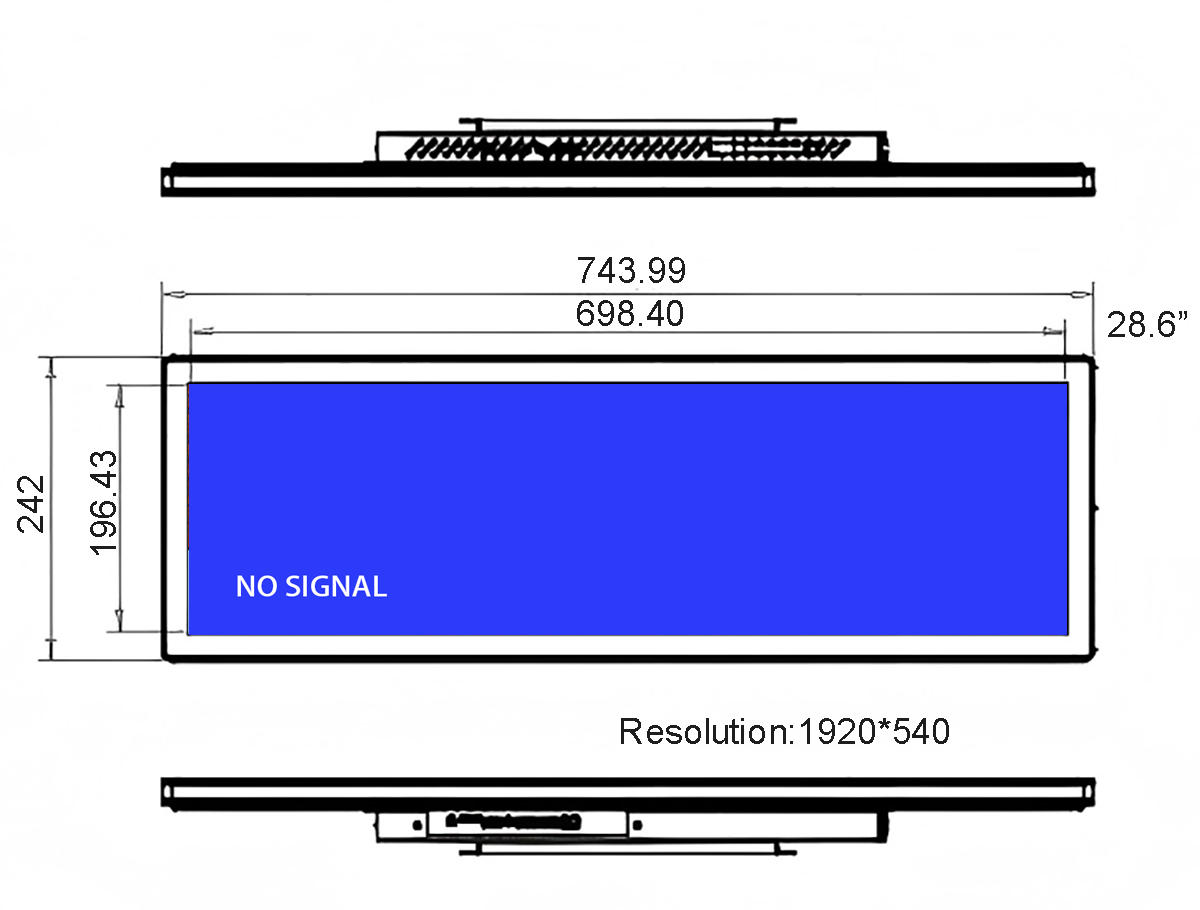

Housing Ergonomics: Thin Profiles, Concealed Cabling, and Minimalist Bezels

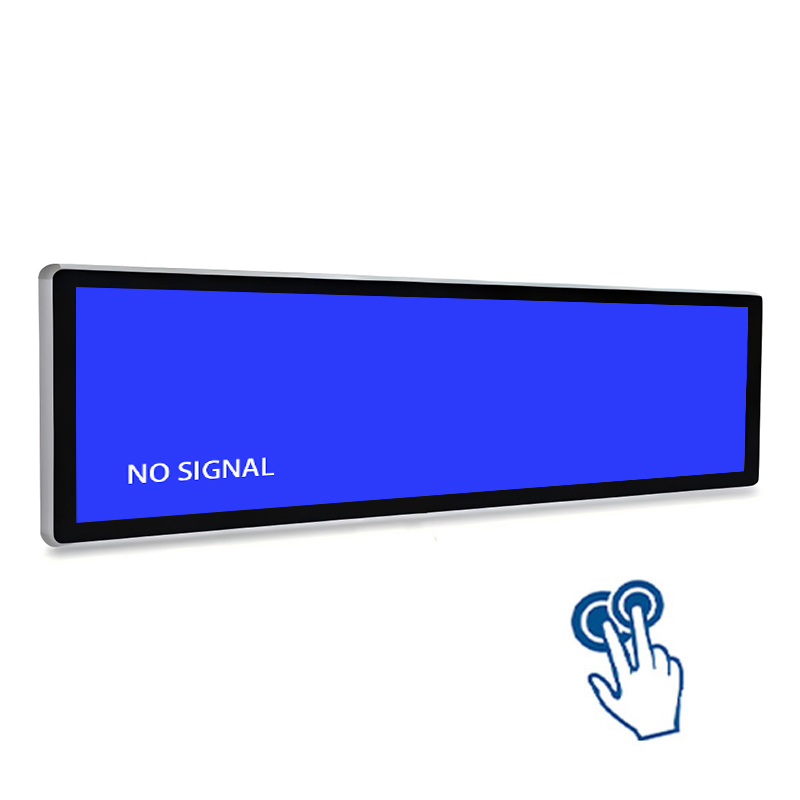

With a Morse 7 tempered glass overlay, the 28.6-inch PCAP Capacitive Touch monitor provides exceptional durability for interactive commercial installations. The sensitive touch layer supports fluid gestures, while the sealed bezel protects against dust and moisture.

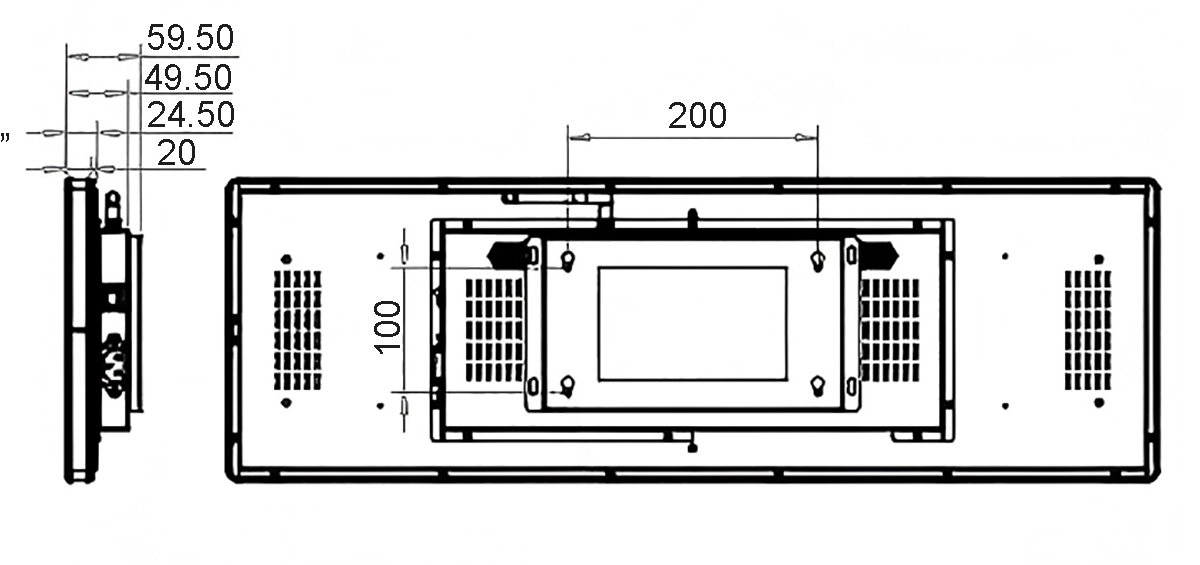

The display utilizes a fanless thermal management system that conducts heat directly to the outer metallic enclosure, preventing internal hotspots and dust ingress. Standardized VESA mounting holes and lateral slide tracks enable secure mechanical installation across commercial fixtures.
Engineered for modular video wall and ribbon configurations, the chassis sides feature interlocking alignment pins that ensure perfect panel-to-panel leveling. This mechanical precision creates uninterrupted visual ribbons across extended storefront fascias.
Interface Flexibility: Integrating with Modern Commercial Media Appliances
Engineered for versatile electrical compatibility, the monitor's mainboard includes standard HDMI, VGA video inputs, making it compatible with a wide variety of industrial computers, media sticks, and commercial playback engines. Video processing logic accurately formats incoming video streams, ensuring clean, uncompressed image reproduction across the ultra-wide active area. A dedicated Audio Socket (3.5mm) provides clean audio signal output to external speakers or intercom channels, enabling dynamic multimedia messaging. The internal power subsystem accommodates universal AC power from AC 100V~240V (50/60Hz). Engineered with energy-saving circuitry, maximum operational power consumption remains under ≤ 45w, minimizing heat buildup. Built to perform across rigorous environmental profiles, the monitor is rated for ambient temperatures spanning below10℃ ~ +50℃ and operating humidity levels up to ≤ 85%RH.
The integrated audio socket features low-noise analog signal amplification, delivering clean audio output to external directional speakers or public address distribution equipment for synchronized messaging.
Integrated 3.5mm audio connectivity provides a clean, hum-free audio signal feed to auxiliary directional speakers, enabling synchronized sound effects that amplify the impact of promotional advertising loops.
Open-Architecture Computing: Universal Operating System Flexibility

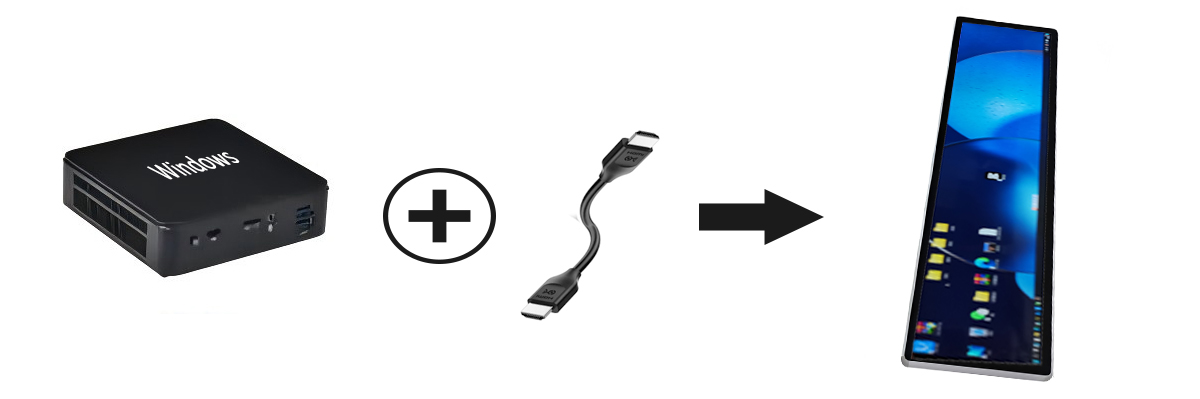

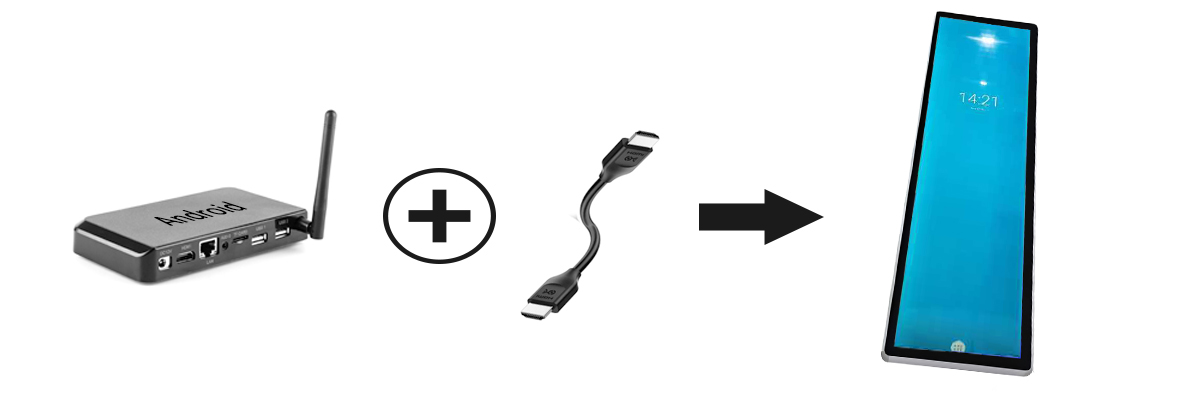

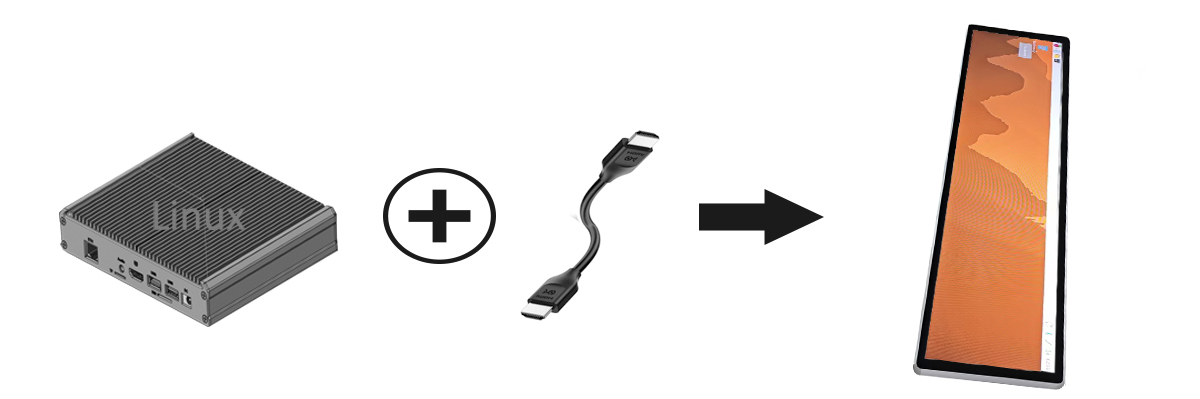

Built to eliminate restrictive proprietary hardware dependencies, this monitor embraces a truly open compute architecture. Integrating an external media host running Windows, Android, or Linux distributions is as simple as attaching a standard HDMI cable. This plug-and-play flexibility gives AV integrators complete liberty to deploy their preferred digital signage CMS suite, proprietary SCADA telemetry package, or custom retail interactive applications without firmware barricades.
Realized Applications: Corporate Entrances, Transit Cabins, and Control Rooms
The 28.6-inch stretched bar LCD monitor meets the demands of high-traffic commercial environments. It is deployed along retail shelving for dynamic promotional pricing, within transit vehicles for passenger route alerts, in data centers for equipment telemetry, and in commercial lobbies for building directories.
Museums and interactive exhibition pavilions utilize this linear display on exhibit pedestals and showcase fascias. Curators deliver rich multimedia storytelling, historical timelines, and artifact context alongside delicate physical exhibits.
Sports arenas and entertainment venues deploy the display above concession stands to showcase live score feeds and food specials simultaneously, keeping fans engaged while driving food and beverage revenue.
Manufacturing Agility: 3-Day Sample Turnaround and Custom Enclosure Tooling
Working with ZXT ensures direct access to manufacturing authority and extensive production capacity. With nearly a decade of display manufacturing experience and more than 300 international commercial deployments, we maintain comprehensive inventories of standard extrusion casings and chassis stampings. This established infrastructure allows our clients to initiate volume rollouts without tooling delays or custom mold expenses, supported by fast 3-day sample dispatch. We offer flexible supply models tailored to your supply chain requirements. Whether you require complete retail-ready monitors in custom packaging, open-frame chassis for integration into self-service kiosks, or CKD/SKD component kits for domestic final assembly, ZXT delivers fully tested, quality-certified hardware. Our engineering team provides comprehensive technical documentation, including 2D dimensional drawings, 3D STEP models, connector wiring schematics, and firmware customization.
We offer complete technical documentation, including 3D STEP mechanical models, connector pinout diagrams, and power dissipation tables, enabling mechanical and electrical engineers to integrate our hardware seamlessly.
Product Engineering & Architecture FAQ
**Q1: Can this screen be used as an ultrawide PC secondary monitor or telemetry panel?**
Yes. Many professional workstation users, gamers, and control room operators connect this display beneath main monitors via HDMI as a dedicated sensor panel for hardware metrics, timelines, or communication feeds.
**Q2: How does the passive thermal design protect against dust?**
By utilizing a fanless solid-state cooling layout that transfers heat conductively through the metallic housing, the display eliminates air intake vents and motorized fans, preventing internal dust and grease buildup.
**Q3: Are protective glass options available for public installations?**
Yes. We offer chemically toughened Morse scale magnitude 7 impact-resistant front glass with anti-glare etching, providing robust protection against public scratches and accidental physical impacts.
Engineering Sales Contact and Factory Direct Pricing
Request an evaluation sample or volume price schedule for the 28.6-inch panoramic stretched bar display by contacting our technical team. Provide your installation details for a tailored commercial quotation within two hours.
