Touchscreen

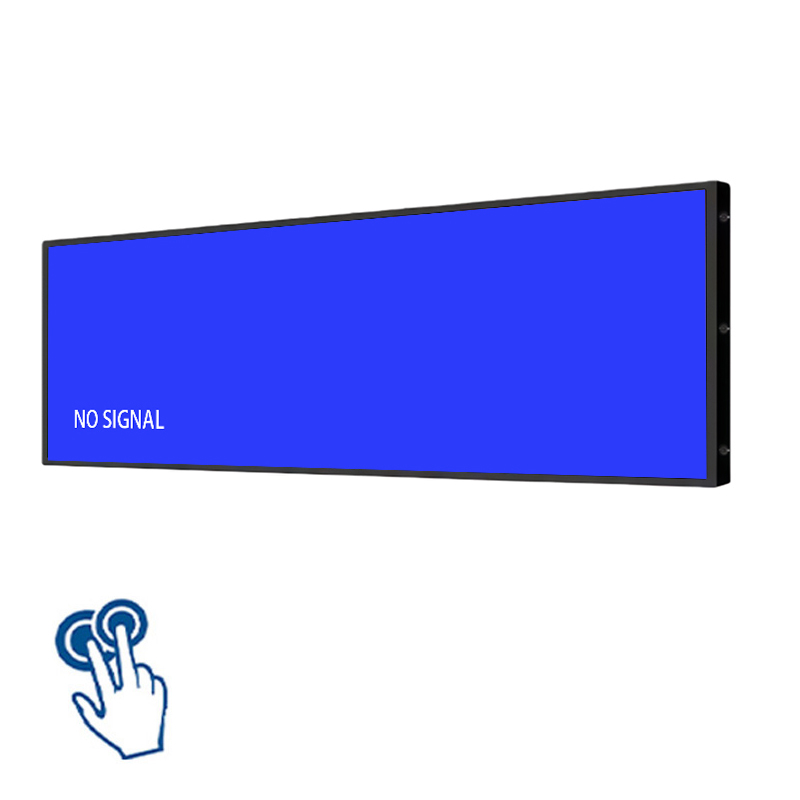

16 Inch Ultra-Wide Touchscreen Stretched Monitor with Rugged Sheet Metal
Source-factory 16 inch interactive touch stretched display delivering native 1280*498 resolution and 250 cd/㎡ commercial brightness. Complete with HDMI/VGA inputs and fanless thermal architecture. Fast sampling and volume OEM/ODM fulfillment.
Specifications
- Screen Size
- 16 Inch
- Resolution
- 1280*498
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA / USB Touch
16 Inch Stretched LCD | ||
Display Specifications | ||

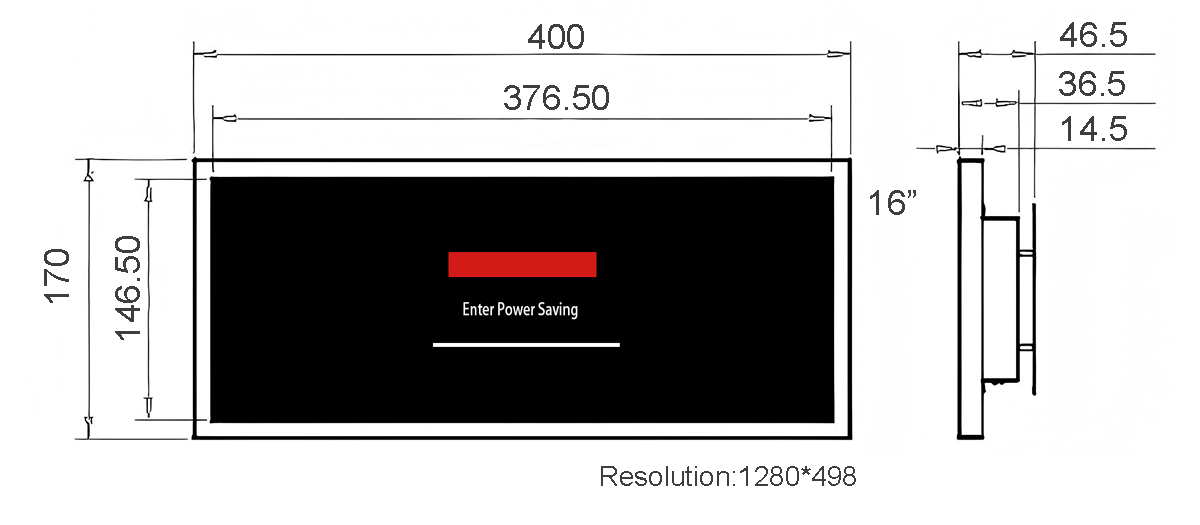

Screen Size | 16 inch | |
Resolution | 1280*498 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 700:1 | |
Viewing Angle(H/v) | 89°/89°/89°/89° (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+G Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 30w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Engineering: Unlocking Underutilized Architectural Perimeters
Retail merchandising and passenger transit environments demand specialized displays designed for narrow linear perimeters. The 16-inch stretched LCD monitor satisfies this requirement by providing 1280*498 native resolution across an active 16-inch diagonal, maximizing horizontal display area while preserving valuable vertical clearance.
The specialized cut-bar aspect ratio allows software developers to design multi-zone split-screen layouts. Static brand banners can run alongside animated promotional videos, maximizing screen utility within a single fixture.
The horizontal display geometry aligns naturally with human horizontal glance paths, ensuring that dynamic price callouts and route stops catch attention without requiring shoppers or commuters to look away from their primary path.
Liquid Crystal Clarity: True IPS Alignment and Wide-Angle Color Fidelity
Engineered for high-impact visual performance, the 16-inch panoramic display utilizes a commercial-grade LCD cell with a native 1280*498 resolution. The high pixel density provides exceptional visual precision, allowing fine pricing fonts, international transit icons, and high-definition video loops to display with pristine clarity without downscaling or blur. A calibrated brightness level of 250 cd/㎡ ensures that content remains vivid and easily readable in spaces with high ambient lighting. Supported by a 700:1 contrast ratio, the panel renders rich color gradations, crisp dark boundaries, and punchy visual contrast that captures shopper attention instantly. The display incorporates true IPS wide-angle technology, providing an expansive ultra-wide 89/89/89/89 horizontal and vertical sightlines field of view, while the LED backlight module is rated for an operational lifespan of over over 60,000 hours of continuous 24/7 commercial duty.
Constant-current backlight driver circuitry guarantees flicker-free optical output across the entire dimming range, eliminating optical fatigue for cashiers, station personnel, and nearby shoppers who view the screen continuously.
Uniform edge-lit LED backlighting eliminates dim corners and visual vignetting, ensuring that panoramic video banners maintain consistent brightness and chromatic balance across the entire screen span.
Structural Framing: Rigid Metallic Construction with Flush Architectural Fit
The 16-inch touch monitor features an optically bonded PCAP Capacitive Touch panel engineered for public self-service. The 7H hardness front glass provides superior scratch resistance, while the responsive touch controller ensures quick, intuitive user navigation.
The display enclosure is engineered for efficient passive heat dissipation, utilizing internal thermal spreaders and the outer metallic frame to cool internal components. This fanless design ensures silent, maintenance-free performance. Standard VESA mounting provisions and lateral channels provide versatile installation options.

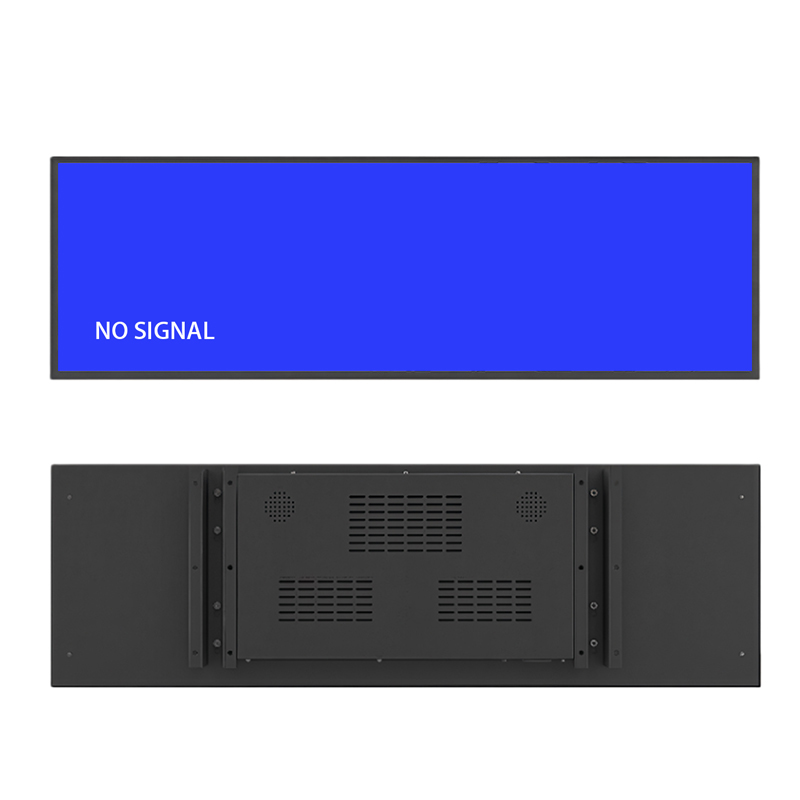

The rear panel incorporates standardized VESA hole arrays with reinforced internal backing plates to support heavy articulated commercial wall arms. Lateral slide-nut channels provide additional anchoring points for custom security locks.
Signal Compatibility: Plug-and-Play Synchronicity with Industrial Controllers
The electronic architecture of this display emphasizes compatibility, signal fidelity, and energy efficiency. Engineered with standard HDMI, VGA interfaces, the A/D controller board accepts standard graphic inputs from industrial computers, media player appliances, and network broadcast controllers. Integrated auto-sensing firmware accurately locks onto custom panoramic timings, rendering incoming video streams pixel-for-pixel without graphical distortion. Sound synchronization is enabled through a dedicated Audio Socket (3.5mm), allowing system builders to connect shelf-edge directional sound transponders or external speaker bars. The display incorporates a robust power conditioning module designed for universal 100-240V commercial electrical mains inputs. With an energy-conserving power rating of ≤ 30w, large supermarket chains and metro networks deploying hundreds of screens benefit from substantially lower electricity bills and reduced thermal footprints. Engineered to withstand challenging commercial and transportation environments, the unit functions reliably across operating temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 85%RH.
Automatic video timing detection instantly synchronizes incoming graphic signals from media players or industrial PCs, eliminating the need for manual resolution adjustments or complex display driver installation.
The internal switch-mode power converter features robust electromagnetic interference (EMC) shielding that prevents high-frequency noise from radiating into sensitive nearby industrial or telecommunications equipment.
Universal OS Flexibility for Turnkey Commercial Integration

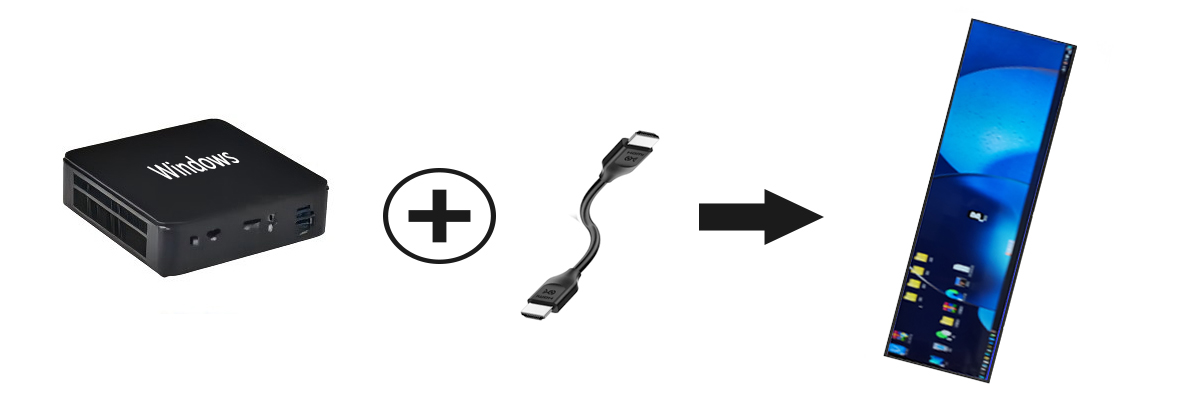

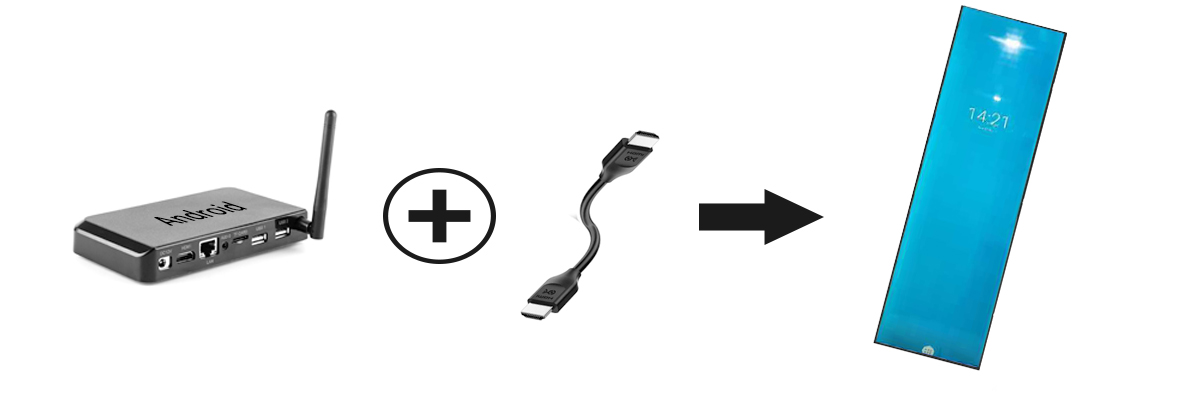

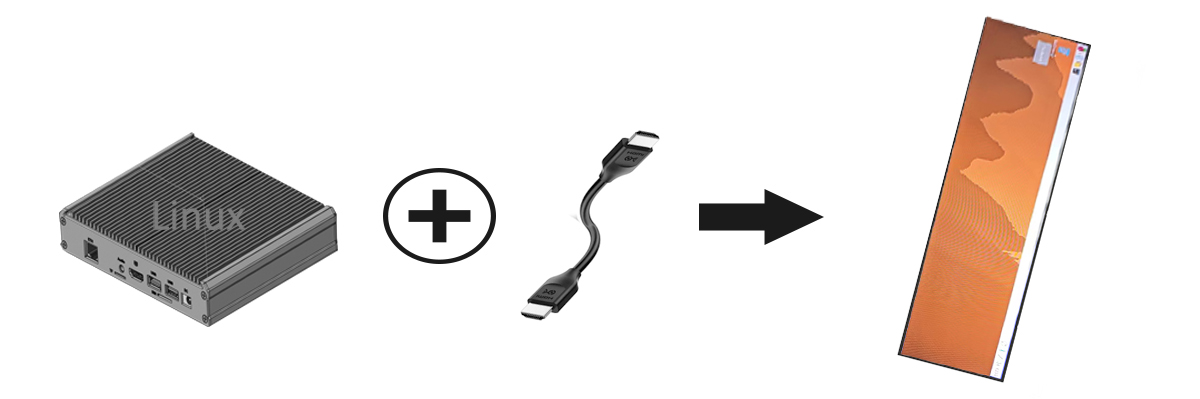

Tailor your visual display precisely to your software workflow. Equipped with standard HDMI inputs, this commercial monitor effortlessly displays output from external Windows workstations, Android media players, and Linux industrial engines. Integrators enjoy the complete freedom to deploy preferred signage CMS engines, custom interactive kiosk scripts, or real-time data visualizers without proprietary barriers.
Commercial Viability: Case Studies in High-Throughput Public Infrastructure
Across commercial and industrial environments, the 16-inch stretched display provides versatile visual communication. In retail stores, it drives sales through dynamic point-of-purchase messaging. In transit fleets, it displays real-time route progress. In industrial control rooms, it delivers live equipment telemetry, and in corporate buildings, it functions as a modern architectural directory.
Airport concourses and baggage reclaim zones use this panoramic screen above luggage carousels and customs inspection lanes. Clear, multi-lingual passenger guidance and arrival notifications reduce traveler congestion during international peak arrival banks.
Automated parcel locker networks and interactive retail kiosks benefit from the intuitive guidance provided by horizontal header screens. Step-by-step transaction prompts guide users smoothly through drop-off and pickup procedures.
Source Factory Authority: In-Stock Tooling, SKD Export, and Zero NRE Costs
Partnering directly with ZXT connects your project team straight to our manufacturing floor, bypassing intermediary markups and communication delays. With over nine years of dedicated display engineering and 300+ commercial projects worldwide, we maintain permanent in-stock inventories of standard aluminum extrusion profiles and stamping molds. This in-stock tooling advantage allows our clients to deploy custom stretched hardware without expensive initial NRE tooling charges, backed by fast 3-day sample dispatch for standard configurations. To support overseas display brands, repair facilities, and volume contractors seeking to optimize import tariffs and international shipping costs, we offer complete flexibility in delivery formats. Choose from fully assembled turnkey displays, open-frame kits for cabinet integration, or modular SKD/CKD component bundles including factory-tested LCD glass, matched A/D driver boards, and precision-stamped chassis hardware. Our engineering team provides comprehensive design support, delivering 2D engineering blueprints, 3D STEP CAD files, and connector pinout schematics.
Every production unit undergoes comprehensive factory burn-in testing under elevated temperature and humidity conditions, ensuring exceptional out-of-the-box reliability for overseas project deployments.
Hardware Deployment & Specification FAQ
**Q1: Can multiple displays be mounted side-by-side to form a continuous visual ribbon?**
Yes. The ultra-narrow bezel design and lateral slide-channel grooves allow multiple units to be installed horizontally in tight alignment, creating seamless digital merchandising ribbons along store shelf rows.
**Q2: Is audio output supported on this monitor?**
Yes. The motherboard includes an integrated 3.5mm stereo audio output jack, enabling direct connection to shelf-edge sound bars, directional speakers, or external public address amplification equipment.
**Q3: What is ZXT's minimum order quantity (MOQ) for standard models?**
Because we maintain permanent in-stock tooling and extrusion profiles, standard models have flexible, low MOQ requirements, allowing enterprise clients to begin with small evaluation batches before volume rollouts.
Technical Consultation and Custom Bracket Inquiries
Inquire today for factory-direct pricing, 3D STEP CAD models, or evaluation sample units of the 16-inch commercial stretched bar display. Our engineering staff is ready to assist with custom hardware scoping within two hours.
