Non-touchscreen
Wide Stretched 65.7 Inch Stretched Bar LCD Display Digital Signage Video Player
65.7 Inch Metal Stretched LCD Display Display area:1649.66*248mm Resolution:3840*578 Material:Metal
High Brightness Stretched LCD for Efficient Digital Signage Deployment
Deploying a successful digital signage network requires more than selecting an attractive display. Project planners must consider installation environments, content management, viewing distance, operational reliability, and future scalability. Choosing a High Brightness Stretched LCD can significantly improve communication efficiency in locations where traditional displays are too large or fail to deliver sufficient visibility.
The 65.7-inch stretched bar LCD display from ZXTLCD is designed to support commercial advertising projects requiring continuous operation, high-definition multimedia playback, and flexible installation. Its ultra-wide format enables businesses to deliver impactful digital content while maximizing available installation space, making it an excellent solution for retail, transportation, hospitality, and corporate communication.
Step 1: Identify the Best Installation Environment
The first stage of any digital signage project is determining where the display will create the greatest visual impact.
A stretched display is particularly effective in areas with limited vertical space, such as above shelving, along corridors, inside transportation facilities, or across reception walls. Compared with conventional landscape displays, the elongated format provides a wider field for promotional messages while maintaining a clean architectural appearance.
Typical installation locations include:
- Retail shelf systems
- Shopping mall corridors
- Airport waiting areas
- Hotel lobbies
- Exhibition centers
- Corporate reception areas
Step 2: Select the Right Brightness for Commercial Applications
Brightness plays a major role in display performance. In commercial environments with strong ambient lighting, a High Brightness Stretched LCD ensures that promotional content remains readable throughout the day.
A brighter display offers several advantages:
Improved Content Visibility
Text, images, and promotional videos remain clear under indoor daylight or strong ceiling lighting.
Enhanced Customer Attention
High-contrast visuals naturally attract customers as they move through commercial spaces.
Consistent Brand Presentation
Accurate image reproduction helps maintain a professional and premium brand image across multiple locations.
65.7 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 65.7 inch | |
Resolution | 3840*578 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Why Work with ZXTLCD?
A successful deployment depends not only on hardware but also on the manufacturer behind it.
ZXTLCD supports international customers through:
- Factory-direct manufacturing
- Professional OEM & ODM development
- Experienced engineering consultation
- Strict quality management
- Stable production capacity
- Export packaging and logistics
- Global technical support
- Long-term after-sales service
Our engineering team works closely with distributors, system integrators, and commercial display brands to deliver customized solutions for projects of every scale.
Frequently Asked Questions
Q1: What is a High Brightness Stretched LCD?
A High Brightness Stretched LCD is an ultra-wide commercial display designed to deliver excellent visibility in brightly lit environments. It is widely used in retail, transportation, hospitality, and corporate digital signage.
Q2: Can this display support continuous operation?
Yes. It is built with commercial-grade LCD technology for reliable long-hour operation in demanding business environments.
Q3: Is OEM customization available?
Yes. ZXTLCD provides hardware, software, branding, and mechanical customization for OEM and ODM projects.
Q4: Can the display integrate with cloud-based CMS platforms?
Yes. Android and Windows solutions can be configured to support centralized content management and remote scheduling.
Q5: Which industries benefit most from stretched displays?
Retail, supermarkets, transportation, hotels, shopping malls, healthcare, education, and corporate facilities all benefit from the space-saving design and commercial reliability of stretched LCD displays.

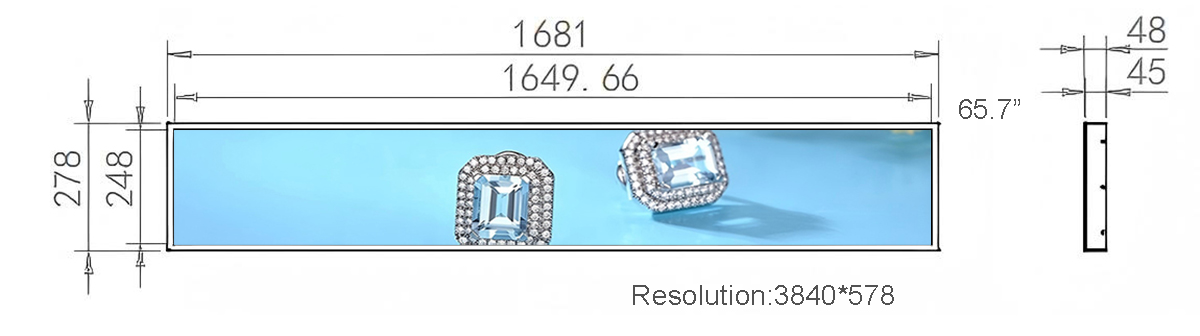

Product Dimension as follows:
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
