Non-touchscreen
Wide 28.6 Inch Stretched LCD Bar Screen for Advertising Sign Shelf Banner
It supports multiple strip screens splicing together to play the same image, with a maximum of 15 screens working together. Five 28.6-inch strip screens are installed above an entire row of shelves, combining to form an ultra-wide advertising screen with a total length of 3.5 meters, playing stunning brand videos or panoramic product displays, transforming ordinary shelf areas into immersive brand experience zones with a strong visual impact.
Specifications
- Screen Size
- 28.6 Inch
- Resolution
- 1920*540/3840*1080
- Display area
- 698.40*196.45mm
Wide 28.6 Inch Stretched LCD Bar Screen for Advertising Sign Shelf Banner
28.6 Inch Stretched Bar LCD Display for Elevator & Advertising Signage
The 28.6 inch stretched bar LCD display is a high-performance digital signage solution designed for elevators, retail shelves, and commercial advertising systems. With its ultra-wide 32:9 aspect ratio and slim bar shape, it delivers dynamic visual content in narrow spaces where traditional screens cannot be installed.
Compared with conventional LCD monitors, this stretched bar LCD display is optimized for continuous 24/7 operation, making it ideal for elevator environments, shopping malls, and transportation hubs where stable advertising playback is required.
Ultra-Wide Display Designed for Modern Commercial Use
This model supports 1920×540 high-resolution output, ensuring sharp and clear content even in long horizontal layouts. The IPS panel provides wide viewing angles, making sure advertisements remain visible from different positions inside elevators or public areas.
As a commercial LCD display manufacturer solution, ZXTLCD designs this product for high-reliability operation in demanding environments such as high-rise buildings, airports, and retail chains.
Key Features of 28.6" Elevator Stretched LCD Display
- Ultra-wide 32:9 stretched screen format
- High brightness optional up to 1000 nits for semi-outdoor use
- Supports Android / Windows / Linux systems
- Cloud-based CMS remote content management
- 24/7 continuous operation capability
- Wall-mounted installation for elevators and narrow spaces
- Split-screen advertising and video playback support
This makes it a perfect elevator digital signage display for modern smart buildings.
28.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 28.6 inch | |
Resolution | 1920*540/3840*1080 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Applications in Commercial Advertising
The 28.6 inch bar LCD display is widely used in:
- Elevator advertising display systems
- Shopping mall digital signage networks
- Retail shelf advertising screens
- Subway and transportation information displays
- Hotel and office building media systems
- Smart city advertising infrastructure
It is especially effective for elevator advertising screens, where passengers have limited viewing time and high visual attention.
OEM & ODM Customization for Global Clients
As a professional LCD display manufacturer from China, ZXTLCD provides full OEM & ODM services for global partners.
We support:
- Custom size and aspect ratio design
- Logo branding and private label production
- Custom brightness (500–2000 nits)
- Hardware customization (Android board / PC solution)
- CMS software integration
- Industrial-grade housing design
Whether you are a distributor or system integrator, we provide a complete custom LCD display solution for your project needs.
Why Choose ZXTLCD Stretched Bar Displays
ZXTLCD focuses on factory-direct commercial display manufacturing, offering stable quality and scalable production capacity for global B2B clients.
Our advantages include:
- Factory direct supply (no middleman cost)
- OEM & ODM customization support
- Professional engineering team
- Strict QC testing before shipment
- Global export experience
- One-year warranty & after-sales support
We are committed to providing reliable digital signage solutions for retail and elevator advertising systems worldwide.

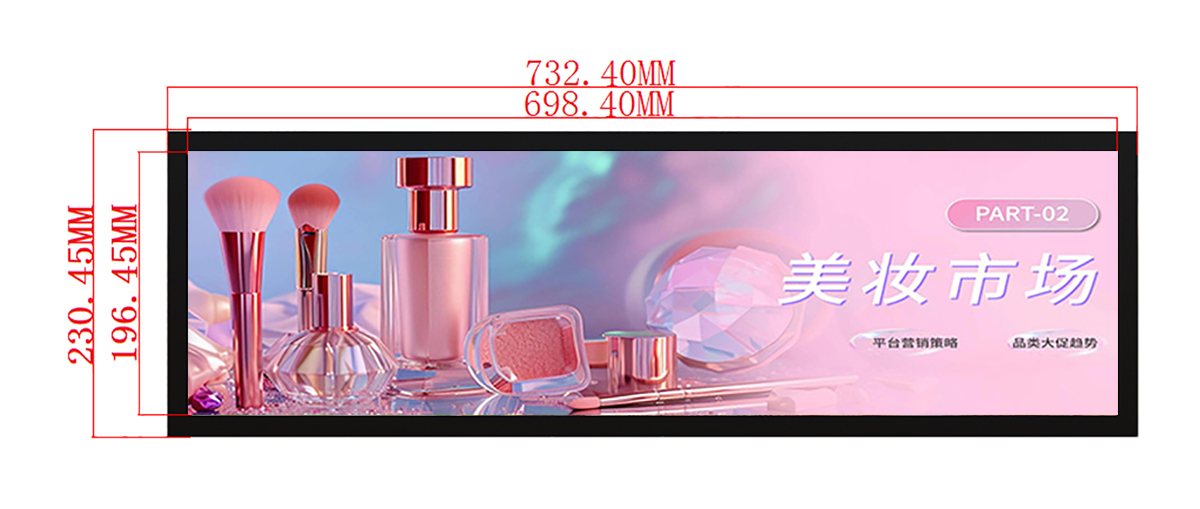

Product Dimension as follows:
FAQ – Stretched Bar LCD Display
Q1: What is a stretched bar LCD display used for?
It is used for digital advertising in elevators, retail shelves, transportation systems, and commercial buildings.
Q2: Can the content be updated remotely?
Yes, it supports cloud CMS for remote content management.
Q3: Does it support 24/7 operation?
Yes, it is designed for continuous commercial use.
Q4: Can it be customized?
Yes, OEM and ODM customization is fully supported.
Q5: What systems are supported?
Android, Windows, and Linux are available.
Conclusion
The 28.6 inch elevator stretched bar LCD display is a powerful solution for modern digital advertising systems. With its ultra-wide design, smart CMS support, and strong customization capability, it is ideal for elevator signage, retail advertising, and commercial display networks.
For global buyers looking for a reliable stretched bar LCD display manufacturer, ZXTLCD provides factory-direct supply and full customization support.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
