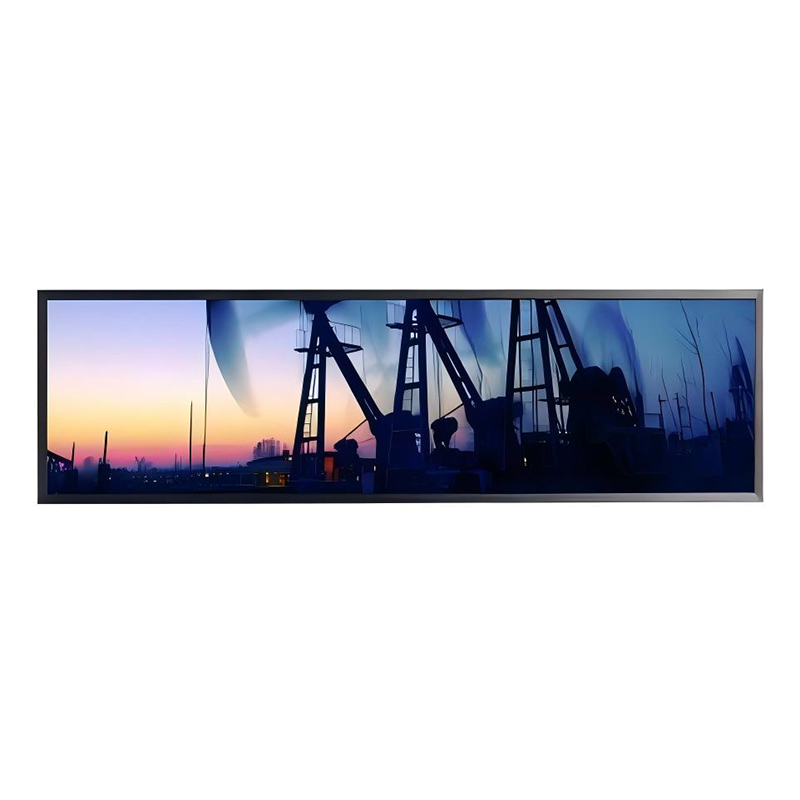

V37 Inch Right Angle Large Lcd Advertising Display Stretch bar Lcd Screen for Supermarket
V37 Inch Aluminum Stretched LCD Display Display area:878.11*242.68mm Resolution:1920*540 Material:Aluminum
37 Inch Right-Angle Stretched Bar LCD Display for Corner Digital Signage and Retail Endcap Solutions
Traditional digital signage is typically installed on flat walls or straight shelving, leaving corners and structural columns underutilized. As retailers seek to maximize every customer touchpoint, right-angle digital displays have become an innovative way to transform unused corners into high-impact communication spaces. The 37 inch stretched bar LCD display with a unique right-angle design is engineered specifically for corner installations, allowing advertising content to remain visible from multiple directions.
Unlike standard stretched displays, this model wraps naturally around 90-degree shelf corners, gondola endcaps, display cabinets, and architectural columns. It helps retailers extend brand messaging beyond flat surfaces while maintaining a clean and integrated store design. For commercial display distributors, retail fixture manufacturers, and system integrators, it provides a distinctive solution for premium merchandising projects.
Why Right-Angle Digital Displays Create Greater Retail Visibility
Customers rarely approach products from a single direction. In busy retail environments, shoppers move through aisles, cross intersections, and gather around promotional islands. Conventional displays often become invisible from side angles, reducing advertising effectiveness.
A right-angle stretched bar LCD display solves this challenge by presenting synchronized content across two connected viewing surfaces. This design increases exposure without requiring additional floor space or extra hardware.
Key advantages include:
- Better visibility at aisle intersections
- Improved promotional coverage around display islands
- More effective navigation inside stores
- Consistent branding across multiple viewing angles
- Enhanced visual impact for seasonal campaigns
Instead of treating corners as wasted space, retailers can convert them into active marketing assets.
V37 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 37 inch | |
Resolution | 1920*540 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Features Designed for Architectural Integration
Innovative Right-Angle Structure
The specially engineered 90-degree configuration enables seamless installation around corners, columns, retail shelving, and custom furniture, supporting creative commercial display designs.
High-Definition Commercial Display
The stretched LCD panel delivers sharp images, vibrant colors, and wide viewing angles, ensuring promotional content remains clear from different customer perspectives.
Continuous Multimedia Playback
The system supports videos, animated graphics, product highlights, promotional banners, QR codes, and scrolling information, allowing retailers to deliver dynamic digital campaigns.
Commercial-Grade Reliability
Designed for long-term operation, the display uses industrial-quality components suitable for continuous commercial use in shopping malls, supermarkets, airports, and other public environments.
Application Scenarios
Supermarket Gondola Endcaps
Display promotional campaigns on both sides of aisle intersections, increasing visibility for featured products.
Retail Shelf Corners
Provide pricing information, promotional messages, and brand communication where standard displays cannot be installed.
Shopping Mall Columns
Wrap digital advertising around structural columns to maximize customer exposure in high-traffic public areas.
Exhibition Booths
Create immersive brand presentations by integrating right-angle displays into exhibition stand architecture.
Airport Commercial Areas
Deliver directional information, advertising, and multilingual promotions visible from multiple walking paths.
Luxury Brand Stores
Enhance premium merchandising with elegant corner displays that complement high-end retail interiors.

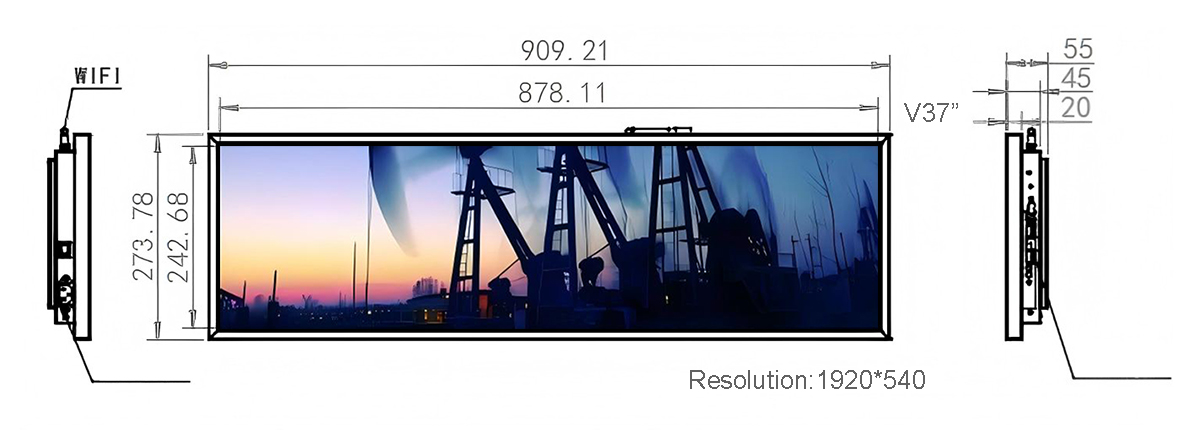

Product Dimension as follows:
Frequently Asked Questions
Q1: What is a right-angle stretched bar LCD display?
It is a commercial display designed to wrap around 90-degree corners, allowing advertising or information to remain visible from multiple directions in retail and public environments.
Q2: Where is this display commonly installed?
Typical installations include supermarket shelf corners, gondola endcaps, shopping mall columns, exhibition booths, airport retail areas, and custom commercial fixtures.
Q3: Can the display be customized?
Yes. ZXTLCD provides OEM and ODM customization covering dimensions, housing, brightness, touch functionality, operating systems, software integration, and branding.
Q4: Is remote content management available?
Yes. The display can integrate with cloud-based CMS platforms for centralized scheduling and synchronized content management.
Q5: Why choose ZXTLCD?
As a factory-direct manufacturer, ZXTLCD offers flexible customization, engineering expertise, dependable quality, competitive pricing, and responsive after-sales support for international B2B customers.
