Ultra Wide Screen Shelf 90.8 inch Double Sided Narrow Frame Round Corner Stretched LCD Display
90.8 Inch Metal Stretched LCD Display Display area:2158.85*810mm Resolution:3840*1440 Material:Metal、Tempered glass Touch style:Multi-point infrared touch screen
90.8 Inch Double-Sided Stretched LCD Display for Advanced Commercial Visual Communication Systems
In modern commercial environments, visual communication is no longer limited to single-direction displays. Retail spaces, transportation hubs, and exhibition venues require signage systems that can deliver information to audiences approaching from multiple directions. The 90.8-inch stretched LCD display introduces a new generation of double-sided commercial visualization technology, enabling businesses to communicate effectively in high-traffic environments where visibility from both directions is essential.
Unlike traditional single-sided digital signage, this ultra-wide display system is engineered with a double-sided architecture that allows simultaneous content presentation on both faces. Combined with its ultra-thin bezel and rounded corner design, it integrates seamlessly into modern architectural spaces while maximizing visual exposure.
For digital signage integrators, commercial architects, and OEM system providers, this product offers a scalable solution for high-impact visual communication.
Why Double-Sided Displays Are Transforming Commercial Spaces
In large public environments, customers rarely move in a single direction. Instead, they approach signage from multiple pathways, corridors, and intersections. Traditional single-face displays often fail to capture attention effectively in such dynamic spaces.
A double-sided stretched lcd panel solves this challenge by delivering synchronized or independent content on both display surfaces, ensuring that messaging remains visible regardless of viewing direction.
Key advantages include:
- Dual-direction content visibility
- Higher engagement in open spaces
- Improved navigation efficiency
- Reduced need for multiple display units
- Stronger spatial branding impact
- Enhanced architectural integration
This makes it ideal for environments where traffic flows continuously from opposite directions.
90.8 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 90.8 inch | |
Resolution | 3840*1440 | |
Brightness | 410 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Engineering Design for High-End Commercial Deployment
Ultra-Wide Double-Sided Structure
The symmetrical dual-screen design allows for simultaneous content playback on both sides, making it suitable for suspended or center-position installations.
Round Corner Industrial Design
The rounded edges enhance safety and aesthetics, making the display more suitable for luxury retail and modern architectural environments.
High-Definition Commercial Panel
Each display surface delivers sharp visuals, rich color reproduction, and wide viewing angles, ensuring clarity even in large open spaces.
Continuous Commercial Operation
Built with industrial-grade components, the system supports long-hour operation in airports, malls, exhibition halls, and transit environments.
OEM & ODM Custom Development Capabilities
ZXTLCD provides factory-direct manufacturing services for global B2B customers.
Hardware Customization
- Double-sided LCD structures
- Custom sizes and aspect ratios
- High brightness configurations
- Metal housing engineering
- Hanging / embedded installation design
Software Integration
- Android / Windows / Linux systems
- Cloud CMS support
- Remote content publishing
- Multi-screen synchronization
- SDK/API development
Branding & Project Engineering
- Private logo integration
- UI customization
- Packaging design
- Full OEM/ODM project support

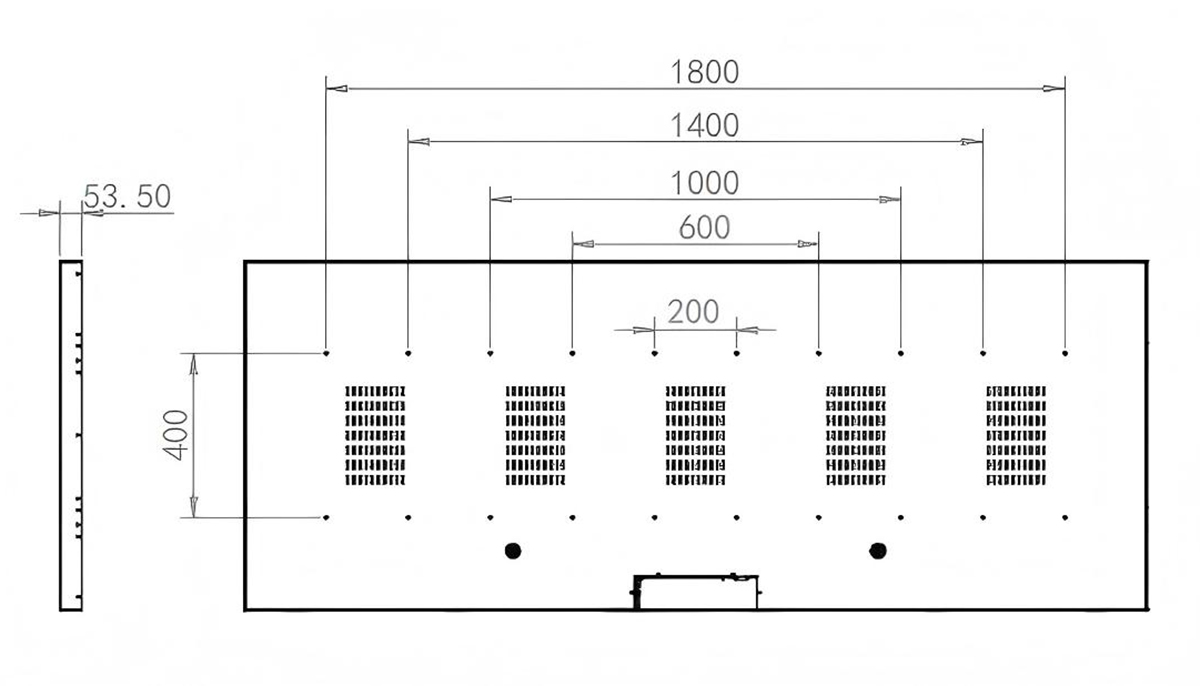

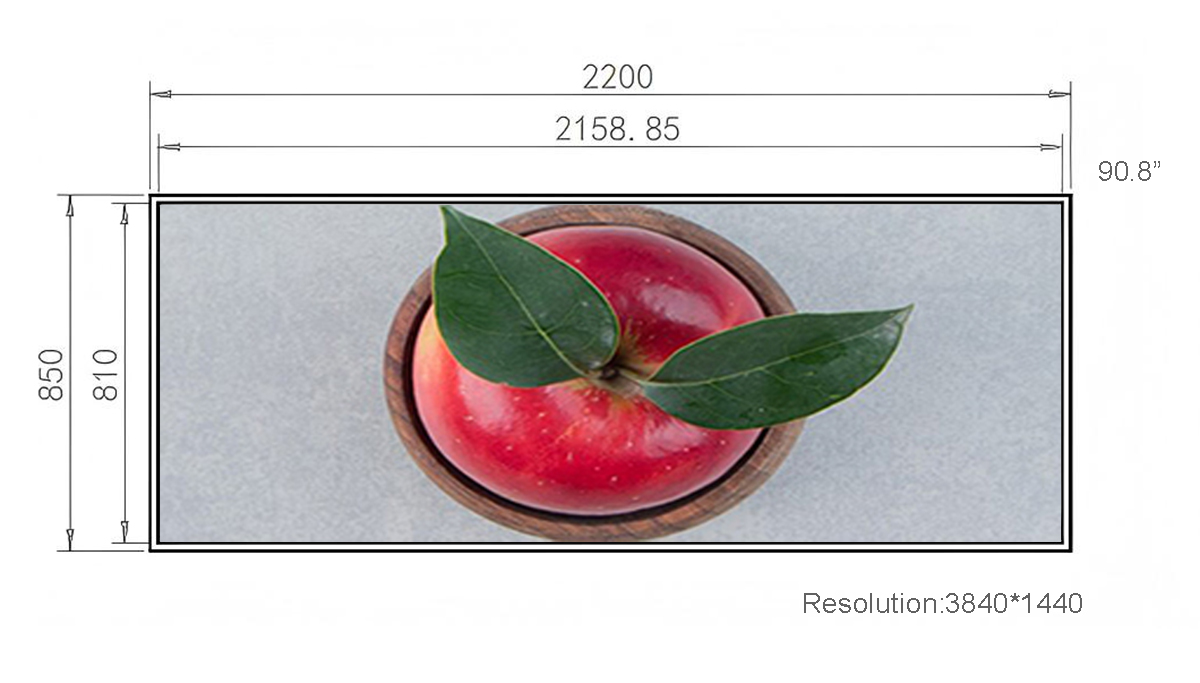

Product Dimension as follows:
Why Choose ZXTLCD
ZXTLCD is a professional manufacturer of commercial LCD display systems for global B2B markets.
Our advantages:
- Factory-direct pricing
- Strong OEM/ODM engineering capability
- Stable mass production capacity
- Strict quality control system
- Fast global shipping support
- One-year warranty
- Professional after-sales service
We support both standard products and fully customized commercial display systems for complex projects.
Frequently Asked Questions
Q1: What is a double-sided stretched LCD display used for?
It is used in airports, malls, exhibition halls, and transit areas where information must be visible from multiple directions.
Q2: Can the two screens show different content?
Yes, depending on configuration, both synchronized and independent content playback are supported.
Q3: Is this display suitable for continuous operation?
Yes, it is designed for commercial-grade 24/7 operation in public environments.
Q4: Can ZXTLCD customize this product?
Yes, we provide full OEM/ODM customization including structure, software, brightness, branding, and installation design.
Q5: Why choose ZXTLCD?
Because we offer factory-direct manufacturing, engineering support, flexible customization, and reliable after-sales service for global projects.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
