Wide Stretched 16.5 Inch Bar Screen LCD Display Digital Signage Video Player

The Bar Screen LCD Display combines product information with visual appeal. Available in multiple sizes, from a mini 7-inch to a stunning 98-inch, it flexibly adapts to different shelf structures. High brightness ensures fruits remain vibrant even in complex lighting conditions, while wide viewing angle technology guarantees every customer can see details clearly. CE/FCC/RoHS certification guarantees quality.

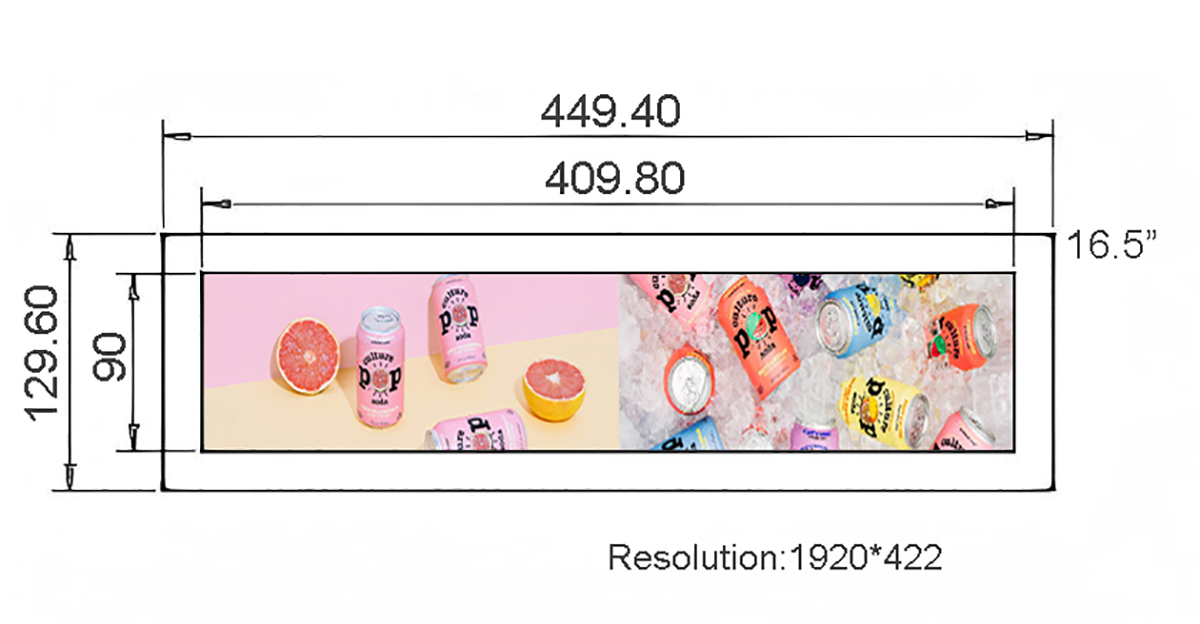

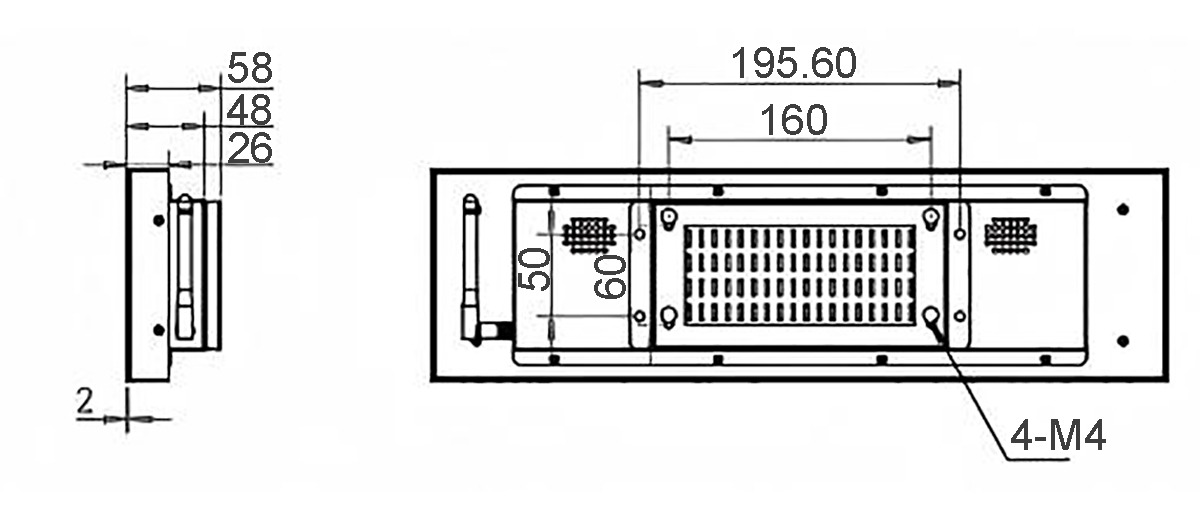

Product Dimension as follows:

16.5 Inch Stretched LCD
Display Specifications
Screen Size		16.5 inch
Resolution		1920*422
Brightness		250 cd/㎡
BLU		LCD
Contrast Ratio		1000:1
Viewing Angle(H/v)		85/85/80/80 (Typ.)(CR≥10)
Backlight Life		60,000(hrs)
Panel Parameters
OS		Android
CPU		T972,Quad-core ARM,Cortex-A55,1.9GHz
RAM		2GB
ROM		16GB
Network		WH-Fi/LAN/ BT4.2
l/O Interface		USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1
PCAP Touchscreen Panel Parameters
Touch style		G+G Projected Capacitive Touch screen
Touch points		Default 10 points
Cover Glass		Physical toughened Morse magnitude 7 explosion-proof
		Optically bonded 3mm glass for low parallax
The glass transmittance		>88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed		< 6ms
Accuracy of touch		More than 90% of the touch area ±2mm
Touch ways		Fingers, touch pen
Output format		The coordinate output
Clicks time		Unlimited
The smallest touch size		5mm
Long resistance		Yes available
Touch Interfaces		USB
Storage temperature & Humidity		below20℃ ~ +60℃, ≤ 90%RH
Power Specifications
Power Supply		AC 100V~240V, 50/60Hz
Power Consumption		≤ 45w
Environment Specifications
Operation Temperature		below10℃ ~ +50℃
Operation Humidity		≤ 85%RH

If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
