Non-touchscreen

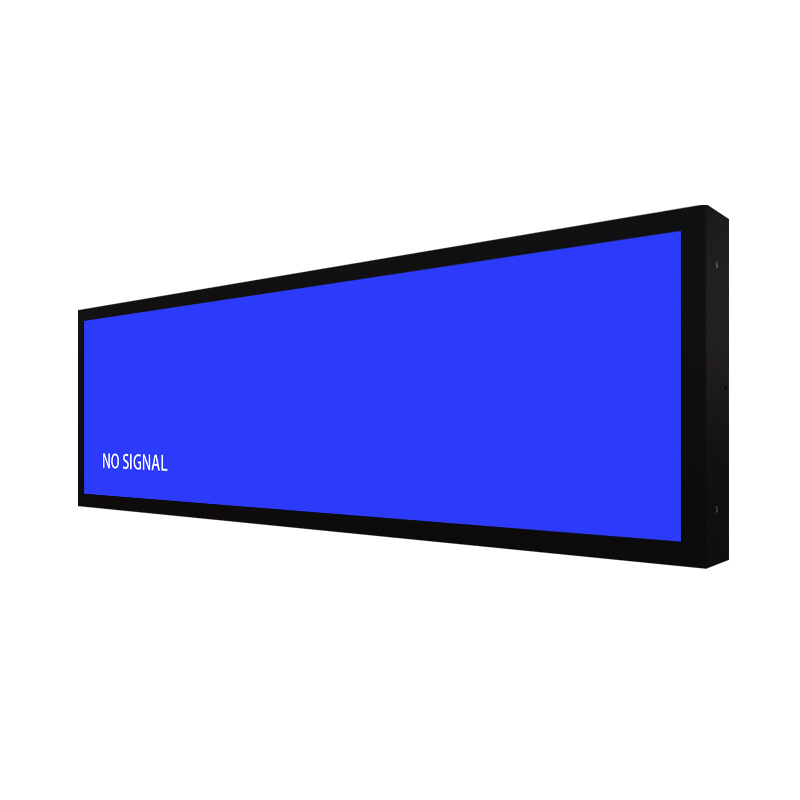

Commercial Display Signage: Standard Inch Ultra-Wide Bar LCD Monitor

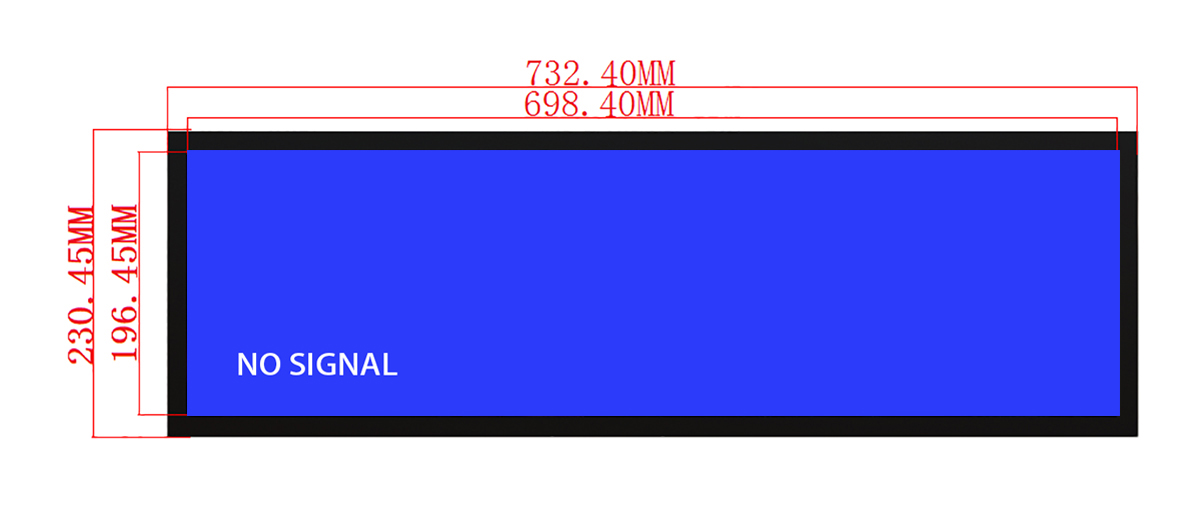

Source manufacturer supply of 28.6 inch industrial sheet metal bar monitor with 1920*540 resolution and 400 cd/㎡ brightness. High-durability commercial display engineered for 24/7 public service. Complete 2D/3D CAD mounting blueprints upon request.
Specifications
- Screen Size
- Standard Inch
- Resolution
- 1920*540/3840*1080
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
28.6 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 28.6 inch | |
Resolution | 1920*540/3840*1080 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Space-Constrained Visual Architecture: Engineering Displays for Narrow Margins
In modern commercial architecture, horizontal margins represent prime visual real estate that traditional monitors cannot utilize. The 28.6-inch stretched bar LCD monitor unlocks these spaces, delivering native 1920*540 resolution across an elongated 28.6-inch active diagonal to provide continuous digital messaging without consuming vertical room.
Enterprise IT managers appreciate the straightforward integration into centralized digital signage networks. The display links seamlessly with existing media players, supporting automated scheduling and remote device monitoring.
Modern supermarket merchandising strategies rely on dynamic motion graphics to stimulate shopper curiosity. Eye-level digital shelf headers deliver brand storytelling right where purchasing decisions are finalized.
Liquid Crystal Clarity: True IPS Alignment and Wide-Angle Color Fidelity
Engineered for high-impact visual performance, the 28.6-inch panoramic display utilizes a commercial-grade LCD cell with a native 1920*540 resolution. The high pixel density provides exceptional visual precision, allowing fine pricing fonts, international transit icons, and high-definition video loops to display with pristine clarity without downscaling or blur. A calibrated brightness level of 400 cd/㎡ ensures that content remains vivid and easily readable in spaces with high ambient lighting. Supported by a 1000:1 contrast ratio, the panel renders rich color gradations, crisp dark boundaries, and punchy visual contrast that captures shopper attention instantly. The display incorporates true IPS wide-angle technology, providing an expansive ultra-wide 89/89/89/89 horizontal and vertical sightlines field of view, while the LED backlight module is rated for an operational lifespan of over over 60,000 hours of continuous 24/7 commercial duty.
Constant-current backlight driver circuitry guarantees flicker-free optical output across the entire dimming range, eliminating optical fatigue for cashiers, station personnel, and nearby shoppers who view the screen continuously.
Uniform edge-lit LED backlighting eliminates dim corners and visual vignetting, ensuring that panoramic video banners maintain consistent brightness and chromatic balance across the entire screen span.
Chassis Robustness: Built to Endure High-Footfall Public and Industrial Wear
The 28.6-inch industrial monitor utilizes a reinforced sheet steel enclosure engineered to endure harsh shopfloor conditions. The electro-galvanized casing provides high impact resistance and structural integrity, protecting display electronics from mechanical vibration and physical abuse.
Passive thermal engineering ensures dependable heat dissipation without noisy mechanical fans, preventing airborne contaminants from entering the chassis. The enclosure includes standard VESA mounting patterns and lateral adjustment tracks to facilitate quick, secure mechanical integration into commercial cabinetry or transit headers.
Precision-stamped mounting ears allow the unit to drop directly into standard 19-inch equipment racks and instrument control panels. Secure front-fastening screws ensure the monitor remains firmly locked in place during transport and factory operation.
Electrical Efficiency: Low-Ripple DC Regulation and Thermal Load Reduction
Engineered with HDMI, VGA inputs, the monitor connects effortlessly to commercial media players and industrial computing devices. Audio output is routed through a Audio Socket (3.5mm). The power module supports universal standard 110V to 240V AC power input inputs with an efficient power draw of ≤ 45w, while environmental resilience is rated for below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
The internal power regulation subsystem maintains steady direct current output even during sudden commercial utility voltage fluctuations, ensuring uninterrupted screen operation during peak hours.
The motherboard includes native EDID emulation that automatically communicates the display's custom panoramic resolution to connected PCs, simplifying operating system display setup and driver configuration.
Seamless Multi-OS Switching via HDMI (Windows / Android / Linux)
Engineered as an open-architecture commercial display without proprietary hardware lock-in. By simply connecting an external Windows PC box, Android media player, or Linux industrial controller via a standard HDMI cable, you can achieve effortless operating system switching tailored to your digital signage CMS, interactive software, or industrial monitoring platform.
Field Deployment Breakdown: Retail Aisles, Train Doorways, and Datacenter Racks
The 28.6-inch stretched screen delivers valuable visual communication in linear spaces. Common deployment scenarios include supermarket shelf merchandising, bus and train passenger guidance, industrial machine tool telemetry, and corporate entrance architectural signage.
Automotive manufacturing plants and cleanroom testing facilities mount this display along inspection stations. Quality control technicians verify real-time tolerance data, assembly checklists, and defect alerts on a clean, wipe-down screen.
Pharmacy retail chains utilize the screen along personal care aisles to deliver educational health tips and seasonal promotions, assisting shoppers in making informed healthcare purchasing decisions right at the shelf.
Direct Manufacturer Partnership: Eliminating Intermediary Markups and Delays
Choosing ZXT as your hardware manufacturing partner provides direct access to high-precision display engineering at true source-factory pricing. Our Shenzhen manufacturing facility houses specialized production lines backed by nearly a decade of commercial display expertise. Because we maintain extensive inventories of standard extrusion profiles and tooling dies, our clients avoid costly tooling fees and long tooling lead times, enabling rapid prototype evaluation with standard sample turnaround in just three business days. We understand international logistics and tariff structures. To help overseas integrators and distributors minimize shipping volume and customs duties, we supply displays in multiple production states: fully assembled plug-and-play monitors, drop-in open-frame modules, or semi-knocked-down (SKD) kits for local assembly. Every sub-assembly undergoes rigorous factory testing before shipment to ensure high out-of-the-box yield rates. Our in-house technical department supports your project from initial design to site deployment.
Our in-house mechanical design team collaborates directly with client engineers to develop customized mounting brackets, specialized cable harnesses, and branded bezel silkscreening tailored to specific project needs.
Commercial & Engineering FAQ
**Q1: Can this screen operate reliably in vibrating vehicles or near heavy machinery?**
Yes. Built with ruggedized metallic framing and vibration-damped structural fastenings, the display is engineered to endure continuous mechanical shocks encountered in rolling stock, public buses, and factory shopfloors.
**Q2: What power input does this commercial monitor require?**
The internal power supply accepts universal AC mains from 100V to 240V at 50/60Hz, with low operational power consumption designed to minimize facility electricity costs across multi-screen deployments.
**Q3: Can we request customized logo printing or corporate color matching?**
Certainly. We provide custom front bezel silkscreening, bespoke RAL/Pantone powder coating finishes, and tailored firmware boot logos to align with your corporate brand guidelines.
Contact Our International Display Engineering Desk
Connect directly with ZXT's display engineering specialists to review specifications, request 2D/3D CAD blueprints, or schedule a sample dispatch for the 28.6-inch stretched bar LCD monitor. Provide your target application details, interface requirements, and volume goals, and our factory team will provide a comprehensive proposal and competitive commercial quotation within two hours.
