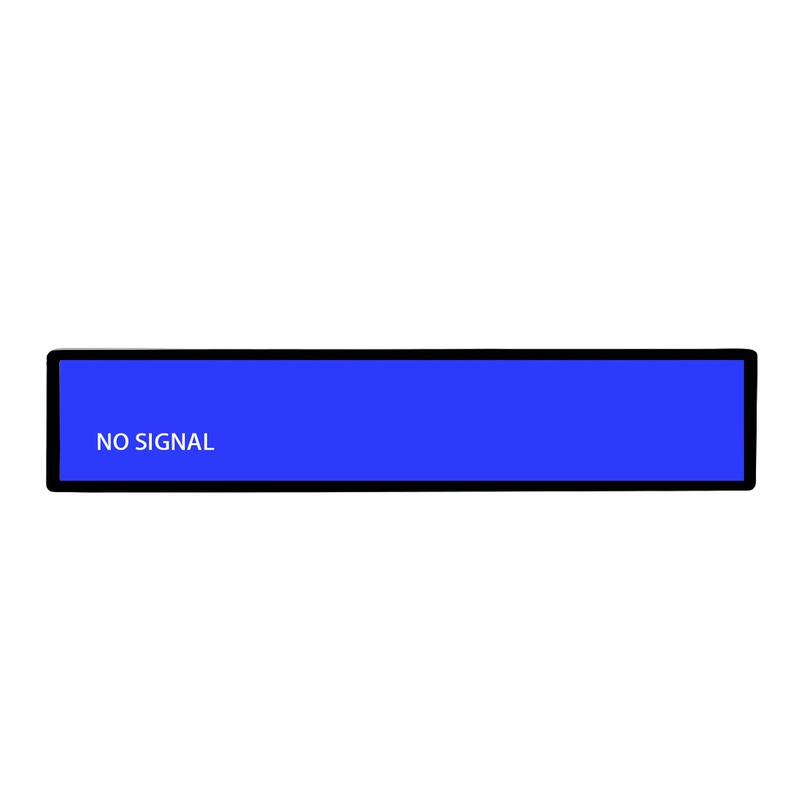

Industrial 48.3 Inch Bar Type Monitor Display with Aluminum Profile
Wholesale 48.5 inch double-sided stretched display featuring native 1920*360/3840*720 resolution and 350~700 cd/㎡ brightness. Commercial-grade 24/7 reliability for retail shelves, public transit, and industrial equipment. Direct from source manufacturer with in-stock tooling, zero mold charges, and 3-day sample dispatch.
Specifications
- Screen Size
- 48.3 Inch
- Resolution
- 1920*360
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
48.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 48.3 inch | |
Resolution | 1920*360 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Dilemma: Why Conventional 16:9 Displays Obstruct Modern Fixtures
Commercial fixture design increasingly demands high-density visual communication without sacrificing vertical clearance. Standard square monitors take up too much vertical space, making them impractical for horizontal shelf rails, transit headers, and industrial control consoles. Engineered specifically for these horizontal perimeters, the 48.5-inch panoramic display establishes a clean balance between compact dimensions and wide-format visual presence. With a native raster of 1920*360/3840*720, it allows multi-column split-screen graphics and automated status alerts to operate seamlessly within narrow spaces previously deemed unusable for dynamic digital media.
The streamlined horizontal geometry enables store architects to maintain cohesive interior sightlines. Customers browsing retail aisles enjoy unimpeded views of premium product displays while receiving relevant pricing and promotional information directly at eye level.
Eliminating the need for structural redesigns translates to substantial capital savings for project contractors. Installation teams can utilize existing retail track extrusions or vehicle bulkheads without commissioning expensive custom millwork or heavy mechanical brackets.
Visual Physics: Maintaining Sharp Image Definition Under Ambient Lighting
At the heart of this display is an industrial-grade A-grade liquid crystal cell engineered for continuous commercial duty. Featuring a native 1920*360/3840*720 resolution, the 48.5-inch screen provides high-definition clarity that ensures intricate graphic assets, dynamic video commercials, and multi-line transit schedules remain razor-sharp from standard viewing distances. Boasting an engineered luminous output of 350~700 cd/㎡, the panel overcomes the visual washout typical of consumer screens in bright commercial lighting. Paired with a 1200:1 native contrast ratio, the optical stack produces deep black levels and vibrant chromatic saturation. The display's IPS panel structure ensures wide optical visibility with CR≥10 wide-angle IPS optical alignment viewing angles, while the solid-state LED backlight is rated for a continuous operational life of more than 60,000 hours of maintenance-free illumination.
An optimized polarising matrix prevents color inversion and contrast degradation when the screen is viewed from steep vertical or lateral perspectives, preserving image fidelity in tight corridor passages.
High static contrast performance ensures that deep blacks remain rich and text characters stand out sharply, maximizing legibility in low-light transit tunnels as well as brightly illuminated department stores.
Structural Engineering: Low-Profile Framing and Standard VESA Compatibility
Designed for overhead corridor deployment, the 48.5-inch bilateral display mounts dual liquid crystal panels within an ultra-thin enclosure. Heavy-duty suspension brackets ensure rock-solid ceiling mounting, while internal structural channels keep video signal cabling neatly organized.
The unit features a fanless, solid-state cooling design that conducts thermal energy away from sensitive electronics directly to the outer casing. This passive cooling system ensures whisper-quiet operation and eliminates fan-related maintenance issues. Rear VESA mounting points and lateral slide channels provide straightforward installation across various mounting structures.
The chassis profile incorporates recessed rear connector pockets that protect HDMI and power plugs from accidental snags during maintenance. Right-angle cable routing channels allow the monitor to sit flush against flat architectural walls with zero gap.
Power Management: Minimizing Wattage Draw Across Multi-Screen Deployments
The display incorporates HDMI, VGA video inputs for immediate compatibility with external digital signage players and embedded PCs. Video signals are scaled accurately without distortion. Audio output is provided via a 3.5mm Audio Socket, while the universal power supply supports global 100~240V line voltage at 50/60Hz with an energy-efficient draw of ≤ 100w. Environmental ratings cover temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 85%RH.
The video processing engine features adaptive edge-smoothing algorithms that scale standard video resolutions cleanly across the ultra-wide aspect ratio without introducing pixel distortion or visual artifacts.
Automatic video signal recovery firmware monitors input signal integrity continuously, instantly re-establishing video synchronization following external player reboots or signal switching events.
Frictionless Cross-Platform Operation (Windows, Android, Linux)
Avoid the hidden costs and vendor lock-in associated with closed smart screen ecosystems. Featuring standard high-definition HDMI video interfacing, the display supports immediate cross-platform compatibility across Windows workstations, Android compute sticks, and industrial Linux appliances. Operators can switch host operating systems in seconds to match evolving CMS software, passenger information engines, or automated factory monitoring frameworks.
Commercial Viability: Case Studies in High-Throughput Public Infrastructure
Across commercial and industrial environments, the 48.5-inch stretched display provides versatile visual communication. In retail stores, it drives sales through dynamic point-of-purchase messaging. In transit fleets, it displays real-time route progress. In industrial control rooms, it delivers live equipment telemetry, and in corporate buildings, it functions as a modern architectural directory.
Airport concourses and baggage reclaim zones use this panoramic screen above luggage carousels and customs inspection lanes. Clear, multi-lingual passenger guidance and arrival notifications reduce traveler congestion during international peak arrival banks.
Automated parcel locker networks and interactive retail kiosks benefit from the intuitive guidance provided by horizontal header screens. Step-by-step transaction prompts guide users smoothly through drop-off and pickup procedures.
The ZXT Manufacturing Advantage: 9+ Years of Industrial Display Leadership
ZXT offers direct factory sourcing for commercial stretched bar displays, supported by nearly a decade of manufacturing experience. We provide zero-tooling-fee deployments on standard sizes, 3-day sample turnaround, and complete OEM/ODM engineering support including CAD files and custom bracket design.
We provide comprehensive sample evaluation packages complete with power supplies, video cables, and mounting hardware, allowing technical teams to conduct thorough bench testing prior to volume commitment.
Commercial & Engineering FAQ
**Q1: Can this screen operate reliably in vibrating vehicles or near heavy machinery?**
Yes. Built with ruggedized metallic framing and vibration-damped structural fastenings, the display is engineered to endure continuous mechanical shocks encountered in rolling stock, public buses, and factory shopfloors.
**Q2: What power input does this commercial monitor require?**
The internal power supply accepts universal AC mains from 100V to 240V at 50/60Hz, with low operational power consumption designed to minimize facility electricity costs across multi-screen deployments.
**Q3: Can we request customized logo printing or corporate color matching?**
Certainly. We provide custom front bezel silkscreening, bespoke RAL/Pantone powder coating finishes, and tailored firmware boot logos to align with your corporate brand guidelines.
Connect with ZXT Technical Sales Specialists

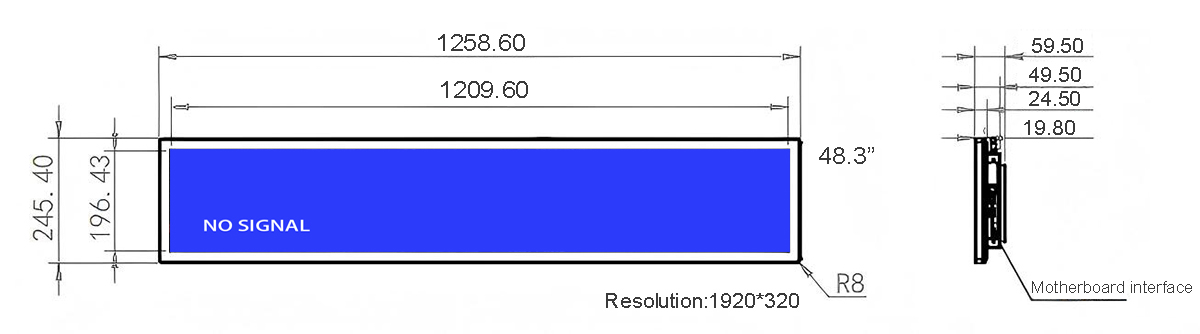

Contact our technical sales group to receive 2D dimensional drawings, 3D CAD files, and competitive factory-direct pricing for the 48.5-inch stretched bar LCD monitor. We provide rapid responses within two business hours.
