Professional Customization Smart 49.5 Inch Infrared TouchScreen Aluminum Stretched Bar LCD Display
49.5 Inch Aluminum Stretched LCD Display Display area:1209.6*340.2mm Resolution:1920*540/3840*1080 Material:Aluminum Touch style:Multi-point infrared touch screen
49.5-Inch Infrared Touch Stretched Bar LCD Display for Smart Retail Shelf Solutions
The 49.5-inch infrared touch stretched bar LCD display is a high-performance commercial signage solution designed for modern supermarket and retail shelf environments. Built with an aluminum alloy frame and advanced infrared touch technology, this ultra-wide display delivers interactive digital content directly at the point of purchase.
As a professional LCD display manufacturer, ZXTLCD provides factory-direct digital signage solutions with full OEM and ODM customization services for global retail and system integration partners.
This model is widely used as a next-generation shelf information display, enabling retailers to transform traditional shelving into smart, data-driven communication surfaces.
Smart Shelf Communication for Modern Retail
In today’s competitive retail environment, customer attention is increasingly difficult to capture using traditional paper labels or static signage.
The stretched bar LCD format solves this challenge by turning shelf space into a dynamic communication channel.
As a shelf information display, this system enables real-time product communication such as:
- Dynamic pricing updates
- Product promotions and campaigns
- QR code-based product interaction
- Video-based advertising content
- Cross-sell and upsell messaging
This makes it an essential tool for supermarkets, convenience stores, and brand retail chains.
Infrared Touch Technology for Interactive Experience
Unlike standard non-touch displays, this model integrates infrared touchscreen technology, allowing multiple users to interact simultaneously.
Key advantages include:
- Multi-touch support for customer interaction
- High sensitivity and fast response
- Durable performance for public environments
- Compatible with gloves and retail usage scenarios
- Stable operation in 24/7 environments
This significantly enhances the functionality of the shelf information display, turning passive viewing into active engagement.
49.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 49.5 inch | |
Resolution | 1920*540/3840*1080 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 90w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Aluminum Frame Industrial Design for Retail Environments
The display is built with a durable aluminum alloy structure designed for long-term commercial use.
Key structural benefits include:
- Strong anti-impact metal housing
- Slim ultra-wide bar design
- Heat dissipation optimized structure
- Easy wall-mounted installation
- Anti-corrosion industrial finish
This ensures reliable operation in supermarkets, retail chains, and smart shelf systems.
Smart Retail Integration with CMS System
The system supports integration with cloud-based CMS platforms, enabling centralized content control.
Key features include:
- Remote content scheduling and updates
- Multi-store synchronization
- Real-time promotional campaign management
- Advertising playback monitoring
- Data-driven retail marketing control
This makes the shelf information display a powerful tool for intelligent retail transformation.

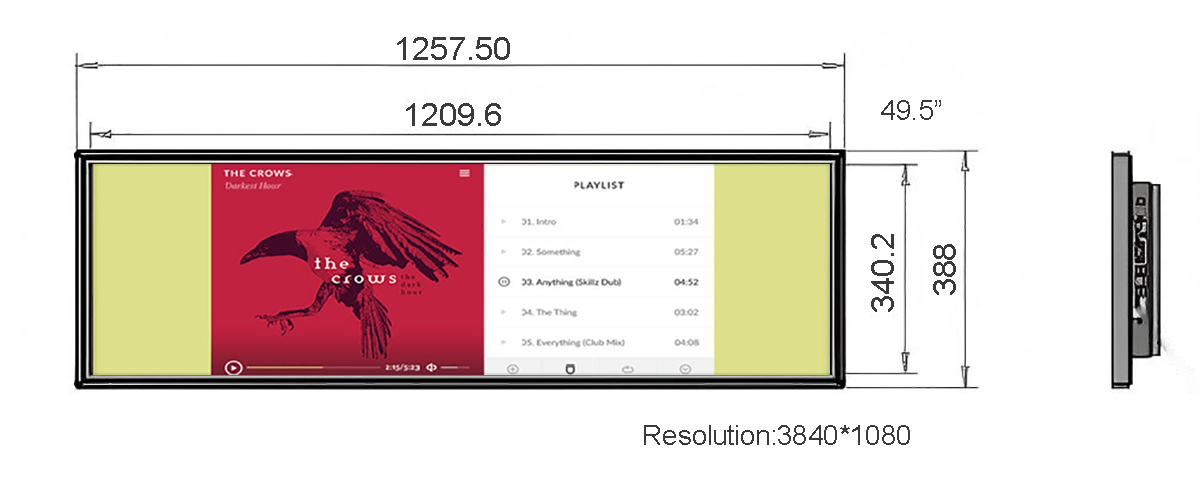

Product Dimension as follows:
Application Scenarios
The 49.5-inch stretched touch LCD display is widely used in:
- Supermarket shelf advertising systems
- Smart retail store displays
- Convenience store digital signage
- Cosmetic and pharmacy retail shelves
- Brand chain store promotions
- Interactive product information systems
Its elongated structure makes it ideal for shelf-edge installation and product-level communication.
Why ZXTLCD
ZXTLCD is a professional digital signage manufacturer in China, specializing in commercial LCD display solutions.
We provide:
- Factory direct pricing
- OEM & ODM customization
- Strict quality control system
- Global shipping support
- One-year warranty
- Technical engineering support
We help global partners build scalable smart retail display networks.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
