Non-touchscreen
Original 36.2 Inch 1920*540 TFT Stretched Bar LCD Display Screen for Commercial Promotion
The Stretched Bar LCD Display supports preset playback content for multiple time slots throughout the day, automatically switching between morning, noon, and evening. For example, it might display coffee and bread during breakfast, bento boxes during lunch, and special offers on main meals during dinner. This time-based approach allows advertising to better align with consumer needs, significantly improving conversion rates.
Specifications
- Screen Size
- 36.2 Inch
- Resolution
- 1920*540
- Operating System
- Android
Original 36.2 Inch 1920*540 TFT Stretched Bar LCD Display Screen for Commercial Promotion
Professional Ultra-Wide Display Designed for Modern Commercial Signage
The Original 36.2 Inch TFT Stretched Bar LCD Display is a commercial-grade ultra-wide display engineered for businesses that require eye-catching digital signage in narrow installation spaces. With a sharp 1920 × 540 resolution and an ultra-wide aspect ratio, it delivers crisp images, vivid colors, and smooth video playback, making it an excellent solution for retail advertising, transportation information systems, supermarkets, shopping malls, restaurants, and smart commercial environments.
Unlike traditional 16:9 displays, this stretched LCD screen maximizes limited installation space while providing a modern and professional appearance. Whether installed above shelves, inside display cabinets, on walls, or integrated into custom kiosks, it attracts customer attention and enhances the overall shopping experience.
As a factory-direct manufacturer, ZXTLCD supplies reliable commercial display solutions to distributors, system integrators, digital signage companies, advertising agencies, and OEM brands worldwide. Our experienced engineering team supports every project from product design to mass production, ensuring consistent quality and dependable performance.
36.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 36.2 inch | |
Resolution | 1920*540 | |
Brightness | 200~400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Built for Continuous Commercial Operation
The 36.2-inch stretched display uses an original industrial-grade TFT LCD panel designed for long-term 24/7 operation. Its high-definition 1920 × 540 resolution delivers sharp text, detailed graphics, and vibrant promotional content, ensuring excellent visibility in busy commercial environments.
The ultra-wide format allows multiple content zones to be displayed simultaneously, including product advertisements, pricing, promotional videos, announcements, brand messages, and real-time information. Wide viewing angles ensure that content remains clear from different positions, making it ideal for high-traffic retail spaces.
Its slim housing and lightweight design make installation simple while maintaining a clean, premium appearance that blends naturally into modern commercial interiors.
Factory Direct Manufacturing with Complete OEM & ODM Solutions
Choosing a factory-direct supplier means better pricing, faster communication, and greater flexibility throughout your project.
ZXTLCD offers comprehensive OEM and ODM services, including:
- Custom screen sizes and resolutions
- Android or HDMI display solutions
- Optional high-brightness versions
- Capacitive touch integration
- Customized metal housing and frame colors
- Company logo printing and startup interface
- Private label packaging
- Interface customization (HDMI, USB, LAN, Wi-Fi)
- CMS software integration
- Mechanical structure customization
Whether you are developing a smart retail system or a customized digital signage solution, our engineering team can provide a display tailored to your exact requirements.

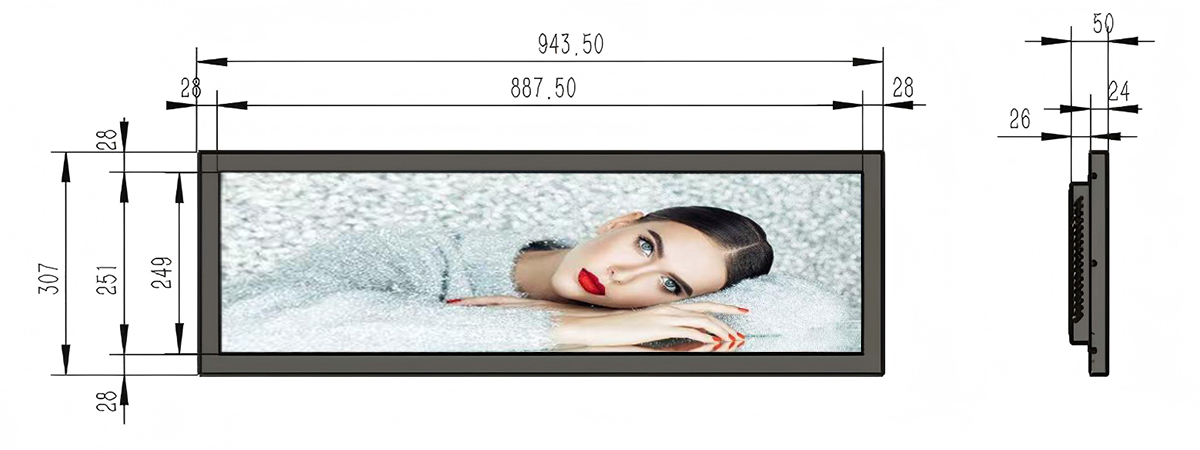

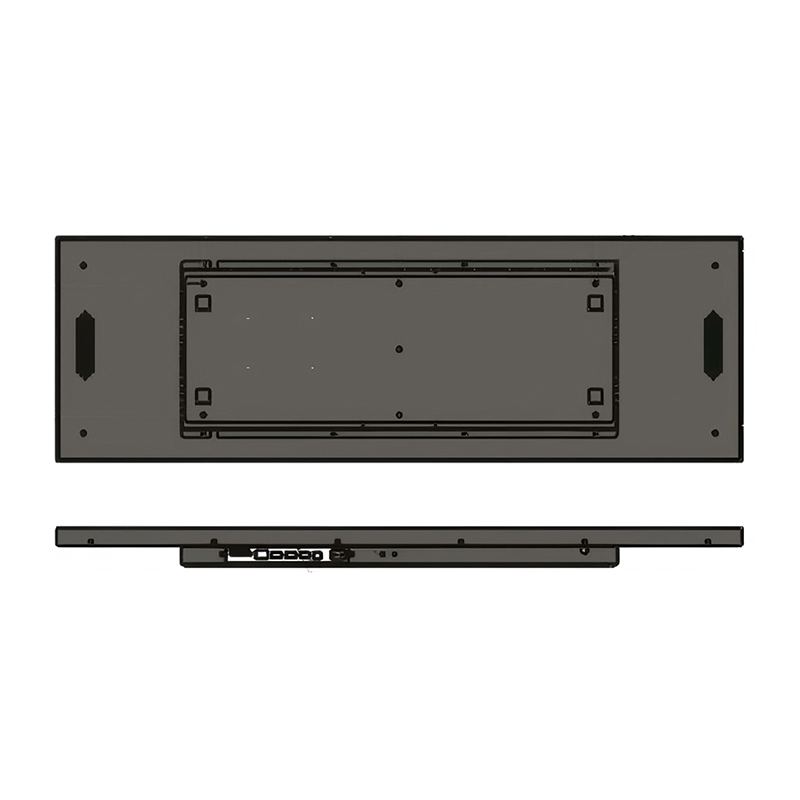

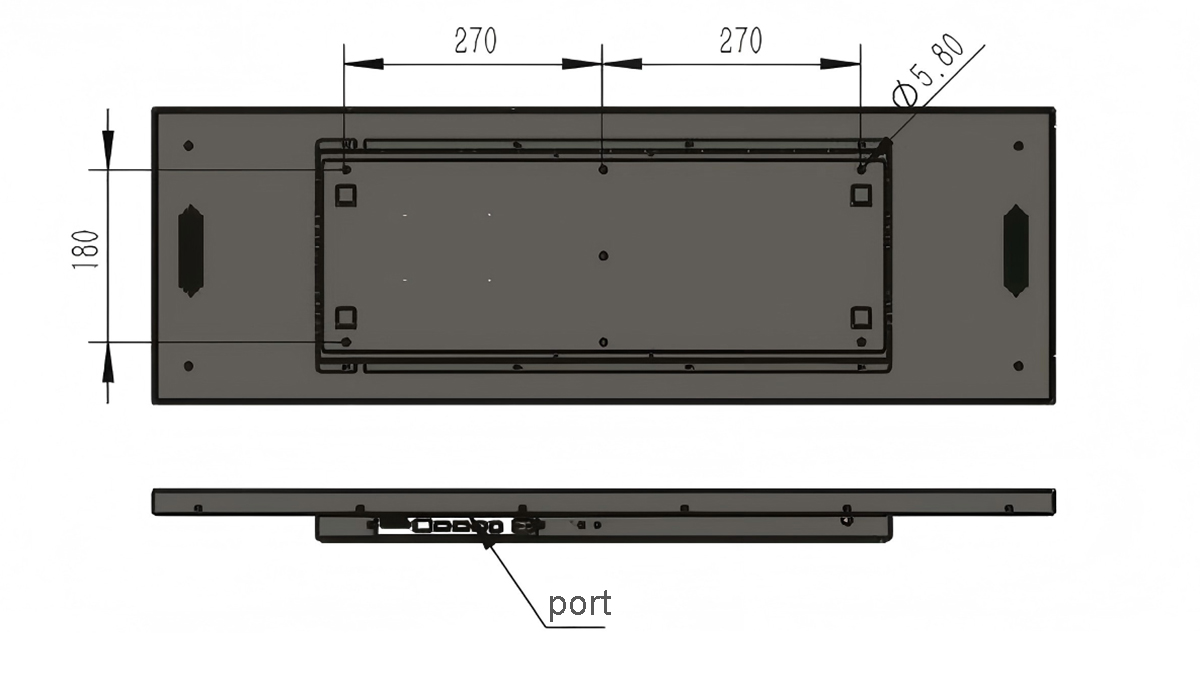

Product Dimension as follows:
Ideal Applications
The 36.2-inch TFT stretched bar LCD display is suitable for a wide range of commercial applications, including:
- Retail shelf-edge advertising
- Supermarkets and grocery stores
- Shopping malls
- Digital menu boards
- Transportation information displays
- Airport and railway terminals
- Smart retail systems
- Exhibition halls
- Corporate reception areas
- Interactive commercial kiosks
Why Choose ZXTLCD?
ZXTLCD is more than a display supplier—we are a professional commercial LCD display manufacturer with extensive OEM and ODM experience. From product development and engineering to production, quality control, and global delivery, every step is managed within our own factory.
By working directly with us, you benefit from factory pricing, flexible customization, strict quality management, and responsive technical support. Whether you need standard products or a fully customized commercial display solution, our team is ready to help you bring your project to market efficiently and confidently.
Contact us today to discuss your requirements and receive a customized quotation for your next commercial display project.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
