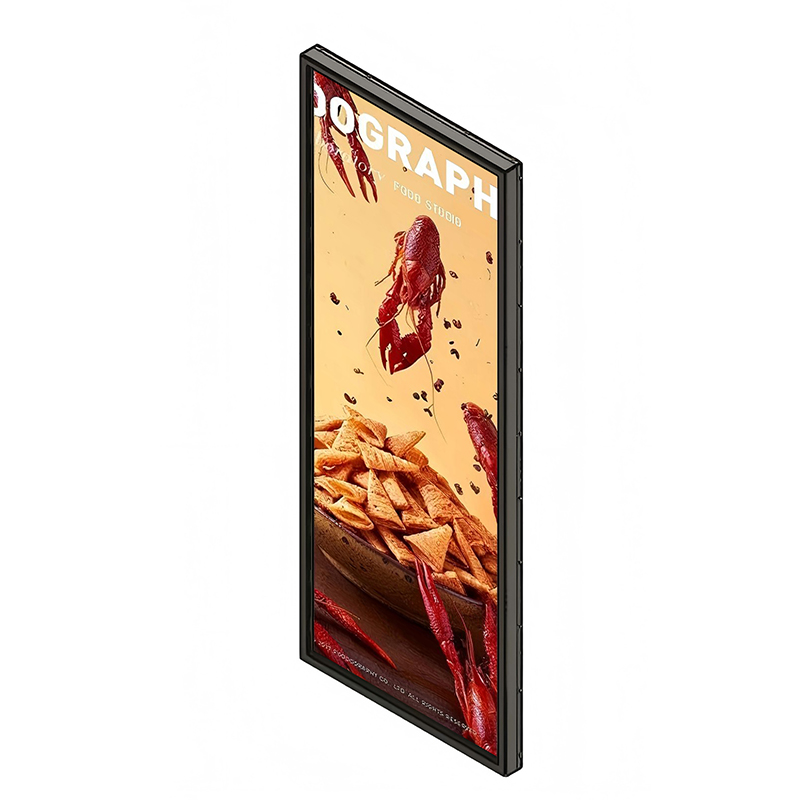

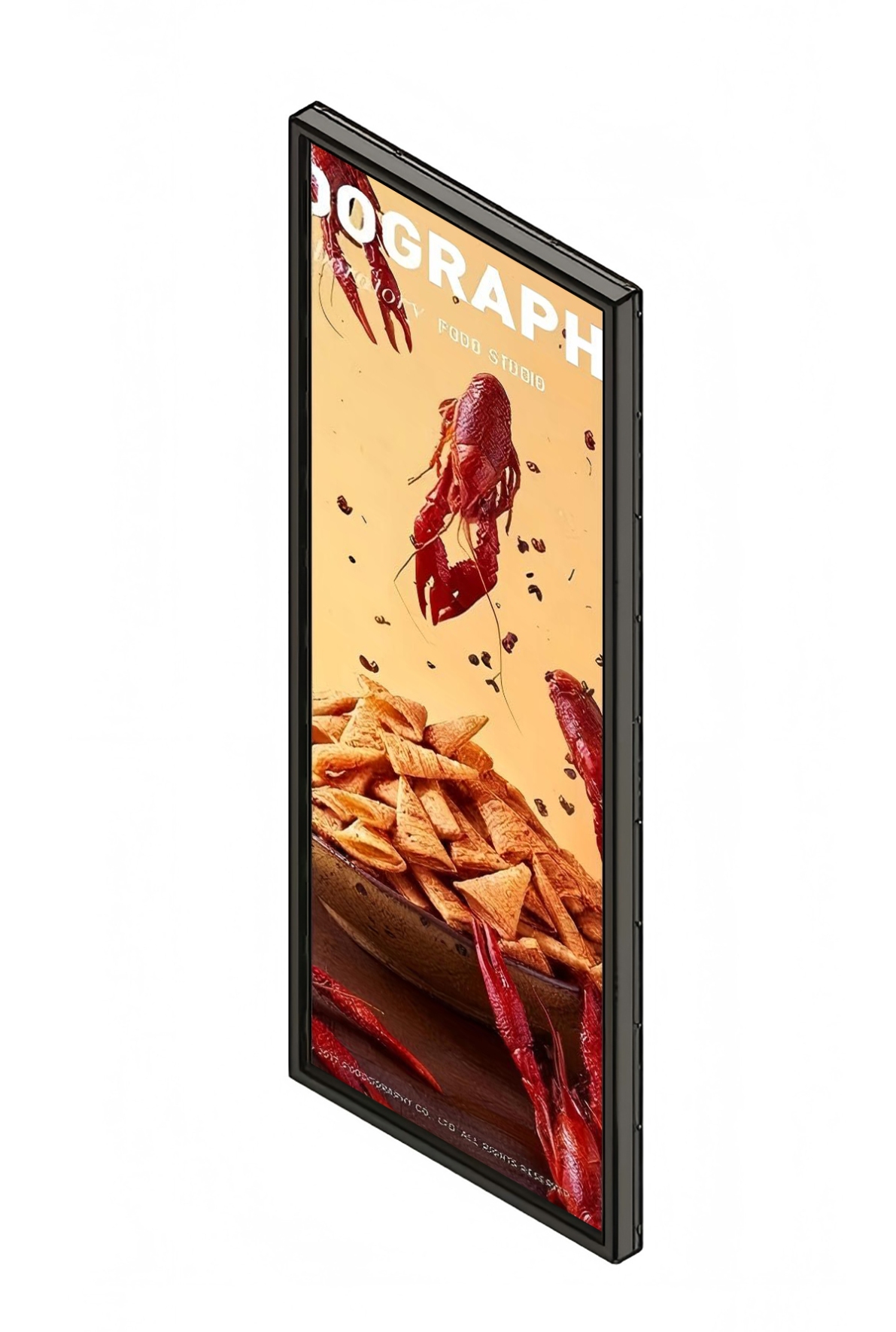

High Definition 69.3 Inch Indoor TouchScreen Stretched Bar LCD Monitor for Supermarket
The 69.3 Inch TouchScreen Stretched Bar LCD Monitor features a built-in gravity sensor, automatically recognizing and rotating the screen in both landscape and portrait orientations. It's ideal for displaying product information in portrait mode at shelf ends, while landscape mode is perfect for playing panoramic videos on aisle walls. This single model caters to both installation needs, adapting to different scenarios.
Specifications
- Screen Size
- 69.3 inch
- Resolution
- 3840*1440
- Display area
- 1649.5*618mm
High Definition 69.3 Inch Indoor TouchScreen Stretched Bar LCD Monitor for Supermarket
Enhance Customer Engagement with an Interactive Stretched Bar Display
The 69.3 Inch Touchscreen Stretched Bar LCD Display is designed to help retailers create a more engaging shopping experience while delivering important product information in a modern and efficient way. Featuring an ultra-wide commercial LCD panel and responsive touch technology, this display is ideal for supermarkets, retail chains, shopping malls, convenience stores, and other indoor commercial environments.
As a factory-direct manufacturer, we provide reliable digital signage solutions for distributors, system integrators, and OEM brands worldwide. Every display is built using commercial-grade components and tested before shipment to ensure stable performance in demanding business applications.
69.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 69.3 inch | |
Resolution | 3840*1440 | |
Brightness | 300~400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 4000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 150w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Smart Interactive Display for Modern Retail
Unlike traditional digital signage, this stretched bar LCD display combines high-definition visuals with interactive touch functionality. Customers can browse product details, check promotional information, navigate store directories, or access self-service content with a simple touch.
The ultra-wide screen is especially suitable for shelf displays, promotional zones, and narrow installation spaces where conventional displays cannot be used efficiently. Its sleek industrial design also blends naturally into modern retail environments.
Intelligent Content Management
The display comes with an Android operating system and supports a wide range of multimedia formats, including videos, images, scrolling text, and web-based content. Optional cloud CMS software enables remote content management, allowing businesses to update advertisements and promotional campaigns across multiple locations from a single platform.
Additional features such as scheduled playback, split-screen display, USB plug-and-play, and network connectivity make daily operation simple and efficient.

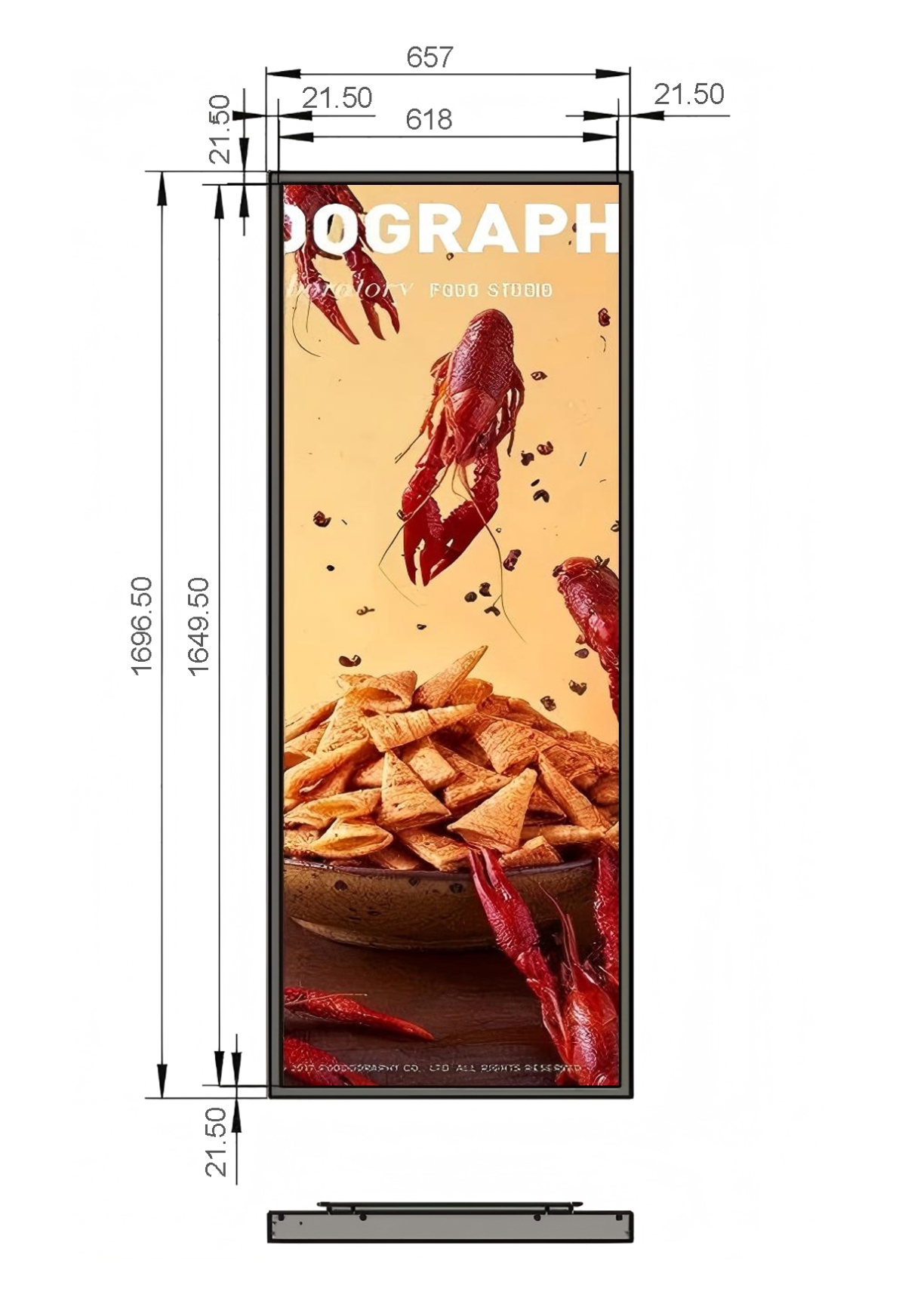

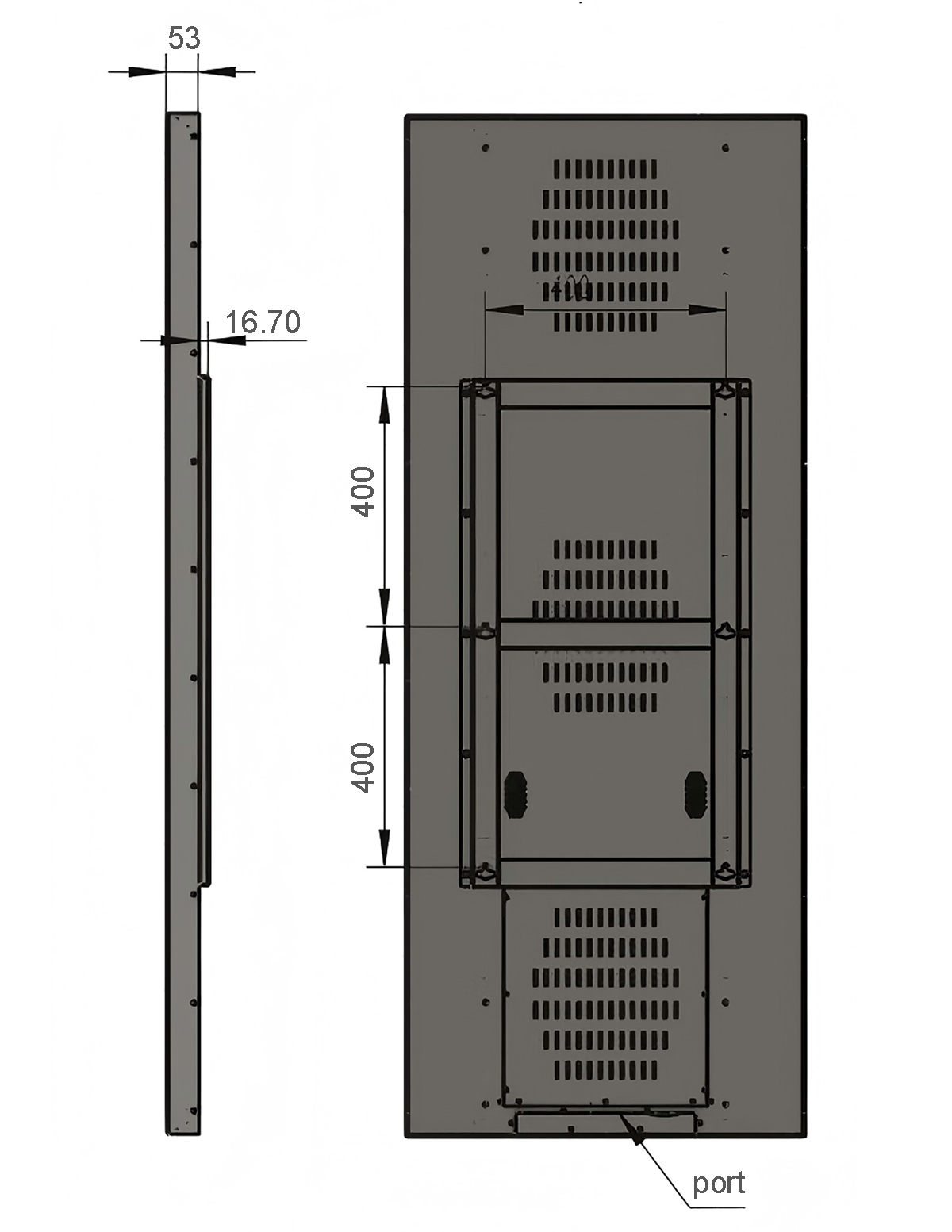

Product Dimension as follows:
Factory Direct Manufacturing with OEM & ODM Services
Choosing the right manufacturing partner is just as important as selecting the right product. With years of experience in commercial LCD display production, we understand the requirements of international buyers and provide flexible manufacturing solutions for projects of all sizes.
We offer complete OEM and ODM services, including:
- Private logo branding
- Customized housing and frame design
- Android or Windows operating systems
- Touch technology options
- Brightness customization
- Interface expansion
- CMS software customization
- Multi-language support
- Custom packaging and user manuals
Whether you are building your own brand or supplying large commercial projects, our engineering team works closely with you to deliver products that meet your exact specifications.
Designed for Commercial Applications
The 69.3-inch touchscreen stretched display is widely used in supermarkets, retail stores, pharmacies, shopping malls, airports, restaurants, banks, hospitals, exhibition centers, transportation hubs, and smart retail projects.
Its commercial-grade LCD panel is designed for long operating hours, delivering consistent image quality and reliable performance in busy public environments.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
