Cutting Edge 36.2 inch Ultra Wide Industrial Grade Stretched Bar LCD Display for ShoppingMall
The Stretched Bar LCD Display employs partial refresh technology, where the system refreshes only the areas where the image changes at the pixel level, rather than redrawing the entire screen. In scenarios such as dynamic price updates and scrolling text playback, the power consumption per refresh is reduced from 12W to 3.2W, a decrease of 73%. For retail scenarios with frequent price changes, this can significantly reduce energy costs and extend screen life.
Specifications
- Screen Size
- 36.2 Inch
- Resolution
- 3840/1200/1920*600
- Display area
- 78.10*270mm
Cutting Edge 36.2 inch Ultra Wide Industrial Grade Stretched Bar LCD Display for ShoppingMall
Upgrade Retail Advertising with a 36.2 Inch Stretched Bar LCD Screen
The 36.2 Inch Ultra-Wide Industrial Grade Stretched Bar LCD Display is a high-performance commercial digital signage solution designed for modern retail environments such as shopping malls, supermarkets, transportation hubs, airports, and smart retail stores.
With its ultra-wide stretched screen design (1920×540 resolution), this display is optimized for narrow installation spaces where traditional displays cannot be used effectively. It delivers clear, dynamic, and eye-catching advertising content, making it ideal for shelf-edge advertising, corridor signage, and public information displays.
As a professional Stretched Bar LCD Display Manufacturer, ZXTLCD provides factory-direct pricing, OEM & ODM customization, and full commercial digital signage solutions for global B2B customers.
Ultra-Wide Bar-Type LCD Design
This 36.2-inch stretched LCD screen uses a unique elongated aspect ratio designed specifically for commercial information display and advertising.
Key Advantages
- Ultra-wide format for narrow spaces
- High visibility advertising display
- Flexible installation (wall / shelf / ceiling)
- Strong visual impact in retail environments
- Supports continuous 24/7 operation
- Ideal replacement for traditional paper signage
- Better product promotion efficiency
The stretched bar LCD structure is widely used in smart retail and transportation information systems due to its space efficiency and high visual clarity.
36.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 36.2 inch | |
Resolution | 3840/1200/1920*600 | |
Brightness | 300~700 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Ideal Applications in Smart Retail & Public Spaces
The 36.2 Inch Bar LCD Display is widely used in commercial environments requiring compact but high-impact digital signage.
Application Scenarios
- Shopping mall advertising
- Supermarket shelf-edge displays
- Retail store promotions
- Airport and subway signage
- Restaurant menu boards
- Bank queue systems
- Hospital information displays
- Smart city information terminals
- Exhibition and event signage
Its narrow structure makes it especially suitable for shelf-edge and corridor installations where space is limited.
Android Smart Digital Signage System
The display supports intelligent content management for modern advertising operations.
Smart Features
- Android operating system
- USB plug-and-play playback
- HDMI input support
- Wi-Fi / LAN network connectivity
- Cloud CMS remote management
- Scheduled advertising playback
- Loop video display
- Multi-zone content layout
These features allow businesses to manage advertising content remotely across multiple stores or locations.

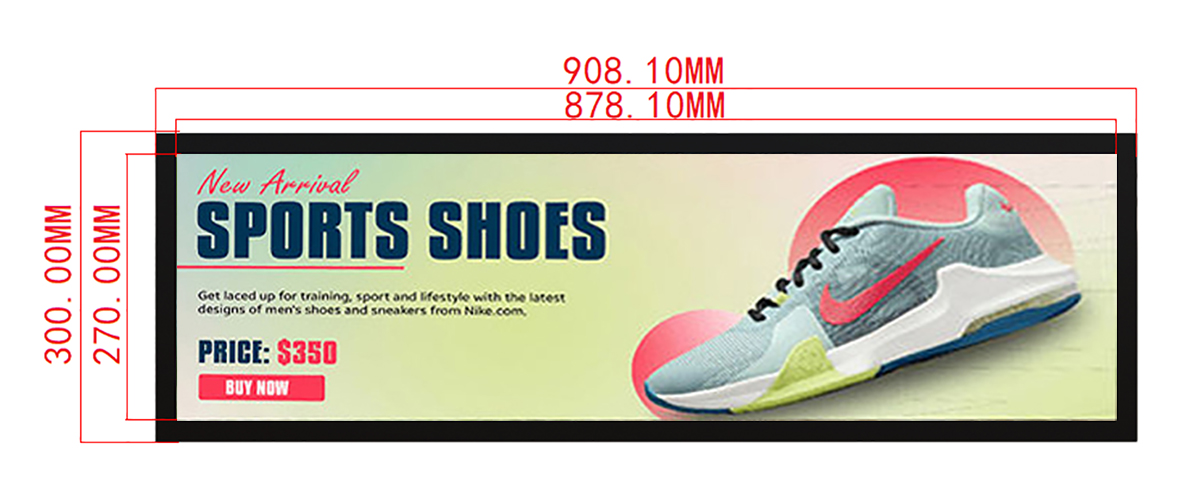

Product Dimension as follows:
Why Stretched Bar LCD Displays Are Growing Fast
The demand for ultra-wide bar LCD digital signage is increasing rapidly in global retail and transportation industries.
Key Advantages
- Higher space utilization efficiency
- Better customer engagement than static posters
- Dynamic content updates in real time
- Stronger visual marketing impact
- Lower long-term advertising cost
According to industry applications, stretched bar LCD displays are widely adopted in retail shelf systems and public information systems due to their high flexibility and clarity.
OEM & ODM Custom Manufacturing Services
ZXTLCD provides full customization solutions for global B2B clients.
Custom Options
- Custom sizes (24–88 inch range)
- High brightness (500–2000 nits optional)
- Touch screen integration
- Dual-side display design
- Android / Windows system customization
- Industrial PC integration
- Housing design customization
- Logo branding
- CMS software integration
- Packaging customization
We support full-cycle production from prototype development to mass manufacturing.
Frequently Asked Questions
What is a stretched bar LCD display?
It is an ultra-wide LCD screen designed for narrow spaces such as shelves, corridors, and transportation systems for advertising and information display.
Where is it commonly used?
Shopping malls, supermarkets, airports, subway stations, retail stores, and restaurants.
Does it support 24/7 operation?
Yes. It is designed for continuous commercial use with industrial-grade components.
Can it be customized?
Yes. ZXTLCD provides full OEM & ODM customization including size, brightness, housing, and software system.
