Non-touchscreen
Custom 18.9 Inch Narrow LCD Bar Screen Advertising Display Price Tag Supermarket Shelf
18.9 Inch Metal Narrow Stretched LCD Display Display area:476.64*56mm Resolution:1920*220 Material:Metal
Custom 18.9 Inch Stretched Bar LCD Screen for Retail Equipment and Smart Shelf Integration
As retailers continue to modernize their stores, the demand for customized display hardware has grown rapidly. Many projects no longer require a standard digital signage display but instead need a compact screen that can be integrated into retail fixtures, smart shelving, self-service equipment, or branded merchandising systems. The 18.9 inch stretched bar LCD screen is developed specifically for these OEM applications, providing a flexible platform for commercial display integration.
With its narrow profile and customizable design, this display fits seamlessly into shelf systems, checkout counters, promotional stands, and retail cabinets. It allows manufacturers to incorporate digital communication directly into their equipment while maintaining a clean and professional appearance. Rather than functioning as a standalone advertising display, it becomes an integral part of a complete retail solution.
For OEM customers, system integrators, and commercial equipment manufacturers, this display offers dependable performance, extensive customization, and factory-direct production support.
Designed for Customized Retail Hardware Projects
Every retail environment is different. Shelf dimensions, fixture materials, control systems, and installation methods often vary from project to project. A standard display may not meet these unique requirements.
The 18.9 inch stretched bar LCD screen is designed with customization in mind, allowing manufacturers to create display solutions that match their equipment instead of redesigning the equipment around the display.
Customization options include:
- Screen dimensions and housing
- Mounting structures
- Display brightness
- Operating systems
- Interface selection
- Touch functionality
- Private branding
- Firmware optimization
- SDK and API support
This flexibility makes the product suitable for both large-scale retail deployments and specialized commercial projects.
18.9 Inch Stretched LCD(Shelf Display) | ||
Display Specifications | ||
Screen Size | 18.9 inch | |
Resolution | 1920*220 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 30w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 90%RH | |
Commercial Features for Reliable Integration
Compact Ultra-Wide Display
The elongated screen is ideal for narrow installation areas where traditional displays cannot be used. It provides clear digital communication while preserving valuable product space.
High-Quality Commercial LCD Panel
Built with commercial-grade components, the display delivers stable brightness, accurate color reproduction, and reliable image quality for continuous daily operation.
Flexible System Compatibility
The display can operate with Android, Windows, Linux, or customer-developed embedded platforms, allowing easy integration into existing retail systems.
Engineered for Long-Term Commercial Use
Designed for demanding business environments, the screen supports extended operating hours with dependable performance and low maintenance requirements.
Factory-Direct OEM & ODM Manufacturing
ZXTLCD specializes in commercial display manufacturing for global B2B customers. Our factory provides complete OEM and ODM services, supporting projects from concept development to large-volume production.
Our manufacturing capabilities include:
- Custom stretched LCD dimensions
- Open-frame and enclosed designs
- High-brightness options
- Capacitive touch integration
- Private mold development
- Logo customization
- Cloud CMS compatibility
- SDK/API development
- Industrial design assistance
- Custom packaging and labeling
Working directly with the manufacturer shortens communication, improves quality control, and provides greater flexibility throughout the project lifecycle.

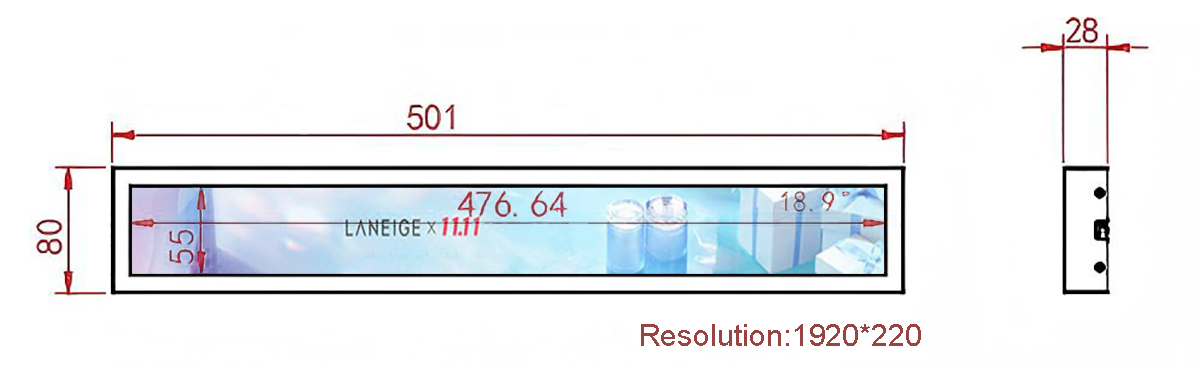

Product Dimension as follows:
Frequently Asked Questions
Q1: What is a stretched bar LCD screen commonly used for?
It is widely integrated into retail fixtures, smart shelves, kiosks, vending machines, POS systems, transportation equipment, and commercial digital signage solutions.
Q2: Can ZXTLCD customize the display for my project?
Yes. We provide OEM and ODM services covering hardware design, software integration, operating systems, interfaces, housing, branding, and packaging.
Q3: Is the display suitable for continuous commercial operation?
Yes. It uses commercial-grade components designed for reliable long-term operation in demanding business environments.
Q4: Can the display work with custom software?
Absolutely. SDKs, APIs, and multiple operating system options are available to simplify integration with customer-developed applications.
Q5: Why purchase directly from ZXTLCD?
Factory-direct cooperation offers faster communication, greater customization flexibility, competitive pricing, strict quality control, and professional engineering support throughout the product lifecycle.
Creating Flexible Retail Equipment for Future Commercial Projects
Retail technology is increasingly moving toward modular and customizable hardware. Manufacturers need display components that adapt to their equipment rather than limiting product design.
By choosing a customizable stretched bar LCD screen, businesses gain the flexibility to develop unique retail solutions, strengthen brand differentiation, and reduce long-term development costs. This approach supports future product upgrades while providing a scalable platform for smart retail innovation.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
