Non-touchscreen
Android 36.8 Inch High Brightness Stretched LCD Display Module for Machine Control Panel
The 36.8 Inch Stretched LCD Display runs on the Android operating system, is ready to use out of the box, and features a simple and smooth user interface. It supports the download and installation of a vast number of apps, expanding its functionality to include various applications. A 4GB + 32GB storage combination ensures smooth system operation and meets the needs of extended advertising playback.
Specifications
- Screen Size
- 36.8 inch
- Resolution
- 1920*360
- Display area
- 919.29 *172mm
Android 36.8 Inch High Brightness Stretched LCD Display Module for Machine Control Panel
Factory Direct Industrial Display Solution for Control Systems and Smart Equipment
The Android 36.8 Inch High Brightness Stretched LCD Display Module is designed for industrial machine control panels, automation systems, and smart equipment interfaces that require a reliable, space-efficient, and visually clear display solution.
With its ultra-wide stretched format and high brightness panel, this module is suitable for environments where traditional displays cannot provide enough horizontal information or where panel space is limited.
As a factory direct manufacturer, we provide stable production, engineering support, and flexible customization for global industrial customers, system integrators, and OEM equipment manufacturers.
36.8 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 36.8 inch | |
Resolution | 1920*360 | |
Brightness | 200~400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 60w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Ultra-Wide Display Designed for Transportation Systems
The 43-inch stretched bar LCD format delivers a significantly wider viewing area compared to standard 16:9 displays. This makes it ideal for showing continuous information such as route updates, advertising content, schedules, and notifications without interruption.
In automotive environments, the ultra-wide screen fits naturally into bus interiors, taxi systems, train compartments, and fleet management displays. Its slim structure allows flexible installation on ceilings, dashboards, seat backs, or side panels.
Stable Performance for Mobile and Commercial Use
Unlike standard consumer displays, this model is engineered for commercial and semi-industrial applications. It supports continuous operation and is designed to remain stable under vibration and temperature variations commonly found in transportation systems.
The display delivers clear image quality, wide viewing angles, and consistent brightness, ensuring that content remains visible in different lighting conditions.
Flexible Input and System Integration
The device supports multiple input interfaces including HDMI and USB, allowing easy connection to media players, onboard systems, or external controllers.
Depending on project requirements, it can also be integrated with Android-based systems or customized control boards, making it suitable for a wide range of digital signage and transportation solutions.

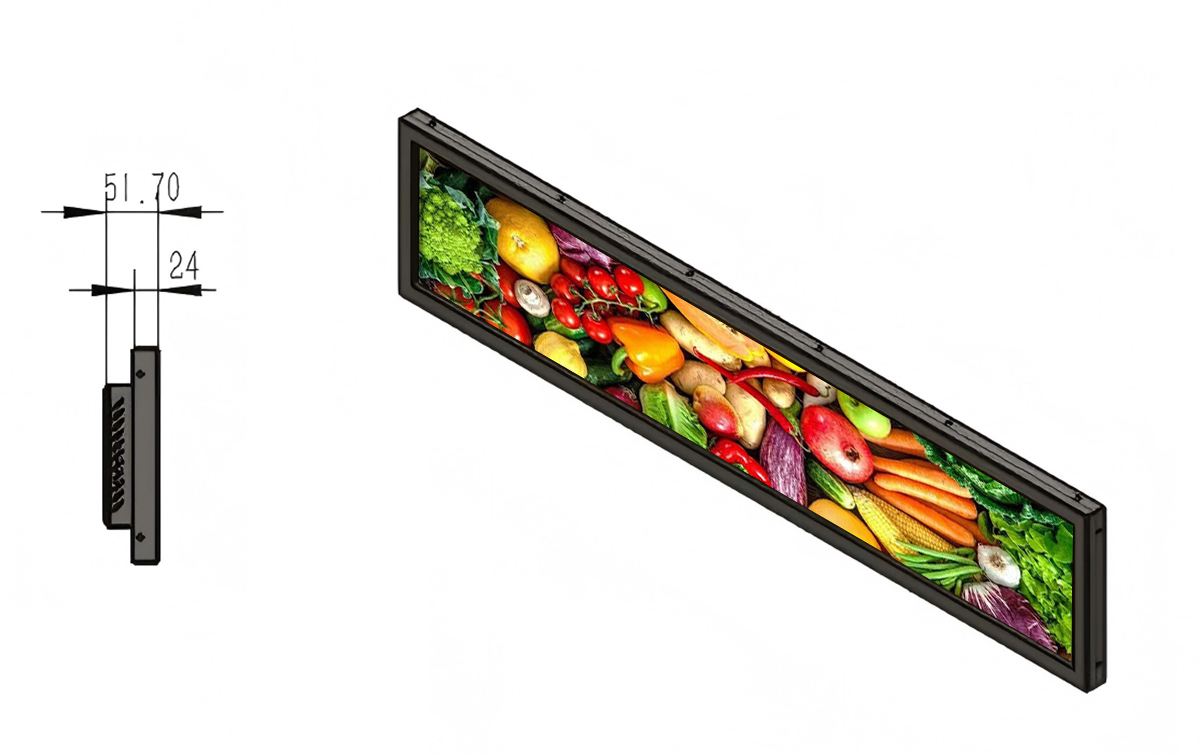

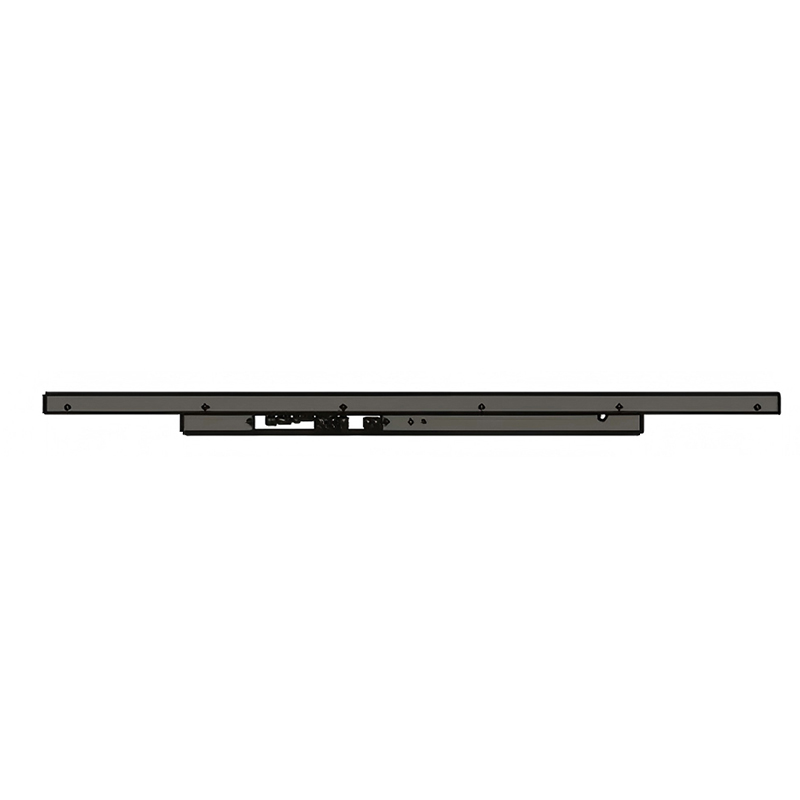

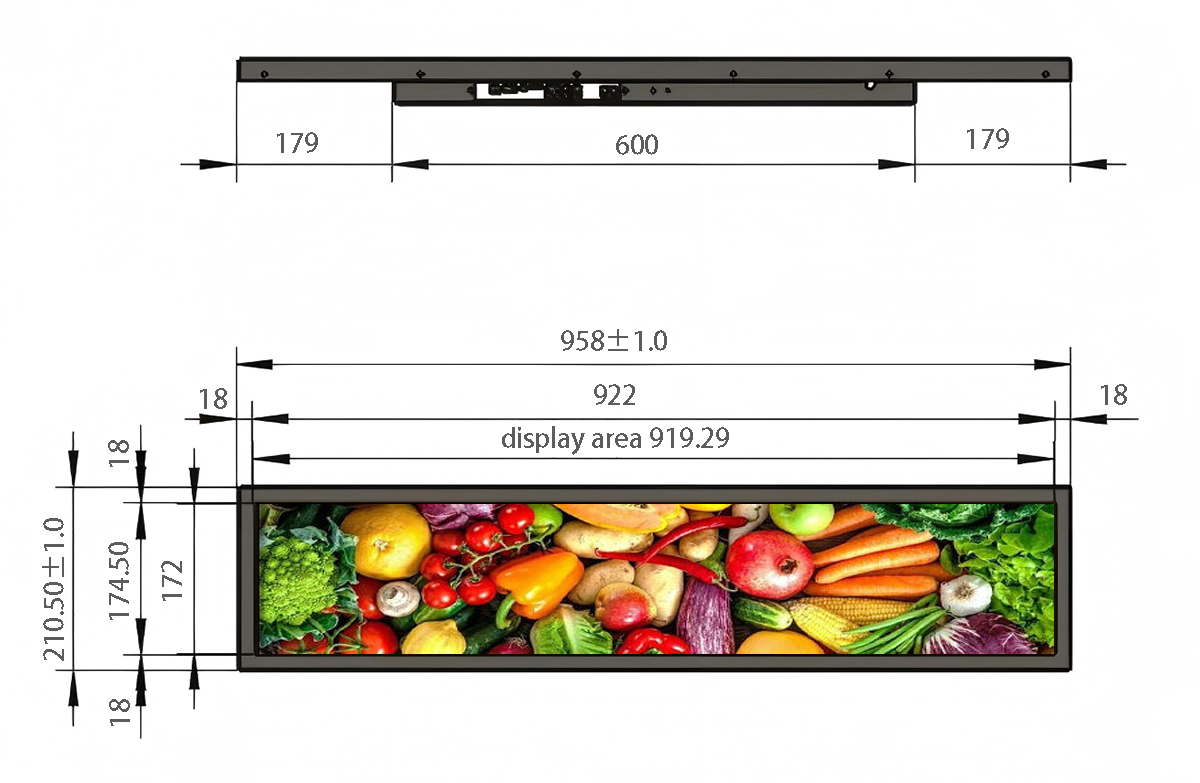

Product Dimension as follows:
OEM & ODM Customization Capabilities
We provide complete OEM and ODM services to support different branding and technical requirements. Whether you are developing a private label product or a customized transportation display system, our engineering team can adapt the solution to your project needs.
Customization options include:
- Logo branding and private labeling
- Custom housing design for vehicle installation
- Brightness adjustment for indoor or semi-outdoor use
- Android, Linux, or Windows system integration
- Interface customization (RS232, CAN bus, HDMI, USB)
- Firmware and software customization
- Multi-language interface support
- Packaging and documentation customization
From concept design to mass production, we support customers through every stage of product development.
Application Scenarios
The 43-inch stretched LCD display is widely used in:
- Bus and public transportation systems
- Taxi and ride-sharing vehicle displays
- Train and subway information systems
- Fleet management communication screens
- Digital advertising networks (DOOH)
- Smart city transportation projects
- Industrial monitoring systems
- Commercial narrow-space advertising
Its compact ultra-wide format makes it especially suitable for environments where traditional screens cannot be installed efficiently.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
