touchscreen
93.8 Inch High Quality Stretch Bar LCD Advertising Screen Display for Advertising Publish
93.8 Inch Metal Stretched LCD Display Display area:2158.85*950mm Resolution:3840*1690 Material:Metal、Tempered glass Touch style:Multi-point infrared touch screen
93.8 Inch Stretched LCD Display for Large-Format Commercial Communication
As commercial environments become increasingly digital, businesses are looking for display technologies that can communicate information across large spaces without disrupting architectural design. A traditional 16:9 screen often cannot deliver the panoramic visual experience required in transportation hubs, exhibition centers, corporate lobbies, or public venues. The 93.8-inch stretched LCD display is purpose-built for these environments, combining an ultra-wide aspect ratio with commercial-grade reliability to create a powerful communication platform.
Its extended display area allows businesses to present continuous visual content such as branding campaigns, public information, advertising, directional guidance, and real-time announcements. Whether installed horizontally above entrances or integrated into custom architectural structures, the display provides excellent visibility while maintaining a clean and modern appearance.
For digital signage integrators, architects, AV solution providers, and OEM partners, this display offers a flexible foundation for large-scale commercial communication projects.
Why Large-Format Stretched Displays Are Becoming More Popular
Large commercial venues require information to be seen from greater distances and wider viewing angles. Instead of deploying multiple standard displays, organizations are increasingly choosing a single ultra-wide stretched LCD display to create a seamless visual presentation.
Key advantages include:
- Continuous panoramic content
- Reduced installation complexity
- Better architectural integration
- Improved long-distance visibility
- Consistent brand presentation
- Lower maintenance compared with multi-screen video walls
The 93.8-inch format is especially effective in open public spaces where visual continuity is important.
93.8 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 93.8 inch | |
Resolution | 3840*1690 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1300 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Features for Professional Digital Signage
Ultra-Wide Panoramic Display
The elongated screen provides an immersive viewing experience, making it ideal for digital communication in spacious commercial environments.
High-Quality Commercial LCD Panel
The commercial-grade panel delivers sharp images, accurate color reproduction, and wide viewing angles to ensure content remains clear throughout the installation area.
Flexible Multimedia Support
The display supports video playback, dynamic graphics, live information feeds, advertising content, schedules, and branded multimedia presentations.
Designed for Continuous Commercial Operation
Industrial-grade components enable stable long-hour operation, making the display suitable for airports, shopping centers, transportation facilities, and corporate environments.
OEM & ODM Manufacturing Capabilities
ZXTLCD is a factory-direct manufacturer specializing in commercial LCD display solutions.
We support OEM and ODM projects with:
Hardware Engineering
- Custom display sizes
- Open-frame configurations
- High-brightness options
- Touch integration
- Custom metal housing
Software Customization
- Android, Windows, and Linux systems
- Cloud CMS integration
- SDK and API support
- Remote content scheduling
- Multi-display synchronization
Branding Services
- Private logo printing
- Customized packaging
- User interface personalization
- Industrial design collaboration
Our engineering team works closely with customers from concept development through mass production, ensuring each project meets commercial and technical requirements.

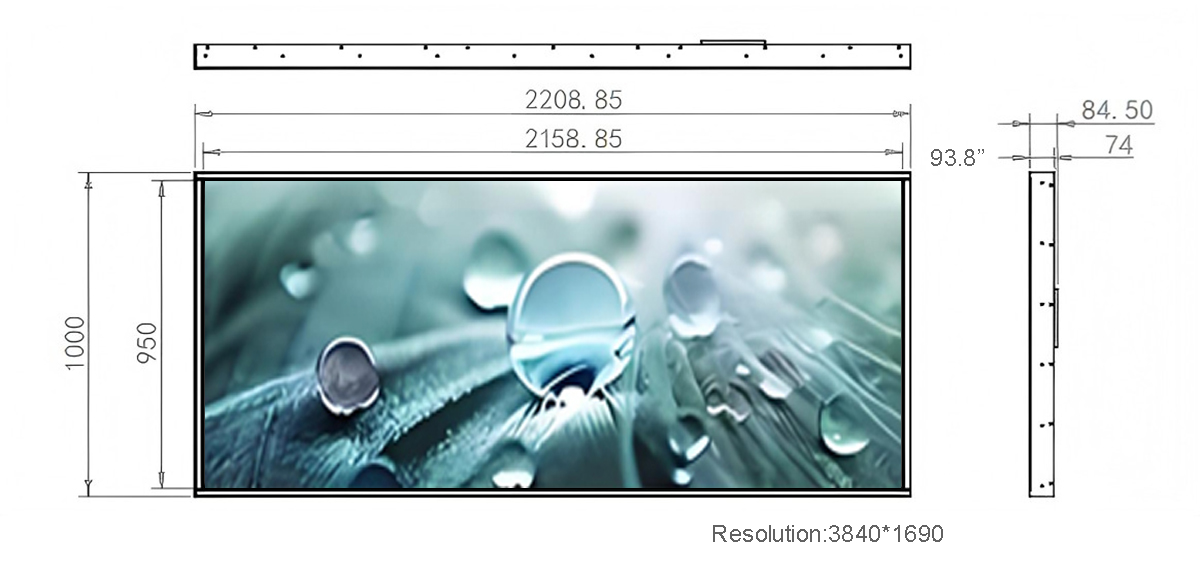

Product Dimension as follows:
Why Choose ZXTLCD
ZXTLCD has extensive experience serving global distributors, AV integrators, and commercial display brands.
Our advantages include:
- Factory-direct manufacturing
- Flexible OEM & ODM services
- Experienced R&D engineers
- Strict quality inspection
- Stable production capacity
- Fast project delivery
- One-year warranty
- Comprehensive after-sales technical support
Whether you require a standard product or a fully customized commercial display solution, ZXTLCD provides professional engineering support from design to production.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
