92 Inch Smart Stretch Shelf Edge Advertising Player Lcd Stretched LCD Display for Sale
92 Inch Metal Stretched LCD Display Display area:2158.85*890mm Resolution:3840*1585 Material:Metal Touch style:Multi-point infrared touch screen
92 Inch Stretched Bar LCD Display for Enterprise Digital Content Distribution
As retail groups, franchise chains, and commercial organizations expand across multiple locations, managing digital content efficiently has become just as important as the display hardware itself. Modern businesses require display systems that allow centralized publishing, synchronized messaging, and consistent branding across every branch. The 92-inch stretched bar LCD display is designed to support enterprise-level digital content distribution, offering an ultra-wide commercial display that combines reliable hardware with intelligent content management capabilities.
Unlike conventional advertising screens that operate independently, this smart stretched display can become part of a unified digital signage ecosystem. Whether installed above retail shelving, inside shopping malls, in transportation facilities, or across chain stores, it enables businesses to publish promotional campaigns, operational announcements, and brand messaging from a centralized platform.
For system integrators, digital signage providers, retail technology companies, and OEM partners, this display provides a scalable solution for large commercial communication projects.
Centralize Digital Communication Across Multiple Business Locations
Managing promotional content manually for every store is time-consuming and inefficient. Enterprise organizations increasingly deploy centralized digital signage networks that distribute content remotely, ensuring every location receives the correct information at the right time.
A commercial stretched bar LCD display supports coordinated communication by displaying:
- Regional promotional campaigns
- Corporate branding
- Product launch announcements
- Store operational notices
- Seasonal marketing activities
- Real-time pricing updates
- Event schedules
- Public information
With cloud-based management, businesses can update hundreds of displays simultaneously while maintaining consistent branding across all locations.
92 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 92 inch | |
Resolution | 3840*1585 | |
Brightness | 500 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1300 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Features Built for Enterprise Deployment
Ultra-Wide Commercial Display
The panoramic screen format is ideal for shelf systems, architectural installations, transportation facilities, and commercial environments where traditional displays cannot efficiently utilize available space.
Smart Content Publishing
Integrated Android or optional Windows platforms support multimedia playback including videos, images, HTML content, scrolling text, and dynamic promotional graphics.
Remote Device Management
When connected to a compatible CMS, administrators can remotely schedule playlists, monitor display status, and publish synchronized campaigns across multiple locations from a single management platform.
Continuous Commercial Operation
Industrial-grade components are designed for extended daily operation, making the display suitable for demanding commercial applications with minimal maintenance.
OEM & ODM Manufacturing Services
ZXTLCD is a factory-direct manufacturer specializing in commercial LCD display solutions for international B2B customers.
Our customization capabilities include:
Hardware Engineering
- Custom stretched display dimensions
- High-brightness configurations
- Capacitive touch options
- Open-frame structures
- Custom metal enclosures
Software Development
- Android, Windows, and Linux systems
- Cloud CMS integration
- SDK and API support
- Remote management software
- Multi-screen synchronization
Project Customization
- Private branding
- Customized packaging
- Industrial design optimization
- Project-specific engineering support
Our engineering team supports customers from concept development through prototype testing and mass production, helping reduce development time while ensuring reliable commercial performance.

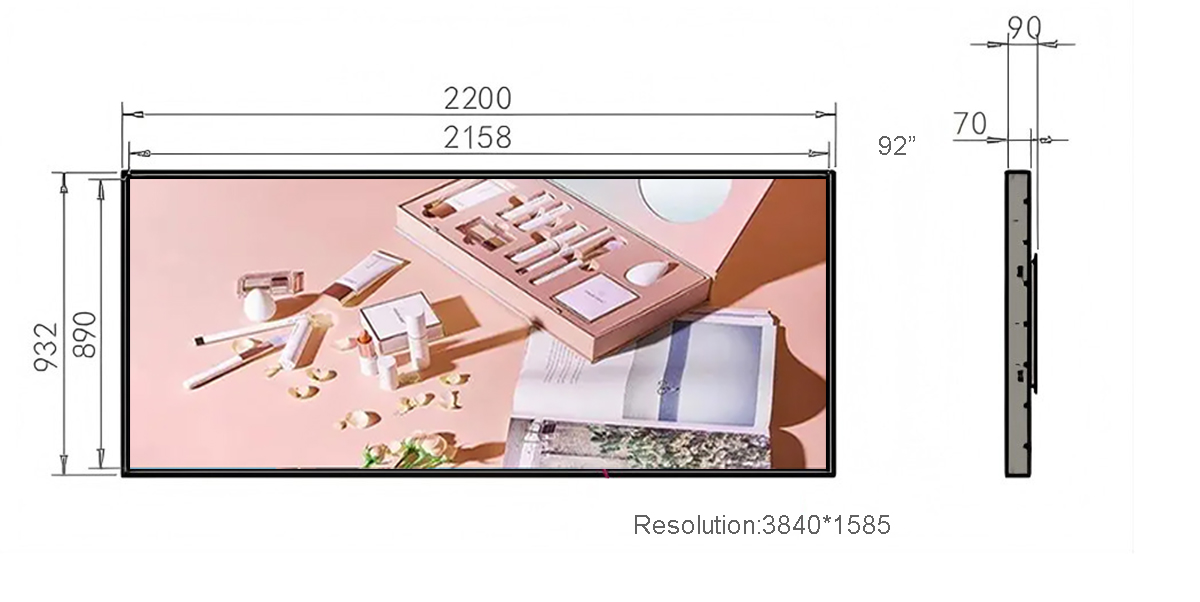

Product Dimension as follows:
Application Scenarios
Chain Supermarkets
Synchronize promotional campaigns, pricing updates, and seasonal advertisements across multiple store locations.
Shopping Mall Operators
Manage tenant advertising, public announcements, and event schedules through a centralized digital communication platform.
Franchise Retail Networks
Maintain consistent brand messaging across every franchise while simplifying content updates from headquarters.
Transportation Facilities
Distribute passenger information, commercial advertising, and public notices across stations and terminals.
Corporate Campuses
Deliver internal communications, visitor guidance, and company announcements in reception areas and shared spaces.
Exhibition Venues
Coordinate sponsor content, event information, and directional messaging across multiple display installations.
Frequently Asked Questions
Q1: What is a stretched bar LCD display commonly used for?
It is widely deployed in retail chains, shopping malls, transportation facilities, corporate buildings, exhibition centers, and enterprise digital signage networks requiring panoramic commercial displays.
Q2: Can multiple displays be managed remotely?
Yes. The display supports integration with cloud-based CMS platforms, allowing centralized scheduling, monitoring, and content publishing across multiple locations.
Q3: Does ZXTLCD provide OEM and ODM services?
Absolutely. We offer customization for hardware, operating systems, software integration, enclosure design, branding, interfaces, and project-specific engineering requirements.
Q4: Is the display suitable for long-term commercial operation?
Yes. It uses commercial-grade components engineered for continuous operation in demanding business environments.
Q5: Why purchase directly from ZXTLCD?
Factory-direct cooperation provides competitive pricing, flexible customization, engineering expertise, strict quality control, and comprehensive after-sales support for global B2B customers.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
