Non-touchscreen
88 Inch Wall Mount Wayfinding Digital Signage Stretched bar Display
88 Inch Industrial-grade strip screens support a wide operating temperature range of -20℃ to 70℃, ensuring stable operation in both low-temperature environments like fresh food sections and high-temperature environments near windows.
Specifications
- Screen Size
- 88 inch
- Resolution
- 3840*1080
- Display area
- 2158*638mm
88 Inch Wall Mount Wayfinding Digital Signage Stretched bar Display
Professional Wayfinding Digital Signage for Smart Public Spaces
The 88 inch wall mounted stretched bar LCD monitor is a professional digital signage solution designed for navigation guidance, public information delivery, and wayfinding applications. Featuring an ultra-wide display format, this commercial-grade screen helps visitors quickly locate destinations while enhancing the overall user experience in complex environments.
As modern facilities continue to adopt digital transformation strategies, organizations require reliable navigation displays that provide clear directions, real-time information, and dynamic communication. This ultra-wide display offers an effective solution for transportation hubs, hospitals, shopping centers, educational campuses, and corporate facilities.
Ultra-Wide Design for Efficient Information Delivery
Unlike conventional digital signage displays, the stretched bar LCD monitor utilizes an elongated screen format that is ideal for directional communication and navigation systems.
The ultra-wide display allows operators to present:
- Building directories
- Navigation guidance
- Directional information
- Floor maps
- Department listings
- Passenger information
- Event schedules
- Emergency notifications
- Advertising content
Its slim profile and wall-mounted design make it particularly suitable for hallways, entrances, elevator lobbies, and public corridors where installation space is limited.
88 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 88 inch | |
Resolution | 3840*1080 | |
Brightness | 350 | |
BLU | LCD | |
Contrast Ratio | 1300:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Key Features of the 88 Inch Stretched Bar LCD Monitor
Commercial-Grade Ultra-Wide LCD Panel
The large-format screen delivers sharp image quality and excellent readability, ensuring information remains visible from multiple viewing angles.
Smart Content Management
The system supports multimedia content including:
- Videos
- Images
- Scrolling text
- Dynamic announcements
- Interactive information feeds
- Split-screen layouts
Continuous 24/7 Operation
Built for demanding commercial environments, the display provides reliable performance for continuous daily operation.
Flexible Wall-Mounted Installation
The streamlined design enables installation in:
- Airports
- Railway stations
- Hospitals
- Universities
- Shopping malls
- Government buildings
- Corporate offices
- Exhibition centers
Ideal Applications for Wayfinding Systems
Shopping Mall Navigation
Guide visitors to stores, restaurants, entertainment venues, and service centers through dynamic digital navigation.
Hospital Directory Displays
Help patients and visitors locate departments, clinics, registration counters, and emergency services efficiently.
Transportation Information Systems
Provide passengers with route information, schedules, gate numbers, and travel updates.
Educational Campuses
Support student navigation across large university and school facilities.
Corporate Buildings
Improve visitor experiences through intelligent building directories and floor guidance systems.
Public Service Facilities
Deliver clear navigation and informational content in government offices and public institutions.

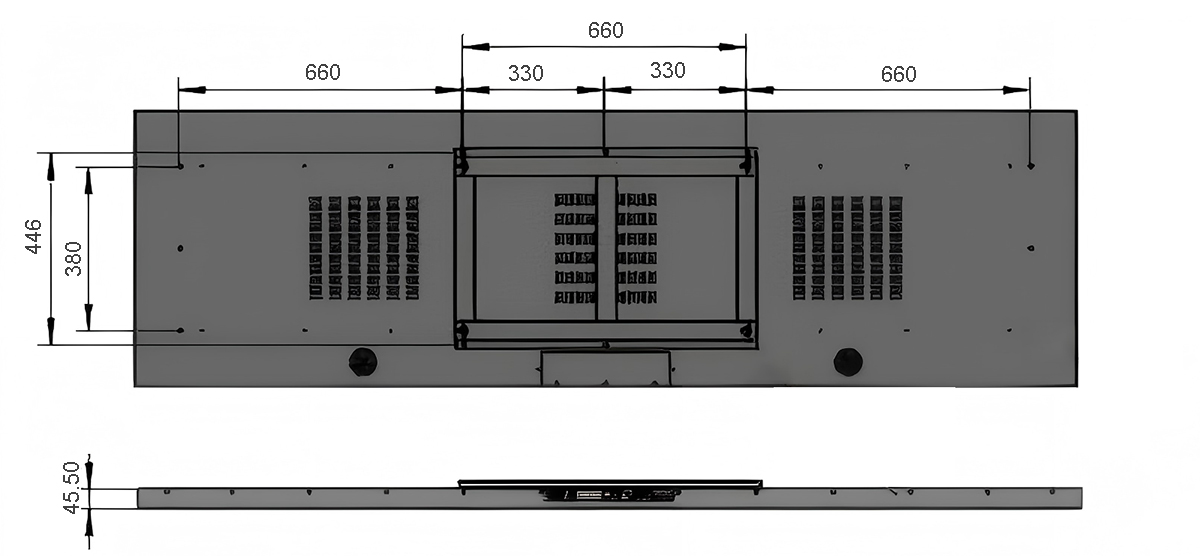

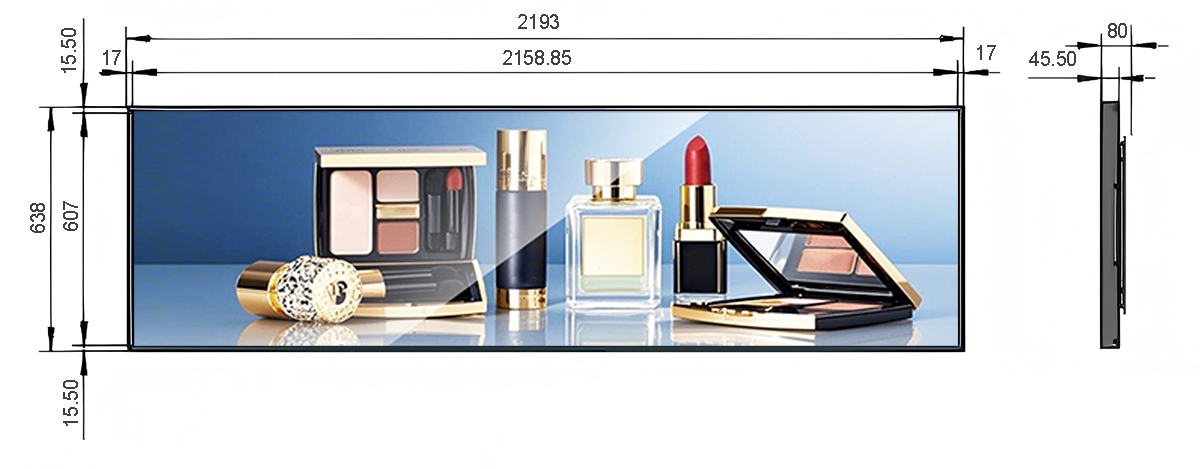

Product Dimension as follows:
OEM & ODM Customization Services
As a professional stretched LCD display manufacturer, ZXTLCD provides complete OEM and ODM services for system integrators, distributors, and project contractors.
Available customization options include:
- Customized display dimensions
- Android or Windows operating systems
- Touch-enabled functionality
- CMS software integration
- Custom branding and logo placement
- High-brightness configurations
- Network management solutions
- Project-specific hardware customization
Our engineering team works closely with customers to develop tailored wayfinding solutions for diverse commercial applications.
Why Choose ZXTLCD
ZXTLCD specializes in commercial stretched display manufacturing and serves customers worldwide with reliable digital signage products.
Our advantages include:
- Factory-direct manufacturing
- OEM & ODM customization
- Experienced engineering support
- Strict quality control
- Global export capability
- Fast production schedules
- One-year warranty
- Professional after-sales service
We help businesses deploy intelligent navigation and information systems that improve communication efficiency and visitor satisfaction.
Frequently Asked Questions
What is a stretched bar LCD monitor used for?
A stretched bar LCD monitor is commonly used for wayfinding systems, transportation information displays, building directories, and public information signage.
Can the display support remote content updates?
Yes. Compatible CMS platforms allow centralized management and remote content publishing.
Is the display suitable for airports and hospitals?
Absolutely. The ultra-wide format is ideal for navigation guidance, passenger information, and public communication.
Can the system be customized?
Yes. ZXTLCD provides OEM and ODM customization including software, hardware, branding, and installation requirements.
Does it support continuous operation?
Yes. The display is designed for 24/7 commercial operation.
