88 inch Remote Control 4K Shelf Stretched Strip bar Screen LCD Monitor for Supermarket Shop
88 Inch Hardware Stretched LCD Display Display area:2158*638mm Resolution:3840*1080 Material:Hardware Touch style:Multi-point Infrared TouchScreen
Specifications
- Screen Size
- 88 inch
- Resolution
- 3840*1080
- Display area
- 2158*638mm
88 inch Remote Control 4K Shelf Stretched Strip bar Screen LCD Monitor for Supermarket Shop
Ultra-Wide Retail Display Solution for Smart Merchandising
The 88 inch 4K stretched bar LCD panel is a professional commercial display developed for supermarkets, hypermarkets, convenience stores, shopping centers, and retail media networks. Featuring an ultra-wide format, remote content control, and high-resolution 4K visual performance, this display helps retailers transform traditional shelf spaces into powerful digital communication channels.
As retailers continue investing in digital transformation, in-store advertising has become a key strategy for increasing customer engagement and influencing purchasing decisions. This stretched display solution delivers dynamic content directly within shopping environments where consumers are actively evaluating products.
Embedded installation seamlessly integrates the strip screen into walls or shelves, with its surface flush with the surrounding environment, maintaining a unified and aesthetically pleasing overall design. Suitable for high-end venues such as luxury boutiques and upscale clubs, where aesthetics are paramount, the screen appears as a black mirror when off, preserving the spatial design; when on, it transforms into an information window.
Maximize Shelf Visibility and Shopper Attention
Traditional printed shelf labels and static promotional materials often struggle to attract customer attention. An ultra-wide stretched bar LCD panel provides a more effective way to communicate promotional campaigns, product information, and brand messaging.
Installed above shelves, product aisles, refrigerated sections, or promotional zones, the display can showcase:
- Product advertisements
- Promotional campaigns
- New product introductions
- Category branding
- Seasonal offers
- Loyalty program promotions
- Cross-selling recommendations
- Dynamic pricing information
This helps retailers create a more engaging and data-driven shopping experience.
88 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 88 inch | |
Resolution | 3840*1080 | |
Brightness | 350 | |
BLU | LCD | |
Contrast Ratio | 1300:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Key Features of the 88 Inch Stretched Bar LCD Panel
4K Ultra HD Resolution
The high-resolution commercial panel delivers crisp images, vibrant colors, and exceptional content clarity across the entire display area.
Remote Content Management
Built-in remote control capabilities enable centralized management of advertising campaigns across multiple store locations.
Ultra-Wide Commercial Design
The stretched screen format is specifically designed for retail environments where standard displays are impractical.
Continuous Commercial Operation
Engineered for demanding business applications, the display supports reliable 24/7 operation.
Flexible Multimedia Playback
The system supports:
- Promotional videos
- Product images
- Scrolling messages
- Dynamic advertisements
- Brand campaigns
- Multi-zone content layouts
Perfect for Retail Media Networks
Retail media has become one of the fastest-growing advertising channels worldwide. Large-format shelf displays allow retailers and brands to communicate directly with shoppers at the point of purchase.
Applications include:
Supermarkets
Deliver targeted promotions and category-specific advertising directly above merchandise.
Hypermarkets
Create store-wide digital advertising networks that improve product visibility and increase sales opportunities.
Convenience Stores
Promote limited-time offers and impulse-purchase products in high-traffic areas.
Electronics Retailers
Present technical specifications, product comparisons, and promotional campaigns through engaging digital content.
Beauty and Cosmetic Stores
Enhance visual merchandising with premium brand storytelling and product education.
Duty-Free Retail
Support multilingual advertising and promotional campaigns for international customers.

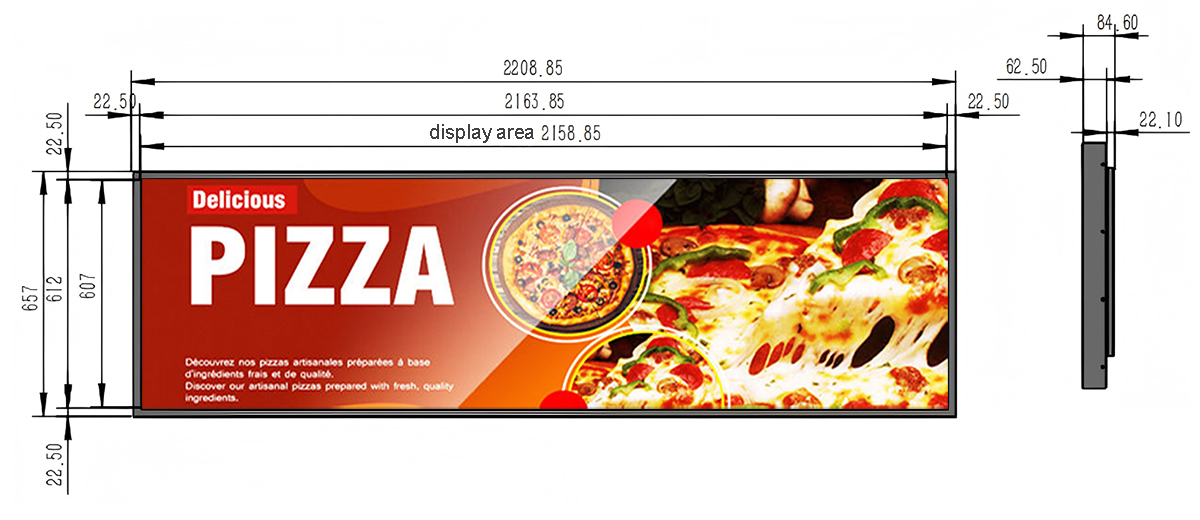

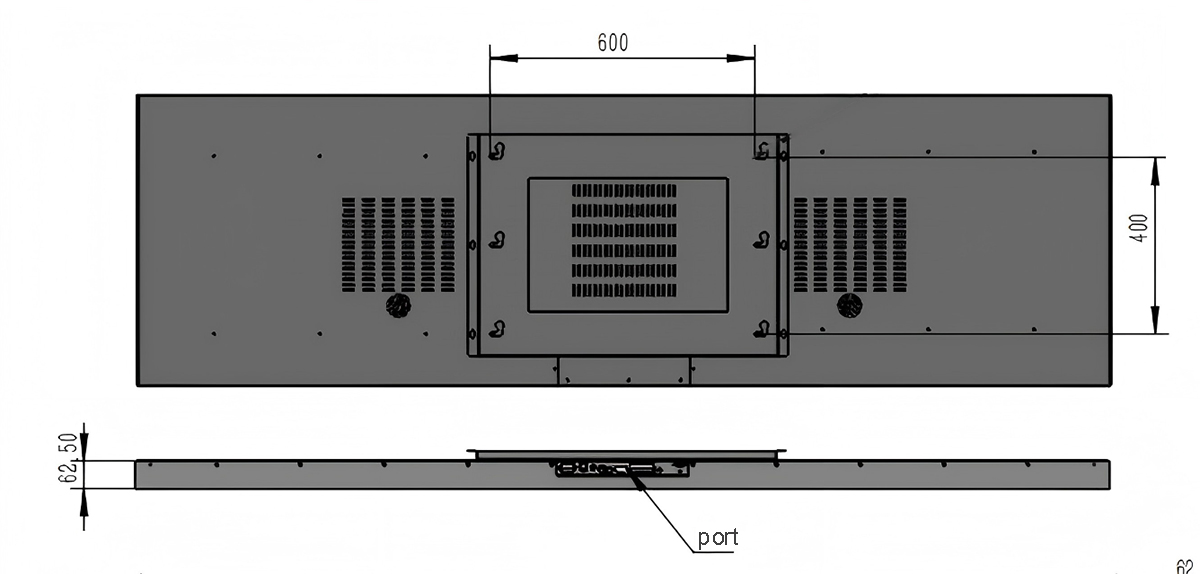

Product Dimension as follows:
Why Choose ZXTLCD
ZXTLCD specializes in stretched display manufacturing and commercial digital signage solutions for global customers.
Our advantages include:
- Factory-direct production
- OEM & ODM customization
- Professional engineering support
- Strict quality inspection procedures
- Global export experience
- Fast lead times
- One-year warranty
- Comprehensive after-sales service
We help retailers, brands, and technology partners build scalable digital communication networks that improve customer engagement and drive sales growth.
Frequently Asked Questions
What is a stretched bar LCD panel used for?
A stretched bar LCD panel is commonly used for retail advertising, shelf communication, product promotion, and in-store digital signage applications.
Can content be managed remotely?
Yes. The display supports centralized remote content management for multi-location retail networks.
Is the display suitable for supermarkets?
Absolutely. It is specifically designed for shelf areas, product aisles, promotional zones, and retail merchandising environments.
Can the display be customized?
Yes. ZXTLCD provides OEM and ODM customization including hardware, software, branding, and mechanical design.
Does the display support continuous operation?
Yes. It is designed for professional commercial use and supports 24/7 operation.
