Non-touchscreen

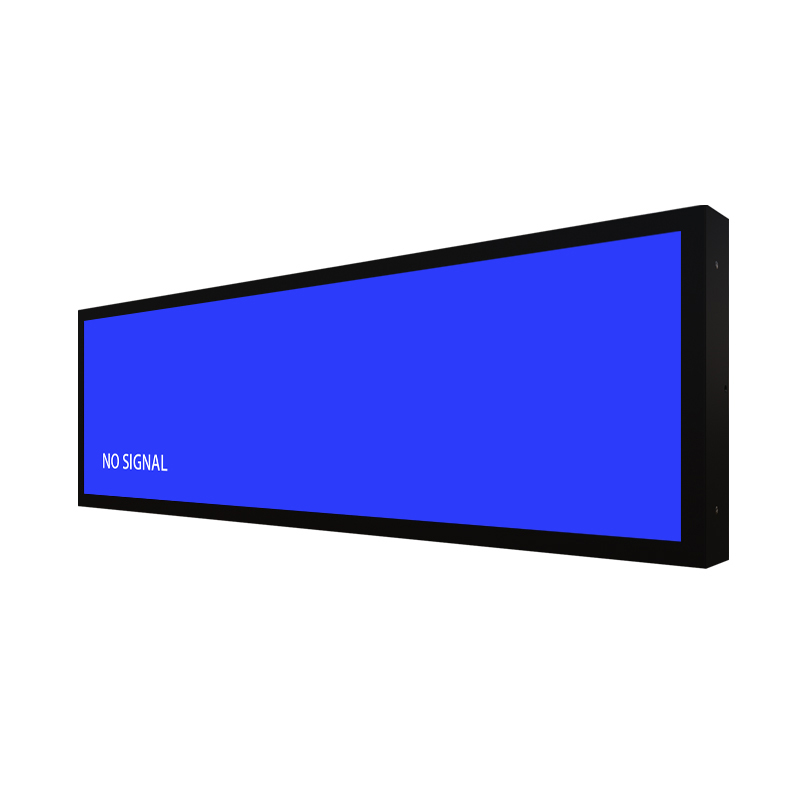

Rack Mount Stretched Monitor (88 Inch) for Surveillance & Command
Industrial-grade 88 inch standard ultra-wide bar display delivering 3840*1080 native resolution and 350 brightness. Fanless passive thermal design engineered for 24/7 commercial operation. Factory-direct pricing with complete 2D/3D CAD technical support.
Specifications
- Screen Size
- 88 Inch
- Resolution
- 3840*1080
- Brightness
- 410 cd/㎡
- Interface
- HDMI / VGA
88 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 88 inch | |
Resolution | 3840*1080 | |
Brightness | 350 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1300:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Mainboard | ||
CPU | 4KK1(Monitor Mainboard) | |
Interface | HDMIIN 3/DP 1/USB 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Compact Geometry: Transforming Narrow Overhead Lintels into Information Corridors
Installing dynamic video signage in space-constrained commercial settings requires hardware engineered for narrow margins. The 88-inch stretched bar monitor delivers 3840*1080 resolution across an active 88-inch diagonal, allowing enterprise clients to deploy high-impact digital messaging in locations where standard displays cannot be mounted.
Modern architectural interiors prioritize minimalist, uncluttered design. Panoramic stretched monitors align perfectly with contemporary linear aesthetics, providing high-tech visual delivery in an understated package.
Industrial automation facilities require high-density status visualization that does not block machine operators' view of the production floor. This low-profile monitor delivers comprehensive line telemetry in an unobtrusive format.
Image Reproduction: Wide Aspect Pixel Mapping and Accurate Color Rendering
The optical system of the 88-inch panoramic display features 3840*1080 resolution, 350 brightness, and a 1300:1 contrast ratio. True IPS technology guarantees true IPS 178-degree wide visual cone viewing angles without color distortion, while the industrial LED backlight ensures an industrial service life exceeding 60,000 hours of continuous commercial operation.
The liquid crystal panel is engineered for rapid pixel response times, eliminating ghosting and motion blur during fast-scrolling advertising text and high-frame-rate video playback.
The protective front glass surface combines high optical transparency with oil-resistant surface properties, repelling accidental fingerprint smudges and preserving pristine screen clarity in public environments.
Solid-State Mechanical Layout: Preventing Dust Intake in Public Venues

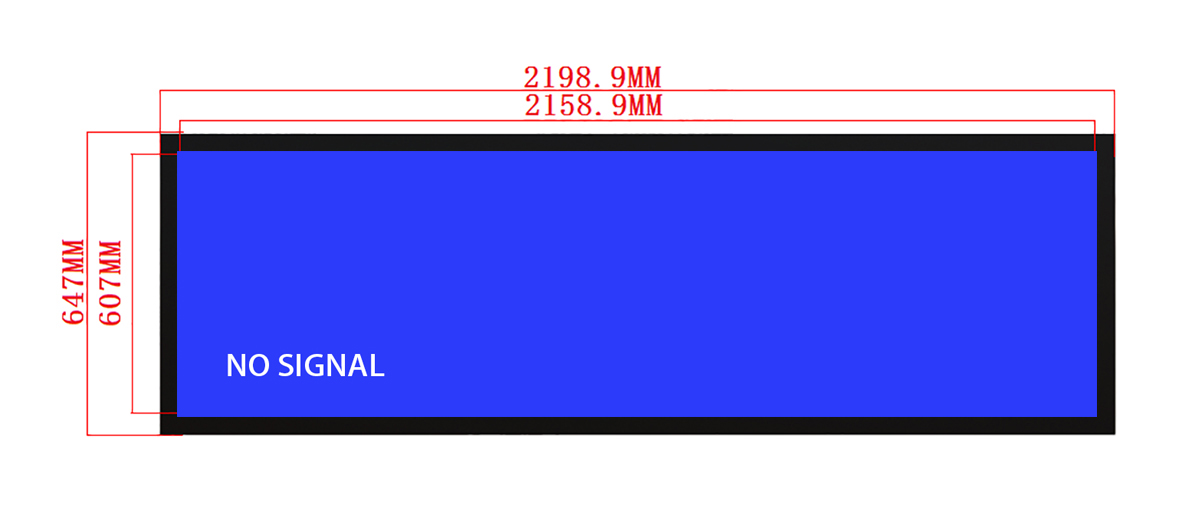

The 88-inch chassis combines robust metal construction with a slim bezel profile. Precision mounting provisions and an industrial powder-coat treatment ensure lasting durability in commercial installations.
Engineered for durability, the unit features a passive cooling design that eliminates internal fans and associated maintenance requirements. The chassis provides standard VESA rear mounting points and lateral mounting channels for rapid integration into retail and transit fixtures.
For cleanroom and pharmaceutical applications, the enclosure features smooth, screw-less front surfaces and non-porous powder coatings that withstand daily wipe-down with sanitizing alcohol and chemical detergents.
Electronic Longevity: High-Grade Industrial Capacitors and Protective Circuits
Featuring HDMI, VGA video connections, the monitor ensures broad compatibility with commercial computing hardware. An integrated 3.5mm Audio Socket facilitates audio connectivity. The unit runs on universal global 100~240V line voltage at 50/60Hz power, drawing ≤ 45w, and operates stably across temperature ranges of below10℃ ~ +50℃ and humidity of ≤ 85%RH.
The mainboard firmware includes intelligent watchdog monitoring that automatically recovers video synchronization in the event of external signal interruptions, eliminating manual service calls.
The display's low thermal footprint reduces the cooling burden in enclosed kiosk cabinets, allowing system builders to design tighter, more compact self-service enclosures without auxiliary fans.
Universal OS Adaptability: Freedom from Proprietary Lock-In
Enterprise display infrastructure requires absolute software freedom. By separating the optical display panel from host processing logic, this monitor prevents premature hardware retirement caused by outdated onboard chipsets. Connecting an external media player running Windows, Android, or Linux via HDMI provides instant video synchronization, allowing enterprise IT managers to run their chosen digital signage CMS or telemetry dashboard unimpeded.
Application Blueprints: Deploying Stretched Bar Displays for Maximum Return
The 88-inch stretched bar monitor is optimized for linear architectural installations. It provides dynamic shelf-edge pricing in retail stores, route progress alerts in public transit vehicles, equipment status feeds in control centers, and directory listings in commercial office buildings.
High-speed commuter rail platform gates utilize this display as an overhead platform indicator. Passengers waiting along boarding zones can check real-time train arrival times, car carriage layouts, and safety instructions at a single glance.
Financial trading desks and professional creative workstations benefit from the display's ultrawide auxiliary utility. Traders and video editors keep critical communications and timeline trackers visible without sacrificing main desktop workspace.
Source Factory Authority: In-Stock Tooling, SKD Export, and Zero NRE Costs
Partnering directly with ZXT connects your project team straight to our manufacturing floor, bypassing intermediary markups and communication delays. With over nine years of dedicated display engineering and 300+ commercial projects worldwide, we maintain permanent in-stock inventories of standard aluminum extrusion profiles and stamping molds. This in-stock tooling advantage allows our clients to deploy custom stretched hardware without expensive initial NRE tooling charges, backed by fast 3-day sample dispatch for standard configurations. To support overseas display brands, repair facilities, and volume contractors seeking to optimize import tariffs and international shipping costs, we offer complete flexibility in delivery formats. Choose from fully assembled turnkey displays, open-frame kits for cabinet integration, or modular SKD/CKD component bundles including factory-tested LCD glass, matched A/D driver boards, and precision-stamped chassis hardware. Our engineering team provides comprehensive design support, delivering 2D engineering blueprints, 3D STEP CAD files, and connector pinout schematics.
Every production unit undergoes comprehensive factory burn-in testing under elevated temperature and humidity conditions, ensuring exceptional out-of-the-box reliability for overseas project deployments.
System Integrator Frequently Asked Questions
**Q1: Are special graphic cards required to drive this stretched resolution?**
No. Standard integrated and discrete graphic chipsets on modern Windows, Android, and Linux devices natively support custom panoramic resolutions through standard HDMI EDID recognition.
**Q2: How does the display perform under bright commercial lighting?**
With calibrated commercial luminance output and anti-glare polarized surface treatment, the screen diffuses harsh ambient ceiling reflections to ensure crisp readability across retail aisles and transit concourses.
**Q3: What warranty and after-sales support does ZXT provide?**
We provide comprehensive commercial factory warranties backed by responsive technical engineering assistance, schematic pinout documentation, and readily available modular replacement parts.
Request Technical Blueprints and Factory Direct Quotation
Ready to deploy the 88-inch panoramic stretched bar monitor in your next commercial project? Contact our engineering sales team today to request comprehensive 3D CAD drawings, verify connector pinouts, or arrange a 3-day evaluation sample. Send us your project specifications and delivery timelines, and our technical staff will return an official factory-direct proposal within two hours.
