touchscreen
88 Inch Lcd Bar Monitor Display Shelf Digital Signage Ultra-Wided Shelf Screen
88 Inch Metal Stretched LCD Display Display area:2158.85*600mm Resolution:3840*1080 Material:Metal、Tempered glass Touch style:G+FF Capacitive Touch screen/Multi-point infrared touch screen
88 Inch Stretched LCD Panel for Retail Media Infrastructure and Smart Shelf Display Systems
Modern retail environments are rapidly evolving into data-driven media ecosystems where physical shelves are no longer static product holders but dynamic communication platforms. The 88-inch stretched LCD panel is designed to support this transformation by functioning as a core component of retail media infrastructure, enabling continuous digital communication across long shelf sections, retail aisles, and commercial display zones.
Unlike conventional digital signage that operates as standalone advertising devices, this ultra-wide display integrates into shelving systems to create a seamless visual layer that connects products, promotions, and brand messaging in real time. Its extended form factor allows retailers to maximize visual exposure while maintaining a clean and organized store layout.
For retail technology providers, system integrators, and OEM solution developers, this display represents a scalable hardware platform for next-generation smart retail environments.
The Rise of Retail Media Infrastructure
Retail is no longer just about physical product placement. It has evolved into a media-driven environment where every shelf becomes a potential communication channel. Retail media networks (RMN) allow brands and retailers to monetize in-store attention through dynamic digital content.
A commercial stretched lcd screen plays a critical role in this transformation by enabling:
- Continuous shelf-level advertising
- Real-time promotional updates
- Brand storytelling at point-of-decision
- Dynamic pricing communication
- Category-level product messaging
- In-store digital campaign synchronization
By turning shelving systems into media surfaces, retailers can significantly increase customer engagement and advertising effectiveness.
88 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 82.2 inch | |
Resolution | 3840*1080 | |
Brightness | 410 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | Multi-point infrared touch screen | |
Touch points | 10 points | |
Rear glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Interpolation resolution | 32768 × 32768 | |
Response speed | < 5ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Waterproof situation | Surface waterproof (IP65 optional) | |
Multi-touch supported operations system | Windows10/Windows8/Windows7/WindowsXP/Vista/ Android /Linux | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+FF Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Commercial Features Designed for Long Shelf Integration
Ultra-Wide Form Factor
The elongated display is engineered for long shelf environments, ensuring uninterrupted visual continuity across product sections.
High-Definition Commercial LCD
The panel delivers sharp image quality, vivid color reproduction, and wide viewing angles, ensuring content visibility from different customer positions.
Continuous Multimedia Playback
Supports video loops, dynamic graphics, promotional banners, scrolling messages, and real-time content updates.
Industrial-Grade Stability
Designed for continuous operation in commercial environments such as supermarkets, convenience stores, and shopping malls.
Application Scenarios
Supermarket Shelf Systems
Turn long shelving areas into dynamic media channels for product promotion and pricing communication.
Convenience Stores
Deliver real-time promotional messages and impulse purchase advertising at eye level.
Shopping Mall Retail Zones
Support tenant advertising and brand campaigns across long corridor installations.
Electronics Retail Stores
Display product features, comparisons, and promotional bundles across multiple product categories.
Beverage & FMCG Sections
Enhance brand visibility in high-traffic fast-moving consumer goods areas.
Chain Retail Networks
Enable synchronized content updates across multiple stores via centralized CMS platforms.

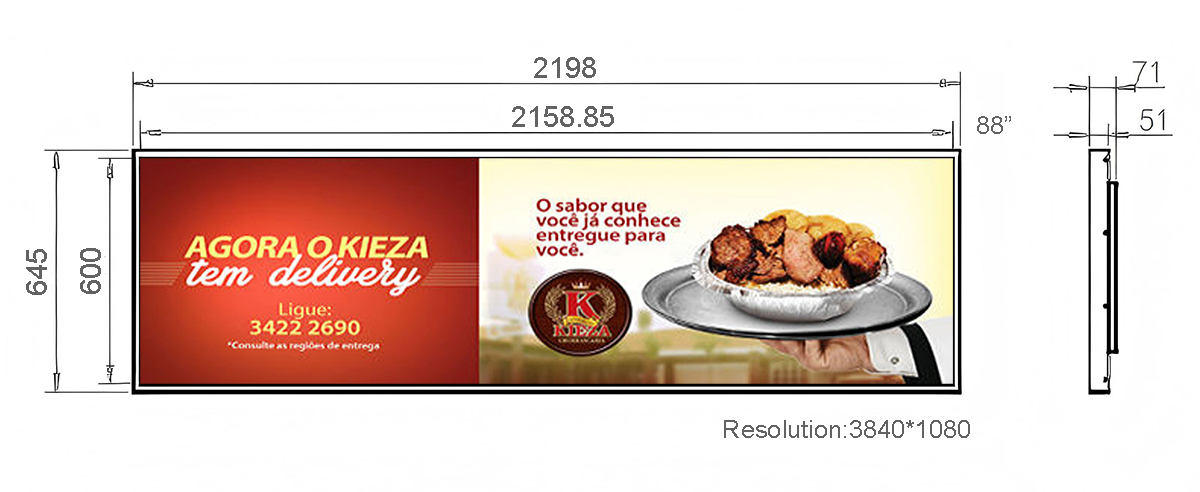

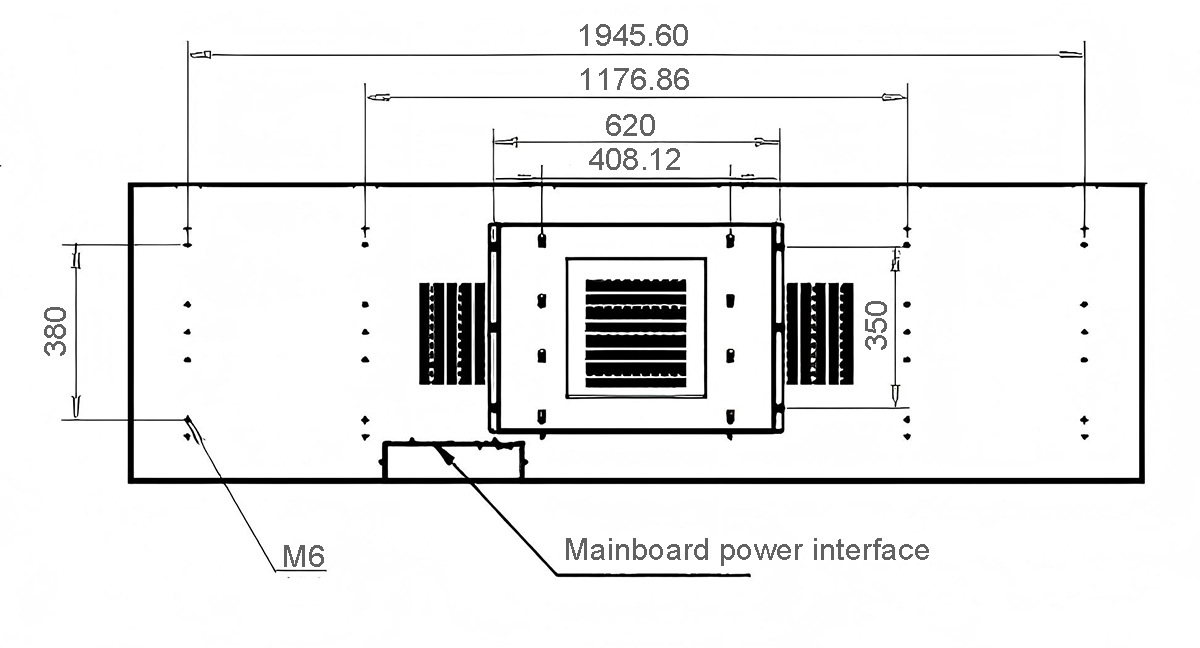

Product Dimension as follows:
Frequently Asked Questions
Q1: What is a stretched LCD panel used for?
It is widely used in retail media systems, supermarket shelving, shopping malls, convenience stores, and commercial digital signage networks.
Q2: Can this display be integrated into a shelf system?
Yes. It is designed specifically for shelf-edge and long retail display integration.
Q3: Does it support remote content management?
Yes. It can connect to CMS platforms for centralized content control and scheduling.
Q4: Is it suitable for 24/7 operation?
Yes. It uses commercial-grade components for continuous operation in retail environments.
Q5: Why choose ZXTLCD?
Because we provide factory-direct manufacturing, OEM/ODM customization, engineering support, and reliable after-sales service for global B2B customers.
The Future of Retail Media Systems
Retail environments are shifting toward fully integrated media ecosystems where shelving, pricing, and branding are unified through digital infrastructure. The stretched LCD display is becoming a foundational component in this transformation, enabling retailers to turn passive shelves into active communication channels.
The 88-inch stretched lcd screen represents this shift toward intelligent retail media infrastructure, combining hardware reliability with scalable digital communication capabilities.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
